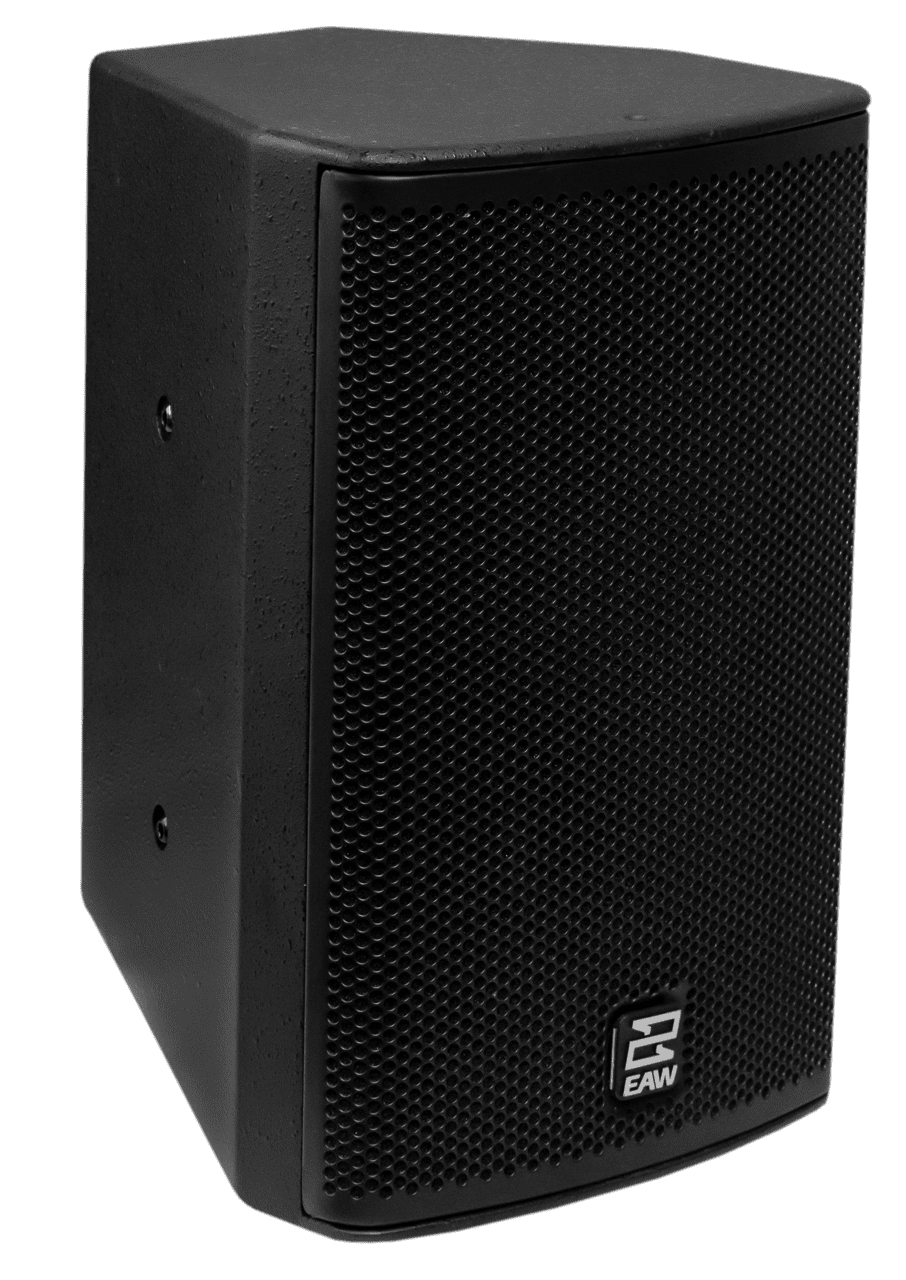

EAW’s MKC 2-way coaxial point source loudspeakers are flexible tools that help sound system designers provide exceptional sound in small and medium sized spaces.

Approaching installs from a new angle

With a spectrum of driver sizes, each MKC product fills a unique need for a number of use cases. Each cabinet was designed with this in mind, incorporating angles into the form factor that allows for low profile placement of the loudspeakers to a ceiling, wall, or structure.

Key Selling Points

• Highly Versatile, compact coaxial loudspeaker
• 1 in Dome tweeter provides superior dispersion, fidelity and output
• Flexible accessory solutions for wall, ceiling or pole mount applications
• Weather protection and transformer options
• Companion UXA4403 amplifiers

Specifications

Frequency Response: 70Hz-20kHz

Max SPL: 125dB

Operating Mode: Single-Amp (LF/HF, DSP w/ EAW Focusing & DynO)

Subsystem: LF Transducer - 1×6.5in cone, 1.5in VC, Vented HF Transducer - 1x1in dome tweeter, coaxial

Nominal Beamwidth: 110 degrees conical

Power Handling: 250W @ 8ohms

Connections: 1x Neutrik NL4, 2-pin barrier strip

Dimensions: 12.8 x 8.2 x 8.1in (324 x 208 x 206mm)

Weight: 10.7 lbs (4.9 kg)
