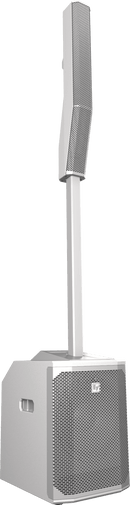

Electro-Voice EV EVOLVE50-SW

Electro-Voice EVSKU: EVOLVE50-SW

Price:
$1,899

Shipping calculated at checkout

Description

Column speaker sub US, white - MUST ORDER WITH EVOLVE50-TW

EVOLVE 50

Portable Column System

  • CLEAN, COMPACT DESIGN — BUILT TO BLEND IN
  • EASY TRANSPORT & SETUP
  • PROFESSIONAL PA PERFORMANCE
  • WIDE, EVEN COVERAGE
  • QUICKSMART DSP
  • WIRELESS CONTROL & MONITORING
  • HIGH?QUALITY BLUETOOTH®* AUDIO
  • NOW AVAILABLE IN WHITE

The EVOLVE 50 Portable Column System is a three component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP.

The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12” subwoofer capable of a functional frequency output down to 37 Hz.

The bi-directional aluminum pole’s connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole. The signal is internally routed to the components.

Eight 3.5" neodymium drivers in the column array coupled with the 12" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag.

The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

The new Electro-Voice QuickSmart Mobile application utilizes Bluetooth® Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High resolution Bluetooth® audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment.

Bluetooth® is available in select countries.


Frequency response (-3 dB)1 43 Hz-20 KHz
Frequency range (-10 dB)1 37 Hz-20 KHz
Maximum SPL2 127 dB



Coverage (H x V) 120° x 40°
Amplifier rating 1000 W
LF channel rating 500 W
HF channel rating 500 W
Crossover frequency 200 Hz
Connectors 2x XLR/TRS Combo Jack Input
1x 3.5 mm Input
1x Stereo RCA Input
1x Wireless Bluetooth® Audio Input
1x XLR THRU Output
1x XLR MIX OUT Output
Enclosure Sub: 15 mm plywood
Column: Composite
Pole: Aluminum
Grille Steel with black or white powder coat
Color Black or white
Dimensions (HxWxD): mm (in) Sub: 530 x 345 x 471 (20.9 x 13.6 x 18.5)
Column: 825 x 102 x 172 (32.5 x 4.0 x 6.9)
Pole: 929 x 48.5 x 55 (36.6 x 1.9 x 2.2)
Net weight Sub: 44.66 lb (20.3 kg)
Column: 10.34 lb (4.7 kg)
Pole: 2.75 lb (1.25 kg)
Sub cover: 0.9 lb (0.4 kg)
Bag for column and pole: 1.87 (0.85 kg)
Shipping weight Sub box: 50.71 lb (23 kg)
Column box: 18.30 lb (8.3 kg)
Power consumption3 100-240 V AC, 50-60 Hz, 1.5-0.6 A
1 Full-space measurement using music DSP preset.
2 Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
3 Current rating is 1/8 power.
