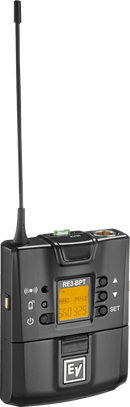

Electro-Voice EV RE3-BPT-5H

Electro-Voice EVSKU: RE3-BPT-5H

Price:
$279

Shipping calculated at checkout

Description

RE3-BPT-5H

RE3-BPT

Bodypack transmitter

  • Robust metal body
  • Sync function for easy frequency setup
  • Selectable low and high output power (band specific)
  • Up to 36 MHz tuning bandwidth (band specific)
  • Unique magnetic latch and lock for easy access to batteries

The RE3-BPT is a small, lightweight yet robust UHF bodypack transmitter. It is easily worn and concealed, making it an ideal form factor for a wide variety of professional presentation and performance applications. From stand-up presentations, to theatrical and musical performances, to high-energy fitness and athletic situations, this sleek and rugged transmitter fits comfortably and accepts a wide variety of input devices.

The all-metal body is robust and durable, and operates on 2 AA alkaline or rechargeable NiMH cells.

The ultrasonic sync function makes for a simple system setup by syncing the transmitter to the receiver frequency tuning and other functional data.

The selectable output power (band specific) assists in overcoming the challenges of both long, or short, transmission ranges.

The tuning bandwidth affords generous frequency tuning options helping to avoid various sources of possible interference.

The unique magnetic sliding latch and lock mechanism keeps the battery door closed securely and makes opening to access the batteries effortless.

Recharging contacts provide for functional use with the optional BC2 charging station allowing the NiMH rechargeable cells within two bodypack transmitters to be charged without removal.


Frequency oscillation mode Phase-locked loop (PLL)
Available band names, tuning
bandwidths, and carrier
frequency ranges
5L: 36 MHz (488-524 MHz)
5H: 36 MHz (560-596 MHz)
6M: 10 MHz (653-663 MHz)
8M: (823-865 MHz)*
T: 3 MHz (803-806 MHz)
*8M is split into two segments:
823-832MHz: 9MHz
863-865MHz: 2MHz
Sync frequency Ultrasonic



RF power output Frequency band specific:
5L (488-524MHz): Low 10mW / High
50mW
5H (560-596MHz): Low 10mW / High
50mW
6M (653-663MHz): Low 10mW /
High 20mW
8M (823-865MHz) 10mW
T (803-806MHz): Low 10mW / High
50mW
Display by LCD + LED
Function controls Power, mute, group, channel,
frequency, sensitivity adjustment,
input level attenuation, RF power,
auto off, key lock.
RF stability <±10kHz@Fc
Modulation frequency shift Wideband FM ±48kHz deviation
Harmonic radiation <?50dBc
Input jack 4-pin mini jack
Battery 2 x AA alkaline battery or NiMH
rechargeable battery
Charging contacts Yes
Finish Black polyurethane paint
Dimensions (without
antenna)
Height: 3.2 in. (81.5mm)
Width: 2.54 in. (64.5mm)
Depth: 0.98 in. (25mm)
Net weight 6.14 oz. (0.174 kg)
Gross weight 8.29 oz. (0.235 kg)
