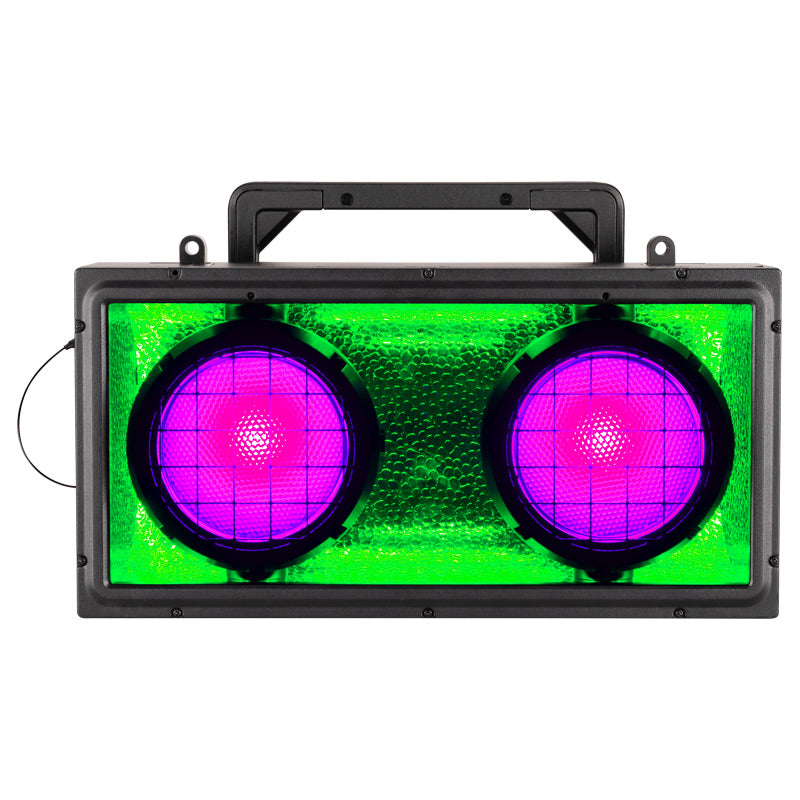

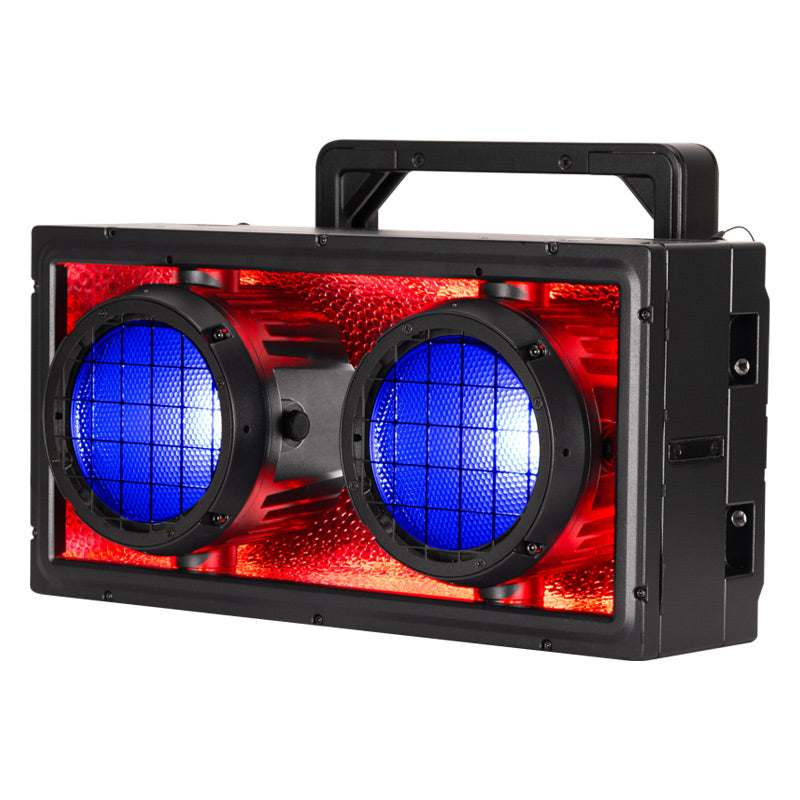

ADJ Encore DBX, IP65 Dual Blinder, 2 x 150 Watt RGBAW, Individually Controllable Cells, RGB Background, Aria X2

Encore DBX is a dynamic effect fixture featuring a 5-color LED dual-lens blinder/strobe and RGB background LEDs for stunning visual effects. Powered by two 150W RGBAW LEDs, it offers flexible control, variable white color temperatures, and rugged IP65-rated durability.

Encore DBX is a versatile and powerful effect fixture designed for creating striking visuals at any event. Featuring a 5-color LED dual-lens blinder/strobe and vibrant RGB background LEDs, it delivers dynamic lighting effects and intense audience interaction. Powered by two 150W RGBAW LEDs and backed by a high-output RGB reflector, the Encore DBX offers a total lumen output of 11,400+, producing rich colors and sharp contrast.

With features like individually controllable cells, built-in programs, and variable white color temperature (2700K-6500K), the Encore DBX provides exceptional creative flexibility. It includes selectable dimming modes, electronic strobe, and refresh rates (900Hz-25K) for smooth, flicker-free operation. The fixture is built to last with a rugged IP65-rated housing, making it suitable for both indoor and outdoor use. Control options include DMX512, Bluetooth, and the Aria X2 wireless management system for over the air firmware/software updates, offering seamless integration into any lighting setup. The Encore DBX is the perfect solution for immersive lighting effects on stage productions, theatres and corporate events.

Specifications

Features:

• 2 Cell, Five Color (RGBAW) LED Blinder
• Background RGB LEDs
• Individually Controllable Cells
• Built-In Cell Programs
• Built-In Background LED Programs
• Tungsten Control Mode

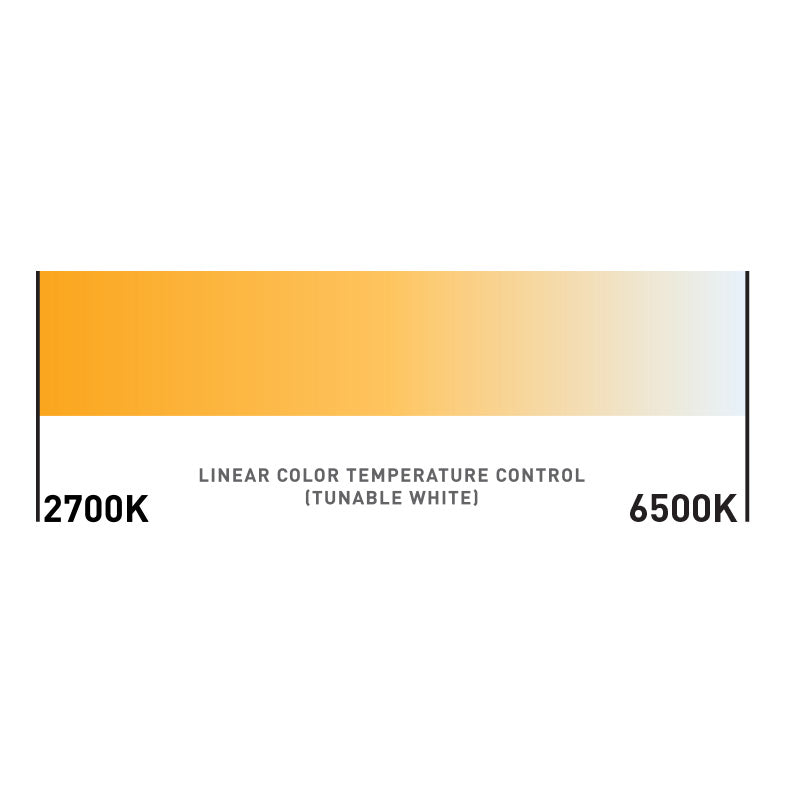

• Variable White Color Temperature Control (2,700K ~ 6,500K)
• User Selectable LED Refresh Rates (900Hz ~ 25K)
• 6 User Selectable Dim Modes
• 4 User Selectable Dim Curves
• Electronic Strobe (1 ~ 20Hz)
• Electronic Dimming
• Aria X2 Wireless Management System

Source:

• 2x 150W RGBAW LED's
• RGB Background LED's
• 50,000 Hour Average LED Life*
• May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

Photometrics:

• Total Lumen Output: 11,465
• CRI: 89

Optical:

• Beam Angle: 65.7°
• Field Angle: 90.9°

Effects:

• Variable Strobe Rate: 900Hz - 25JHz
• Variable 16-bit Dimming Modes and Curves

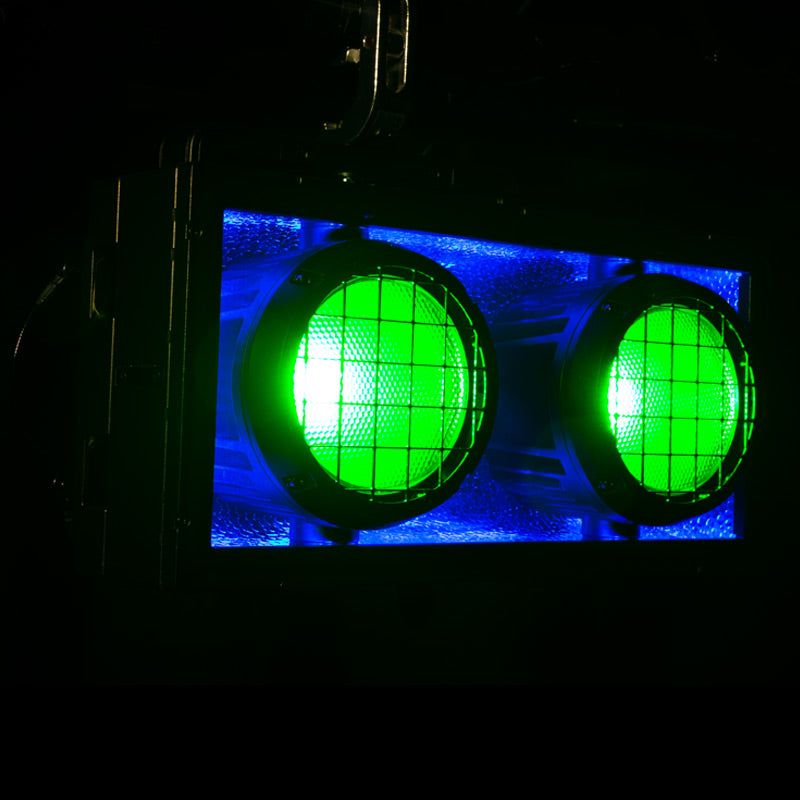

• RGB Background Reflector Effect

Color:

• RGBAW Color Array
• RGB Background
• Variable CCT 2700K - 6500K + five presets

Physical:

• IP65 Housing
• OLED Digital display
• Adjustable Mounting Yoke with Omega Receivers
• Second Set of Omega Receivers on Rear

Control:

• DMX512
• Aria X2 Wireless Management / DMX System
• Bluetooth
• RDM (Remote Device Management)
• (26) DMX Channel Modes (1CH/ 2CH-A / 2CH-B / 4 CH / 5CH / 8CH / 10CH / 11CH / 12CH-A / 12CH-B / 16CH / 18CH-A / 18CH-B / 19CH / 21CH / 22CH / 24CH / 25CH / 29CH / 31CH / 34CH / 35CH / 40CH / 41CH (modes)
• On-board Manual Control Mode
• Primary / Secondary Mode

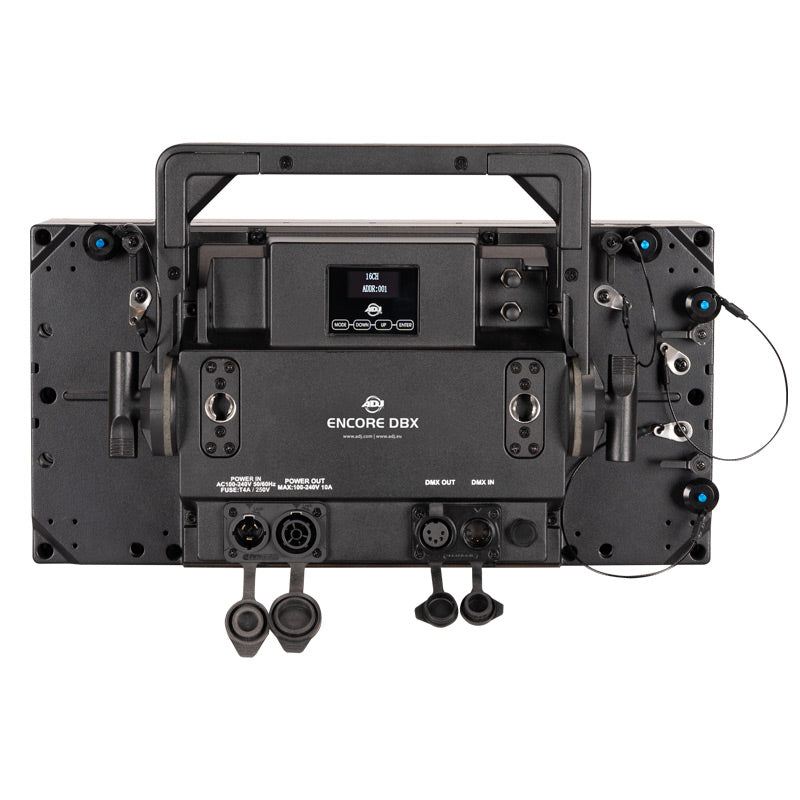

Connections:

• 5pin XLR IP65 DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
• IP65 Locking Power Sockets

Dimensions & Weight:

• Length: 9.1” (231mm) Width: 16.5” (420mm) Height: 10.3” (261mm)
• Weight: 25.4 lbs. (11.5 kg)

Power:

• AC100-240V/50Hz-60Hz Input
• 347W Power Consumption
• Link 2 pieces @120VAC or 6 pieces @ 230VAC

Thermal:

• Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
• Storage Temperature: -22°F to 113°F (-30°C to 45°C)

Certifications & IP Rating:

• CE
• cETLus (Pending)
• FCC
• IP65

Included Accessories:

• (1) Outdoor Locking Power Cable
• (1) Safety Cable

Specifications and documentation subject to change without notice.
