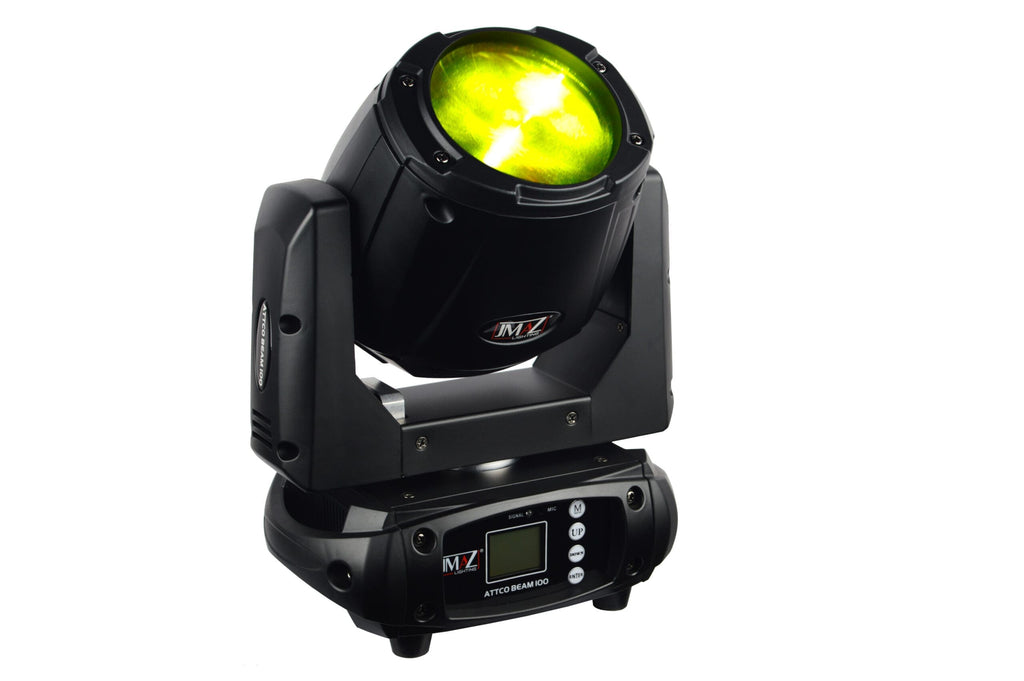

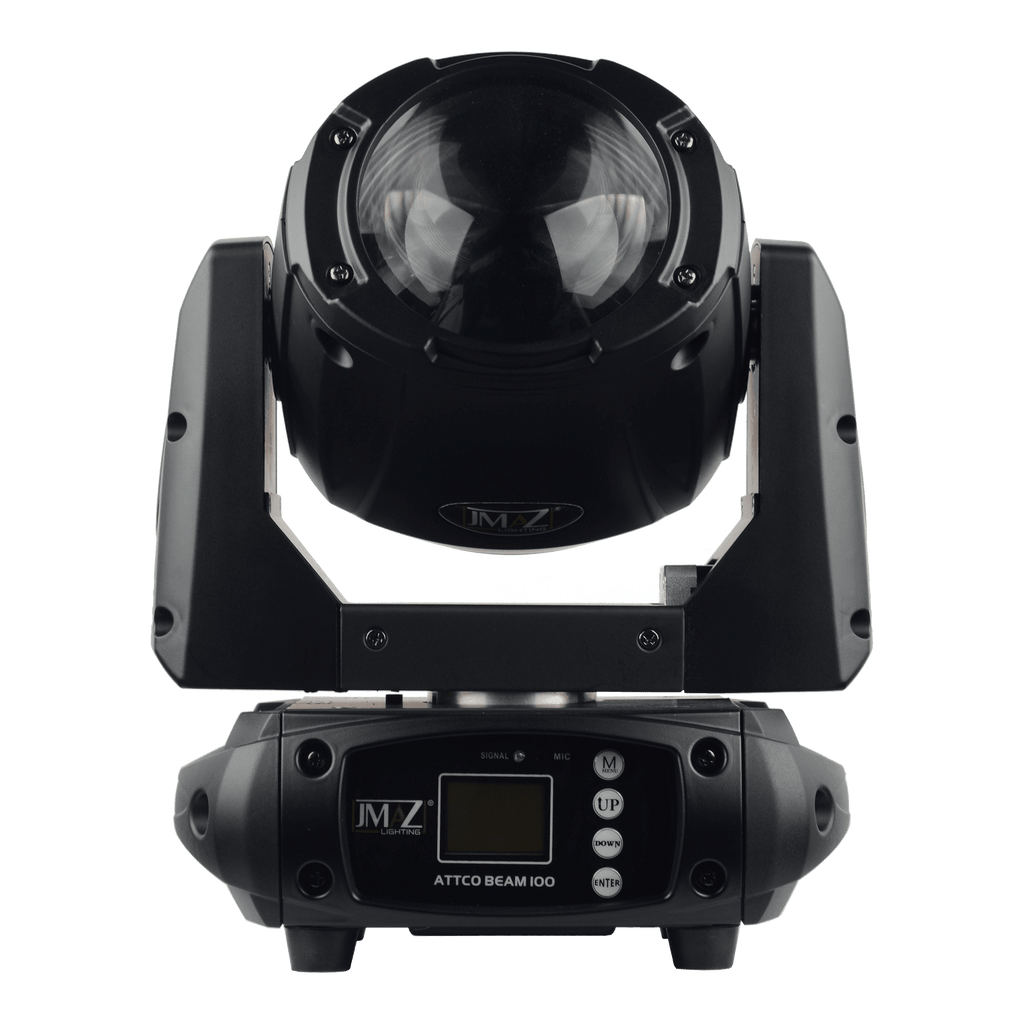

The JMAZ ATTCO BEAM 100 Moving Head Beam features a powerful 75W 7500K white LED with a 2° beam angle, 12-color wheel, and 17 static gobos with an 8-facet prism and frost filter. With 9 auto/sound programs and DMX512 or RF remote control, it’s ideal for dynamic lighting effects. Includes an RF remote, Omega bracket, powerCON cable, DMX cable, and safety accessories for easy setup.

Main Features

• 75W 7500K White LED
• Color Wheel: 12 Colors + Open
• Static Gobos: 17 + Open w/8-Facet Prism & Frost Filter
• Beam Angle: 2°
• Protocols: 3-Pin In/Out DMX512, RF Remote
• 9 Built-In Auto/Sound Programs
• powerCON In

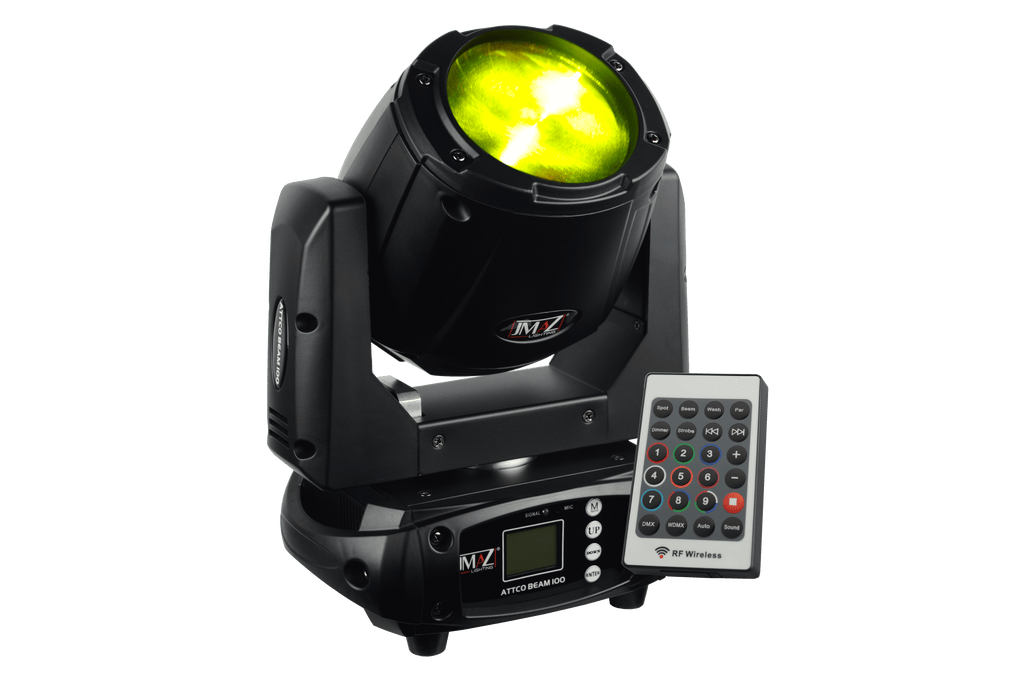

• Included: RF Remote, Omega Bracket, powerCon Cable, DMX Cable, Safety Cable, Manual

Technical Specifications

Light Source

• 75W 7500K White LED

Color System

• Color Wheel: 12 Colors + Open

Optics

• Beam Angle: 2°

Dynamic Effect

• 9 Built-In Auto/Sound Programs
• Static Gobo Wheel: 17 Gobos + Open
• Prism: 8 Facet

Frost Filter

• Variable Strobe and Dimming

Control

• Protocols: 3-Pin In/Out DMX512, RF Remote
• Personalities: 2 Modes 10/12
• Display: 2.4″ TFT LCD Display

Electronics

• Dimmer: 0-100% Linear
• Operating Temperature: -20° C to 45° C

Body

Quick-Lock Omega Bracket

• Pan Angle: 630°
• Title Angle: 270°
• High Temperature Engineered Plastic and Cast Aluminum Casing

Physical

• Cooling: Fan
• Pan/Tilt: 8/16 bit smooth
• powerCON In

Electrical

• Max Power Consumption: 120W
• Input Voltage: 110-240V, 50/60Hz
• 2 x Omega Brackets
• 1 x DMX Cable
• 1 x powerCON Cable
• 1 x RF Remote
• 1 x Safety Cable
• 1 x User Manual

Item Dimensions & Weight

• Dimensions: 11.4″ x 8.3″ x 8.7″
• Weight: 7.7 lbs

Warranty

2 Years
