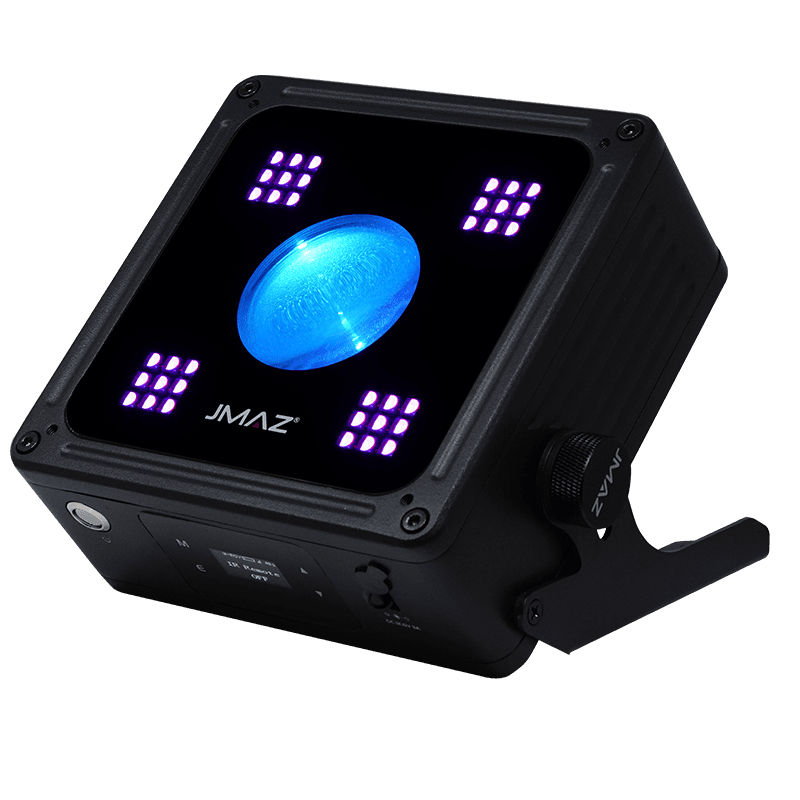

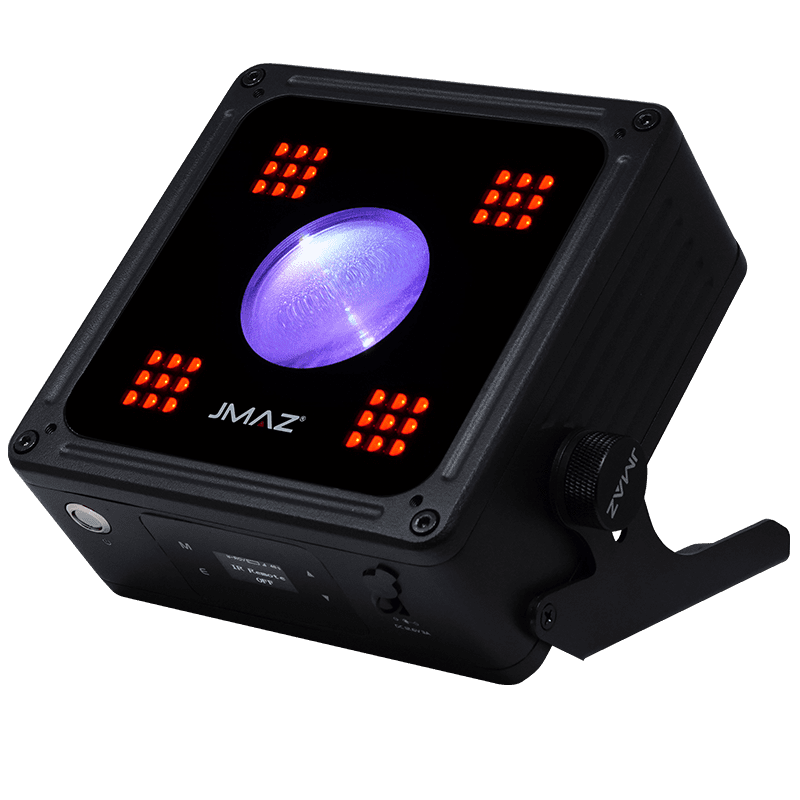

The JMAZ MAD PAR RUBIX 6PK is a versatile Injection Molded Case with 6 20W RGBA + 18W (36 x 0.5W) RGB+WW SMD LED battery-powered outdoor uplight, offering stunning lighting effects with 73 preset color programs, 50 sound-active modes, and 72 auto/fade options. Its IP65 rating ensures durability outdoors, while its adjustable beam angles (20°/40° with diffuser) and Outer SMD LED: 120° Beam Angle creatives flexibility. Enjoy up to 14 hours of runtime (40 hours in battery-saving mode) with a 4-hour recharge time. Wireless DMX and IR remote compatibility make it easy to control, and it includes an IR remote, diffuser filter, A/C charger, and manual. Perfect for vibrant, reliable outdoor lighting.

Main Features

• Injection Molded Case w/6 MAD PAR RUBIX Units
• Each Unit: 20W RGBA LED
• Each Unit: 18W (36 x 0.5W) RGB+WW SMD LED
• Individual Control Center LED & Outer LED
• IP65 Outdoor Rated
• Max 16 Hour Battery Life / 40 Hour In Battery Saving Mode
• Charging Time: 4 Hours
• CCT: 2300K – 8500K
• Center LED: 20W RGBA 40° Beam Angle
• Outer SMD LED: 120° Beam Angle
• 20° Added Diffuser Included
• Protocols: Wireless DMX, IR Remote
• Includes: IR Remote, Diffuser Filter, A/C Filter, A/C Charger, Manual
• *** PATENT PENDING***

Technical Specifications

Light Source

• 20W RGBA LED
• 18W (36 x 0.5W) RGB + WW SMD LED
• LED Life Expectancy: 50,000 hrs

Color System

• RGBA Color Mixing 8/16 bit
• RGB+WW SMD LED
• CCT: 2300K to 8500K

Optics

• Advanced Lens Optic: 40° Beam Angle
• Diffuser Angle (Included): 60° Beam Angle
• SMD LED: 120° Beam Angle

Dynamic Effect

• Max 16 Hour Battery Life / 40 Hour In Battery Saving Mode
• Charging Time: 4 Hours
• Selectable Battery Saving Mode: 25%, 50%, 75%, 100%
• 73 Preset Color Programs per light source (LED & SMD)
• 99 Preset Color Combinations for LED + SMD
• 80 Advanced Sound Active Mode
• 72 Auto / Fade Built-In Programs

Stand Alone Color Mixing

Electronic Dimmer

• Fading/Jumping Macros Light Change And Jump
• Shutter/Strobe: Electronic
• Strobe Rate: 0-25 Hz

Preset Color Temperature

• 4 Favorite Color Customization Triggered via DMX / IR Remote

Control

• Control Protocol: Wireless DMX, IR Remote
• Personalities: 5/8/12/20/25 CH DMX Modes
• OLED Graphical Display

Electronics

• Strobe Shutter: 1-25Hz
• Dimming Modes: 4

Body

• Die-Cast Aluminum and Steel Structure

Physical

• Adjustable Tilt Base: 0-40 Degree
• Cooling: Fanless
• Certification / Qualifications
• RoHS, CE, FCC
• IP Rating: IP 65
• Operating Temperature:

–10 ° C ( 14 ° F) To

60 ° C ( 140 ° F)

Electrical

• Input Voltage: 100 V – 240 V AC, 50/60 Hz
• Power Consumption: 60W
• PWM: 1.5KHz
• Battery Voltage: 11.1V
• Battery Capacity: 10,400 mAH, 115.5 Wh/hour
• Charger: 12.6V, 3A ***UL Listed***
• Rechargeable Battery Type: Lithium Ion ***UL Listed***
• 1 x IP65 Waterproof Injection Mold Case (Holds 6 Units)
• 6 x Mad Par RUBIX
• 6 x Diffuser
• 6 x A/C Charger

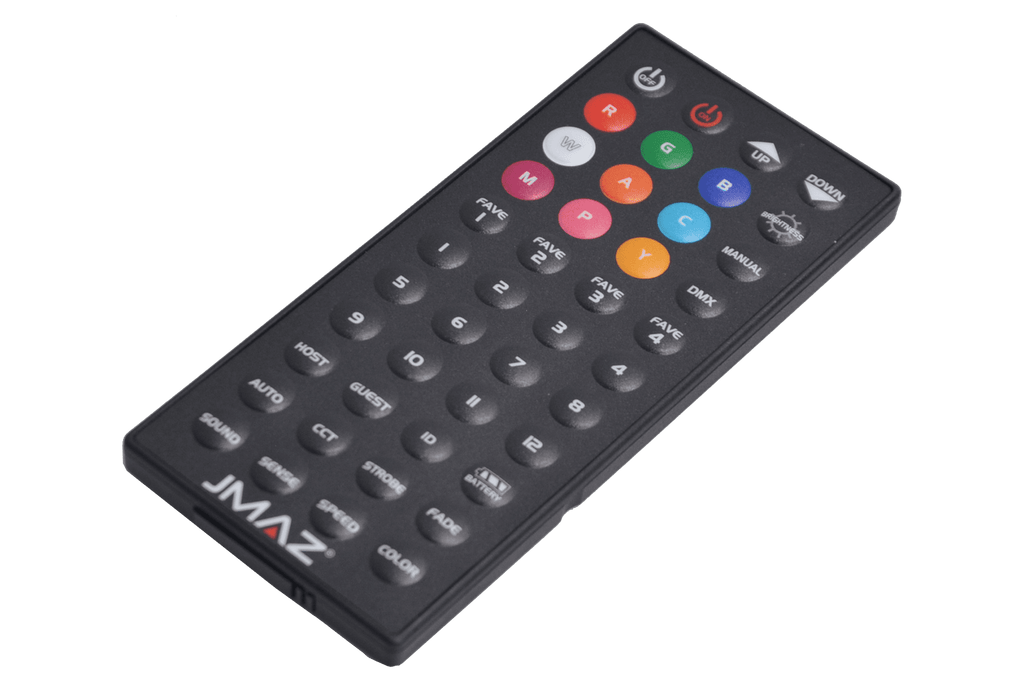

• 3 x IR Remote
• 1 x 6in1 Power Charger
• 1 x User Manual
• 1x QSG

Item Dimensions & Weight

• Dimensions: 7.2″ x 5.9″ x 3″
• Weight: 4.4 lbs
