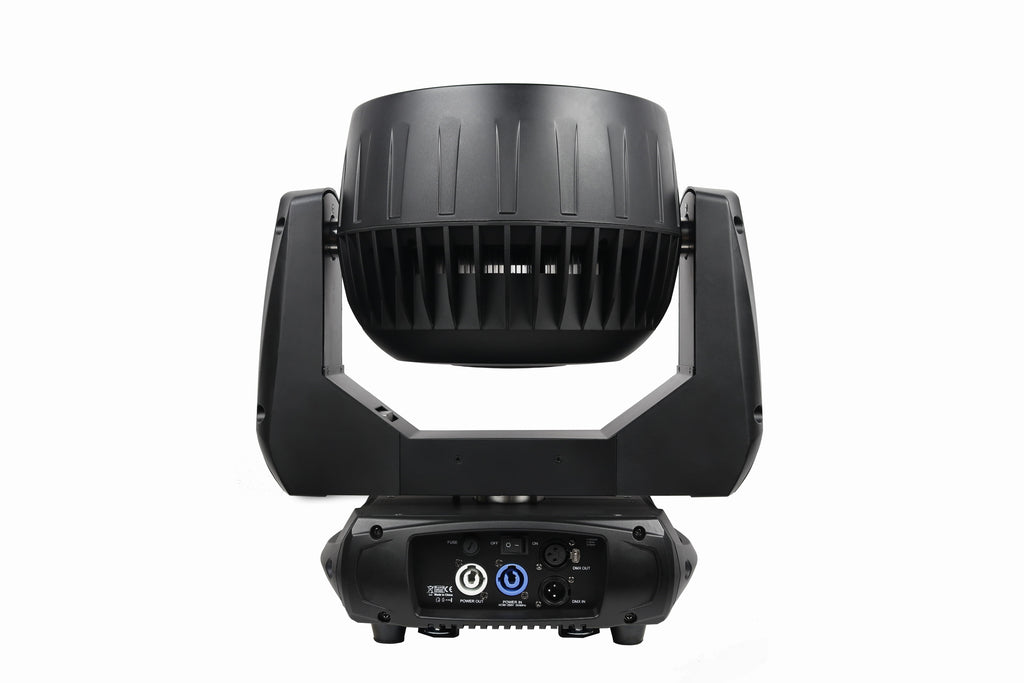

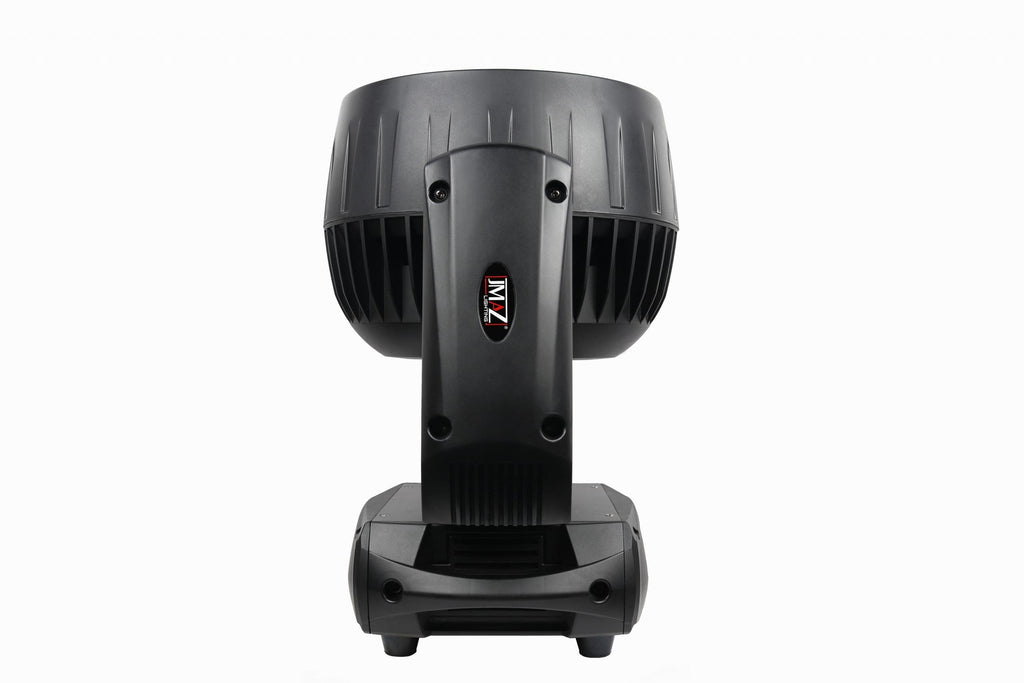

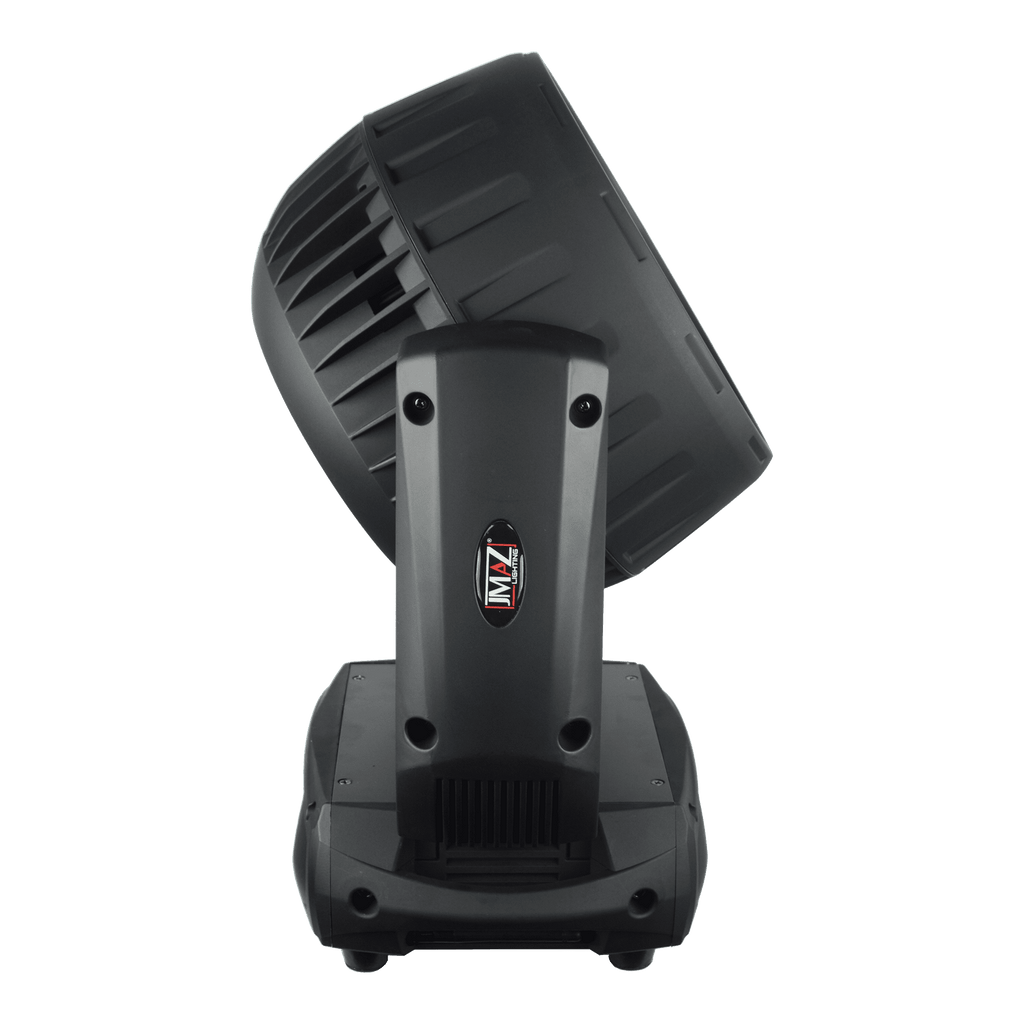

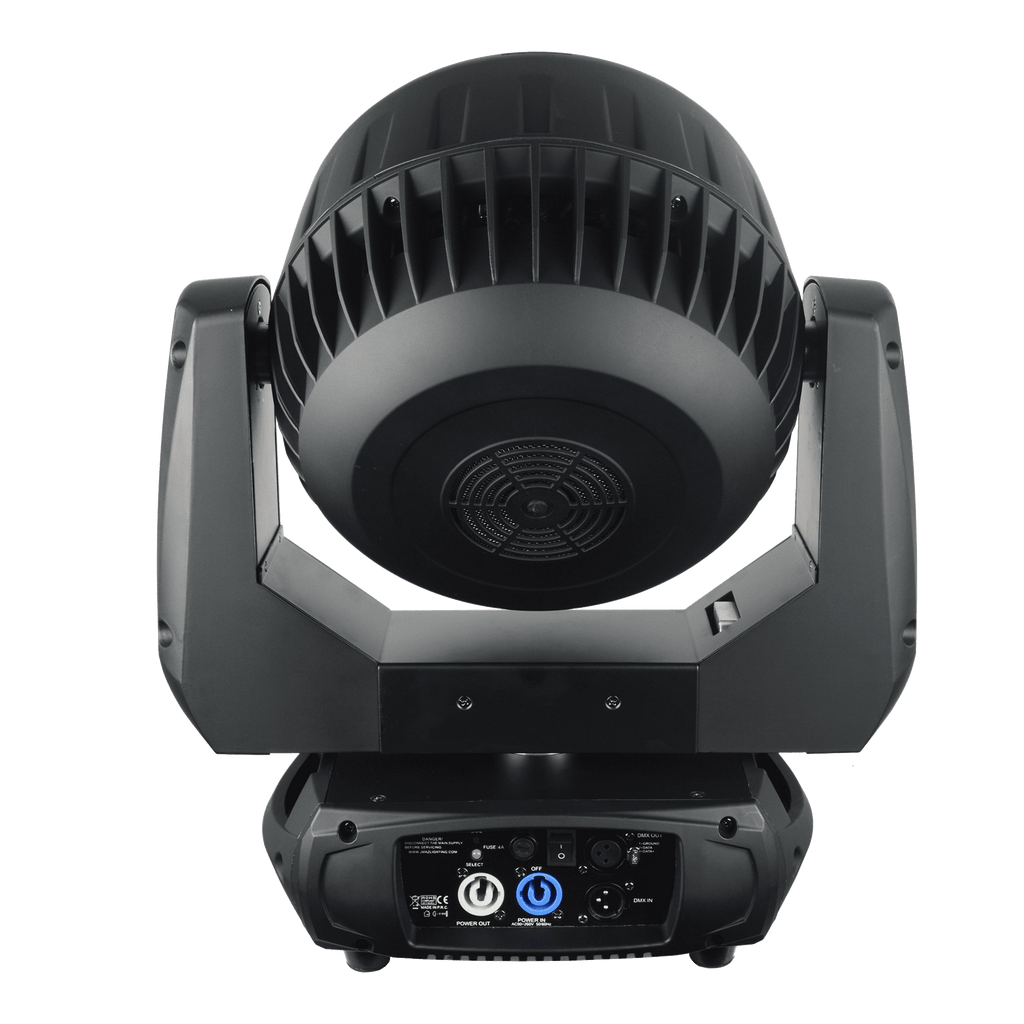

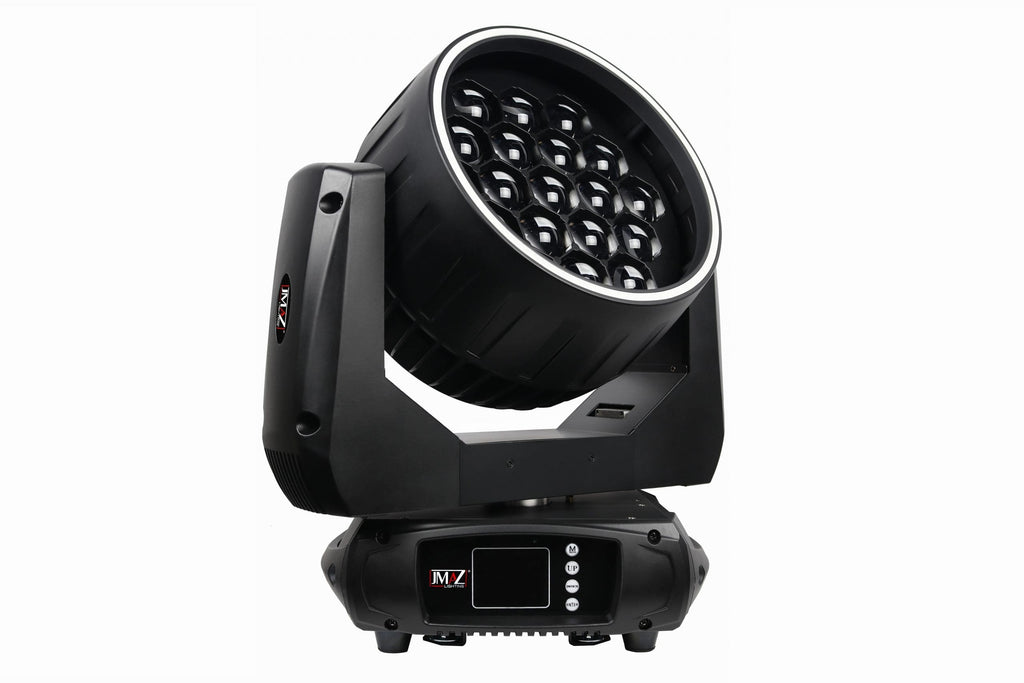

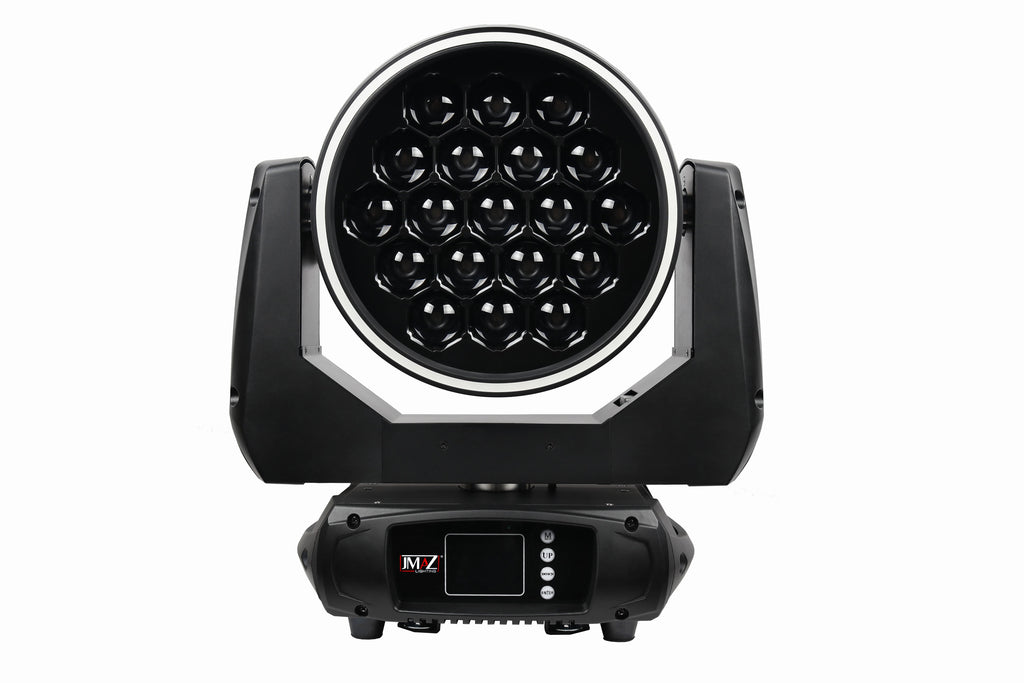

The JMAZ PHANTOM PIXELWASH 1930Z is a powerful 570W RGBW LED Zoom Moving Head with a ring effect and 6° to 60° electronic zoom. It offers a wide CCT range (2700K-8000K), individual pixel control, and graphic effect macros for creative lighting effects. Supports DMX512, wireless DMX, and RF remote control. Includes an RF remote, Omega bracket, powerCON cable, and DMX cable, making it ideal for dynamic stage and event lighting setups.

Main Features

• 570W (19 x 30W) RGBW LEDs
• Ring Effect: 10W (48 x 0.2W) RGB SMD LEDs
• Electronic Zoom: 6° to 60°
• CCT: 2700K – 8000K
• Individual Pixel Control, Graphic Effect Macro
• Protocols: 3-Pin In/Out DMX512, Wireless DMX, RF Remote
• 9 Built-In Auto/Sound Programs
• powerCON In/Out
• Included: RF Remote, Omega Bracket, powerCon Cable, DMX Cable, Safety Cable, Manual

Technical Specifications

Light Source

• 570W (19 x 30W) RGBW LEDs
• Ring Effect: 10W (48 x 0.2W) RGB SMD LEDs

Color System

• Color LEDs: RGBW
• Color SMDs: RGB
• CCT: 2700K -8000K

Optics

• Electronic Zoom: 6° to 60°

Dynamic Effect

• Individual Pixel Control, Graphic Effect Macro
• 9 Built-In Auto/Sound Programs

Electronic Zoom

Control

• Protocols: 3-Pin In/Out DMX512, Wireless DMX
• Personalities: 2 Modes 13/15
• Wireless Control: RF Remote
• Display: 2.4″ TFT LCD Display

Electronics

• Dimmer: 0-100% Linear Dimmer
• Operating Temperature: -35° C to 45° C

Body

Quick-Lock Omega Bracket

• Pan Angle: 630°
• Title Angle: 270°
• High Temperature Engineered Plastic and Cast Aluminum Casing

Physical

• Cooling: Fan
• Pan/Tilt: 8/16 bit smooth
• powerCON In/Out

Electrical

• Max Power Consumption: 570W
• Input Voltage: AC90-260V 50HZ/60HZ
• 2 x Omega Brackets
• 1 x DMX Cable
• 1 x powerCON Cable
• 1 x IR Remote
• 1 x Safety Cable
• 1 x User Manual

Item Dimensions & Weight

• Dimensions: 16.2″ x 11.1″ x 16.4″
• Weight: 29 lbs

Warranty

2 Years
