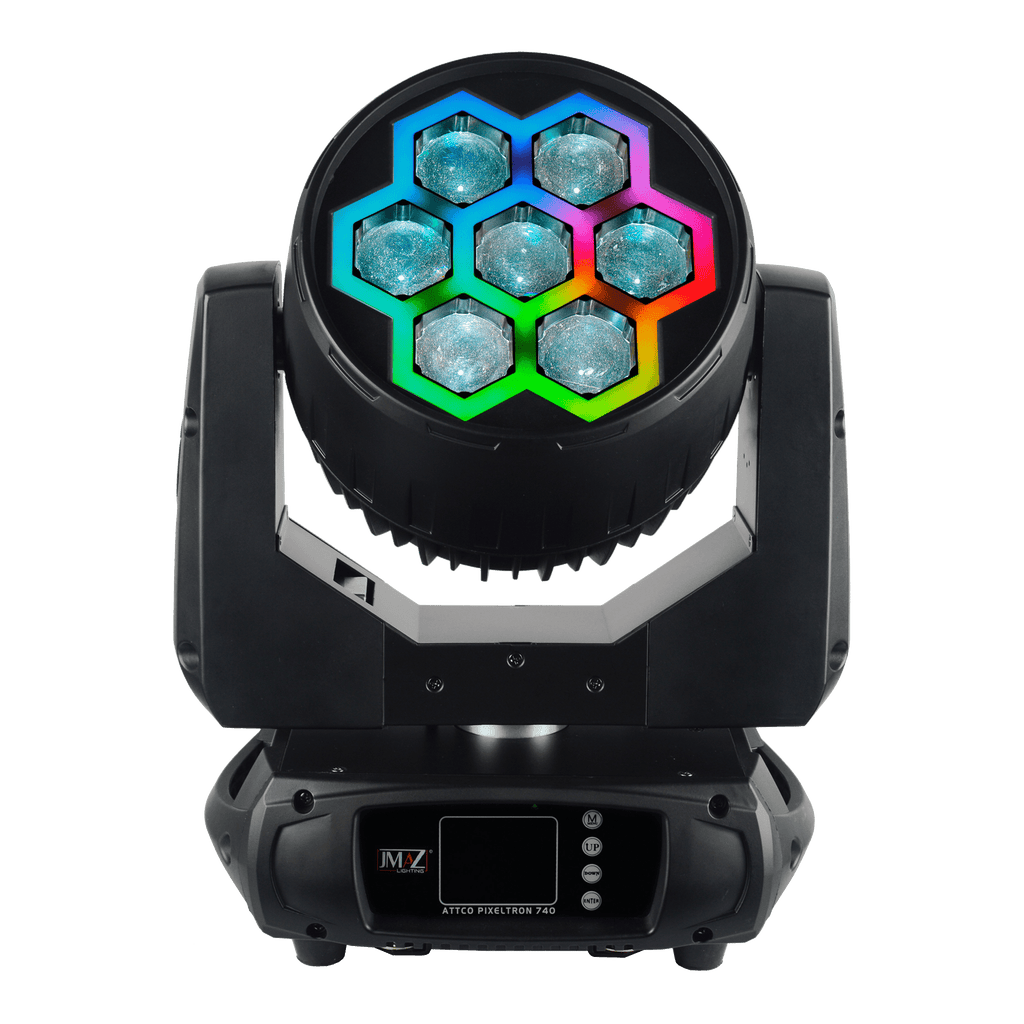

The JMAZ PIXL TRON 740Z is a 280W RGBW LED Zoom Moving Head with an impressive 6° to 60° electronic zoom and a Honeycomb Tron effect powered by 18W RGB SMD LEDs. With individual pixel control, graphic effect macros, and a color temperature range of 2700K-8000K, it delivers versatile lighting effects. Supports DMX512, wireless DMX, and RF remote control, and includes an RF remote, Omega bracket, powerCON, and DMX cables for professional setups.

Main Features

• 280W (7 x 40W) RGBW LEDs
• Honeycomb Tron Effect: 18W (90 x 0.2W) RGB SMD LEDs
• Electronic Zoom: 6° to 60°
• CCT: 2700K -8000K
• Honeycomb Tron Overlay
• Individual Pixel Control, Graphic Effect Macro
• Protocols: 3-Pin In/Out DMX512, Wireless DMX, RF Remote
• 9 Built-In Auto/Sound Programs
• powerCON In/Out

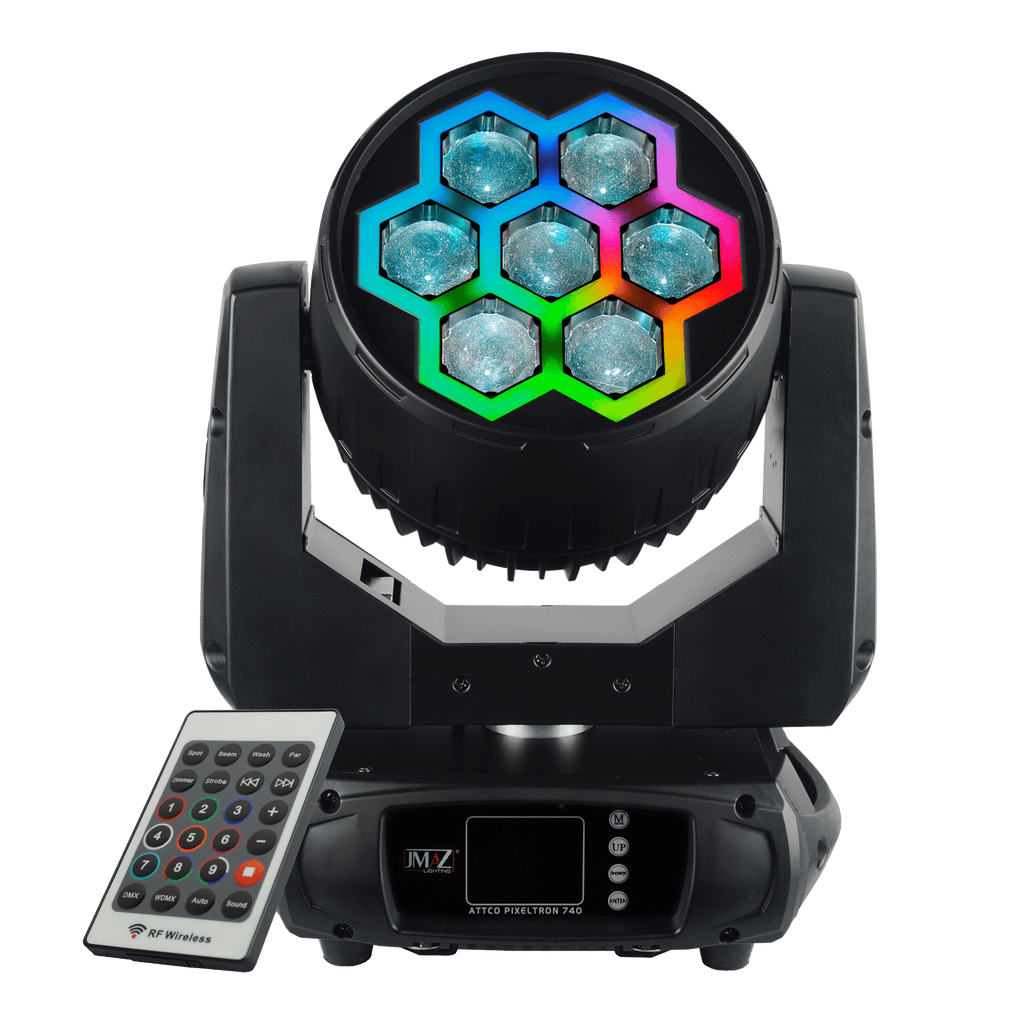

• Included: RF Remote, Omega Bracket, powerCon Cable, DMX Cable, Safety Cable, Manual

Technical Specifications

Light Source

• 280W (7 x 40W) RGBW LEDs
• Honeycomb Tron Effect: 18W (90 x 0.2W) RGB SMD LEDs

Color System

• Color LEDs: RGBW
• Color SMDs: RGB
• CCT: 2700K -8000K

Optics

• Electronic Zoom: 6° to 60°

Dynamic Effect

Honeycomb Tron Overlay

• Individual Pixel Control, Graphic Effect Macro
• 9 Built-In Auto/Sound Programs

Control

• Protocols: 3-Pin In/Out DMX512, Wireless DMX
• Personalities: 3 Modes 25/31/59
• Wireless Control: RF Remote
• Display: 2.4″ TFT LCD Display

Electronics

• Dimmer: 0-100% Linear Dimmer

Body

Quick-Lock Omega Bracket

• Pan Angle: 630°
• Title Angle: 270°
• High Temperature Engineered Plastic and Cast Aluminum

Physical

• Cooling: Fan
• Pan/Tilt: 8/16 bit smooth
• powerCON In/Out

Electrical

• Mains Power Supply:AC Mains
• Max Power Consumption: 350W
• Input Voltage: 110-240V, 50HZ/60HZ
• 2 x Omega Brackets
• 1 x DMX Cable
• 1 x powerCON Cable
• 1 x RF Remote
• 1 x Safety Cable
• 1 x User Manual

Item Dimensions & Weight

• Dimensions: 12″ x 15.6″ x 15.6″
• Weight: 21 lbs

Warranty

2 Years
