Description

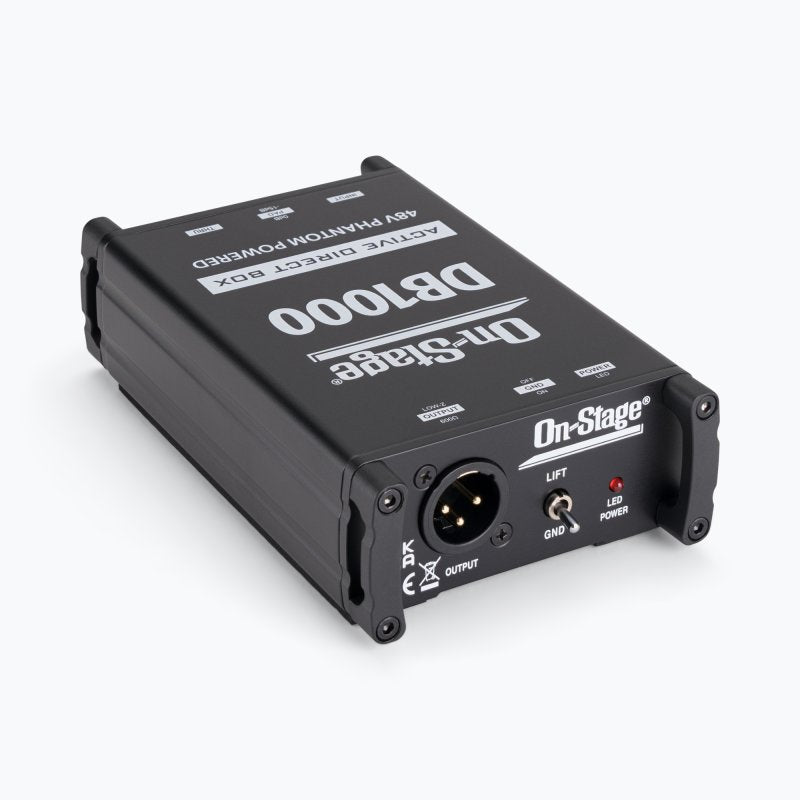

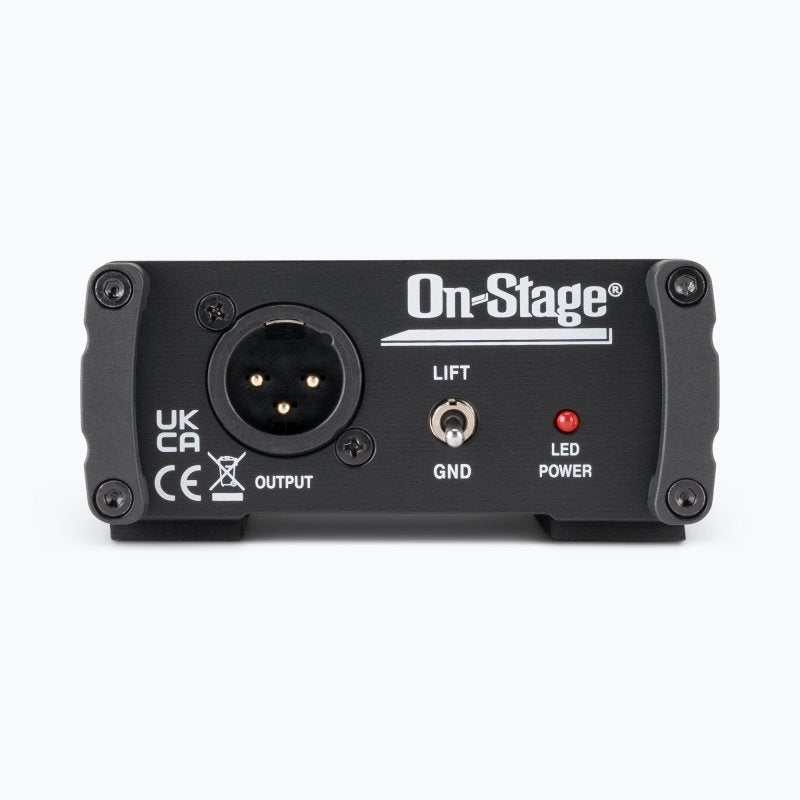

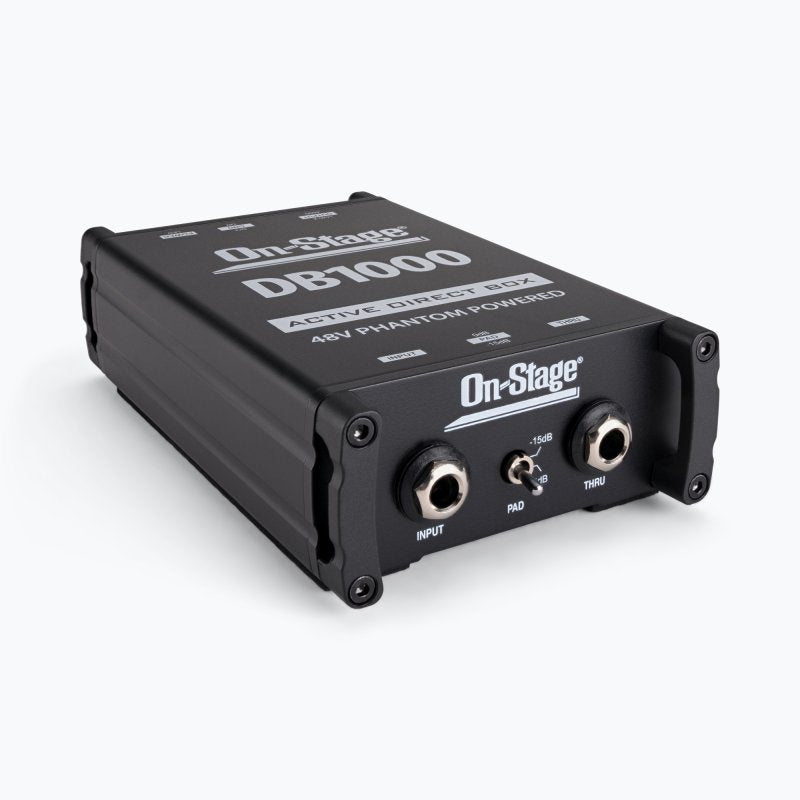

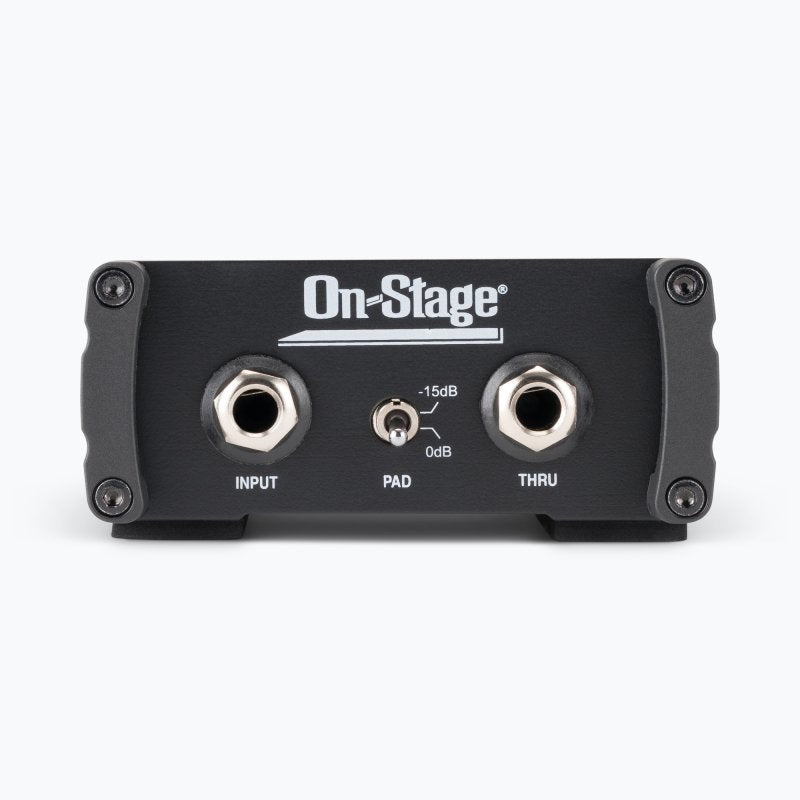

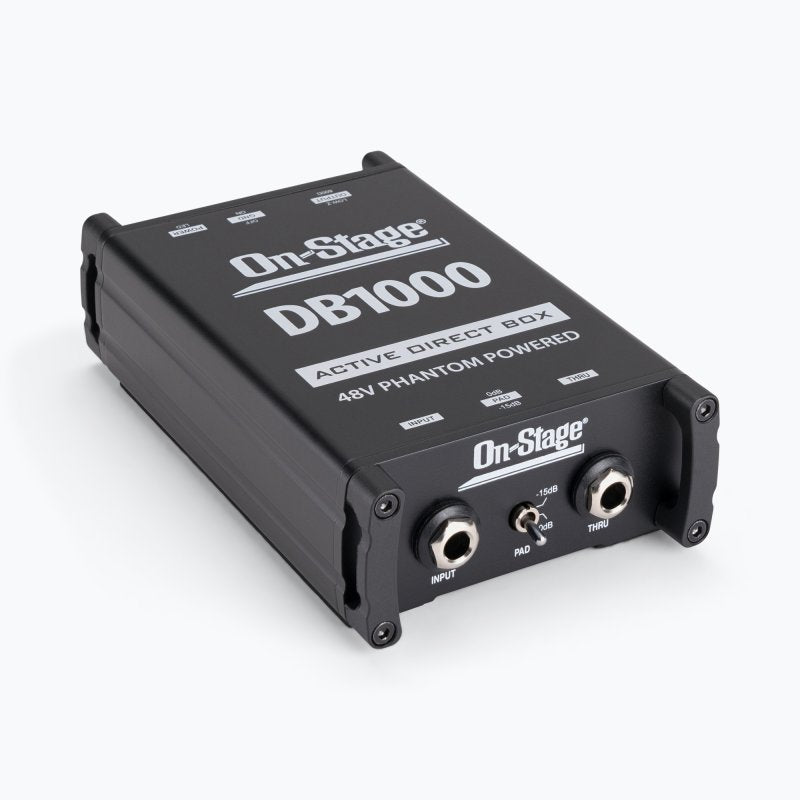

Our DB1000 Active DI Box converts any high-impedance 1/4" source to a low-impedance XLR signal ready to send via a long cable run to a mixer or PA system. Features include a -15 dB pad switch to prevent clipping, a throughput connector to pass unaltered signal to a stage amp, and a ground-lift switch to defeat ground-loop hum. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.
Features
- Converts a high-impedance (1/4") input to a balanced, low-impedance (XLR) output
- Output signal can be sent via a long cable to a mixer or PA system without frequency loss
- Active circuit features a high-quality transformer for low distortion and an isolated signal path
- -15 dB pad switch prevents clipping
Specifications
| Application | Acoustic guitars, bass guitars, keyboards, and more |
|---|---|
| Construction | Metal w/ nylon bumpers |
| Dimensions | 6" x 3.5" x 1.5" |
| Frequency Response | 10Hz - 40kHz |
| Ground lift | Yes |
| Input Resistance | 220K Ohms |
| Inputs | 1/4" |
| Output | XLR |
| Pad | 15dB |
| Power | Phantom |
| Product Type | Direct Box |
| Weight | 0.70 lb |
