Description

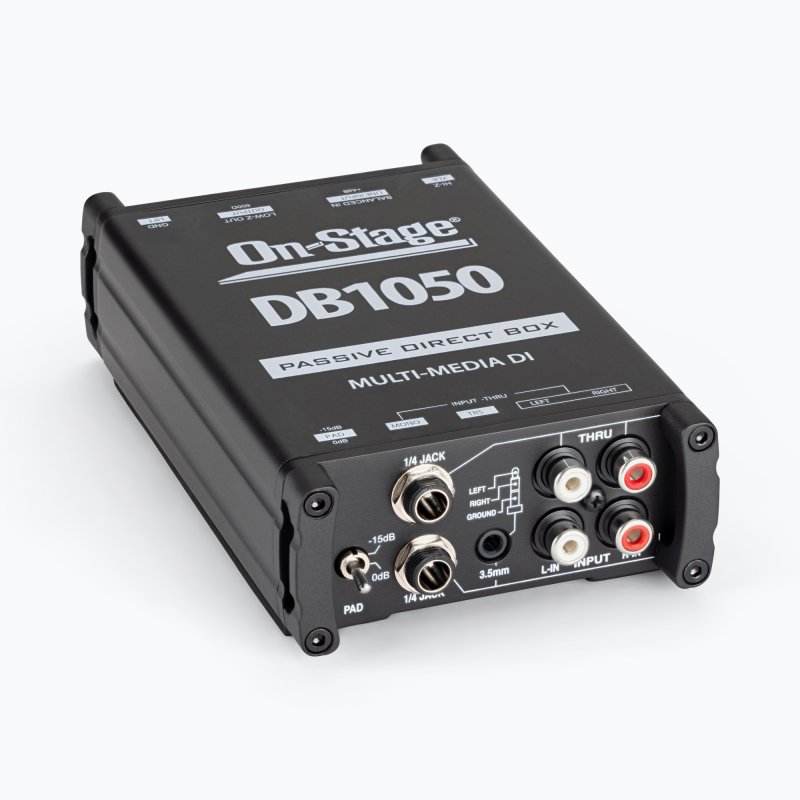

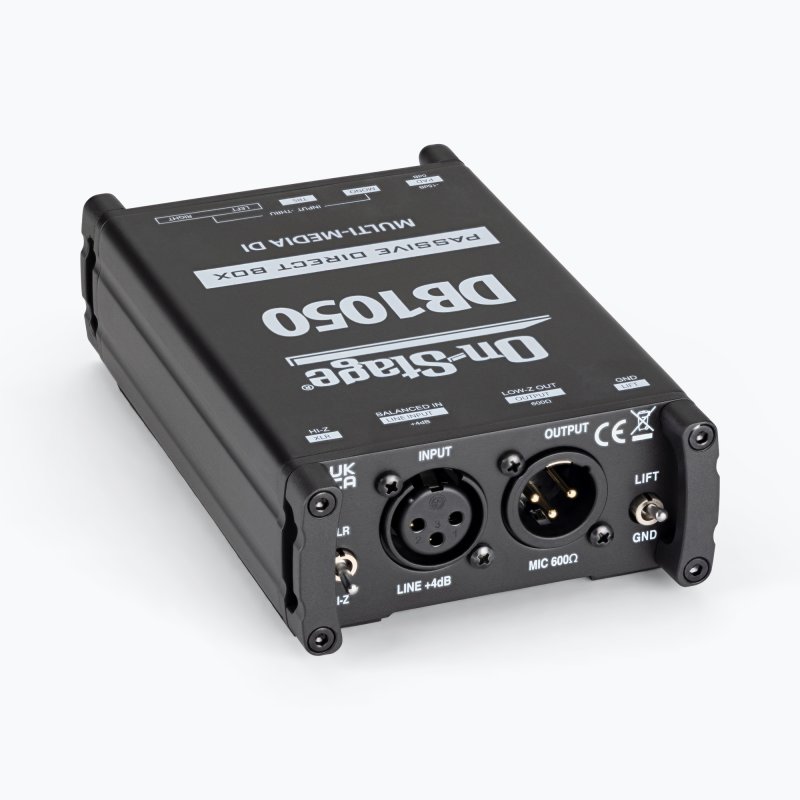

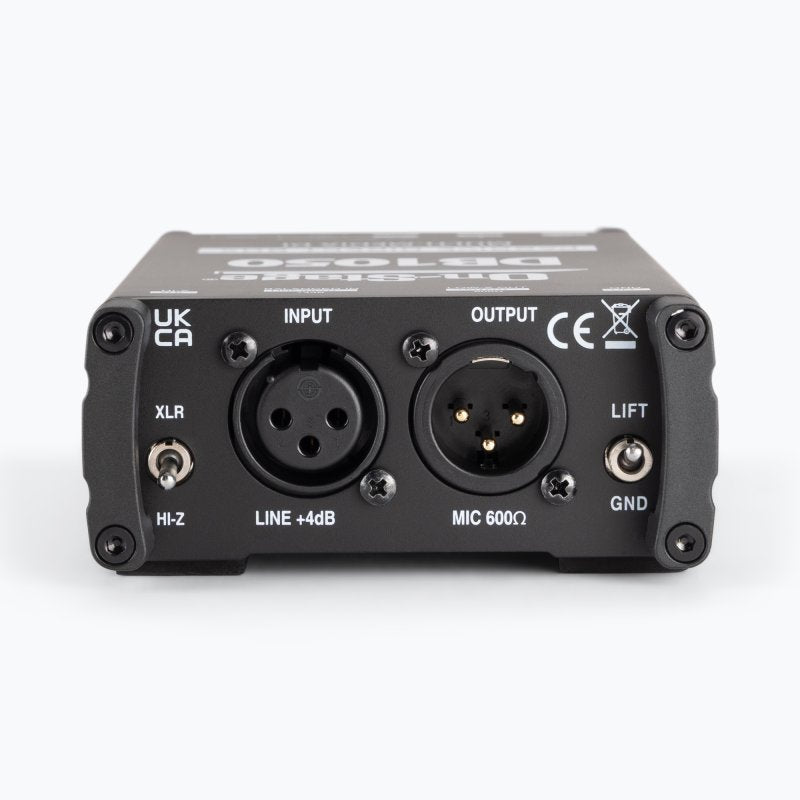

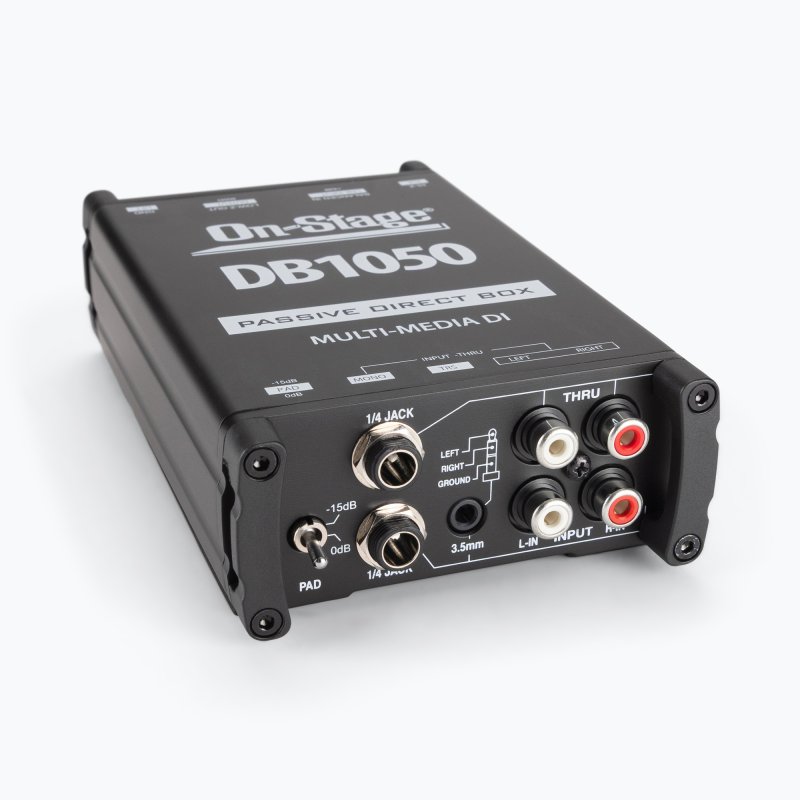

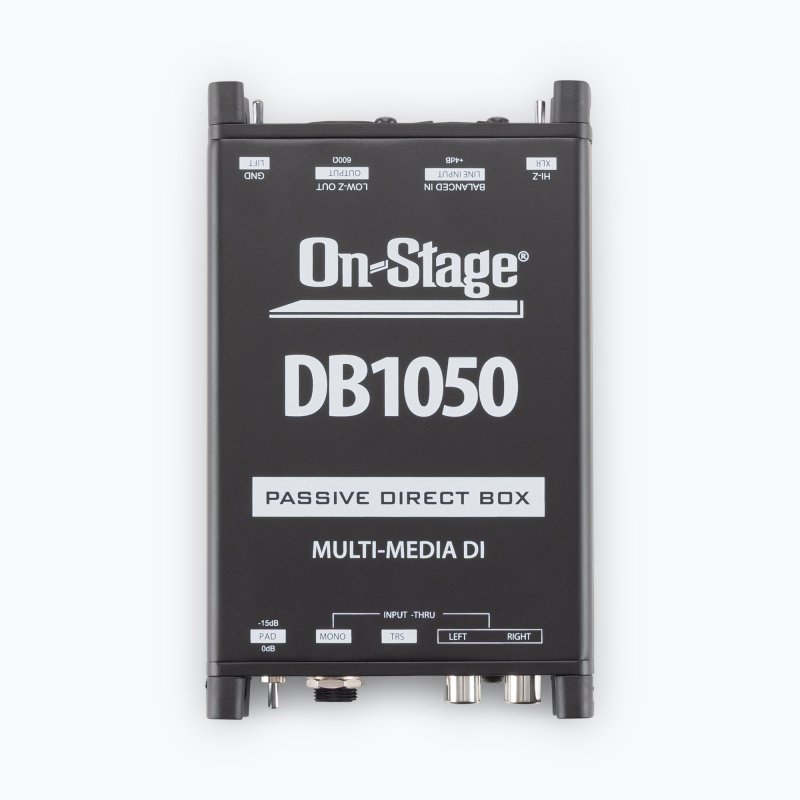

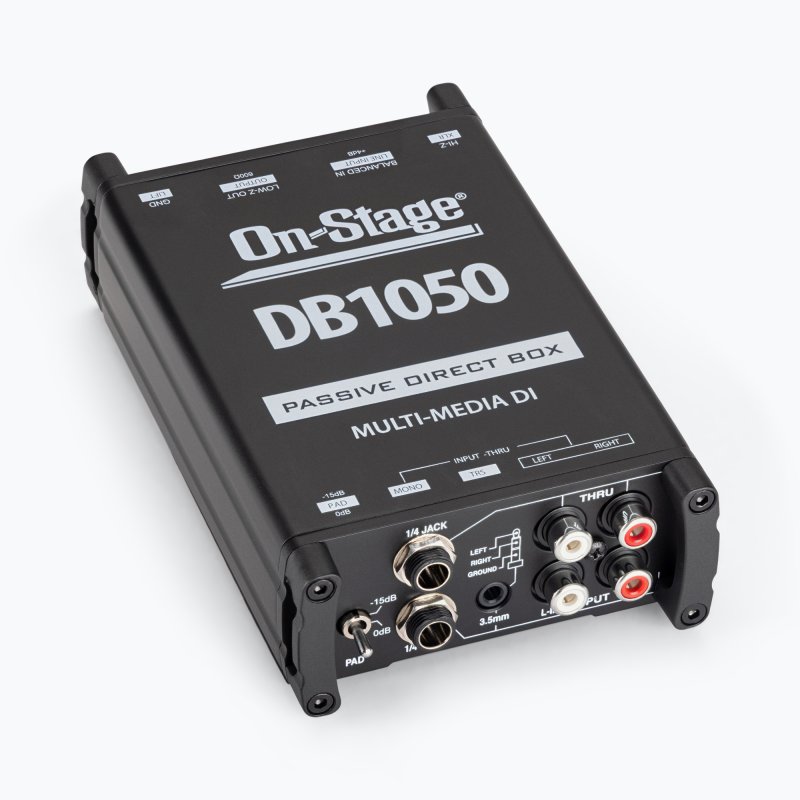

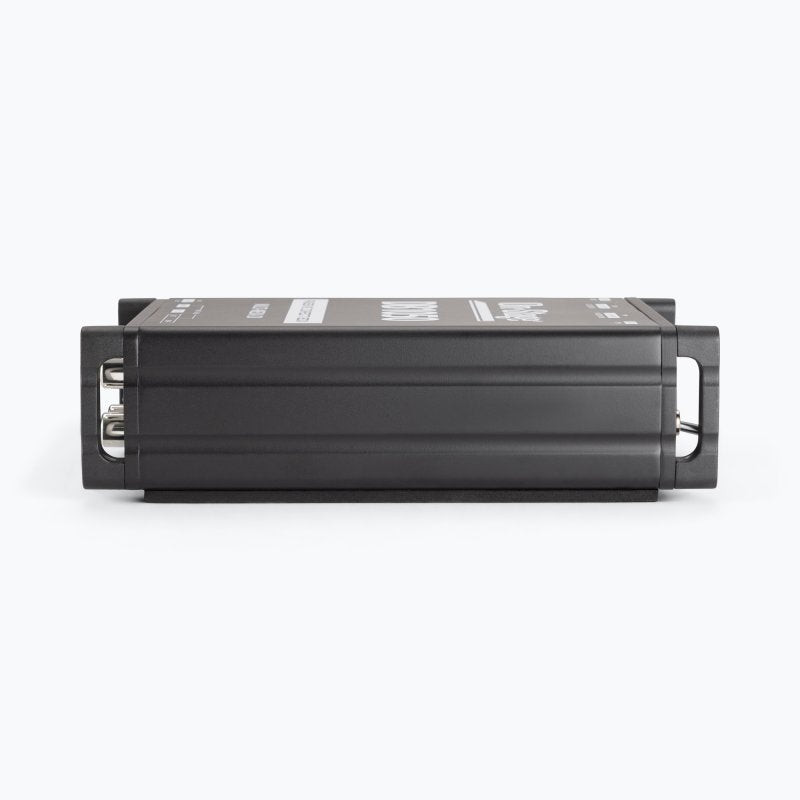

Our DB1050 Passive Multimedia DI Box converts any line-level stereo source to a low-impedance XLR mono signal ready to send via a long cable run to a mixer or PA system. Features include low-distortion passive circuitry that doesn't require power, a -15 dB pad switch to prevent clipping, a ground-lift switch to defeat ground-loop hum, throughput connectors to pass unaltered signal to a stage amp, a Hi-Z/XLR input selector, and a variety of input connectors to enable convenient use with various sources. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.
Features
- Output signal can be sent via a long cable to a mixer or PA system without frequency loss
- Passive circuit does not require a power supply or batteries
- High-quality transformer for low distortion and an isolated signal path
- Converts a line-level stereo input to a balanced, low-impedance mono (XLR) output
Specifications
| Application | Computers, mp3 players, keyboards, projectors, and DJ equipment |
|---|---|

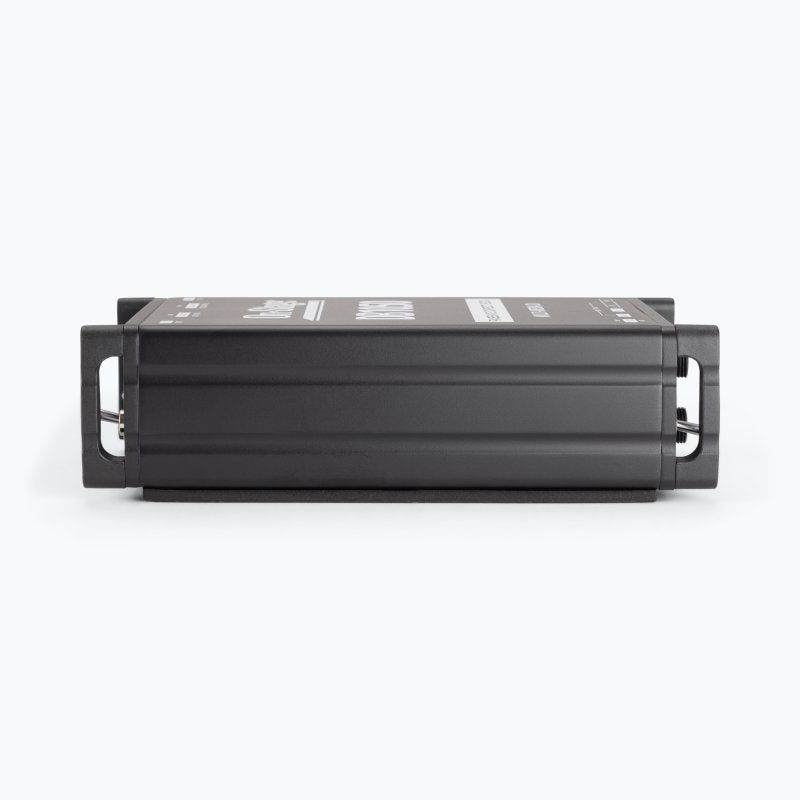

| Construction | Metal w/ nylon bumpers |
| Dimensions | 6" x 3.5" x 1.5" |
| Frequency Response | 10Hz - 40kHz |
| Ground lift | Yes |
| Input Resistance | 220K Ohms |

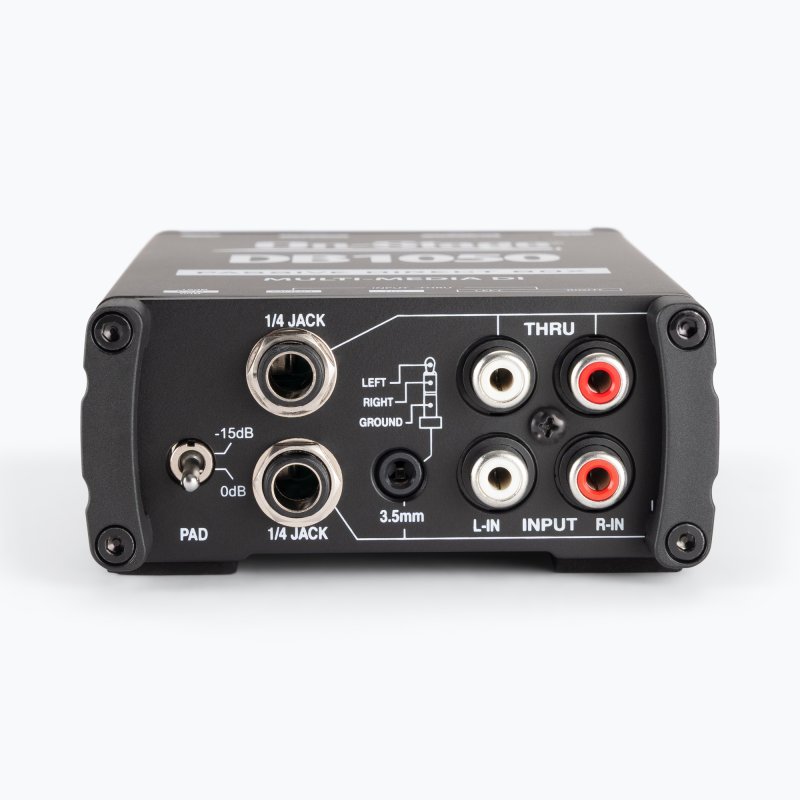

| Inputs | Stereo 1/4", 3.5mm, stereo RCA, and XLR |
| Output | Mono XLR Low-Z out |
| Pad | 15dB |
| Power | Passive/not required |
| Product Type | Direct Box |
| Weight | 0.70 lb |
