Description

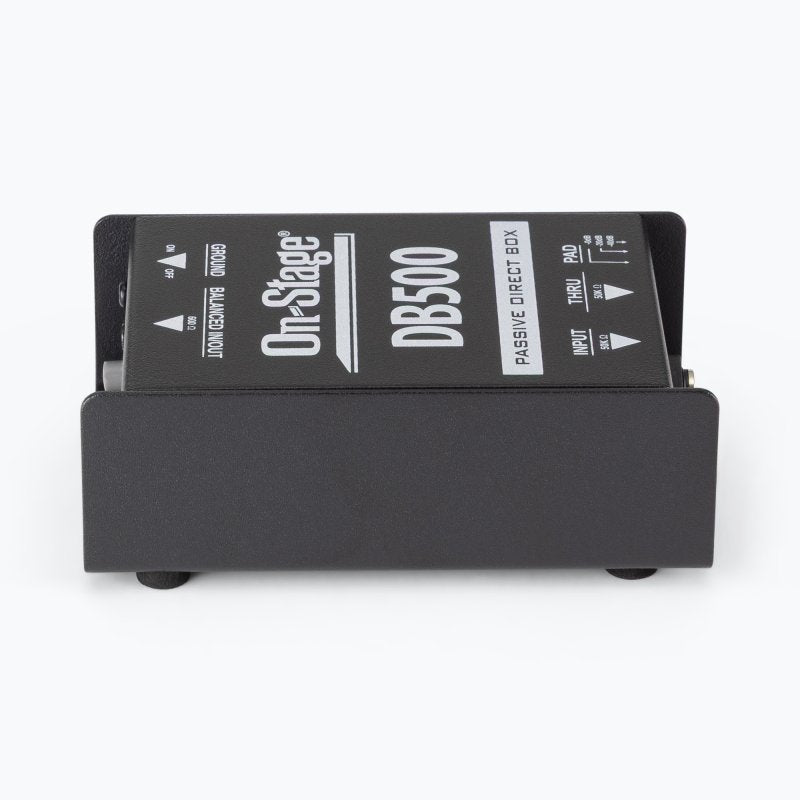

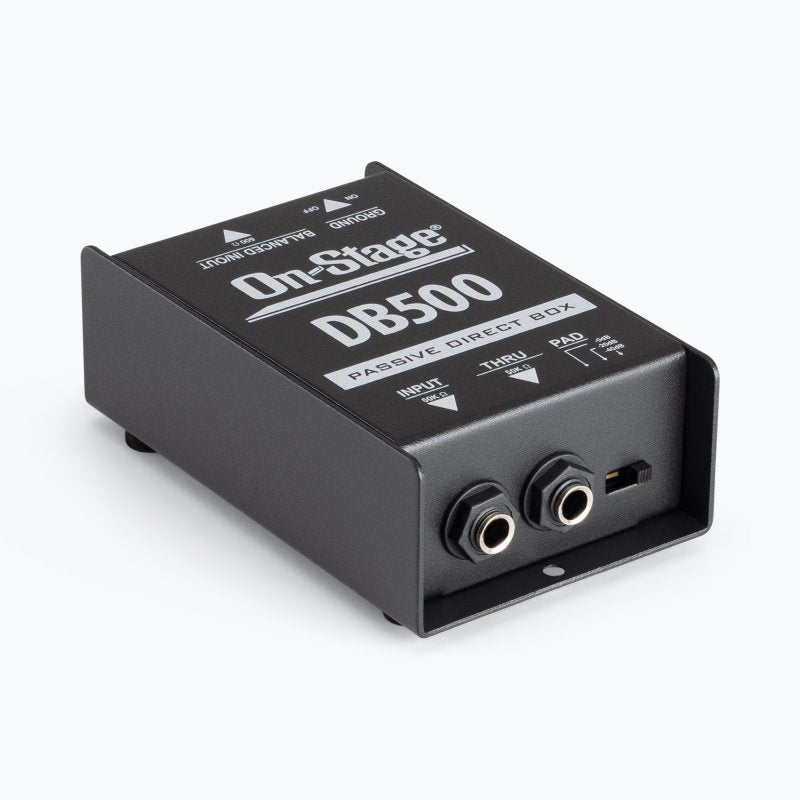

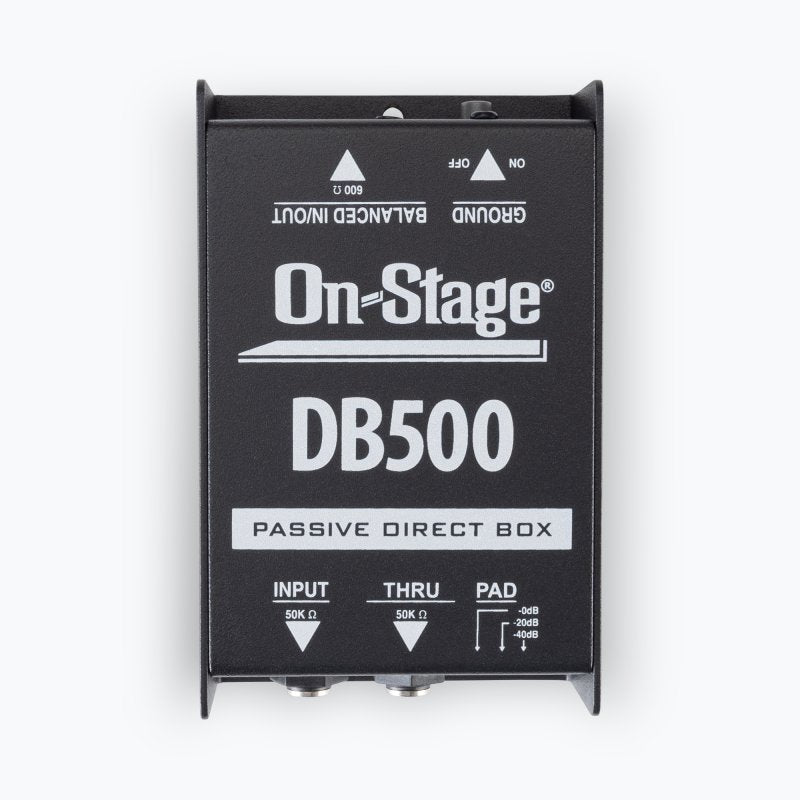

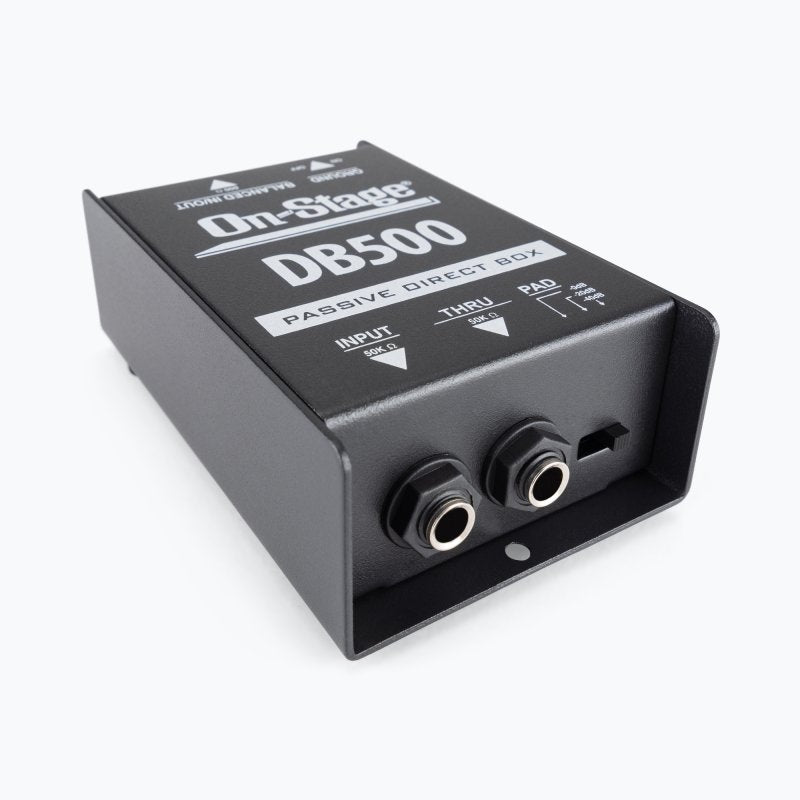

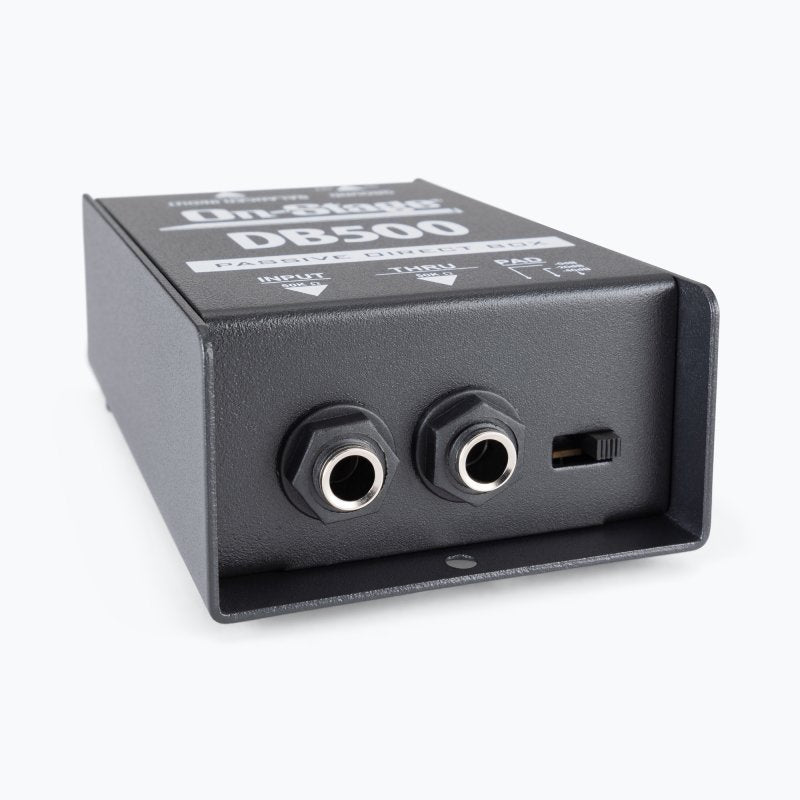

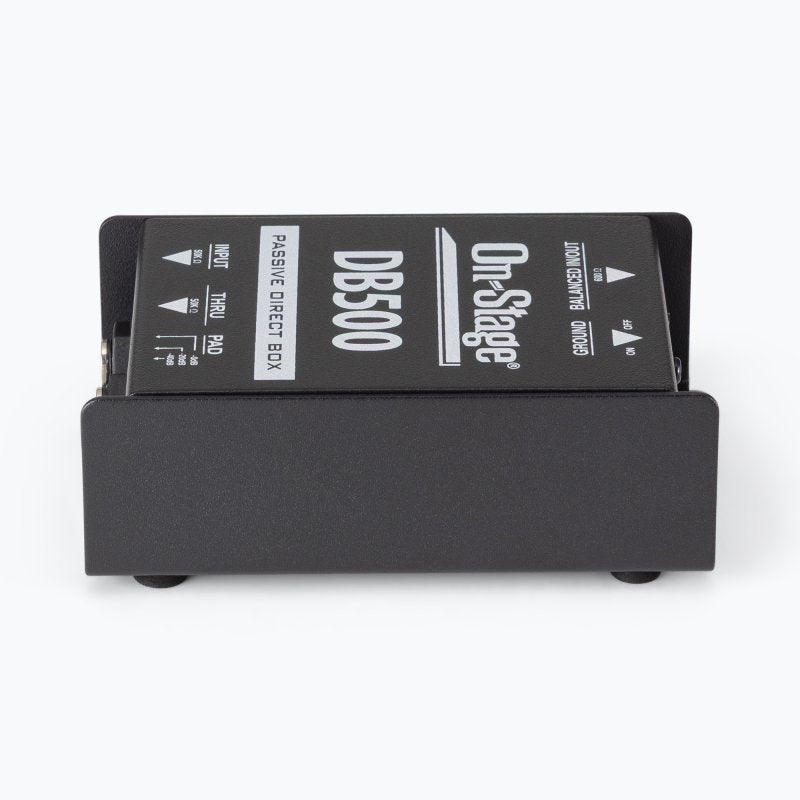

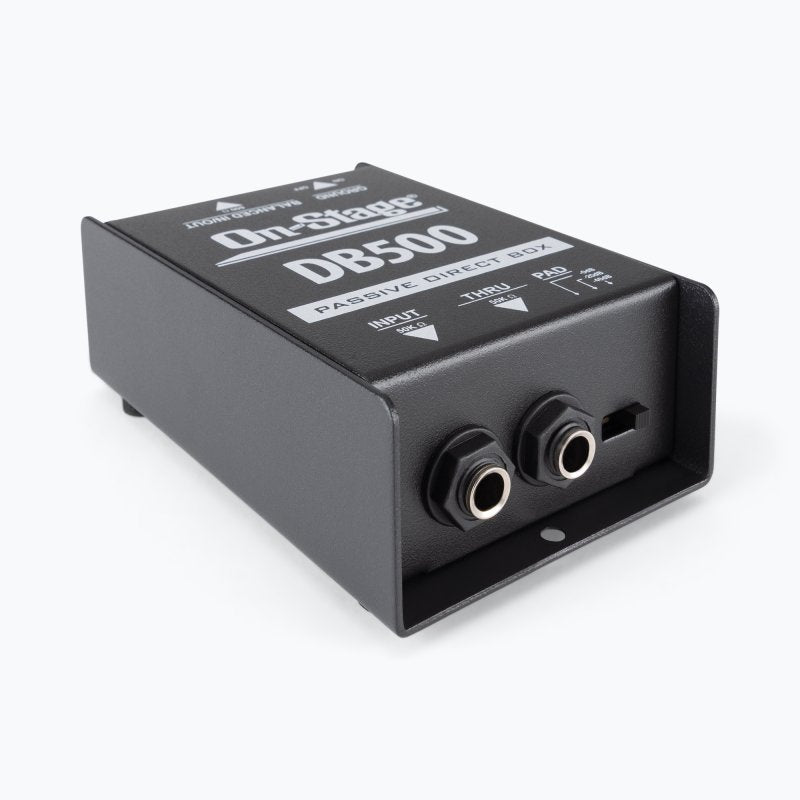

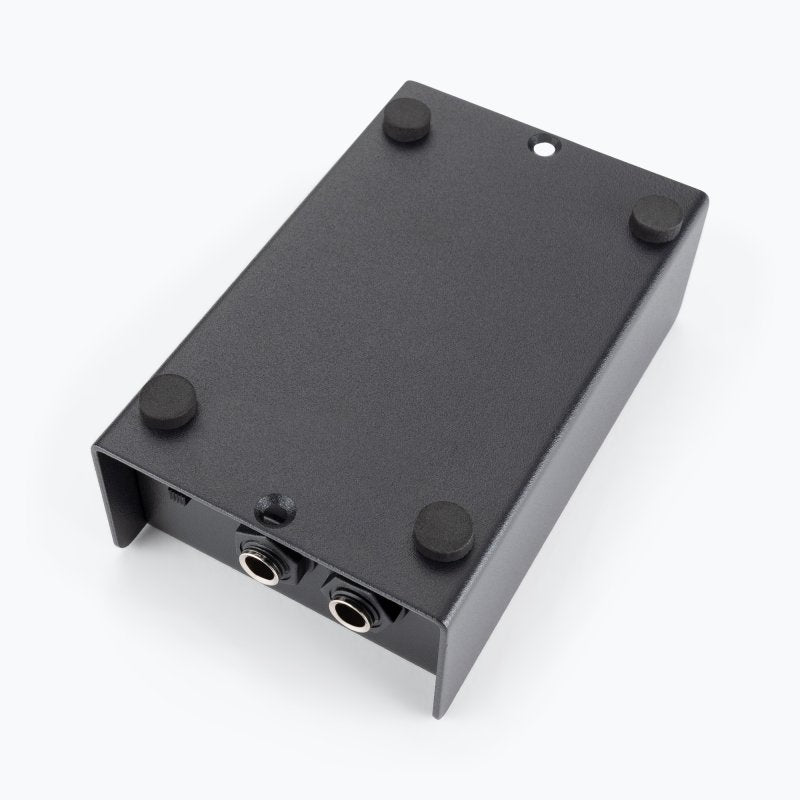

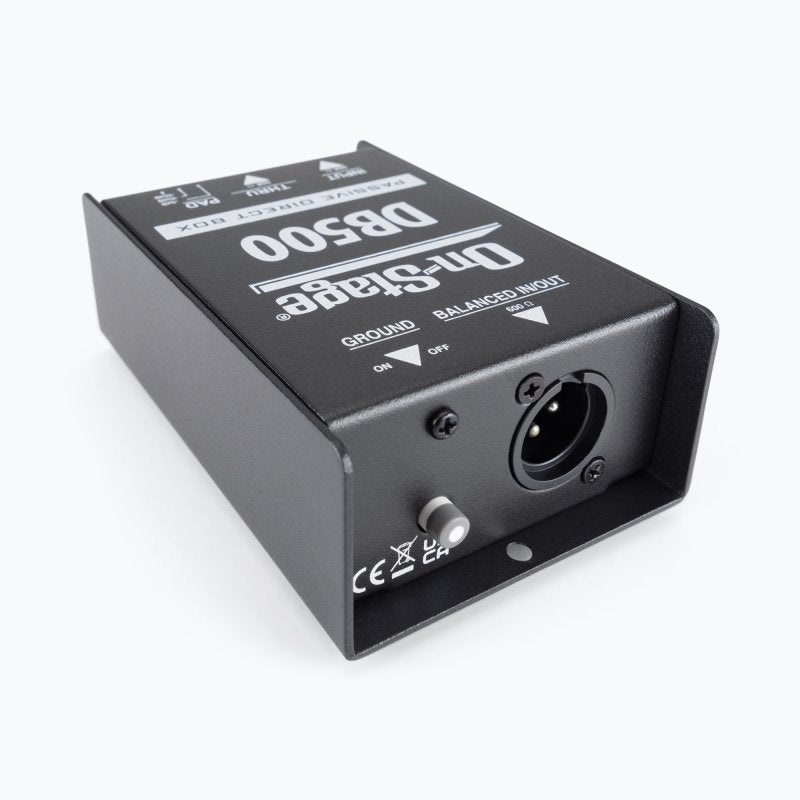

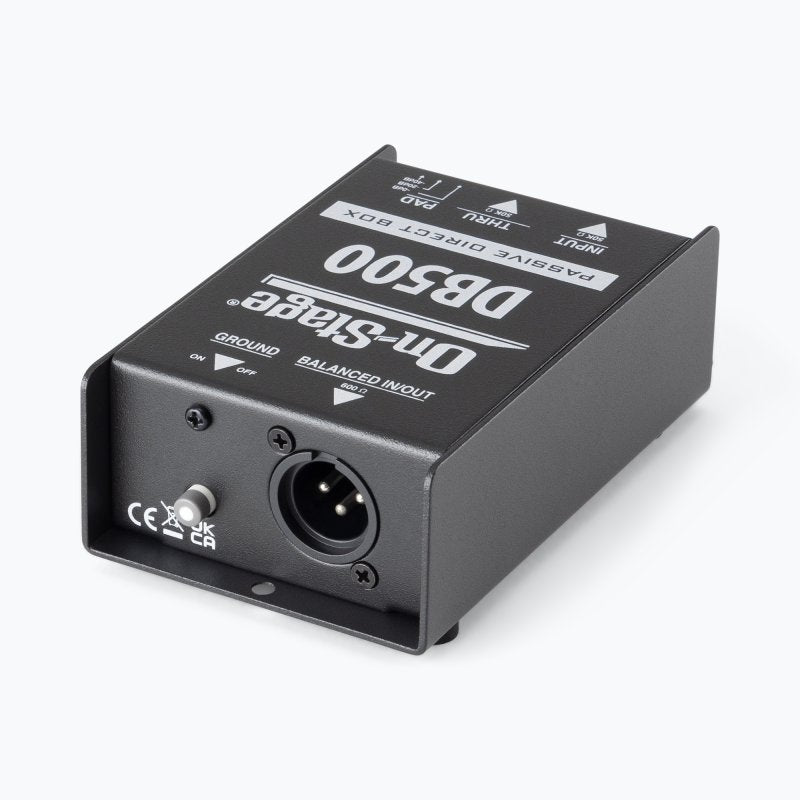

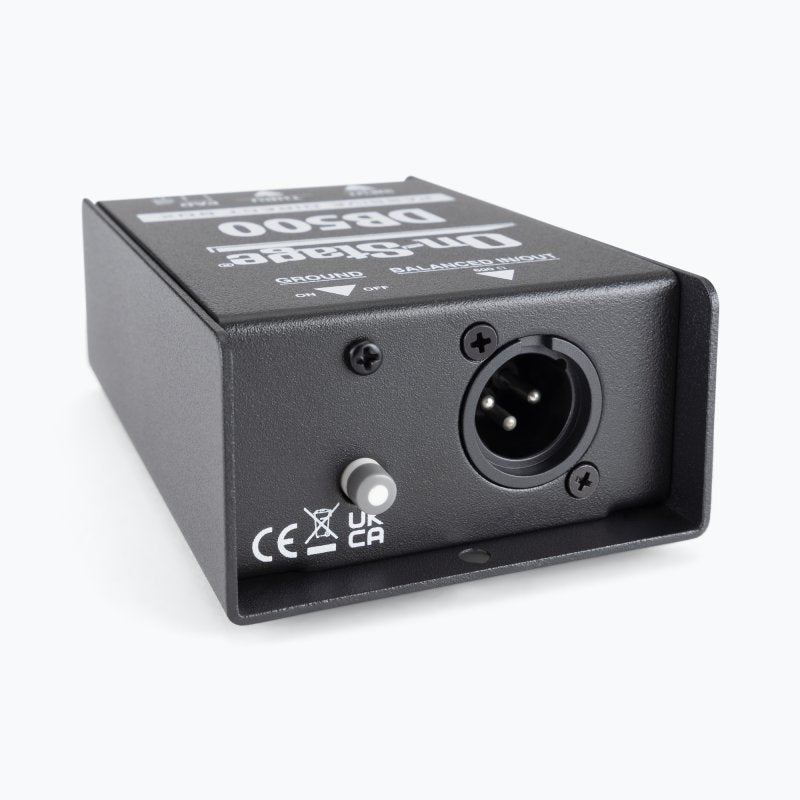

Our DB500 Passive DI Box converts any high-impedance 1/4" source to a low-impedance XLR signal ready to send via a long cable run to a mixer or PA system. Features include low-distortion passive circuitry that doesn't require power, a -20 dB or -40 dB pad switch to prevent clipping, a ground-lift switch to defeat ground-loop hum, and a throughput connector to pass unaltered signal to a stage amp. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.
Features
- Converts a high-impedance (1/4") input to a balanced, low-impedance (XLR) output
- Output signal can be sent via a long cable to a mixer or PA system without frequency loss
- Passive circuit does not require a power supply or batteries
- High-quality transformer for low distortion and an isolated signal path
Specifications
| Application | Acoustic guitars, bass guitars, keyboards, and more |
|---|---|
| Construction | Metal |
| Dimensions | (W)4.75" x (H)1.375" x (D)2.875" |
| Input Impedence | 350K Ohms |
| Inputs | 1/4" |
| Output | XLR |
| Output Impedence | 80 Ohms |
| Pad | 20dB, 40dB, Ground Lift: Yes |
| Power | Passive/not required |
| Product Type | Direct Box |
| Weight | 0.5 lb |
