Description

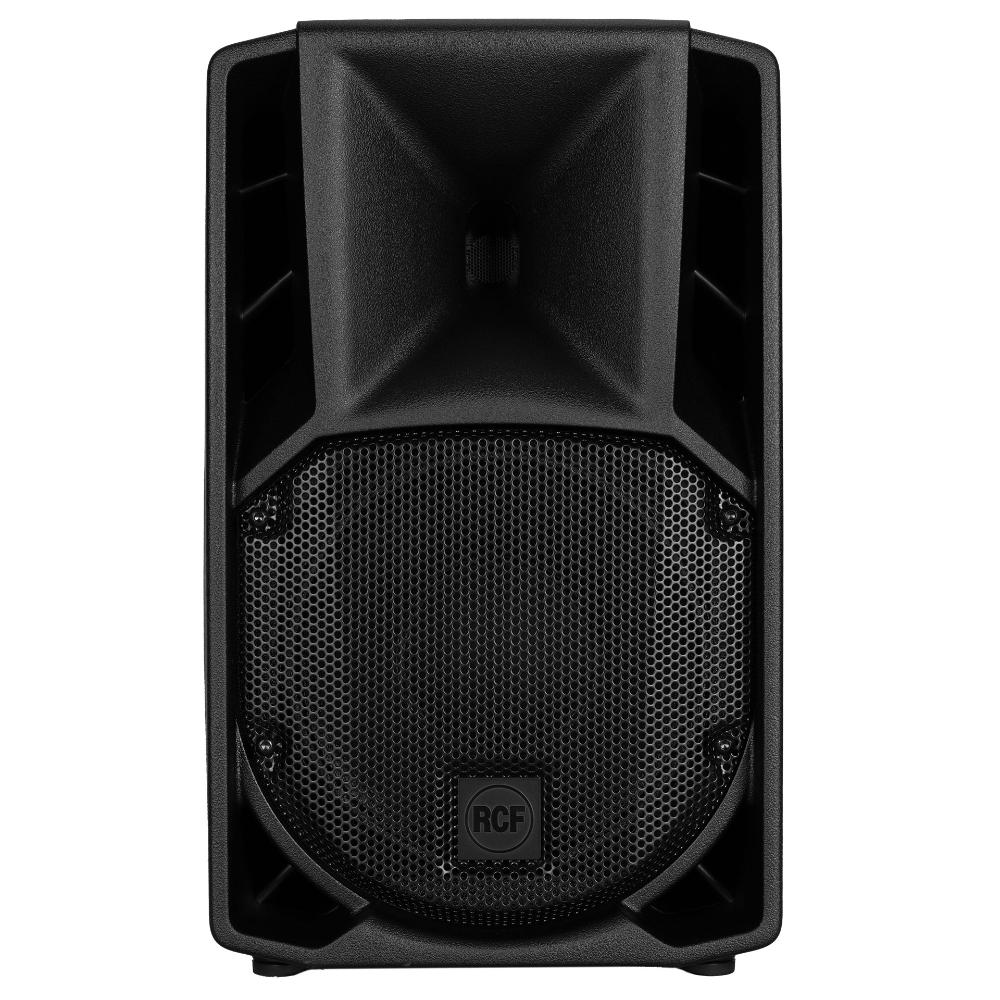

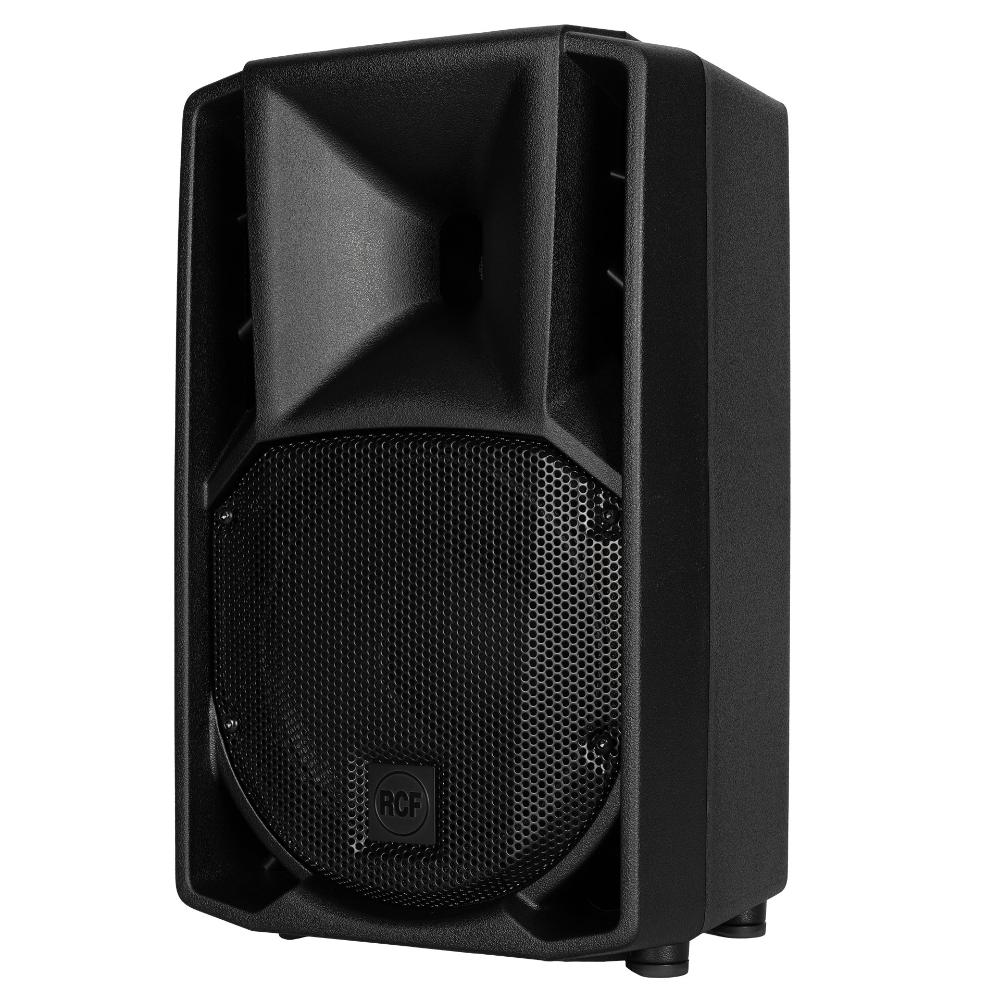

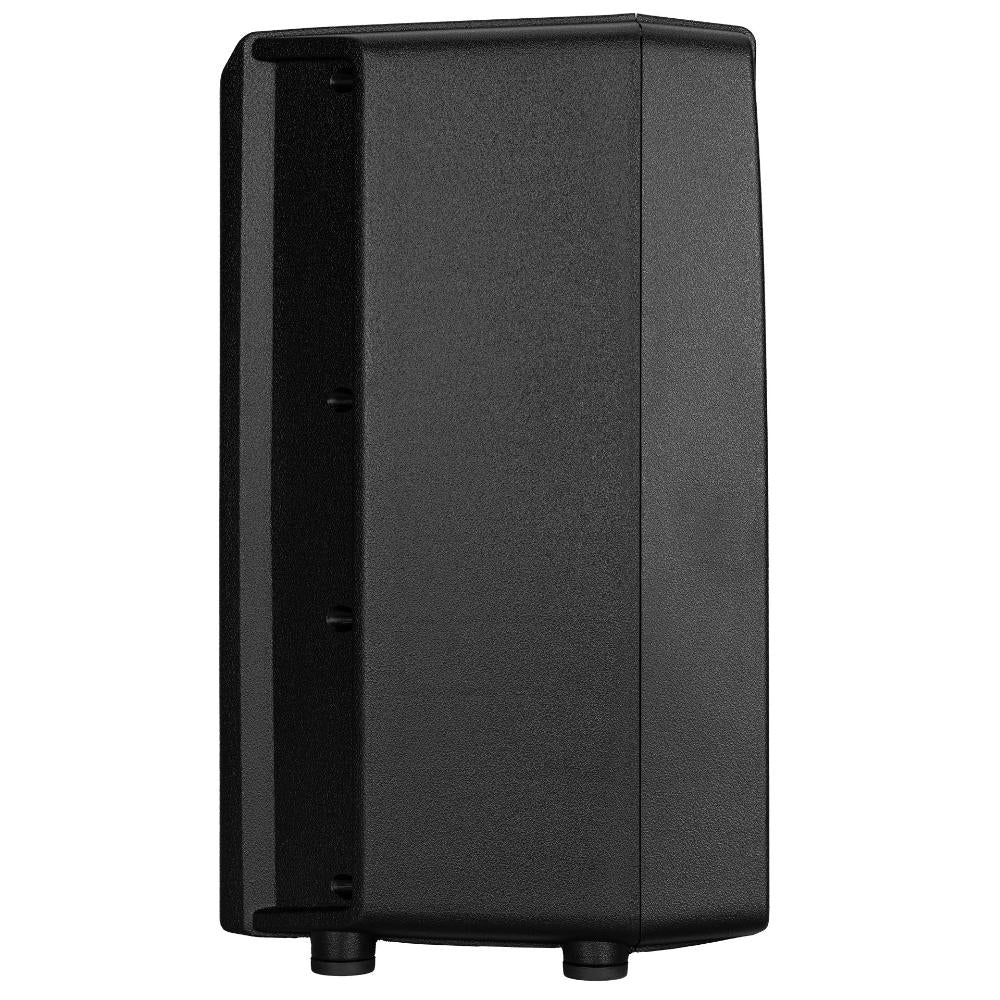

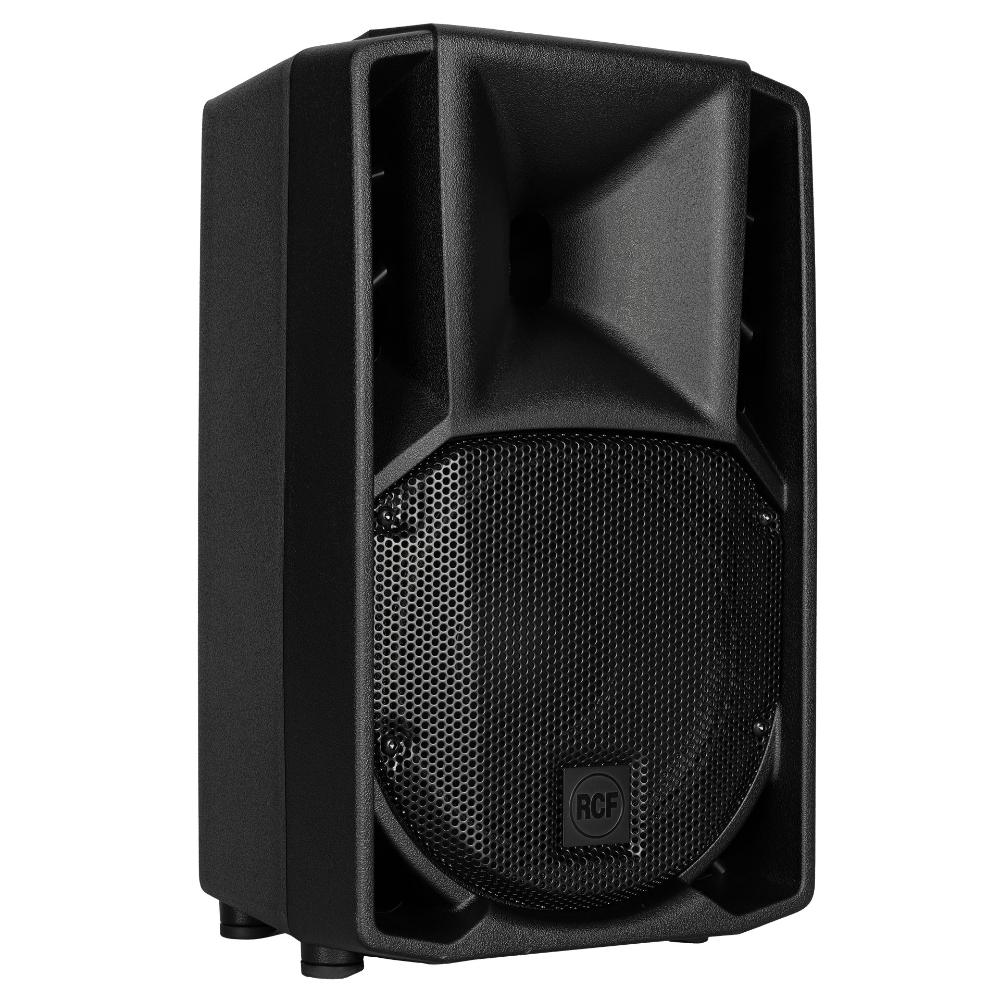

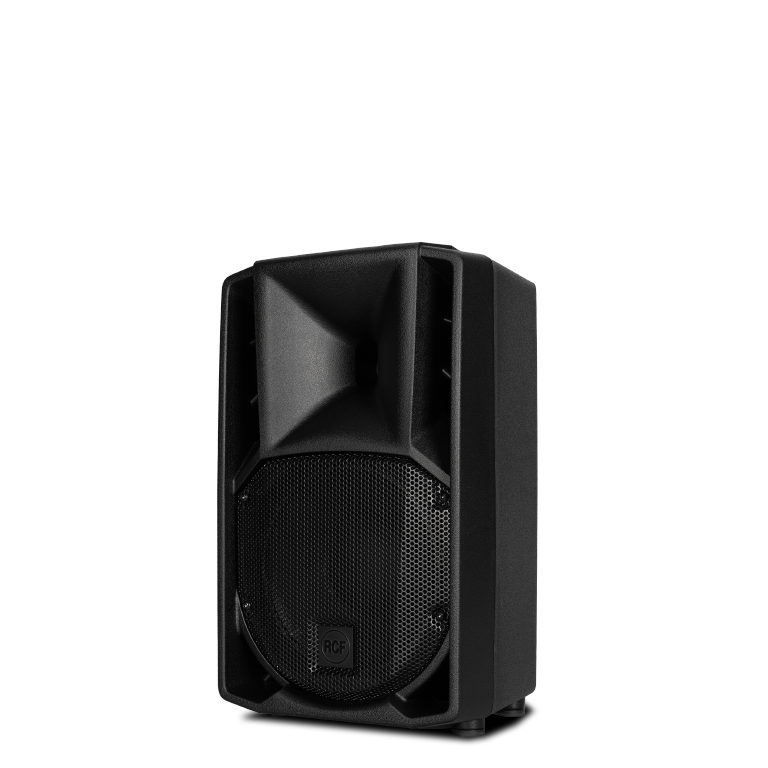

ART 708-A MK5 | ACTIVE TWO-WAY SPEAKER | Technical Specifications | 128 dB Max SPL | 1400 WATT 2-way peak power | 90° x 70°, Wide dispersion constant directivity horn
Technical Specifications
| Acoustical specifications | |
| Frequency Response | 60 Hz - 20000 Hz |
| Max SPL @ 1m | 128 dB |
| Horizontal coverage angle | 90° |
| Vertical coverage angle | 70° |
| Transducers | |
| Compression Driver | 1 x 1.0'', 1.4'' v.c |
| Woofer | 1 x 8'', 2.0'' v.c |

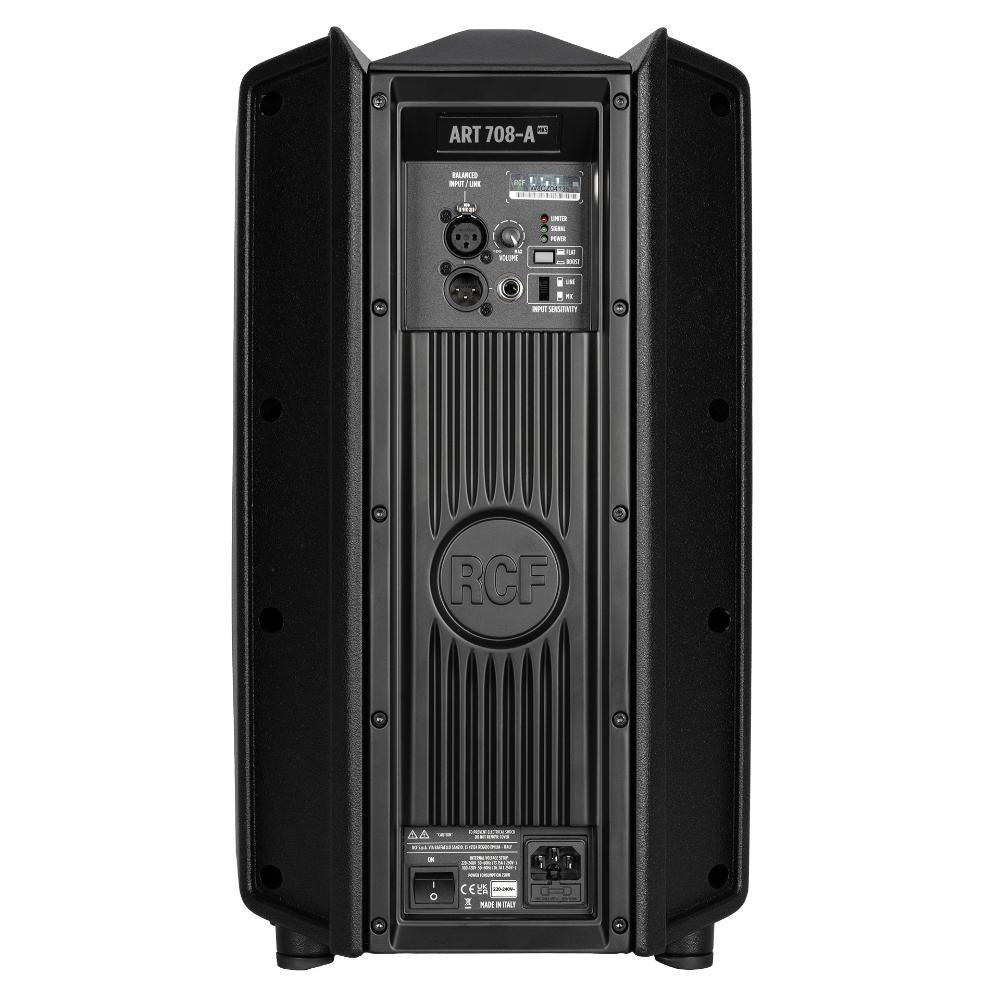

| Input/Output section | |
| Input signal | bal/unbal |
| Input connectors | XLR, Jack |
| Output connectors | XLR |
| Input sensitivity | -2 dBu/+4 dBu |
| Mic. Input Sensitivity | -32 dBu |
| Processor section | |
| Crossover Frequencies | 1600 |
| Protections | Thermal, RMS |
| Limiter | Soft Limiter |
| Controls | |
| Volume, Boost, MIC/Line | |
| Power section | |
| Total Power | 1400 W Peak |
| High frequencies | 400 W Peak |
| Low frequencies | 1000 W Peak |
| Cooling | Convection |
| Connections | |
| VDE | |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | PP Composite |
| Hardware | 2 x M10 |

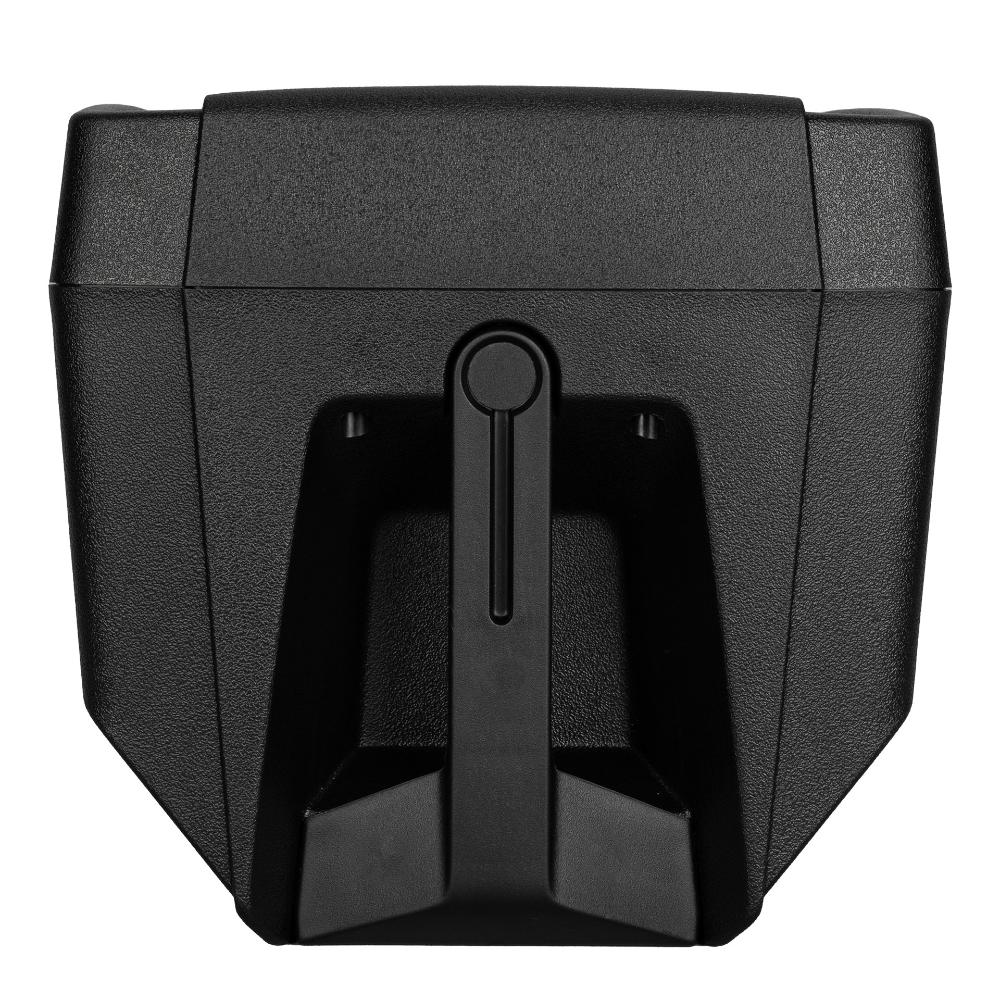

| Handles | 1 on top |

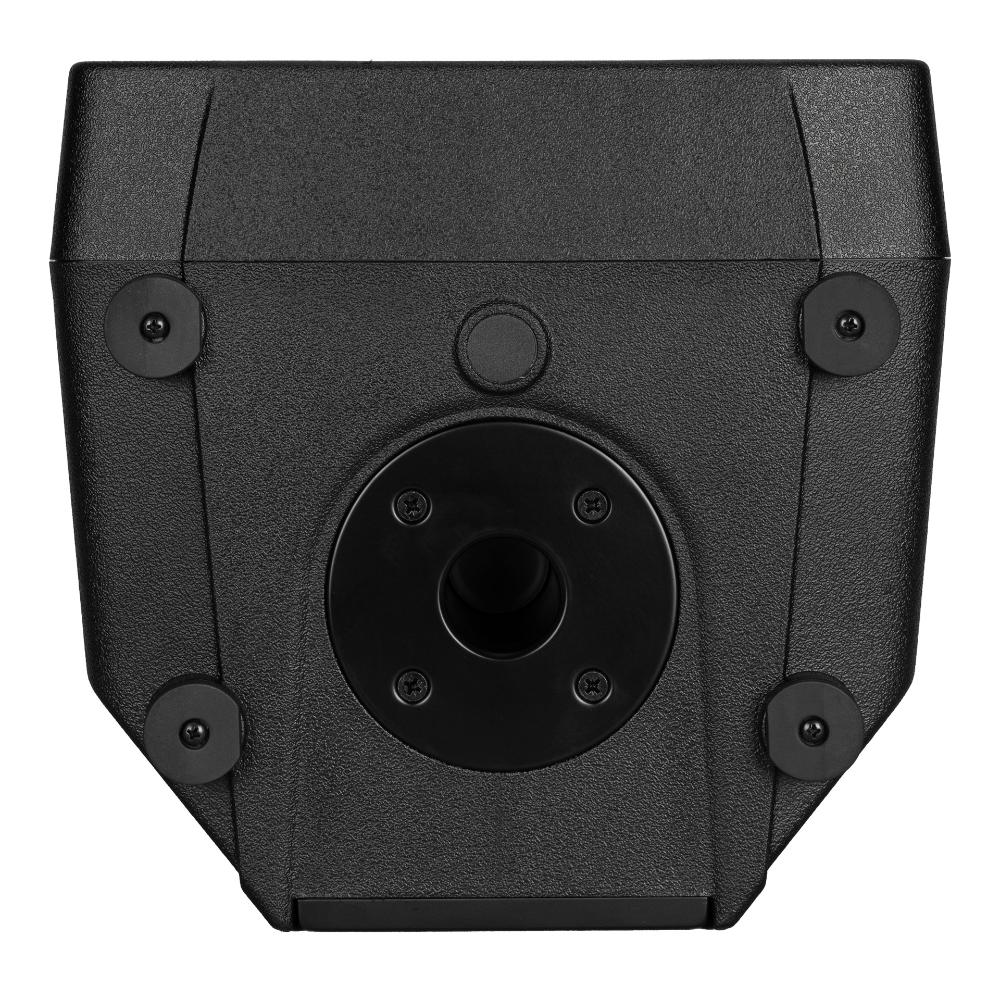

| Pole mount/Cap | 35 mm insert |
| Grille | Steel |
| Color | Black |
| Size / Weight | |
| Height | 480 mm / 18.9 inches |
| Width | 291 mm / 11.46 inches |
| Depth | 276 mm / 10.87 inches |
| Weight | 10.4 kg / 22.93 lbs |
| Shipping information | |
| Package Height | 520 mm / 20.47 inches |
| Package Width | 331 mm / 13.03 inches |
| Package Depth | 346 mm / 13.62 inches |
| Package Weight | 12.2 kg / 26.9 lbs |
