Description

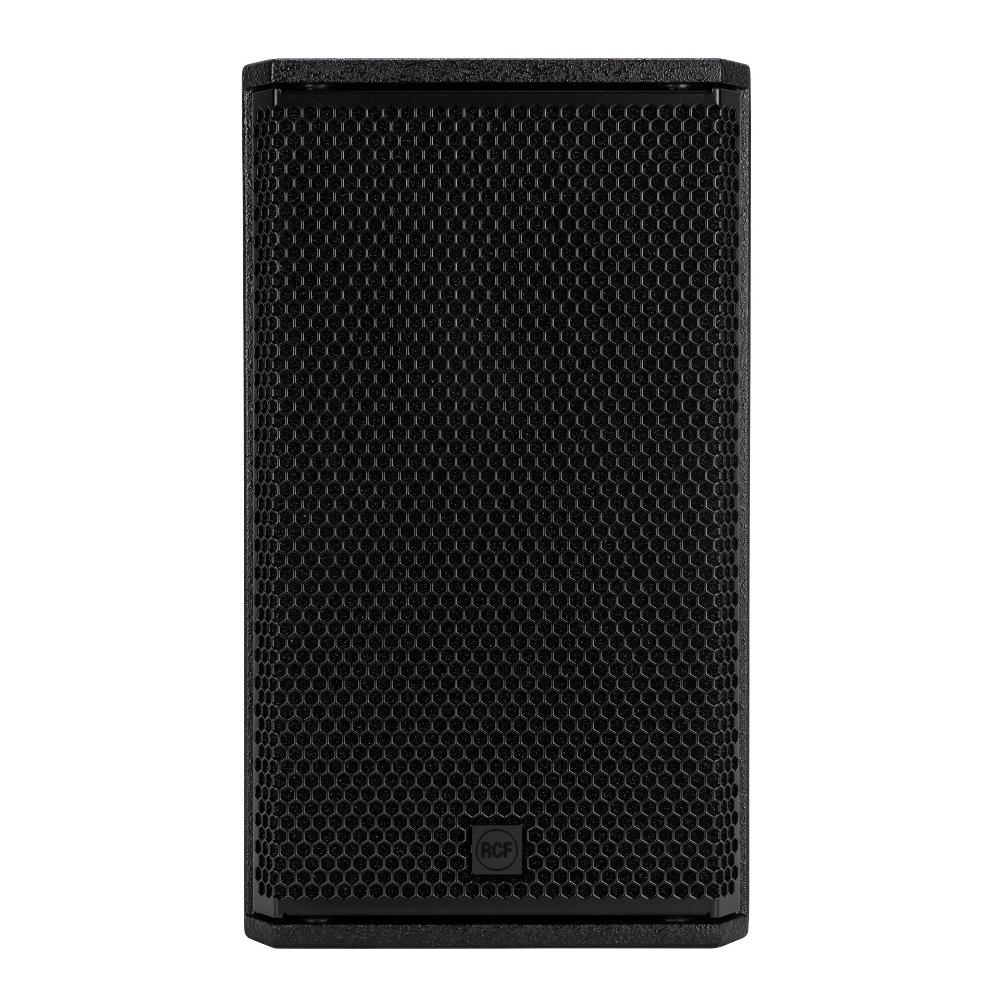

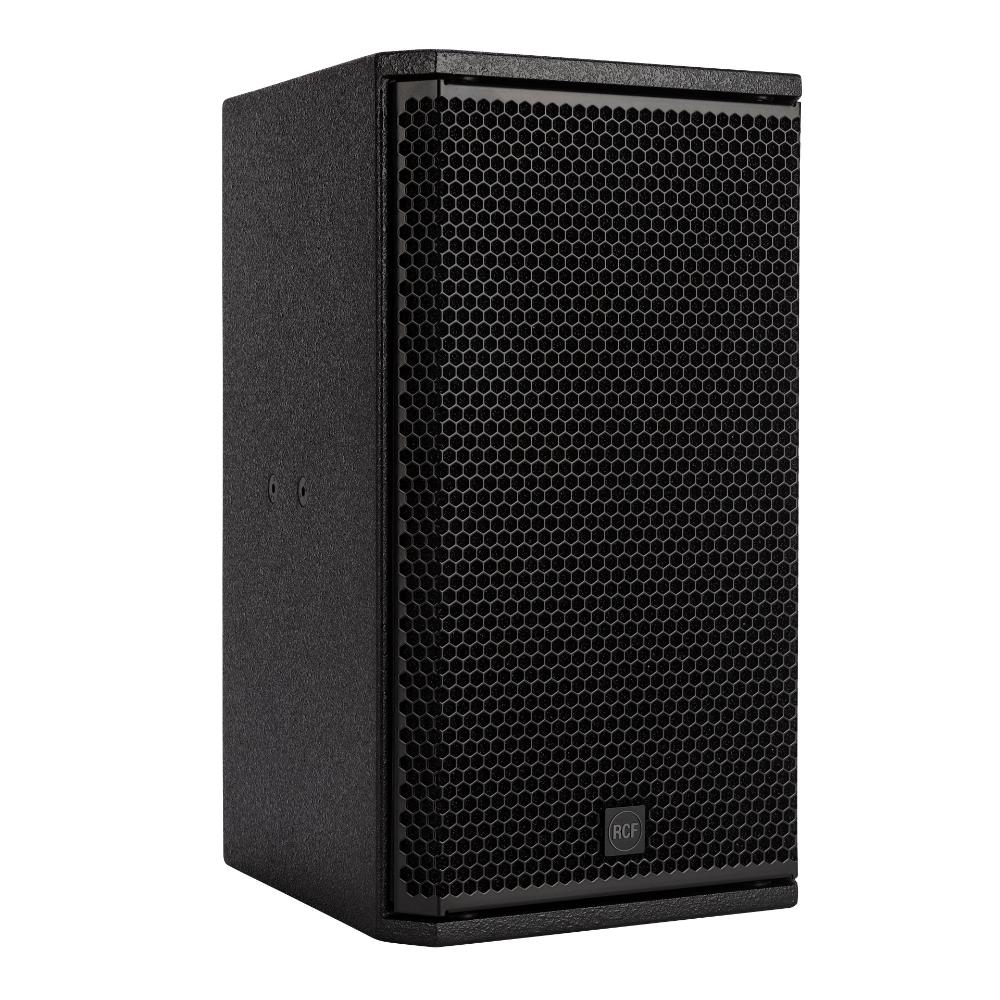

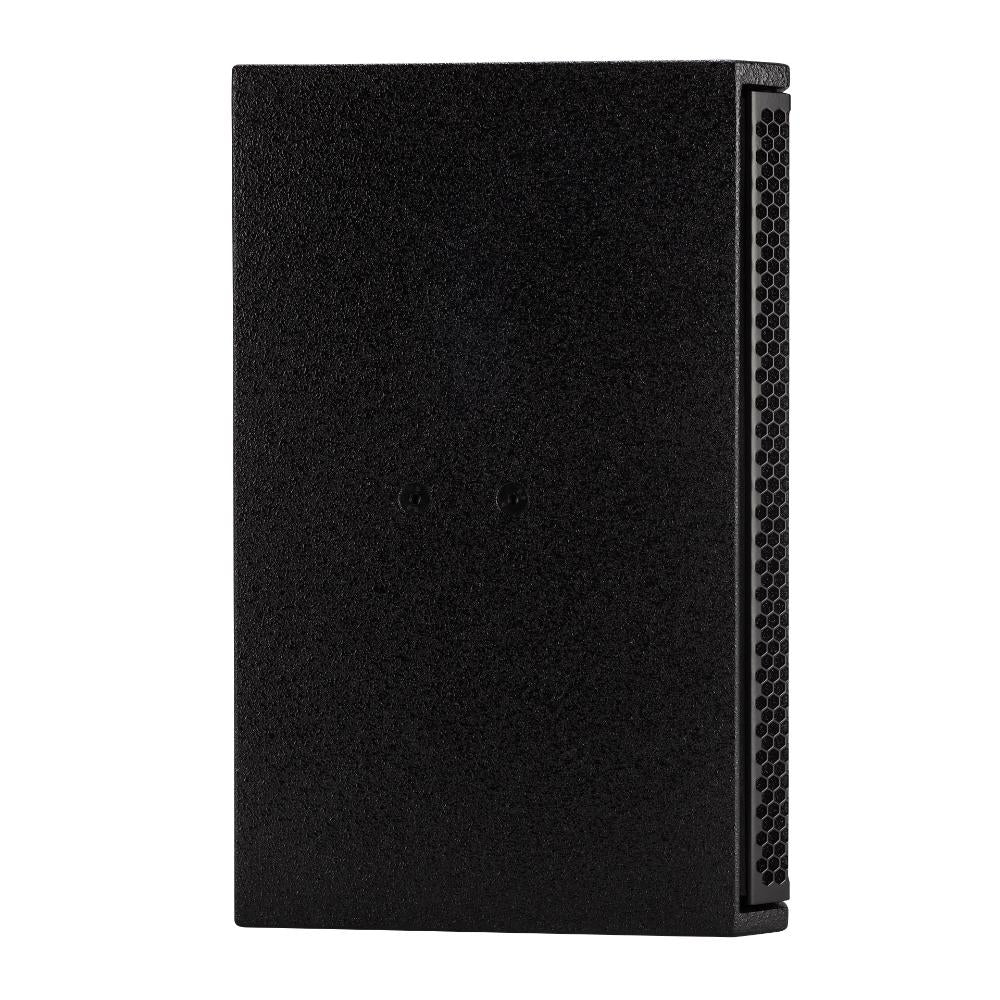

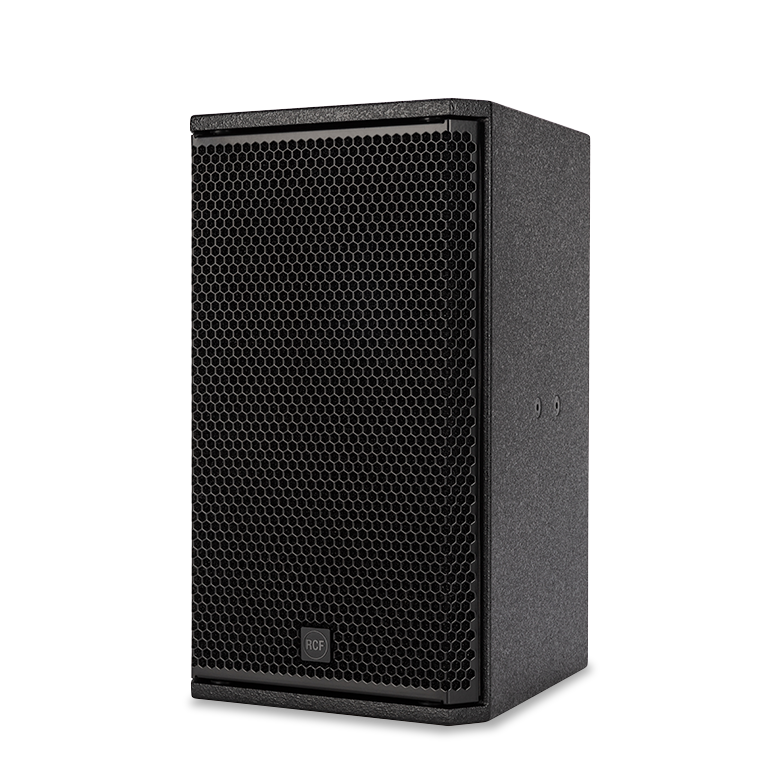

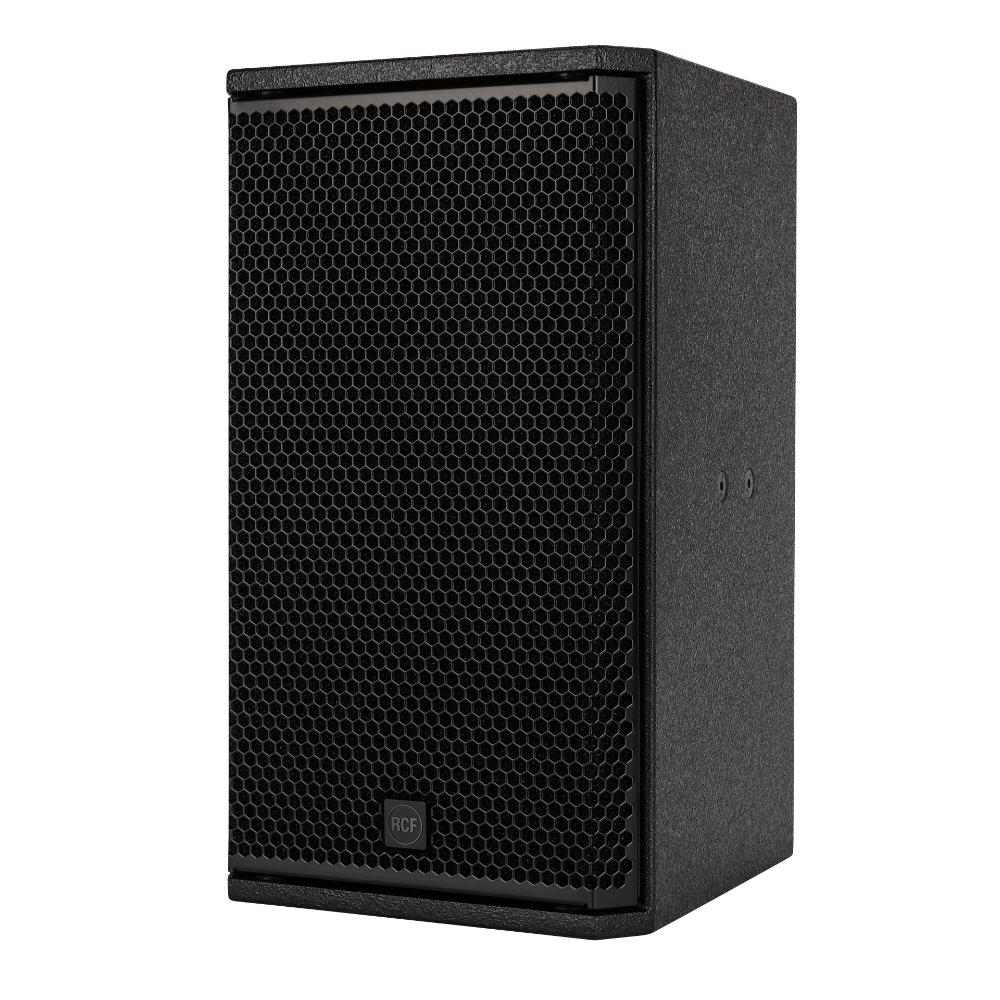

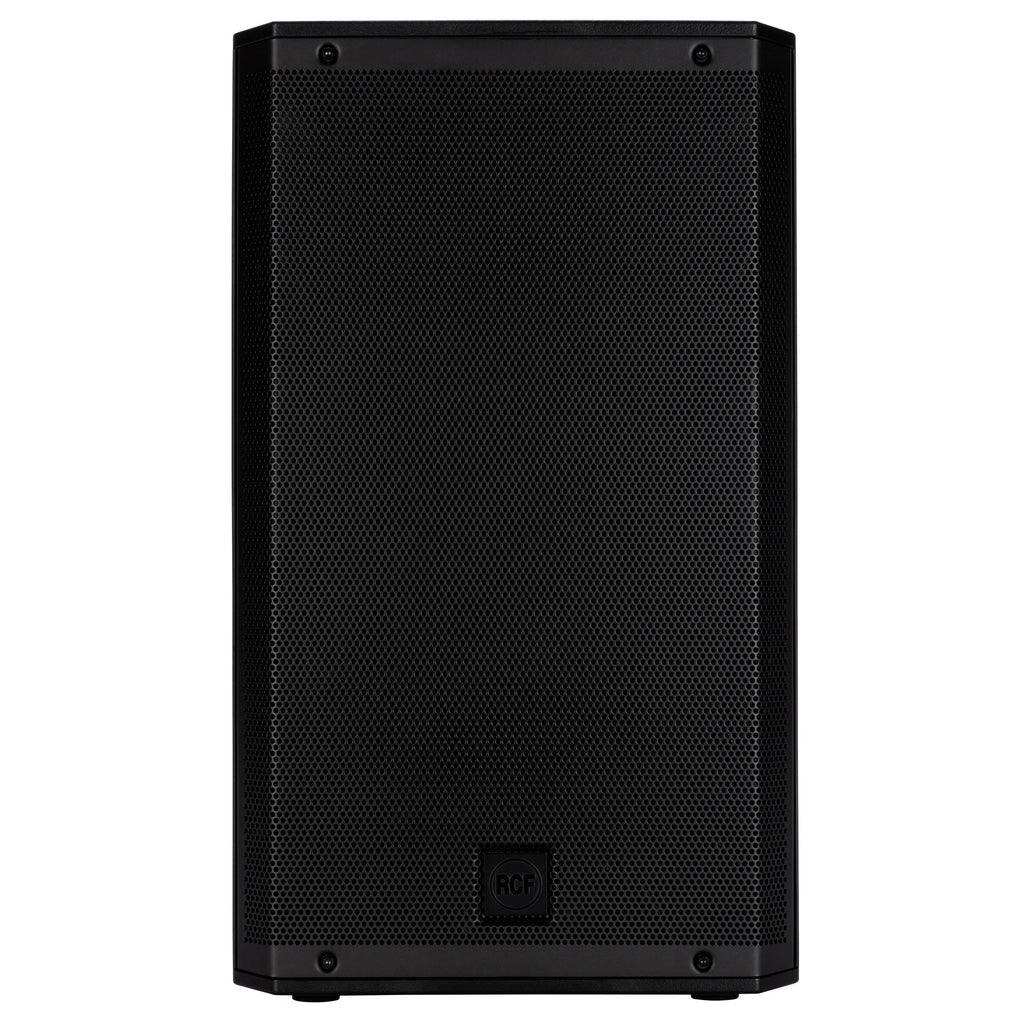

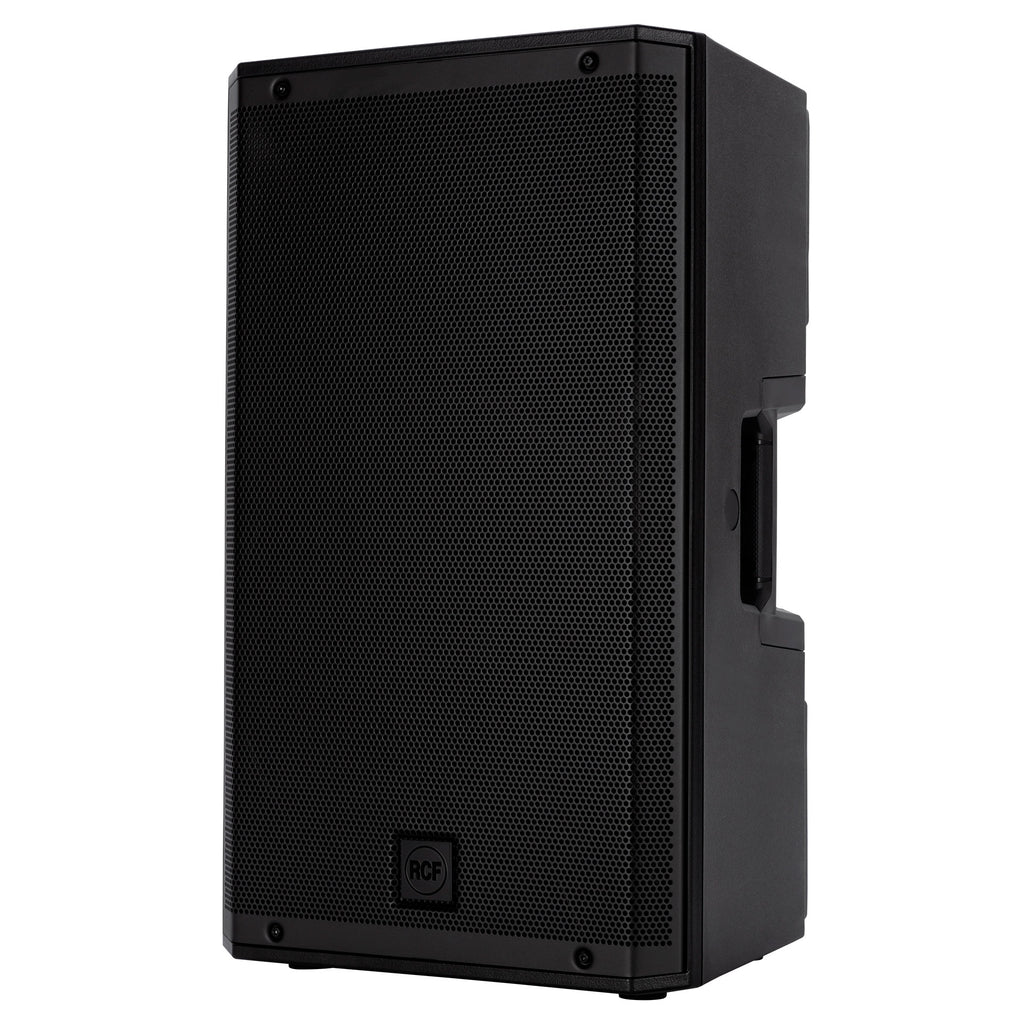

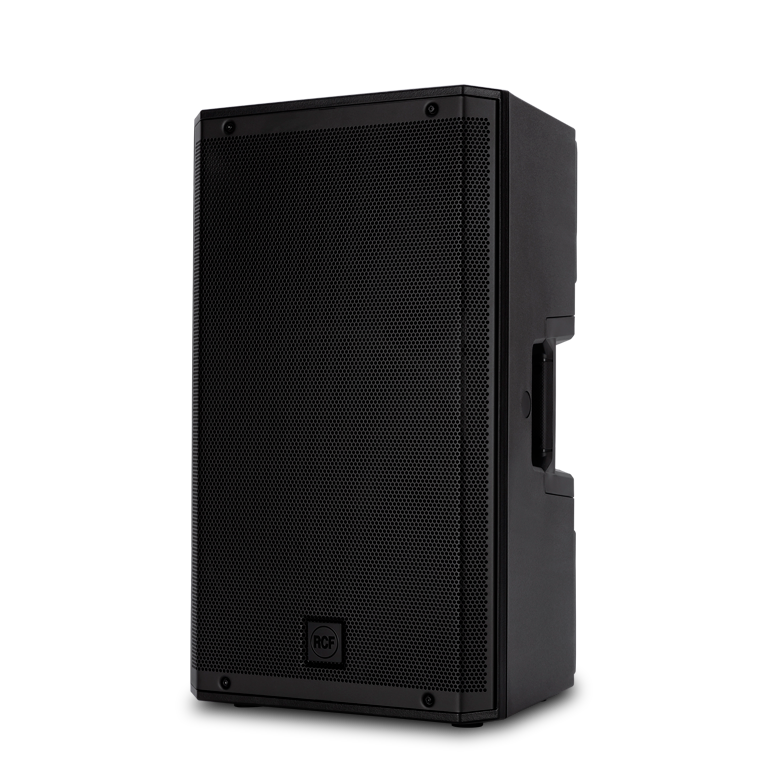

INSTALLED | COMPACT A 12 | TWO-WAY PROFESSIONAL SPEAKER | 400 W power handling | Up to 129 dB Sound Pressure Level | Technical Specifications
Technical Specifications
| Acoustical specifications | |
| Frequency Response (-10dB) | 55 Hz - 20000 Hz |
| Max SPL @ 1m | 129 dB |
| Horizontal coverage angle | 100° |
| Vertical coverage angle | 60° |
| System Sensitivity | 97 dB |
| Power section | |
| Amplification | Full Range |
| Nominal Impedance | 8 ohm |
| Power Handling | 400 W |
| Peak Power Handling | 1600 W PEAK |
| Protections | Dynamic Active Mosfet |
| Crossover Frequencies | 1200 Hz |
| Recommended Amplifiers | QPS 10K, QPS 6.0K, IPS 2.5K, IPS 1.5K, DMA 504 |
| Transducers | |
| Compression Driver | 1 x 1.0'', 1.75'' v.c |
| Woofer | 1 x 12'', 2.5'' v.c |
| Input/Output section | |

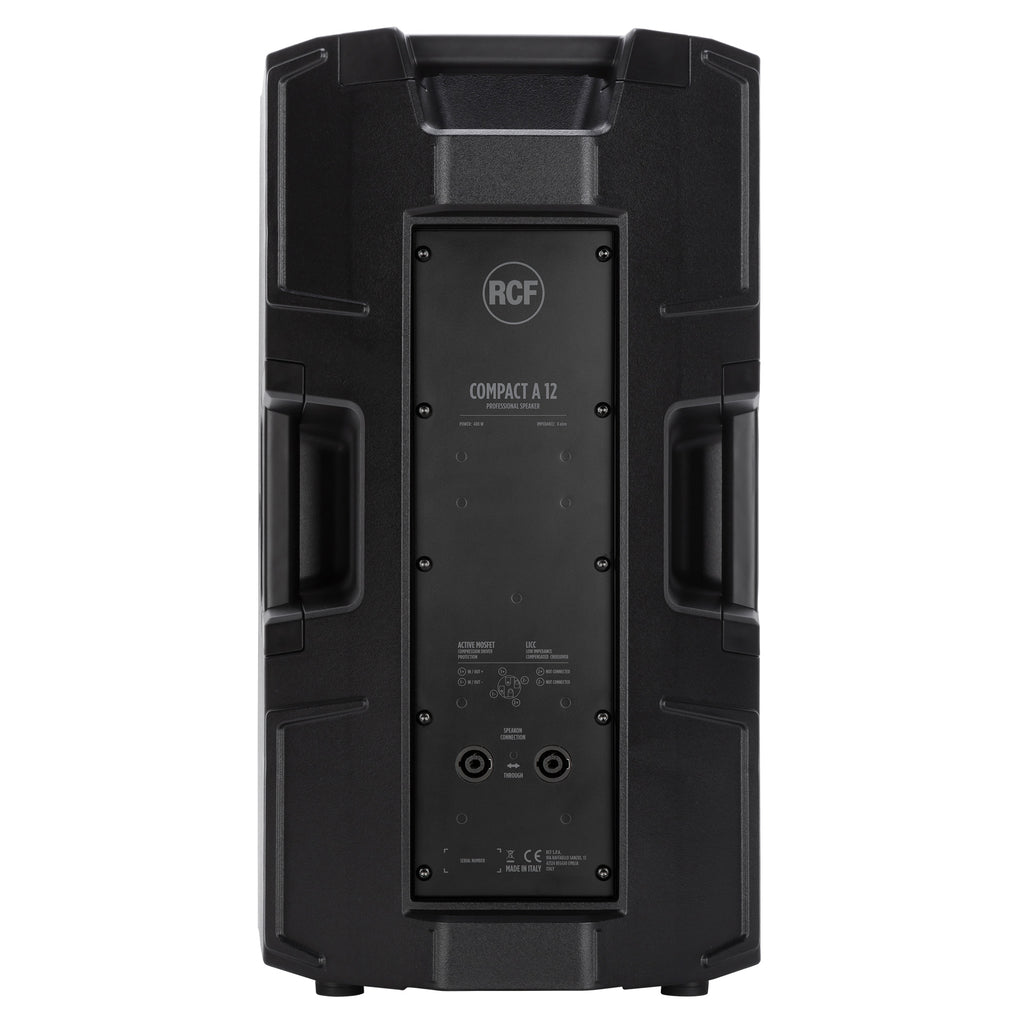

| Input connectors | Speakon |
| Output connectors | |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | PP Composite |
| Hardware | 1 x M10 top, 1 x M10 each side |

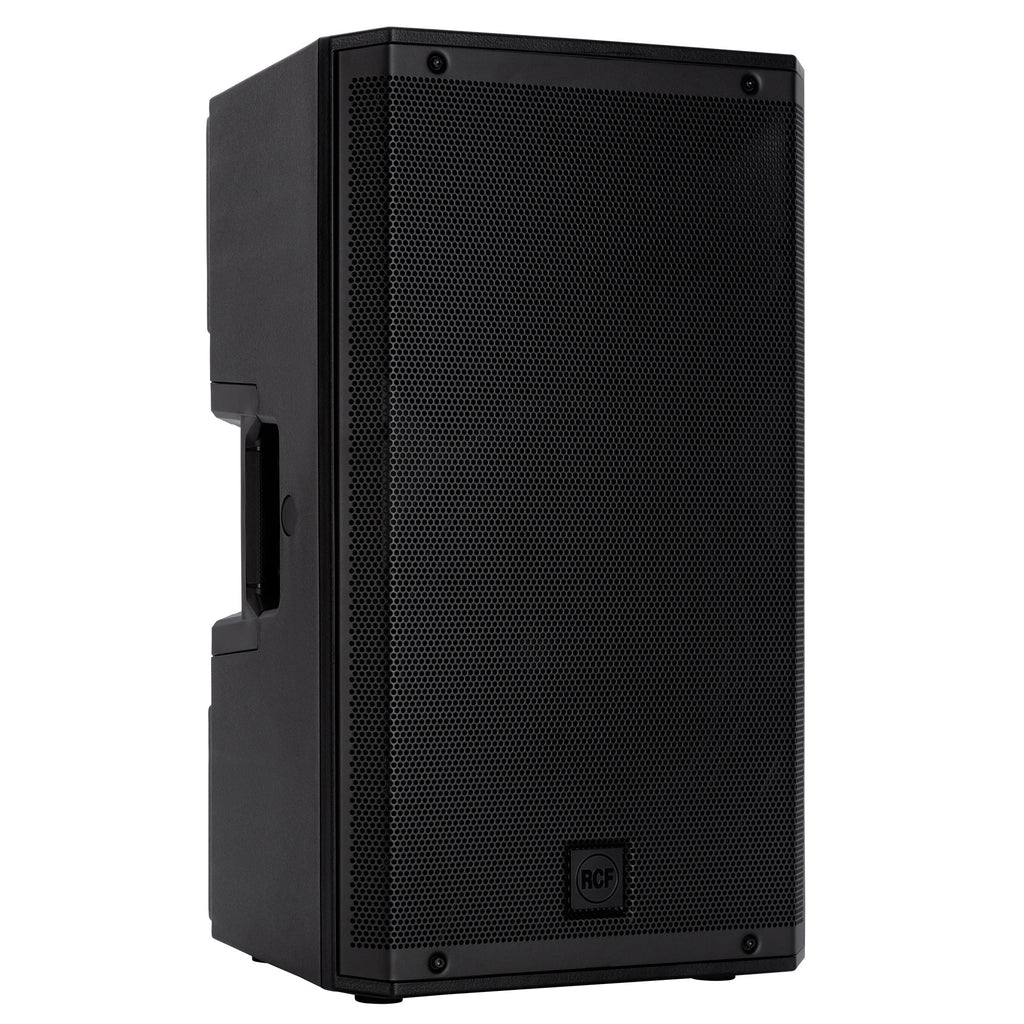

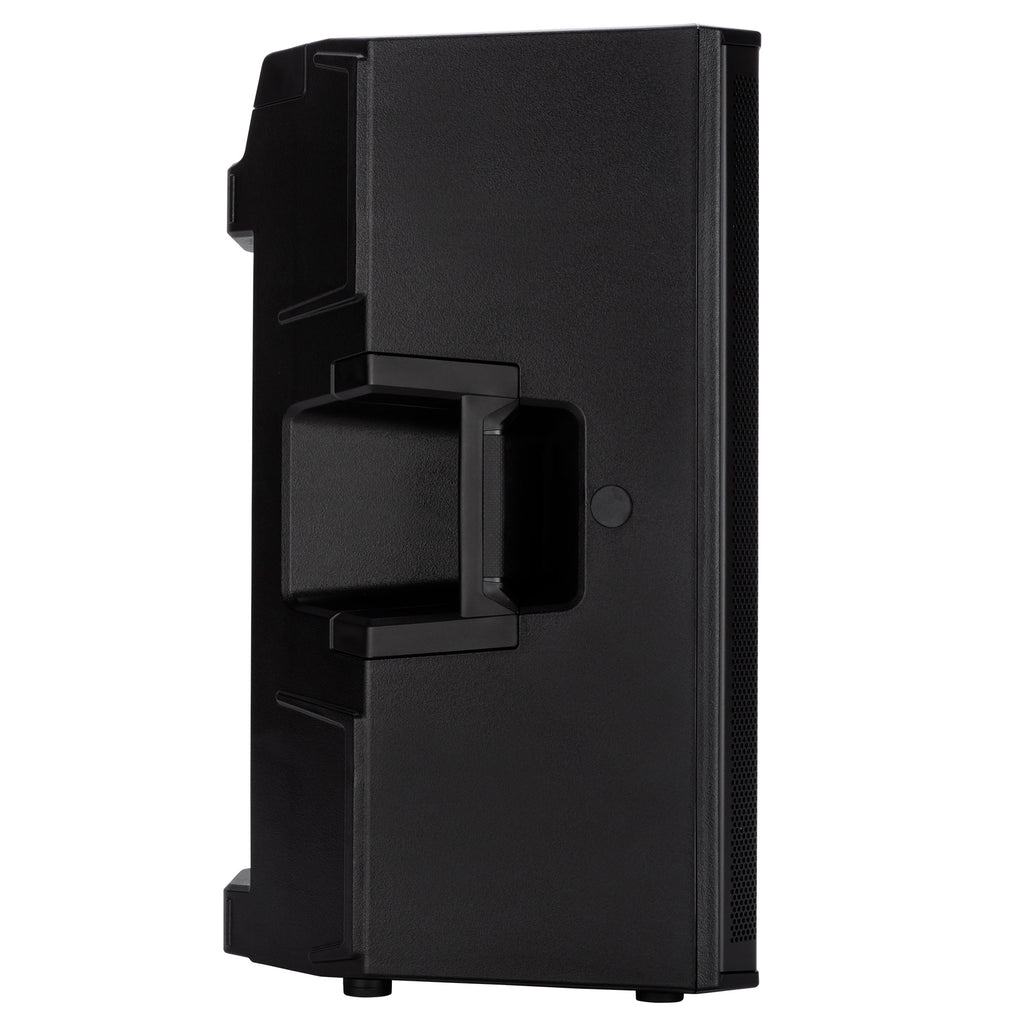

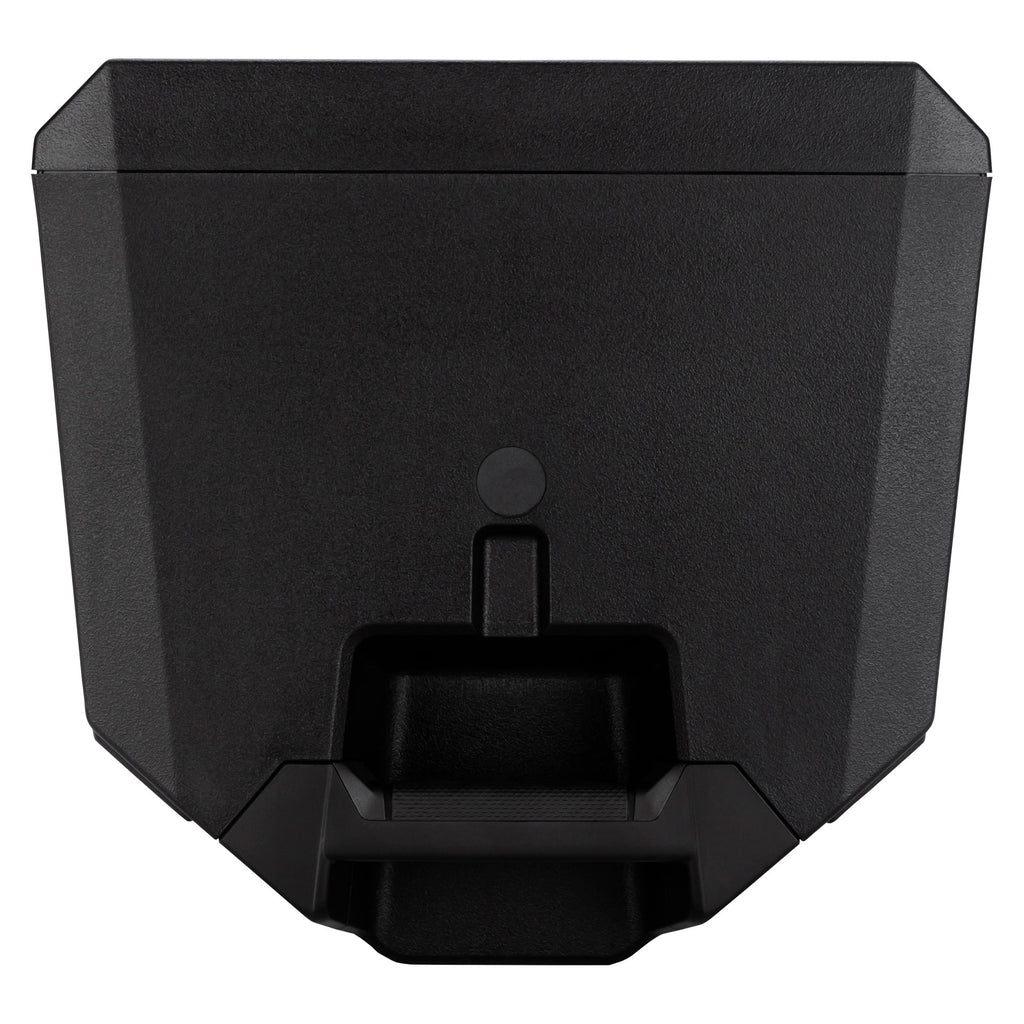

| Handles | 1 top , 1 each side |

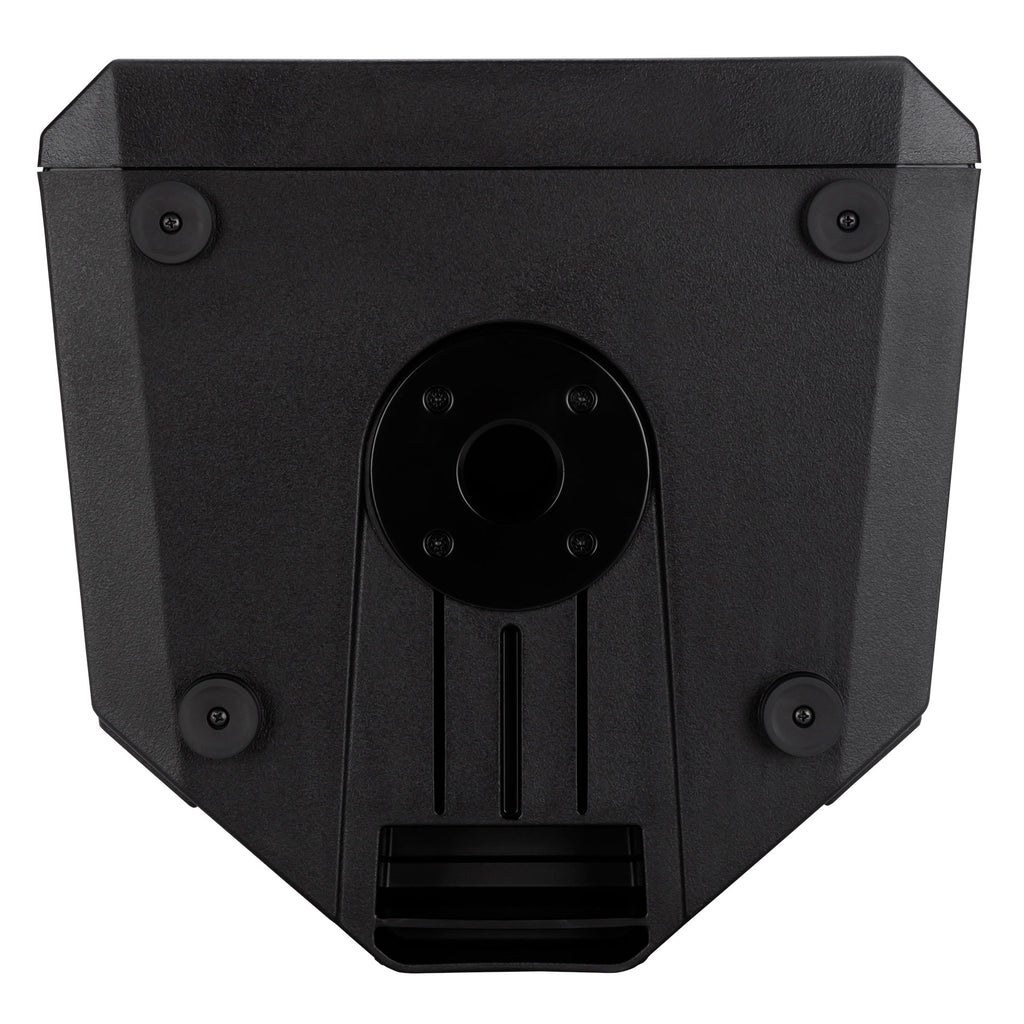

| Pole mount/Cap | 35 mm insert |
| Grille | Steel |
| Color | Black - RAL 9005 |
| Size / Weight | |
| Height | 641.6 mm / 25.26 inches |
| Width | 369.9 mm / 14.56 inches |
| Depth | 363 mm / 14.29 inches |
| Weight | 18.8 kg / 41.45 lbs |
| Shipping information | |
| Package Height | 685 mm / 26.97 inches |
| Package Width | 430 mm / 16.93 inches |
| Package Depth | 423 mm / 16.65 inches |
| Package Weight | 21.4 kg / 47.18 lbs |
