Description

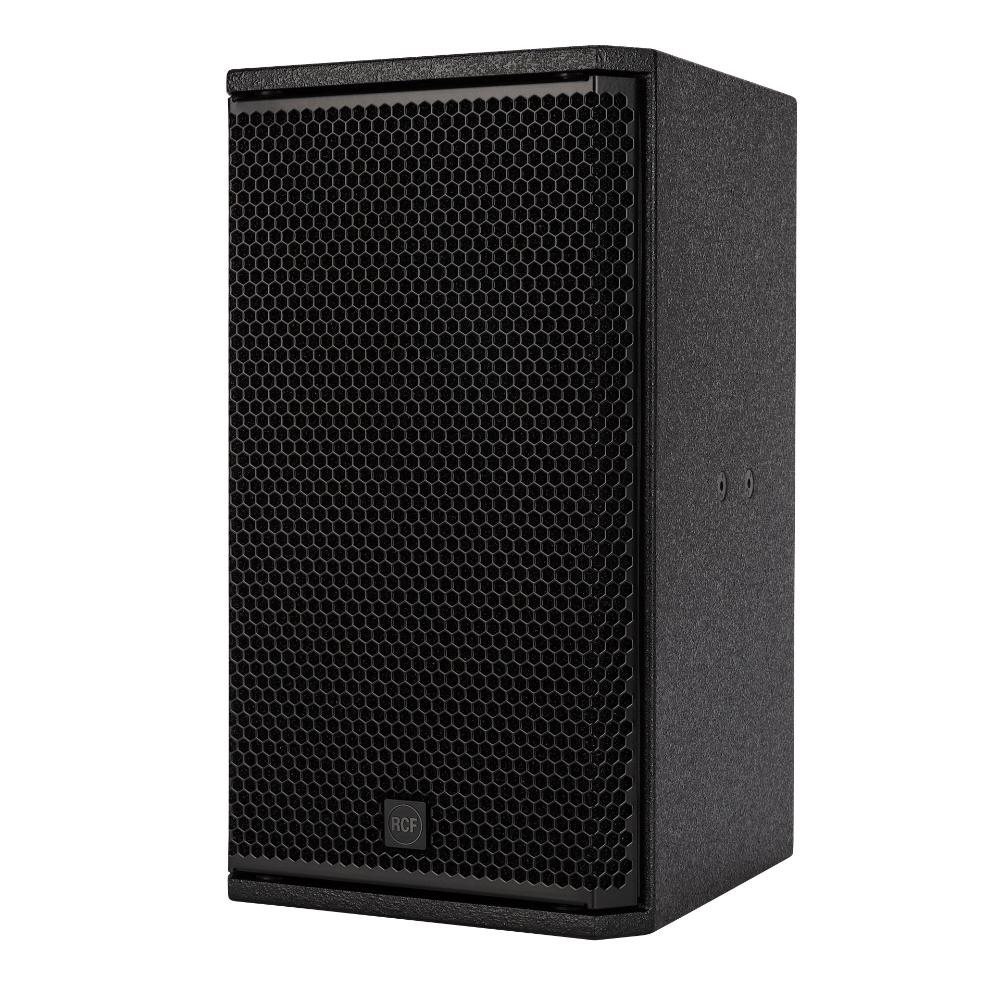

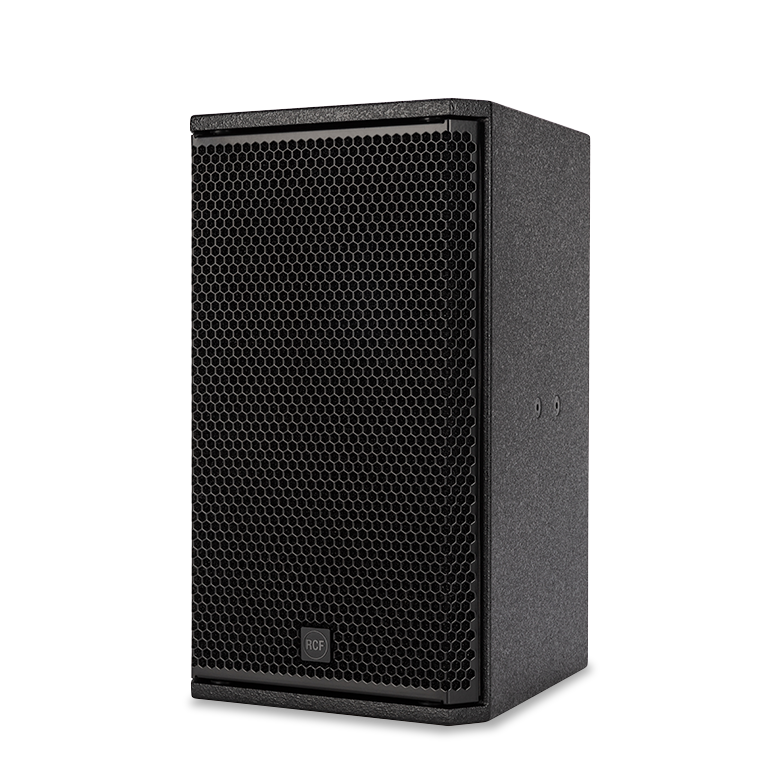

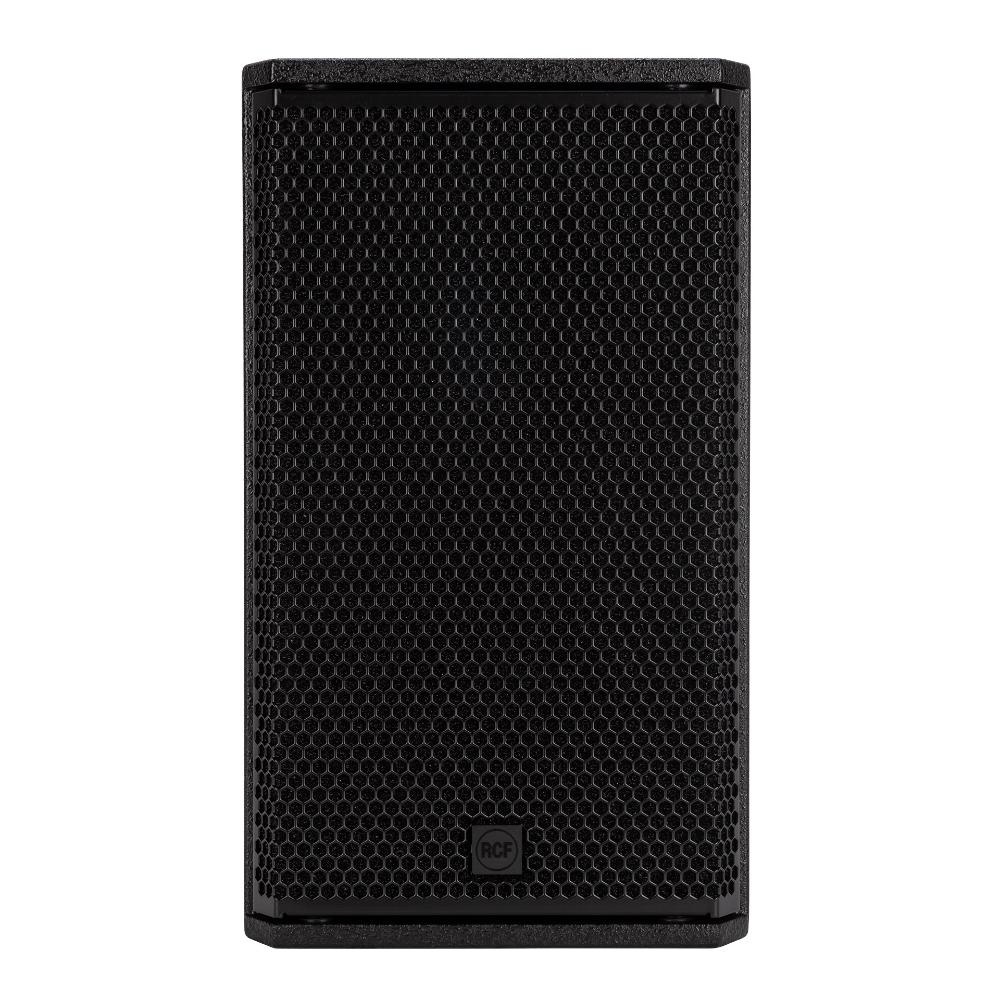

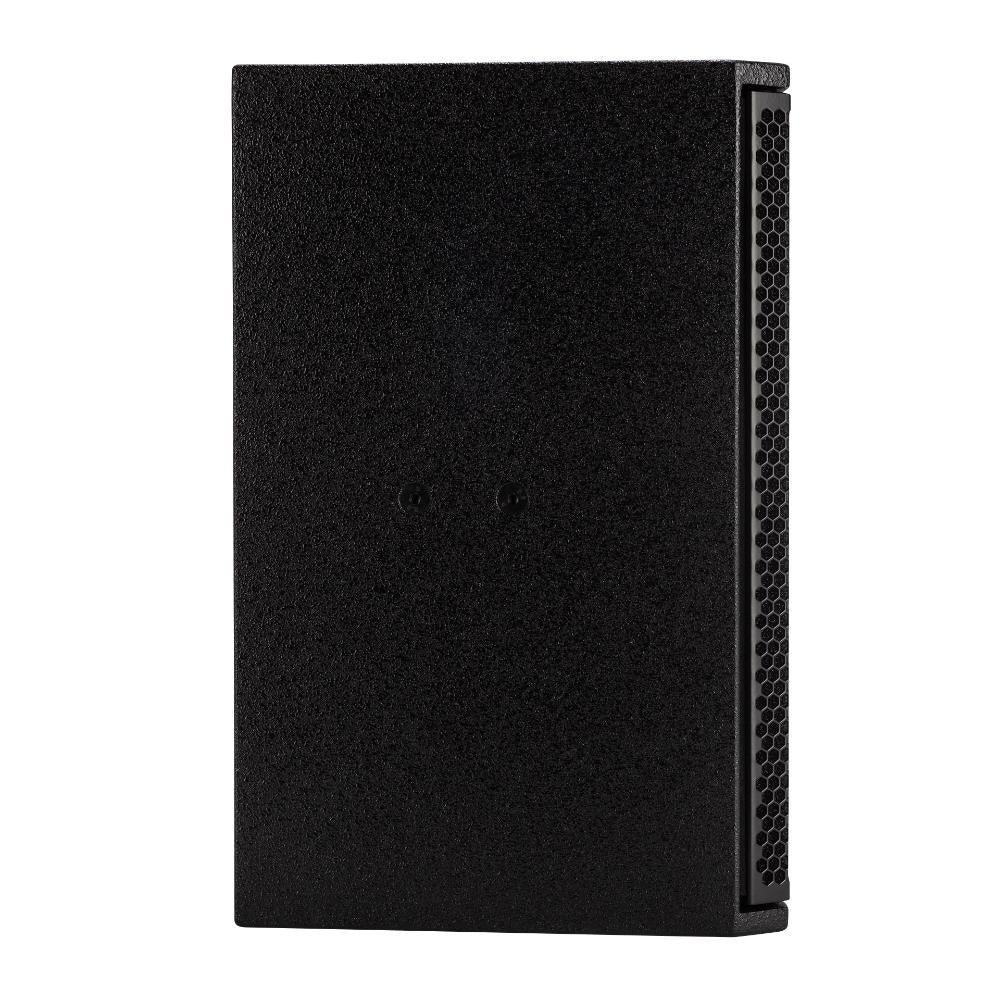

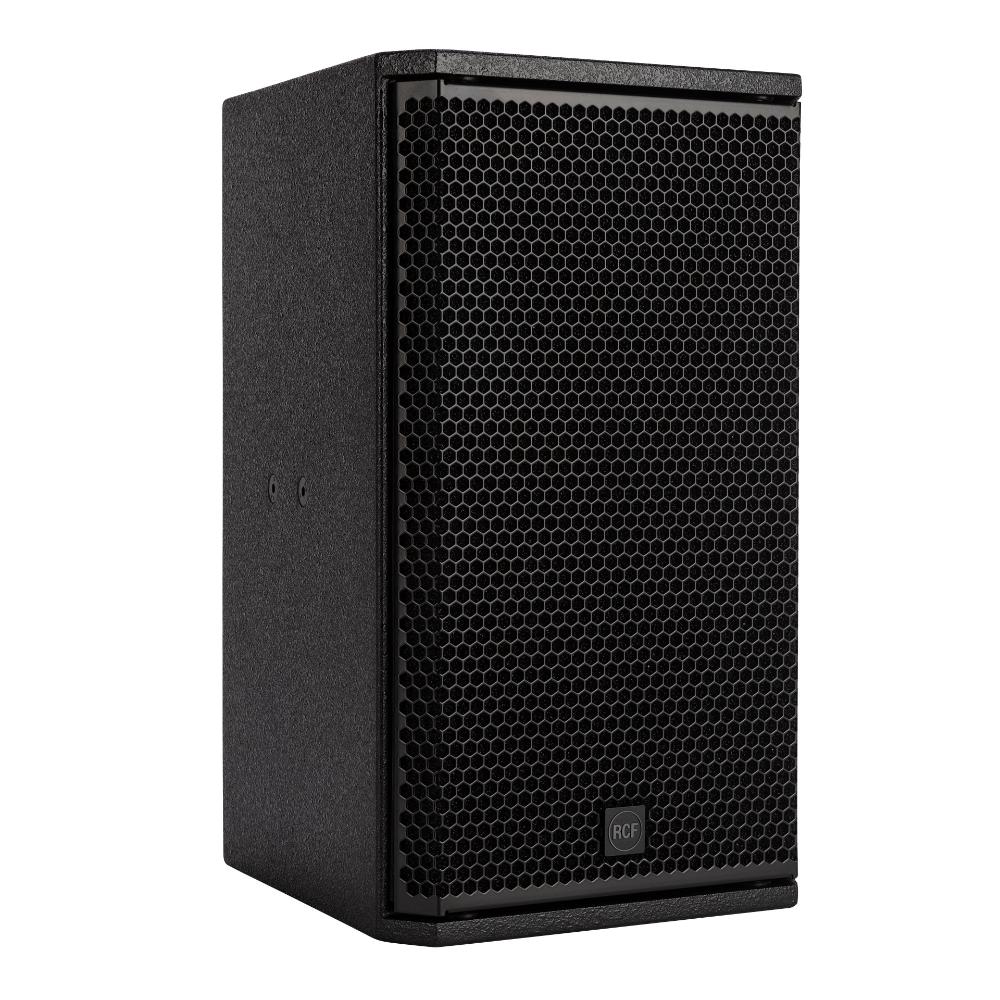

BUSINESS MUSIC | INSTALLED | COMPACT M 04 | TWO-WAY PASSIVE SPEAKER | 60W RMS power handling | Technical Specifications
Technical Specifications
| Acoustical specifications | |
| Frequency Response (-10dB) | 90 Hz - 20000 Hz |
| Max SPL @ 1m | 113 dB |
| Horizontal coverage angle | 120° |
| Vertical coverage angle | Directivity index Q |
| 6 | System Sensitivity |
| 89 dB | |
| Power section | |
| Amplification | Full Range |
| Nominal Impedance | 16 ohm |
| Power Handling | 60 W |
| Peak Power Handling | 240 W PEAK |
| Crossover Frequencies | 1800 Hz |
| Recommended Amplifiers | DMA 162, DMA 162P, DMA 504, DMA 82 |
| Transducers | |
| Dome Tweeter | 1 x 1.0'' neo, 1.0'' v.c |
| Woofer | 1 x 4.0'', 1.0'' v.c |
| Input/Output section | |
| Input connectors | Euroblock |
| Output connectors | |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Plywood |
| Hardware | 2 x M6, 2 x M8 |
| Grille | Steel with clothing |
| Color | Black - RAL 9005, White - RAL 9003 |
| Size / Weight | |
| Height | 148 mm / 5.83 inches |
| Width | 132 mm / 5.2 inches |
| Depth | 145 mm / 5.71 inches |
| Weight | 2.3 kg / 5.07 lbs |
| Shipping information | |
| Package Height | 168 mm / 6.61 inches |
| Package Width | 233 mm / 9.17 inches |
| Package Depth | 150 mm / 5.91 inches |
| Package Weight | 2.9 kg / 6.39 lbs |
