Description

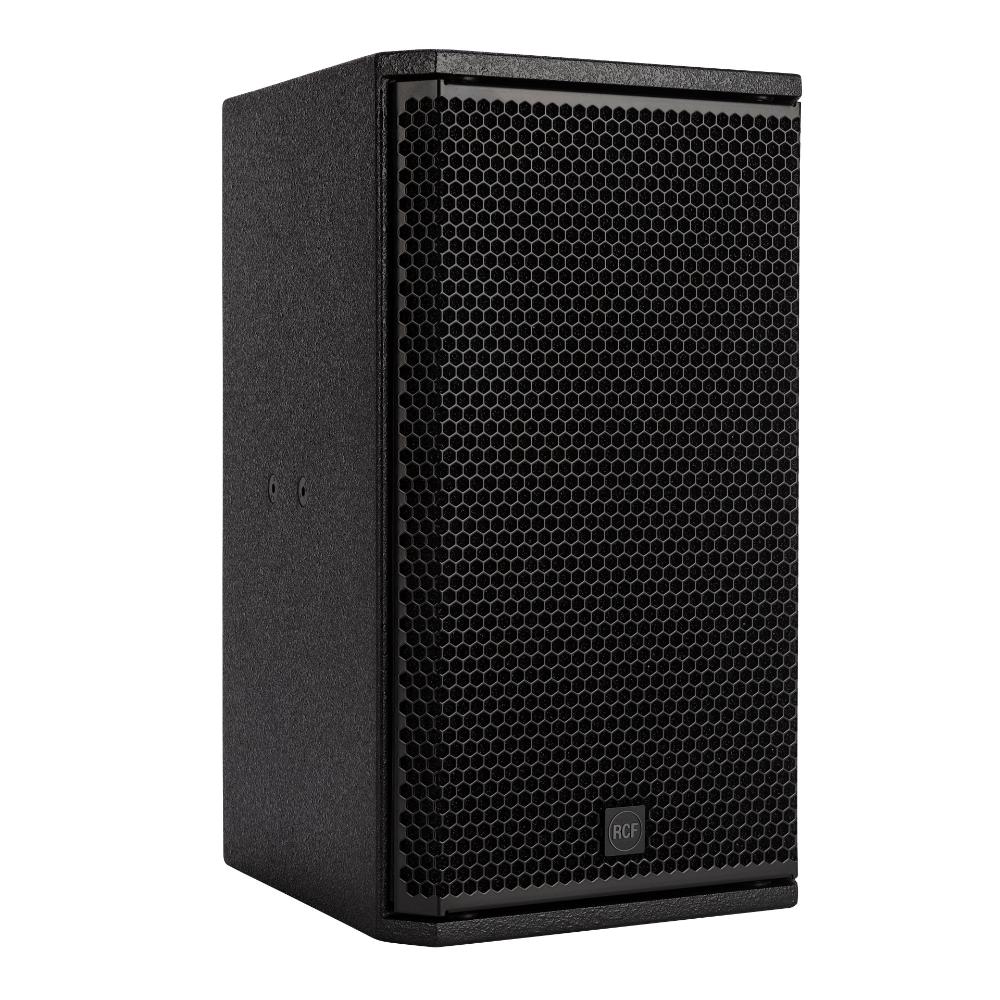

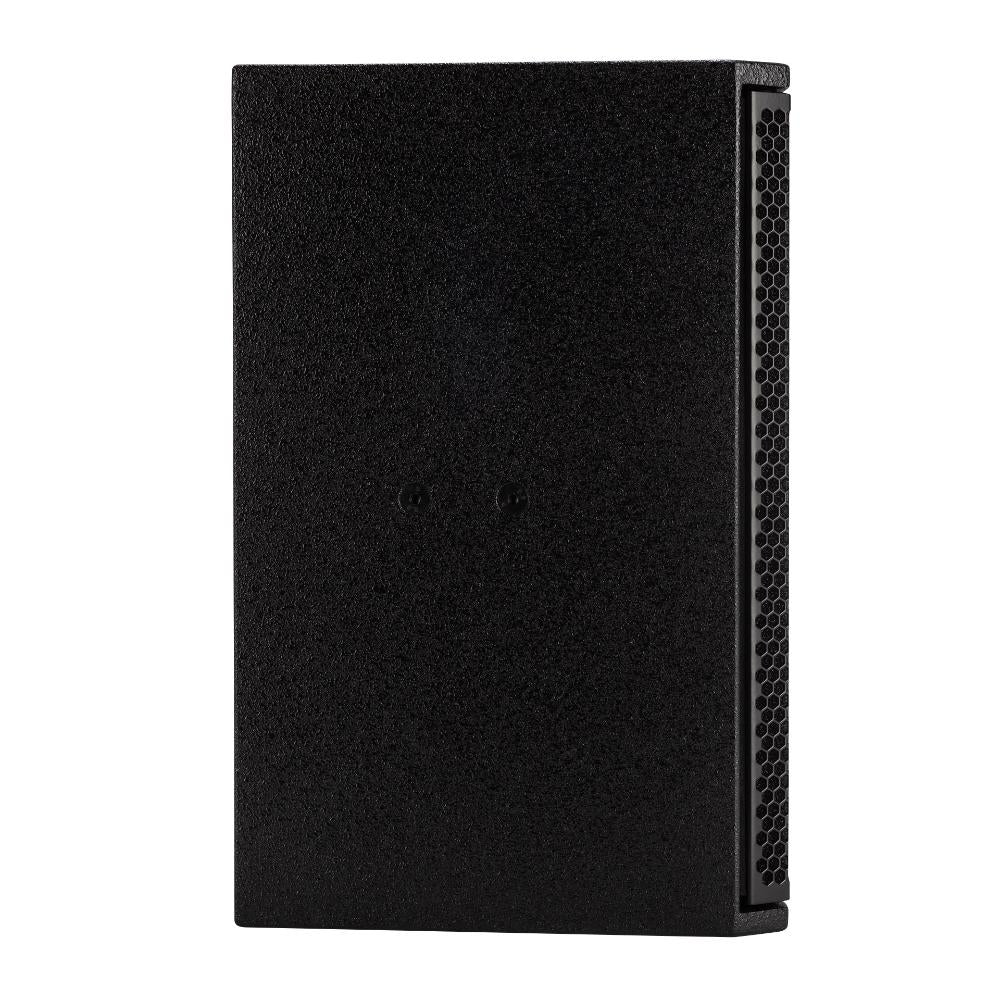

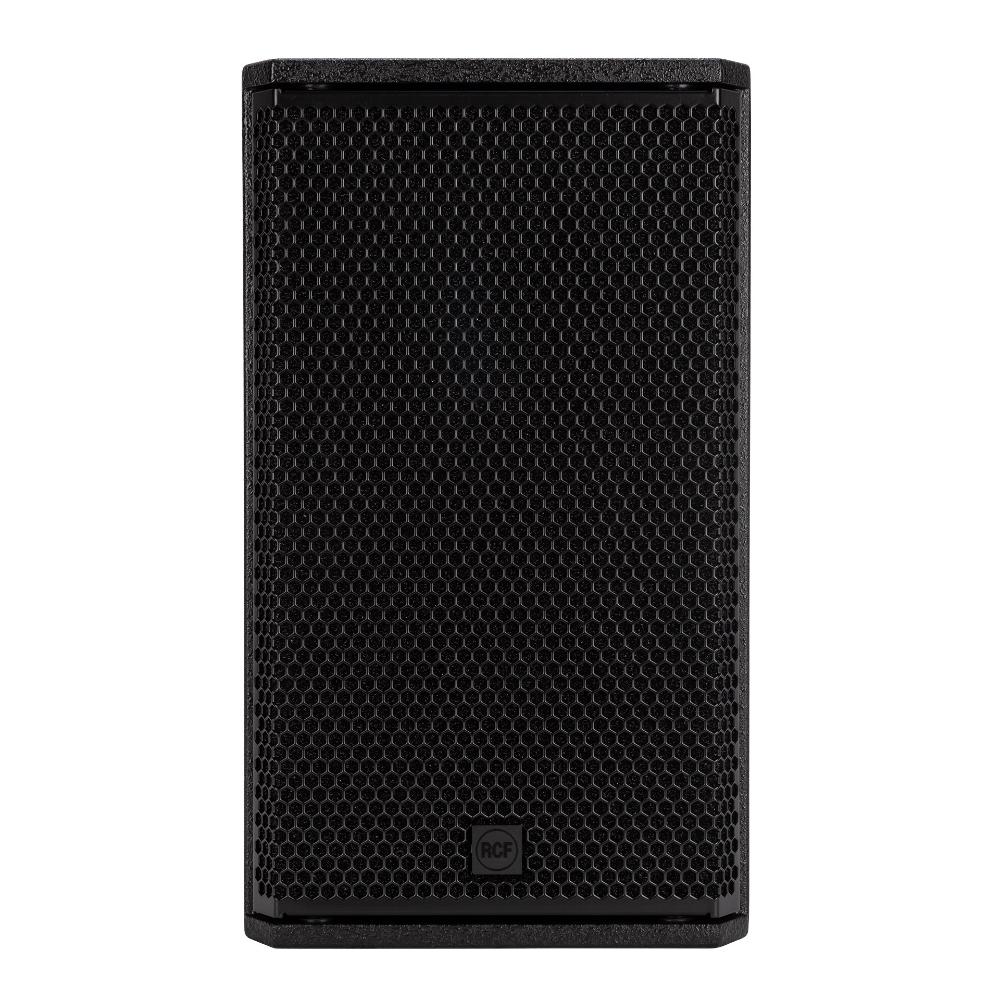

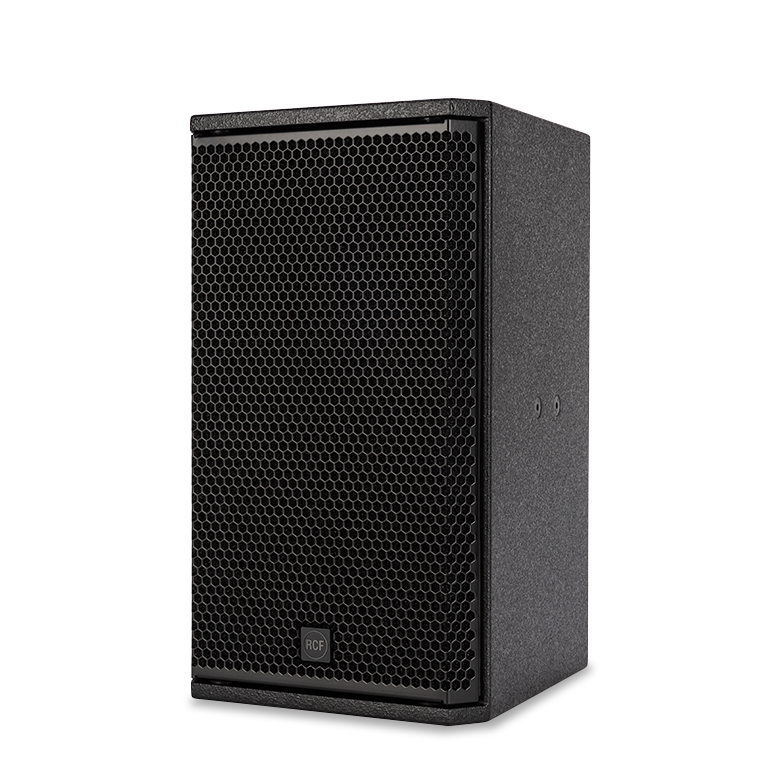

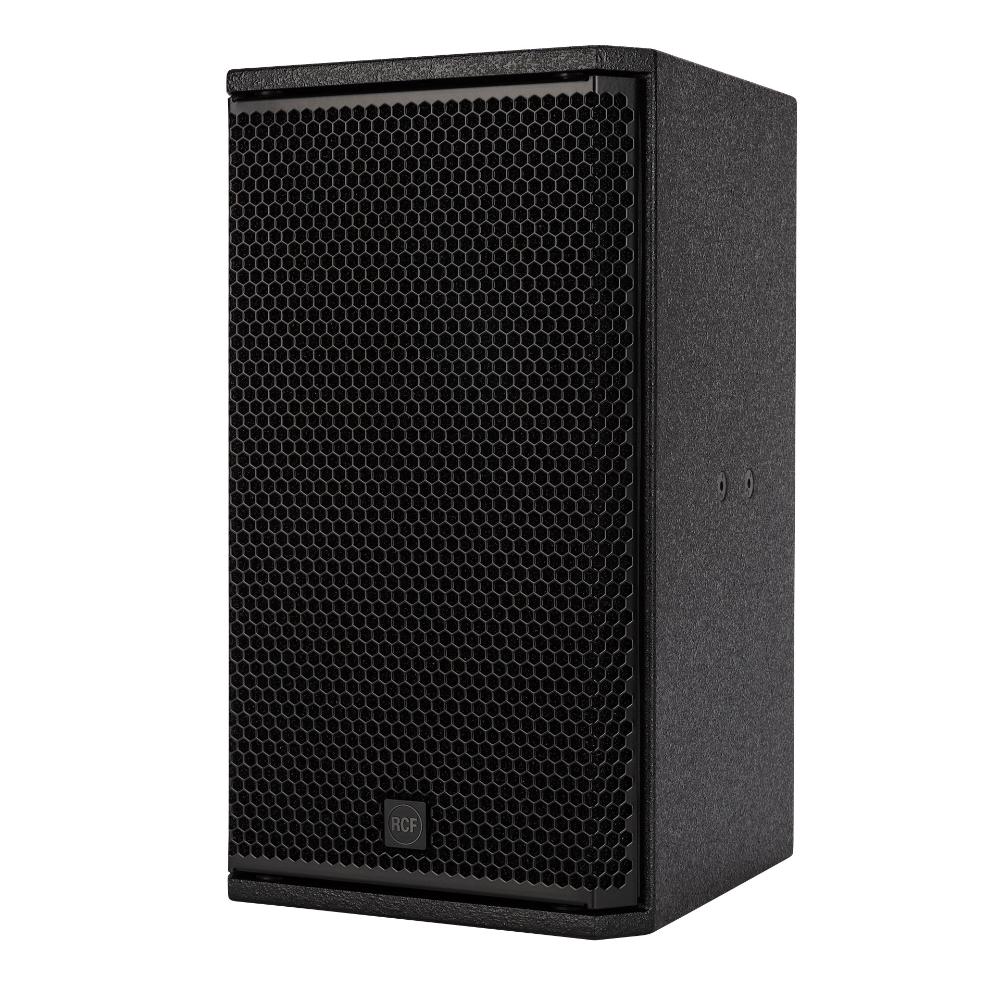

INSTALLED | COMPACT M 08 | TWO-WAY PROFESSIONAL SPEAKER | 200W RMS power handling | Technical Specifications | 124 dB max SPL
Technical Specifications
| Acoustical specifications | |
| Frequency Response (-10dB) | 60 Hz - 20000 Hz |
| Max SPL @ 1m | 124 dB |
| Horizontal coverage angle | 90° |
| Vertical coverage angle | 70° |
| Directivity index Q | 9 |
| System Sensitivity | 95 dB |
| Power section | |
| Amplification | Full Range |
| Nominal Impedance | 8 ohm |
| Power Handling | 200 W |
| Peak Power Handling | 800 W PEAK |
| Protections | Dynamic active mosfet |
| Crossover Frequencies | 1800 Hz |
| Recommended Amplifiers | |
| XPS 16K, XPS 16KD, QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K, IPS 1.5K, DMA 504 | |
| Transducers | |
| Compression Driver | 1 x 1.0'', 1.4'' v.c |
| Woofer | 1 x 8'', 1.7'' v.c |
| Input/Output section | |
| Input connectors | Euroblock |
| Output connectors | |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Plywood |
| Hardware | 6 x M6, 4 x M8, 2 x M10 |
| Grille | Steel with clothing |
| Color | Black - RAL 9005, White - RAL 9003 |
| Size / Weight | |
| Height | 442 mm / 17.4 inches |
| Width | 257 mm / 10.12 inches |
| Depth | 284 mm / 11.18 inches |
| Weight | 10.5 kg / 23.15 lbs |
| Shipping information | |
| Package Height | 477 mm / 18.78 inches |
| Package Width | 322 mm / 12.68 inches |
| Package Depth | 295 mm / 11.61 inches |
| Package Weight | 12.4 kg / 27.34 lbs |
