Save $1,310
RCFSKU: HDL 12-AS
Price:
$2,199 $3,509

Shipping calculated at checkout

Description

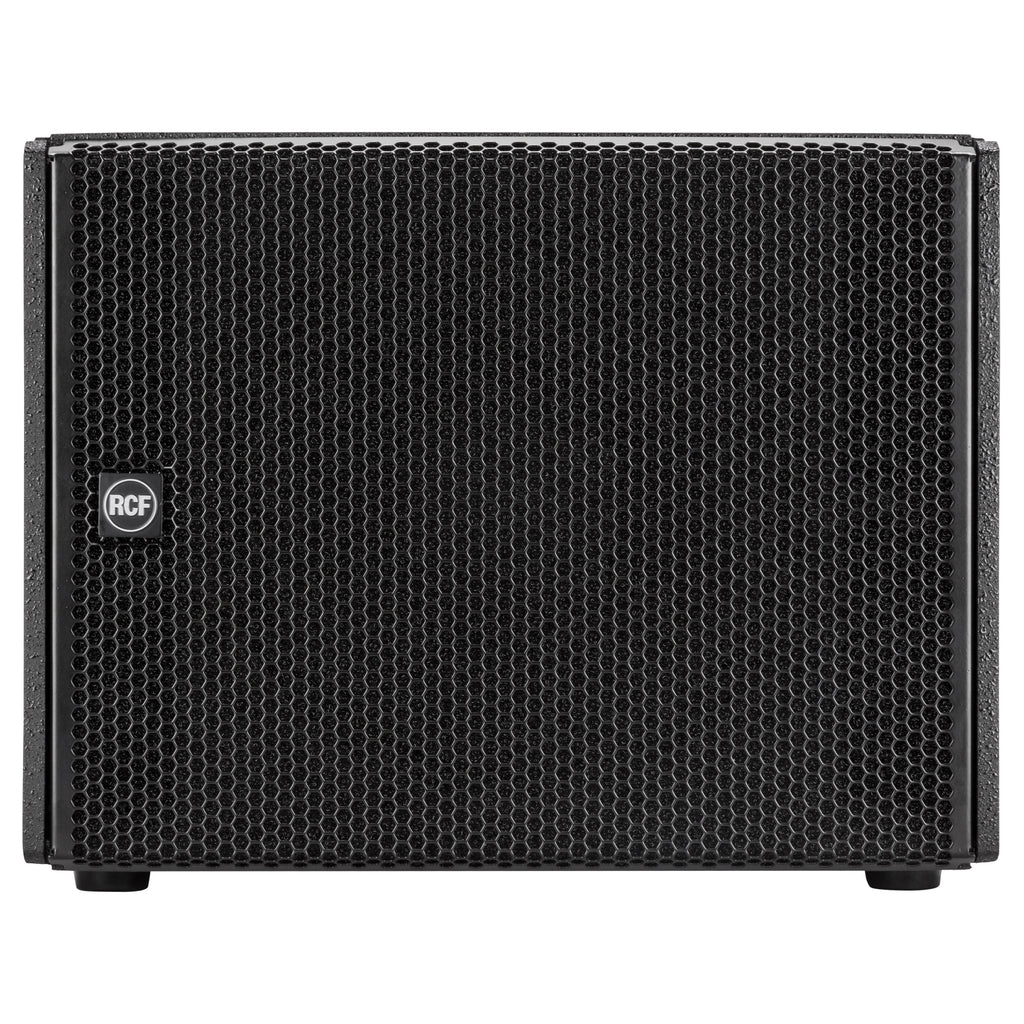

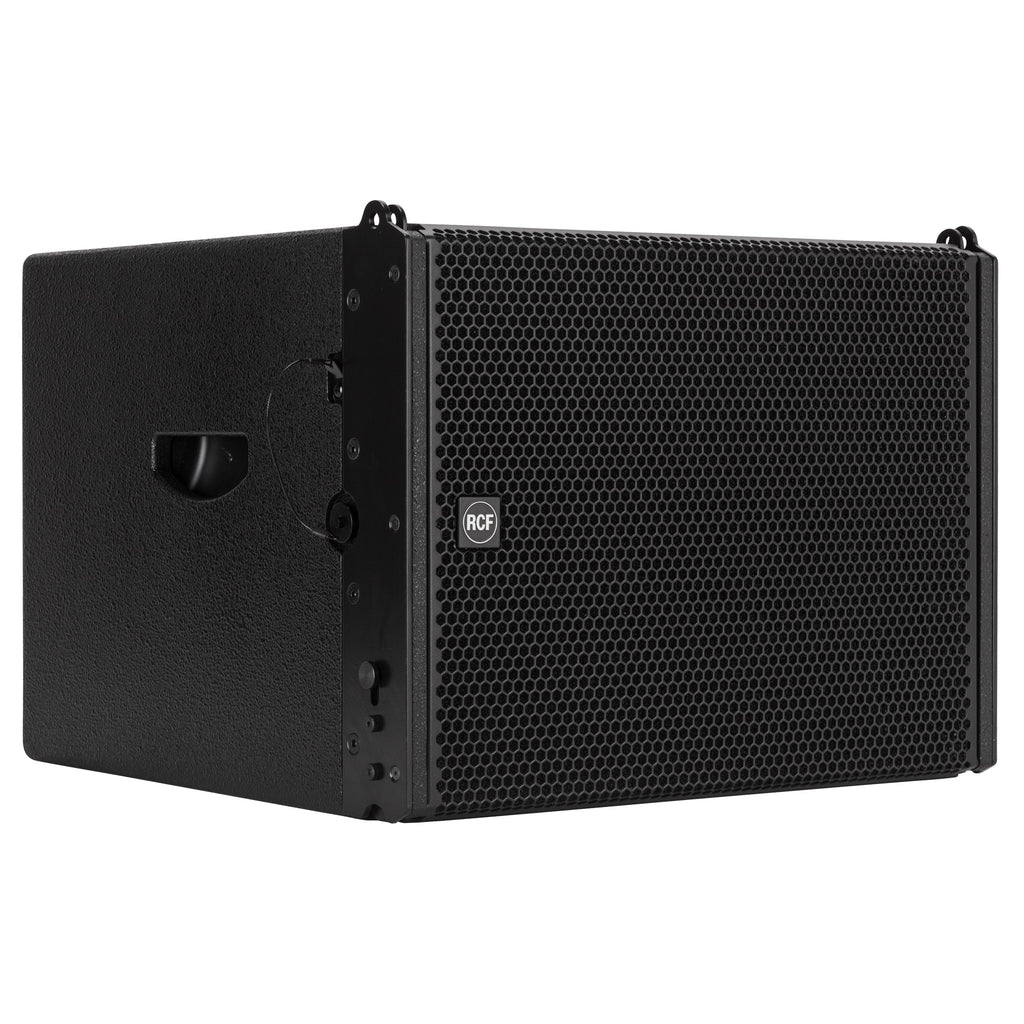

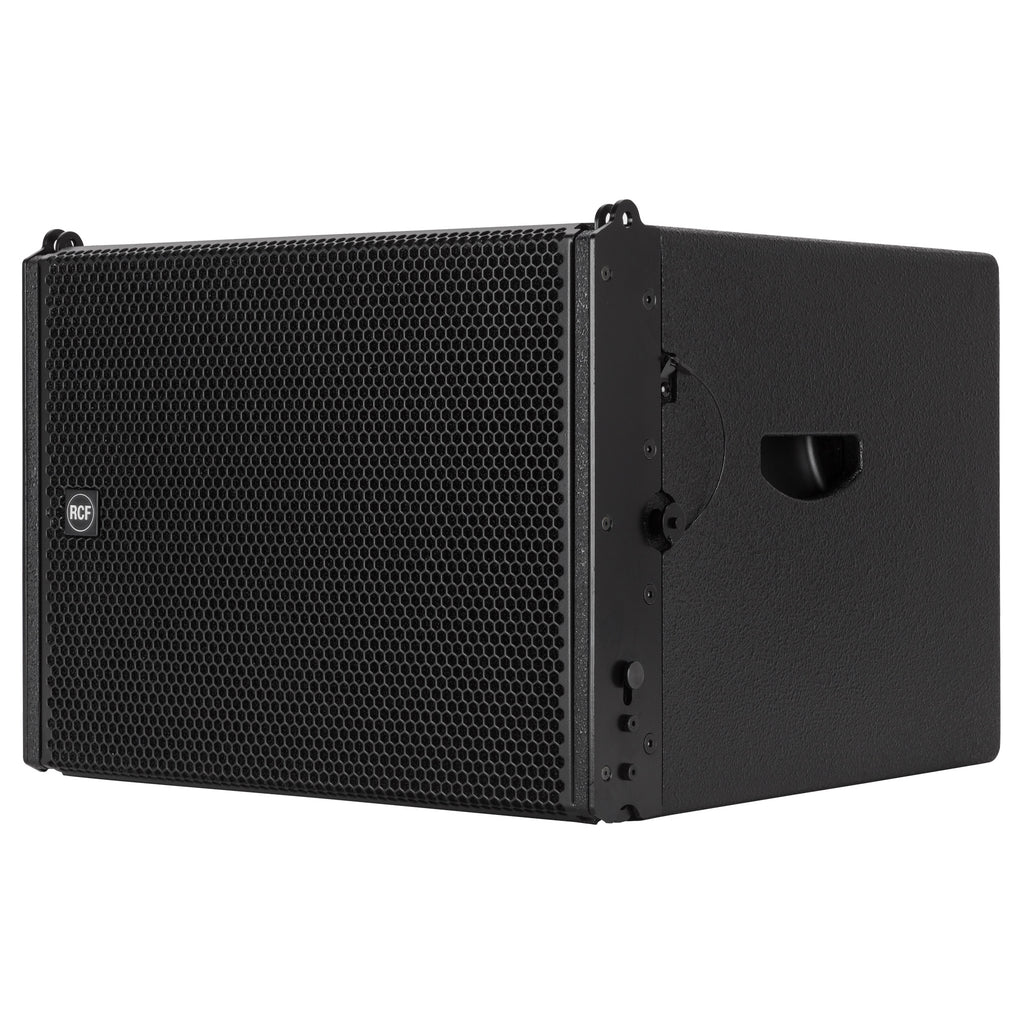

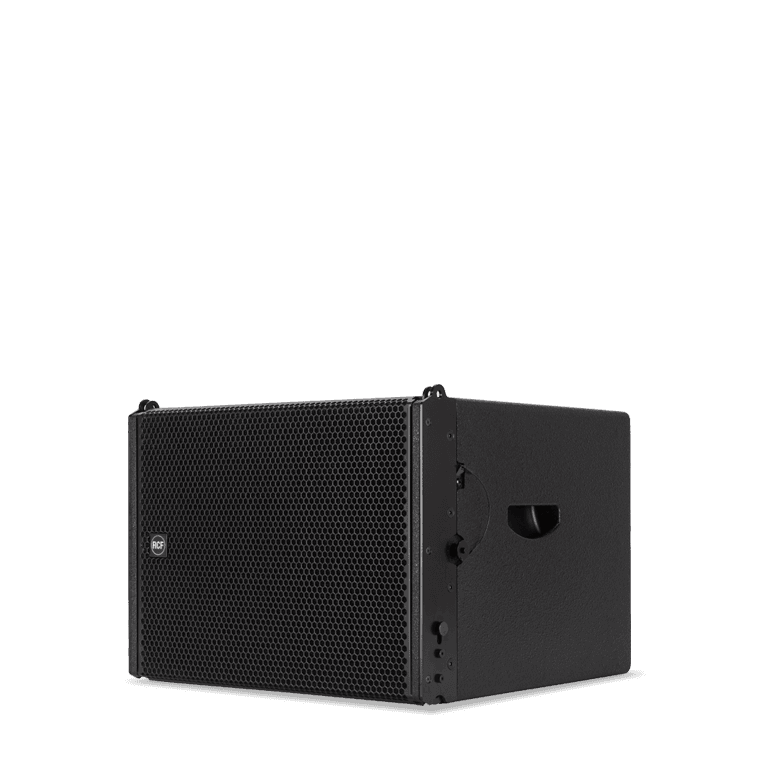

The HDL 12-AS is the companion subwoofer for HDL 6-A. Housing a 12" woofer, the HDL 12-AS, is a very compact active sub enclosure and features a 1400 W powerful digital amplifier. It is the ideal complement to create flown HDL 6-A clusters with outstanding performance. It features a built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the HDL 6-A line array module or a satellite. The integrated mechanics are both fast and reliable. The heavy-duty front grille is power coated. A special transparent-to-sound foam backing inside helps the further protection of the transducers from dust.

Features

  • 1400 Watt Peak power - 700 Watt RMS
  • 131 dB max SPL
  • 40 Hz - 120 Hz frequency response
  • 1 x 12" Woofer
  • Stereo crossover
  • Switchable crossover frequencies
  • Designed to compliment the HDL 6-A speaker system
  • Polarity reverse switch

Subwoofer alignment tutorials

Specifications

Acoustical specifications
Frequency Response 40 Hz - 120 Hz
Max SPL @ 1m 131 dB
Transducers

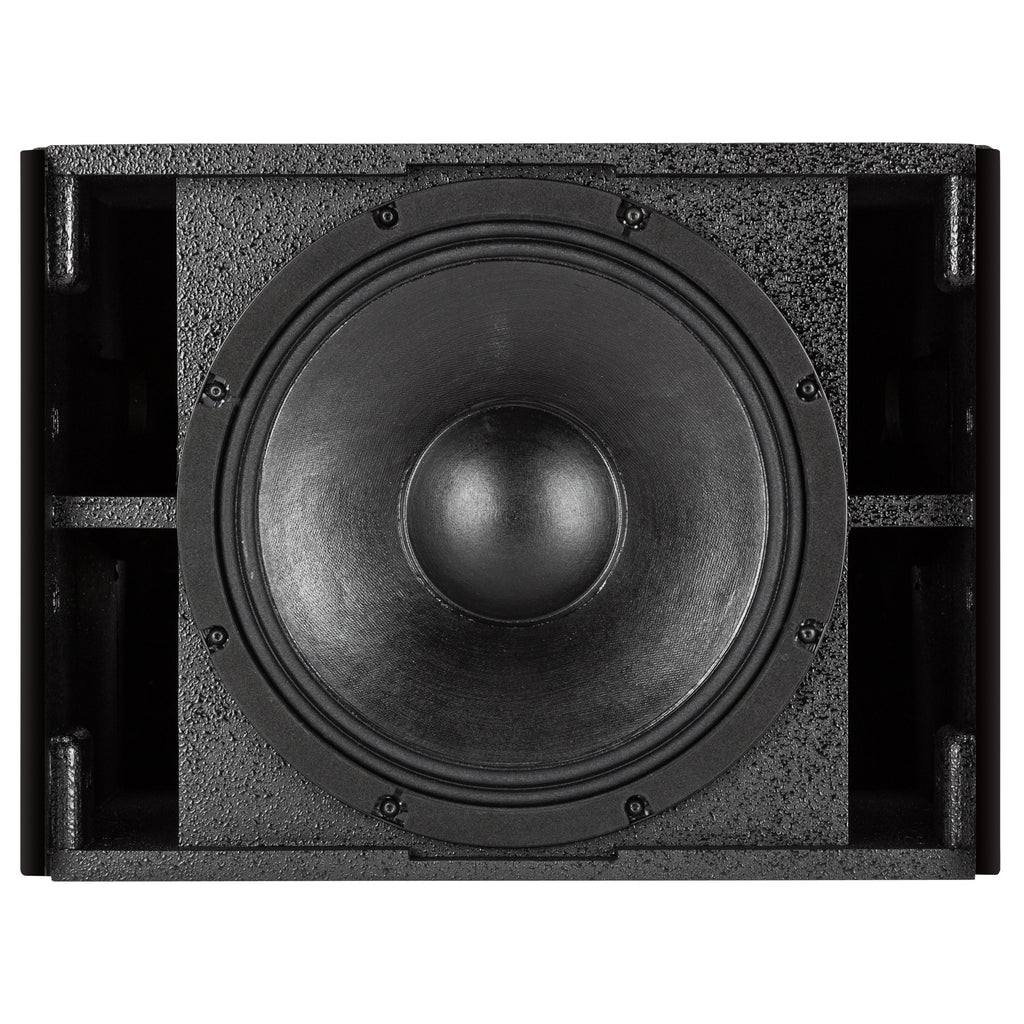

Woofer 1 x 12'', 3.0'' v.c

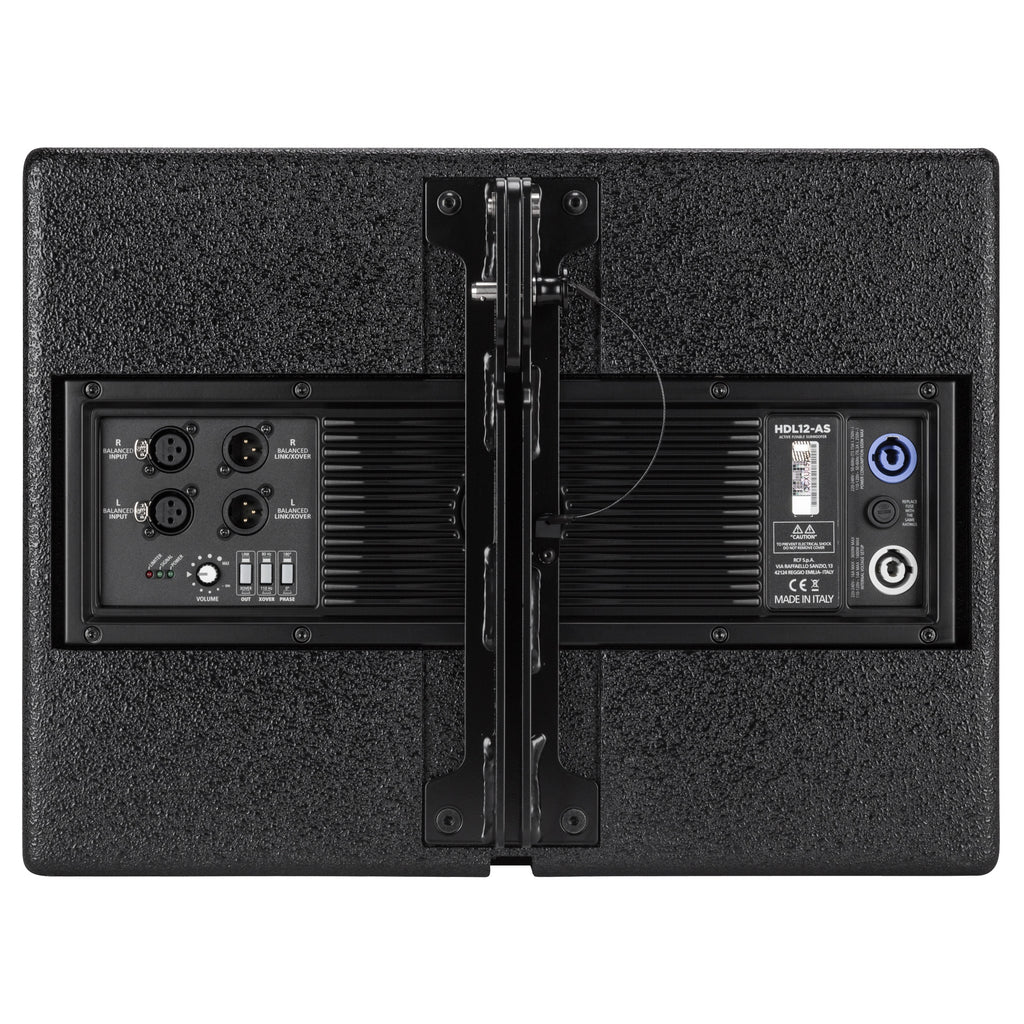

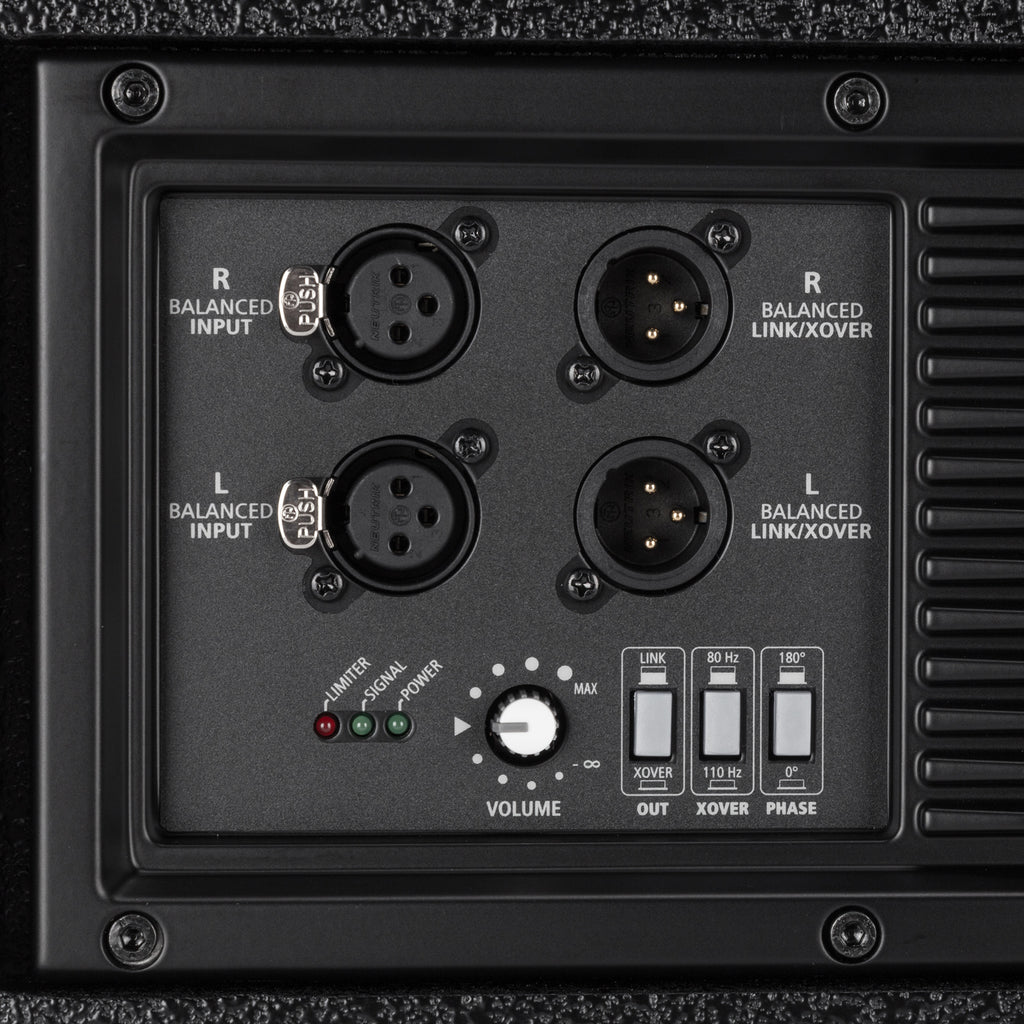

Input/Output section
Input signal bal/unbal
Input connectors XLR
Output connectors XLR
Input sensitivity -2 dBu/+4 dBu
Processor section
Hi-Pass Frequencies 40Hz
Low-Pass Frequencies 80Hz, 110Hz
Protections Thermal, RMS
Limiter Soft Limiter
Controls Volume, EQ, Phase, Xover
Power section
Total Power 1400 W Peak, 700 W RMS
Low frequencies 1400 W Peak, 700 W RMS
Cooling Convection

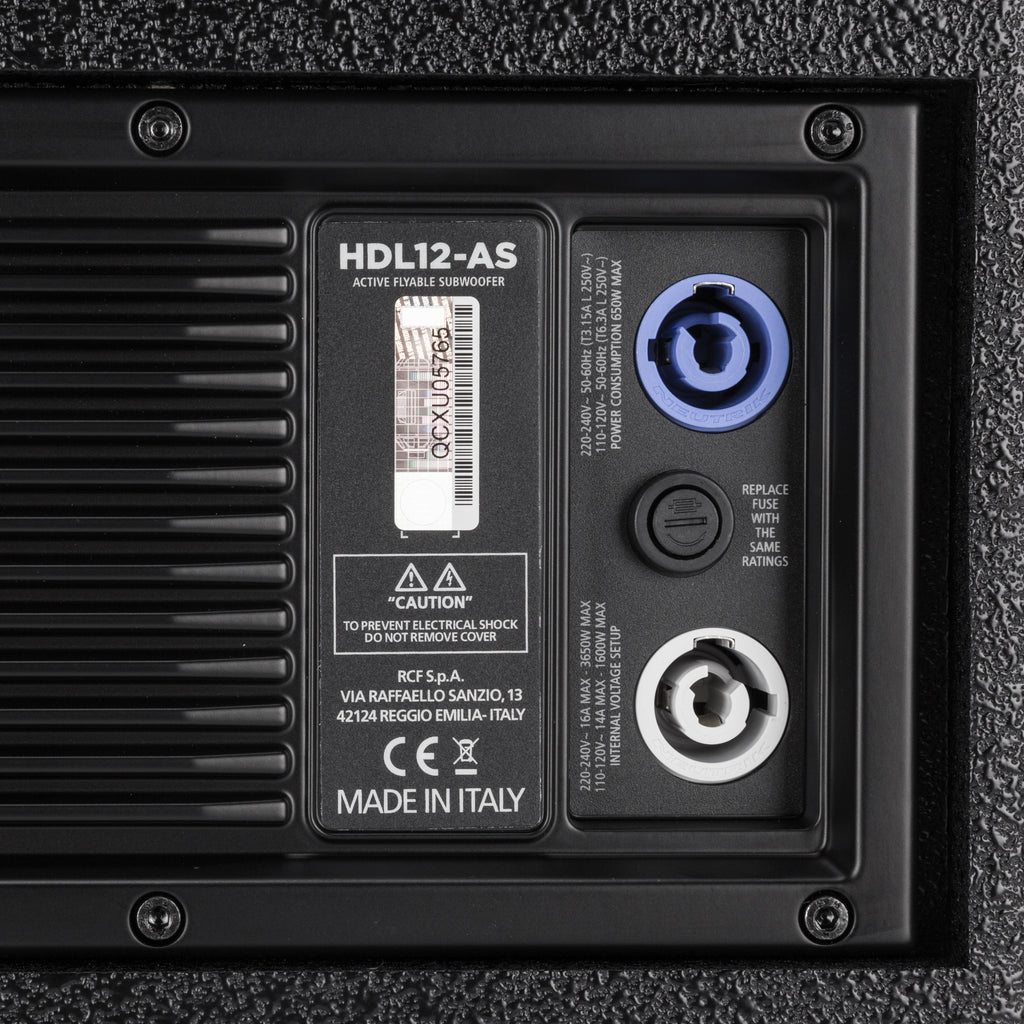

Connections Powercon IN/OUT
Standard compliance
Safety agency CE compliant
Physical specifications
Cabinet/Case Material Baltic birch plywood
Handles 2 side
Grille Steel
Color Black, White
Size / Weight
Height 379 mm / 14.92 inches
Width 470 mm / 18.5 inches
Depth 508 mm / 20 inches
Weight 25 kg / 55.12 lbs
Shipping information
Package Height 435 mm / 17.13 inches
Package Width 560 mm / 22.05 inches
Package Depth 520 mm / 20.47 inches
Package Weight 28 kg / 61.73 lbs
