Description

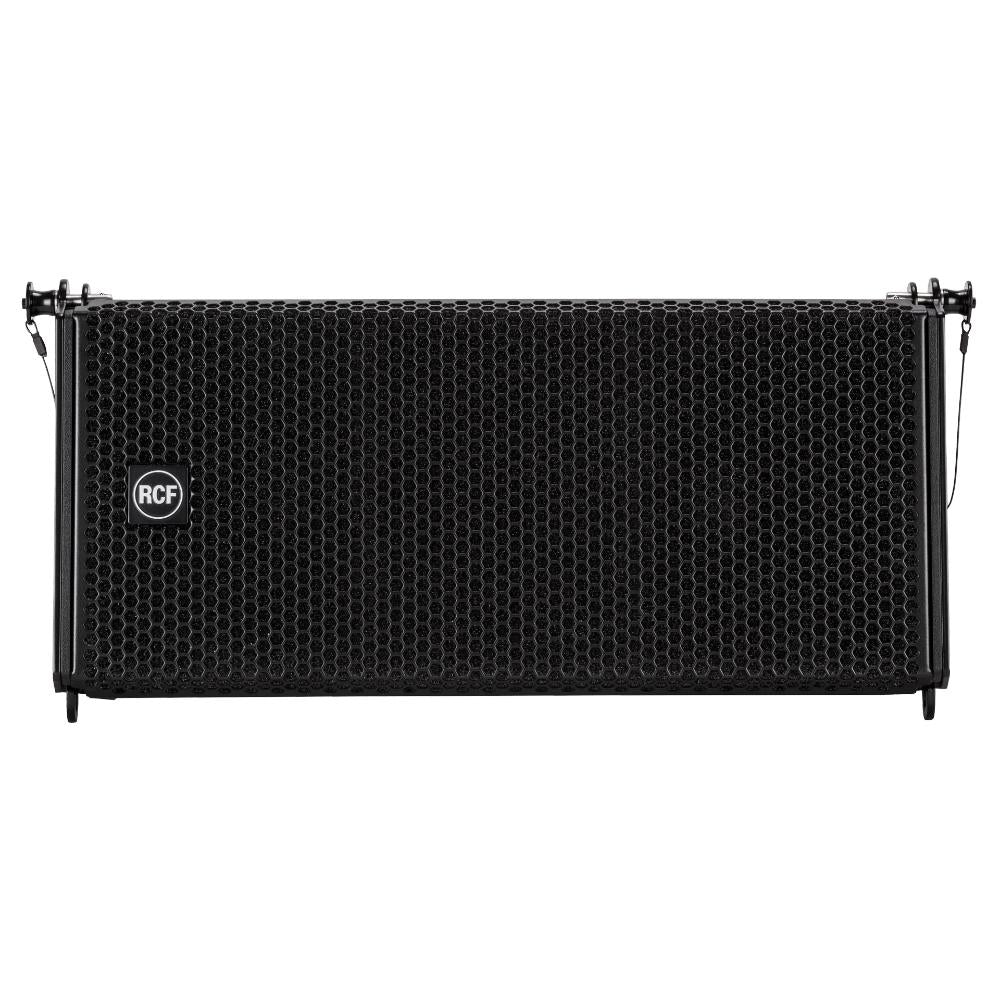

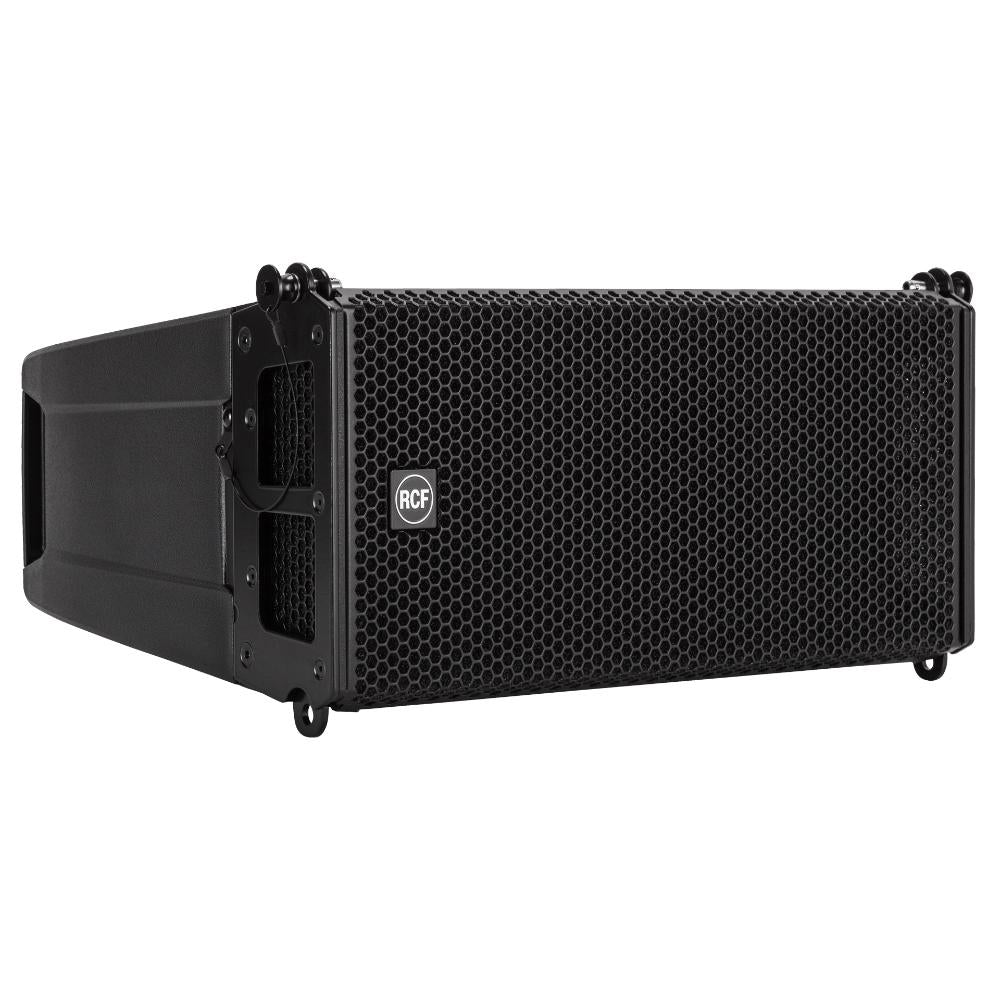

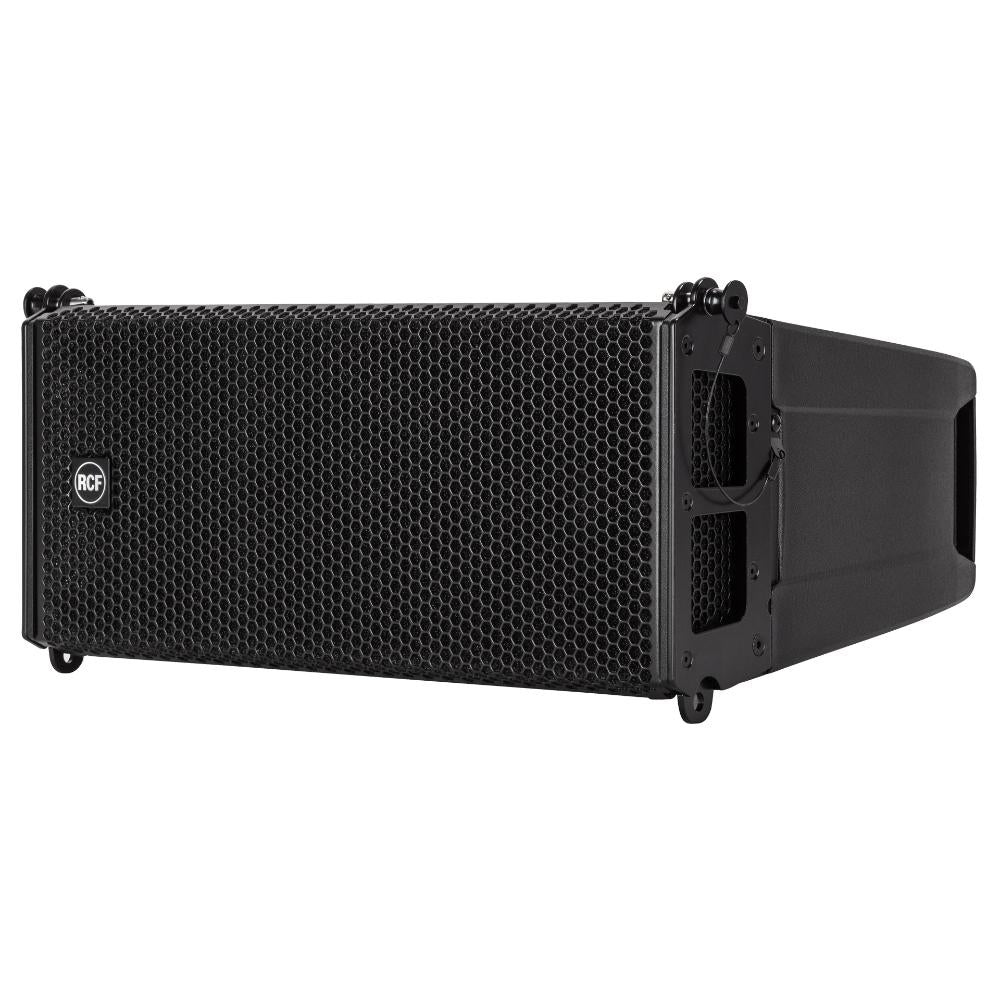

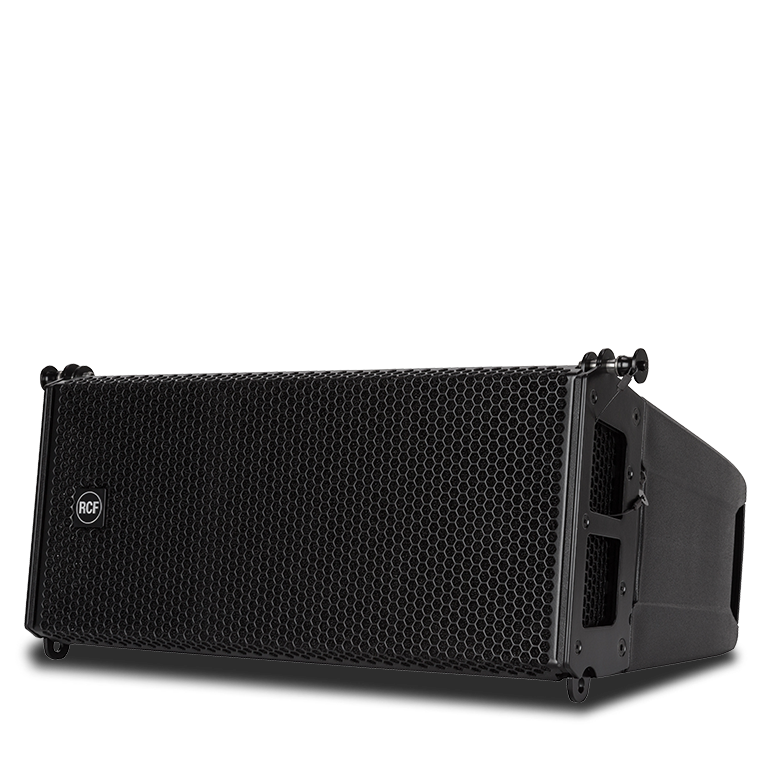

TOURING | HDL 10-A | ACTIVE LINE ARRAY MODULE | 1400 Watt Peak power - 700 Watt RMS | 2 x 8" Woofers | Technical Specifications
Technical Specifications
| Acoustical specifications | |
| Frequency Response | 65 Hz - 20000 Hz |
| Max SPL @ 1m | 133 dB |
| Horizontal coverage angle | 100° |
| Vertical coverage angle | 15° |
| Transducers | |
| Compression Driver | 1 x 2.0'', 2.5'' v.c |
| Woofer | 2 x 8'', 2.0'' v.c |
| Input/Output section | |
| Input signal | bal/unbal |
| Input connectors | XLR |
| Output connectors | Input sensitivity |
| -2 dBu/+4 dBu | |
| Processor section | |
| Crossover Frequencies | 800 Hz |
| Protections | Thermal, RMS |
| Limiter | Soft Limiter |
| Controls | |
| Cluster, HF, High curving, Indoor | |
| Power section | |
| Total Power | 1400 W Peak, 700 W RMS |
| High frequencies | 400 W Peak, 200 W RMS |
| Low frequencies | 1000 W Peak, 500 W RMS |
| Cooling | Convection |
| Connections | |
| Powercon IN/OUT | |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | PP Composite |
| Hardware | Rigging flyware |
| Handles | 2 side |
| Grille | Steel |
| Color | Black, White |
| Size / Weight | |
| Height | 294 mm / 11.57 inches |
| Width | 569 mm / 22.4 inches |
| Depth | 434 mm / 17.09 inches |
| Weight | 20.4 kg / 44.97 lbs |
| Shipping information | |
| Package Height | 375 mm / 14.76 inches |
| Package Width | 650 mm / 25.59 inches |
| Package Depth | 500 mm / 19.69 inches |
| Package Weight | 23 kg / 50.71 lbs |
