Description

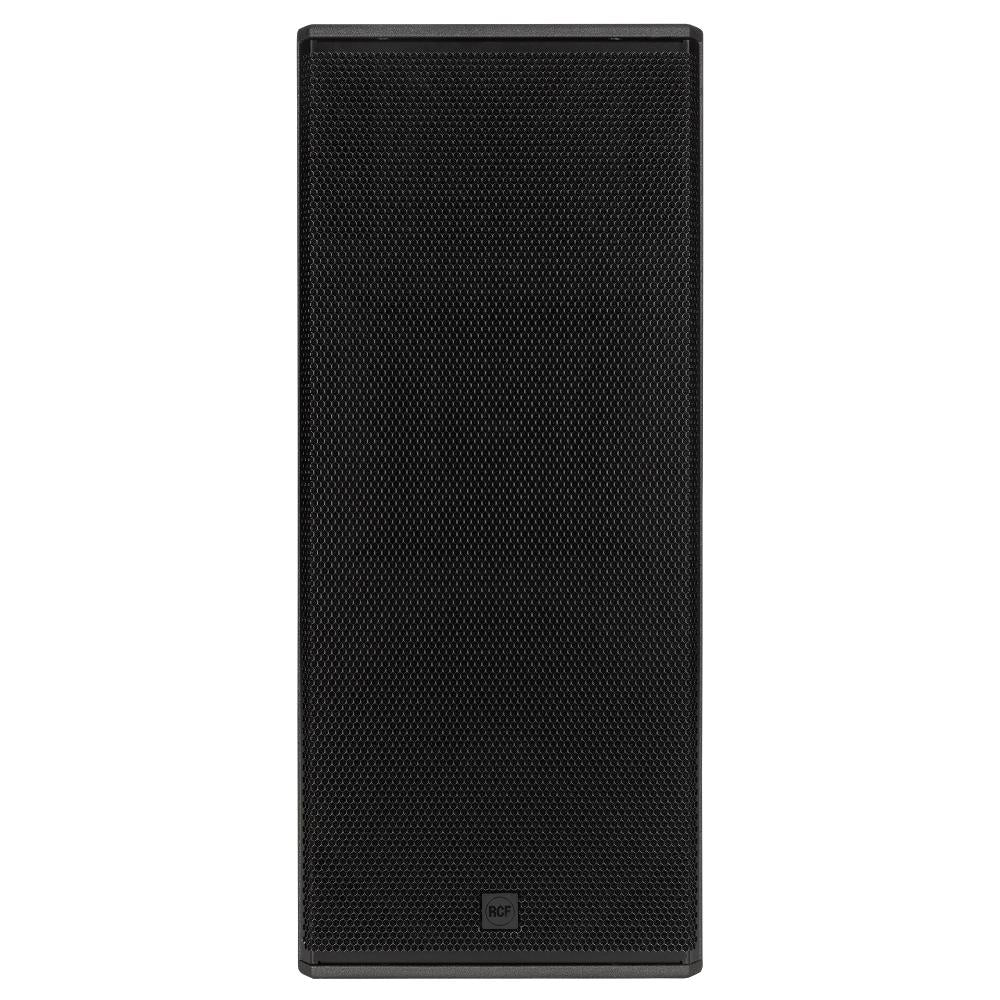

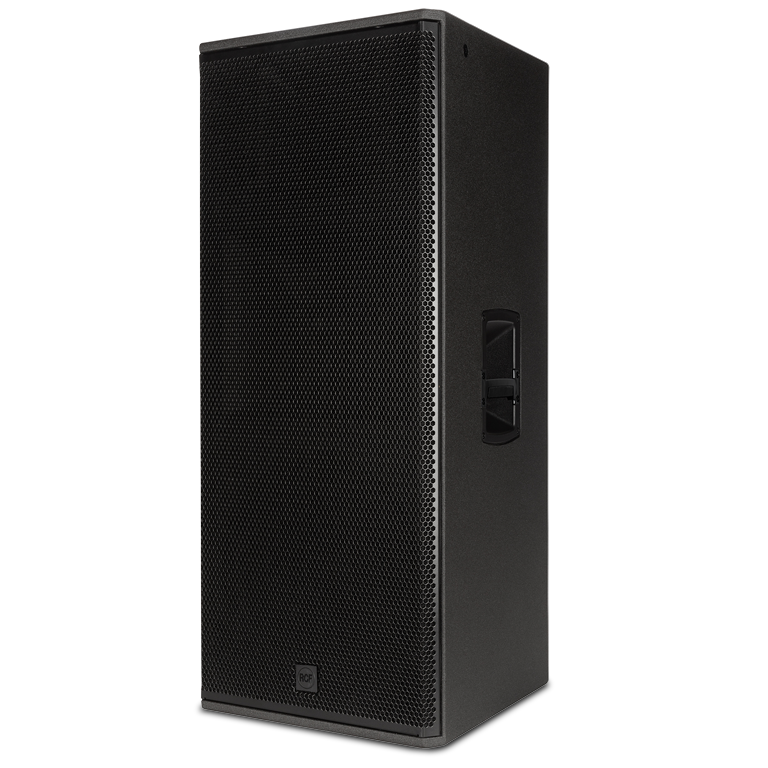

TOURING | NX 985-A | PROFESSIONAL THREE-WAY ACTIVE SPEAKER | Up to 138 dB Sound Pressure Level | 2100W Class-D Amplifier | Technical Specifications
Technical Specifications
| Acoustical specifications | |
| Frequency Response | 40 Hz - 20000 Hz |
| Max SPL @ 1m | 138 dB |
| Horizontal coverage angle | 100° |
| Vertical coverage angle | 60° |
| Transducers | |
| Compression Driver | 1 x 1.0'' neo, 1.75'' v.c |
| Midrange | 1 x 8'' neo, 2.5'' v.c |
| Woofer | 1 x 15'', 3.0'' v.c |
| Input/Output section | |
| Input signal | bal/unbal |
| Input connectors | Combo XLR/Jack |
| Output connectors | XLR |
| Input sensitivity | -2 dBu/+4 dBu |
| Processor section | |
| Crossover Frequencies | Bass/Mid:320Hz, Mid/High:1200Hz |
| Protections | Thermal, Excurs., RMS |
| Limiter | Soft Limiter |
| Controls | |
| Linear, 2 Speakers, High Pass, Volume | |
| Power section | |
| Total Power | 2100 W Peak |
| High frequencies | 200 W Peak |
| Mid frequencies | 500 W Peak |
| Low frequencies | 1400 W Peak |
| Cooling | Convection |
| Connections | |
| Powercon TRUE1 TOP IN/OUT | |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Plywood |
| Hardware | |
| 3 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 2 x M10 rear | Handles |
| 1 x Side | Pole mount/Cap |
| 35 mm insert | Grille |
| Steel | Color |
| Black | |
| Size / Weight | |
| Height | 1075 mm / 42.32 inches |
| Width | 461 mm / 18.15 inches |
| Depth | 475 mm / 18.7 inches |
| Weight | 45 kg / 99.21 lbs |
| Shipping information | |
| Package Height | 530 mm / 20.87 inches |
| Package Width | 1110 mm / 43.7 inches |
| Package Depth | 490 mm / 19.29 inches |
| Package Weight | 51 kg / 112.44 lbs |
