Description

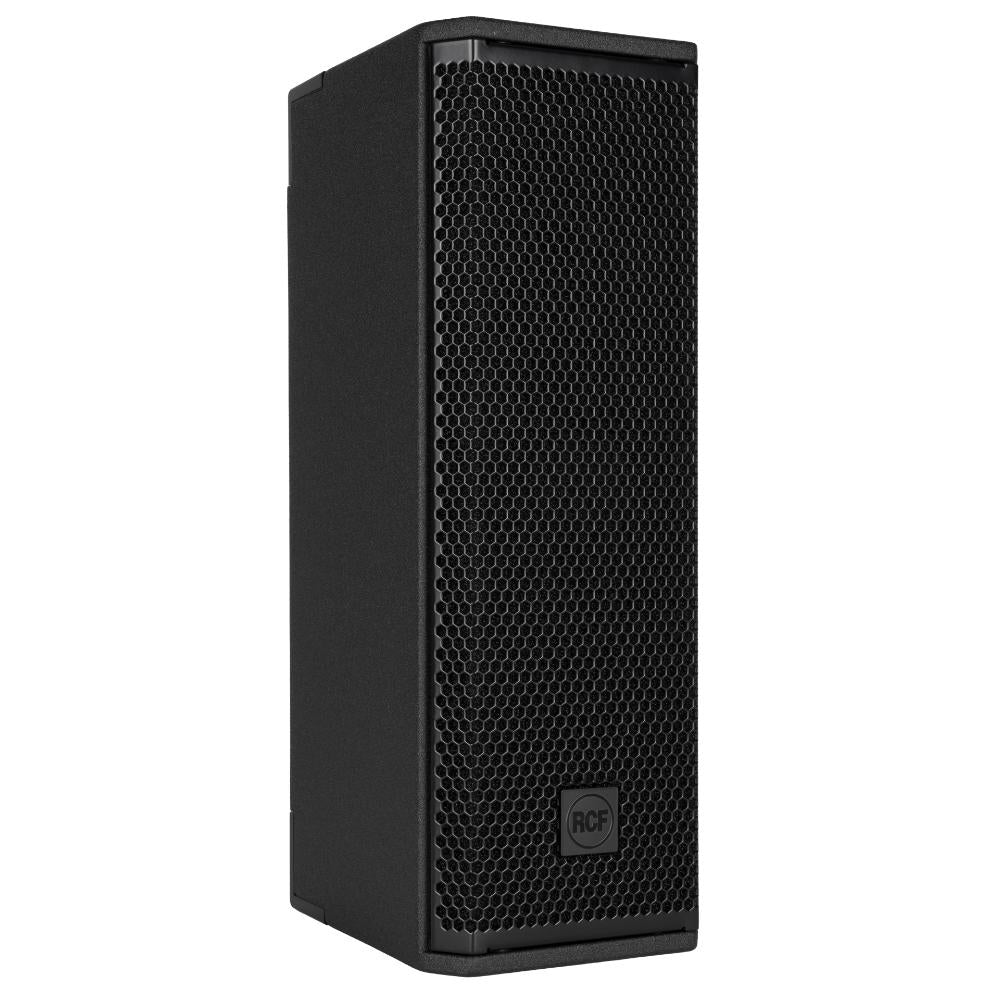

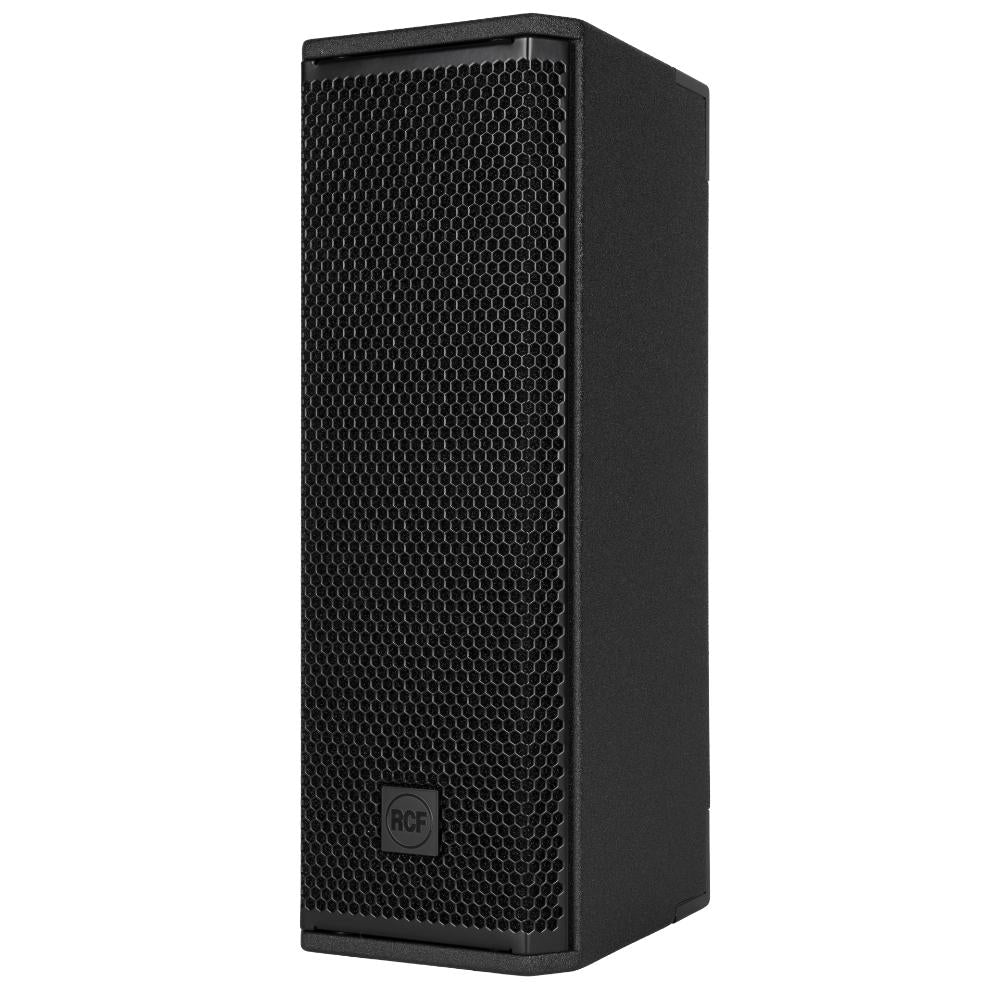

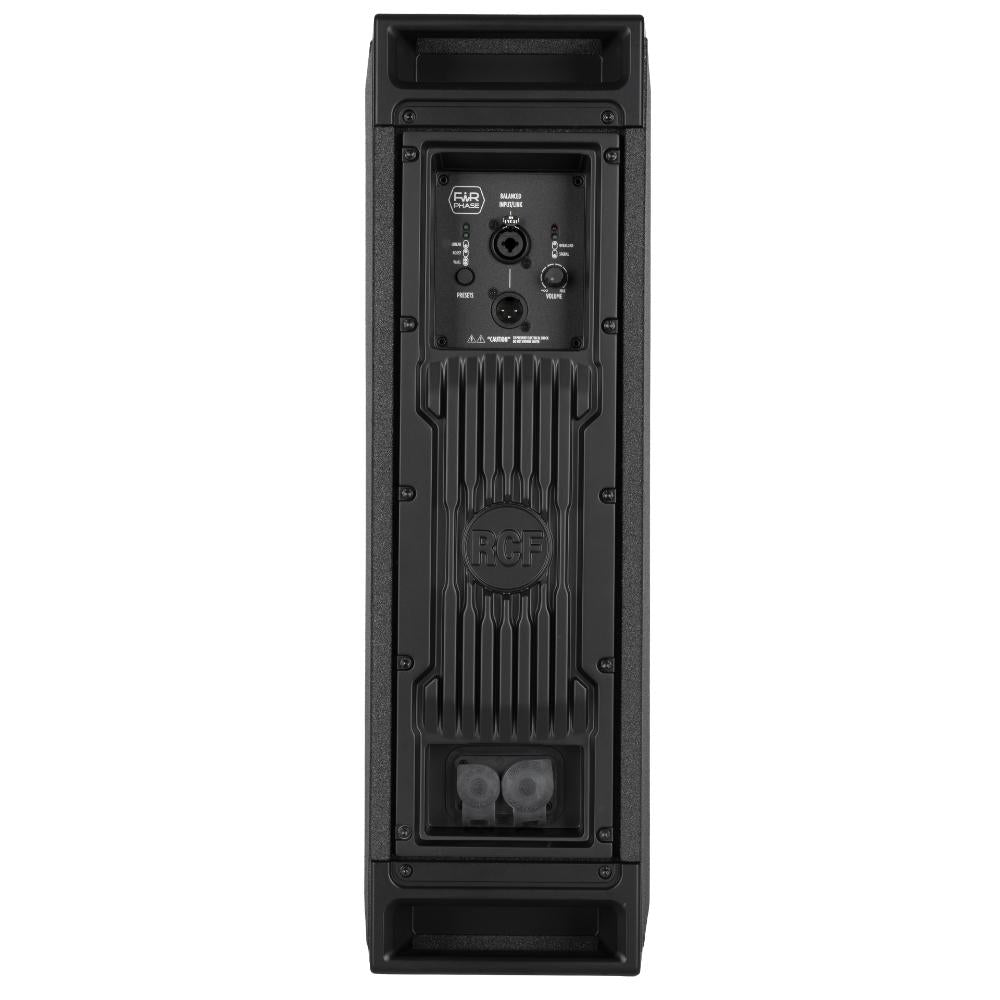

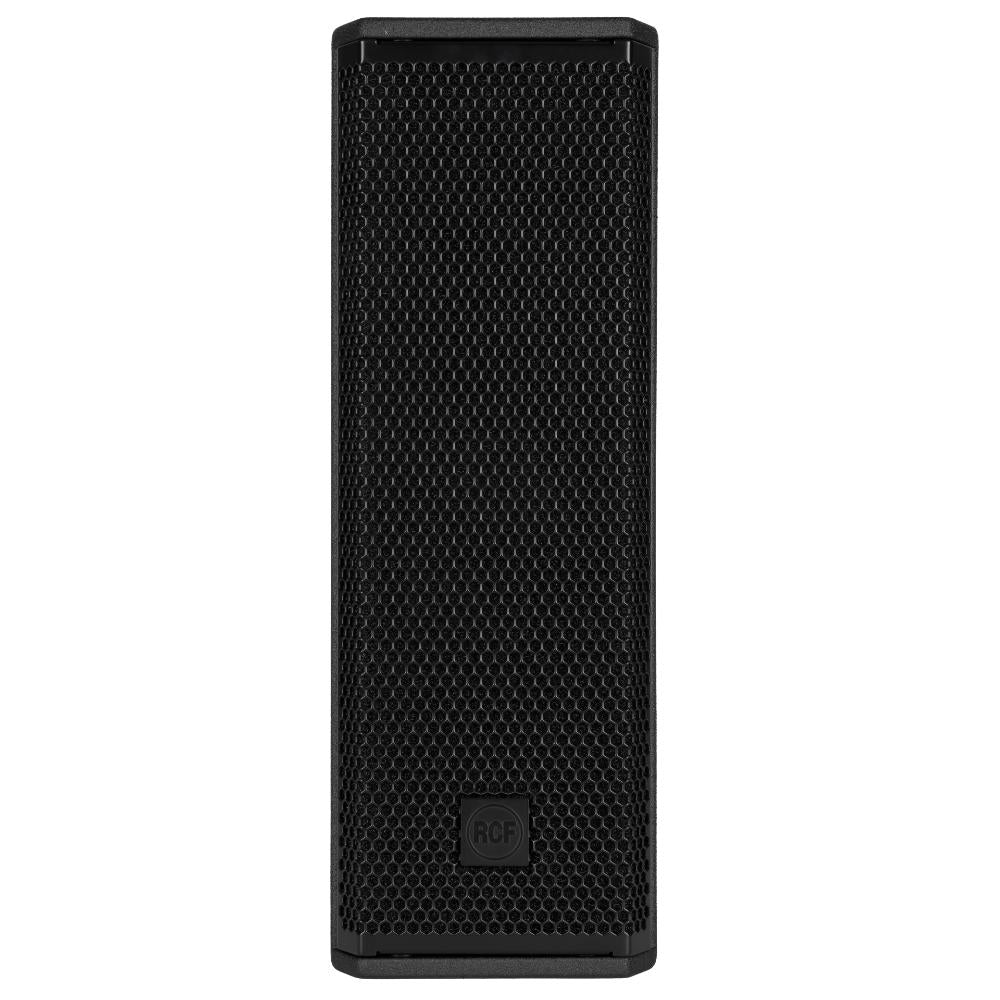

TOURING | NXL 14-A | COMPACT ACTIVE POINT SOURCE SPEAKER | Technical Specifications | 128 dB max SPL | 2100W Class-D Bi-Amplification
Technical Specifications
| Acoustical specifications | |
| Frequency Response | 70 Hz - 20000 Hz |
| Max SPL @ 1m | 128 dB |
| Horizontal coverage angle | 100° |
| Vertical coverage angle | 70° |
| Transducers | |
| Compression Driver | 1 x 1.0'' neo, 1.75'' v.c |
| Woofer | 2 x 6.0'' neo, 2.0'' v.c |
| Input/Output section | |
| Input signal | bal/unbal |
| Input connectors | Combo XLR/Jack |
| Output connectors | XLR |
| Input sensitivity | -2 dBu/+4 dBu |
| Processor section | |
| Crossover Frequencies | 1200 |
| Protections | Excurs. |
| Limiter | Fast Limiter |
| Controls | |
| Linear/Boost/Stage Presets, Volume. | |
| Power section | |
| Total Power | 2100 W Peak |
| High frequencies | 700 W Peak |
| Low frequencies | 1400 W Peak |
| Cooling | Convection |
| Connections | |
| Powercon TRUE1 TOP IN/OUT | |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Plywood |
| Hardware | 2X M10 TOP AND BOTTOM |
| 2X PIN D.10 | Handles |
| 2 TOP AND BOTTOM | Pole mount/Cap |
| Quick-fit socket | Grille |
| Steel | Color |

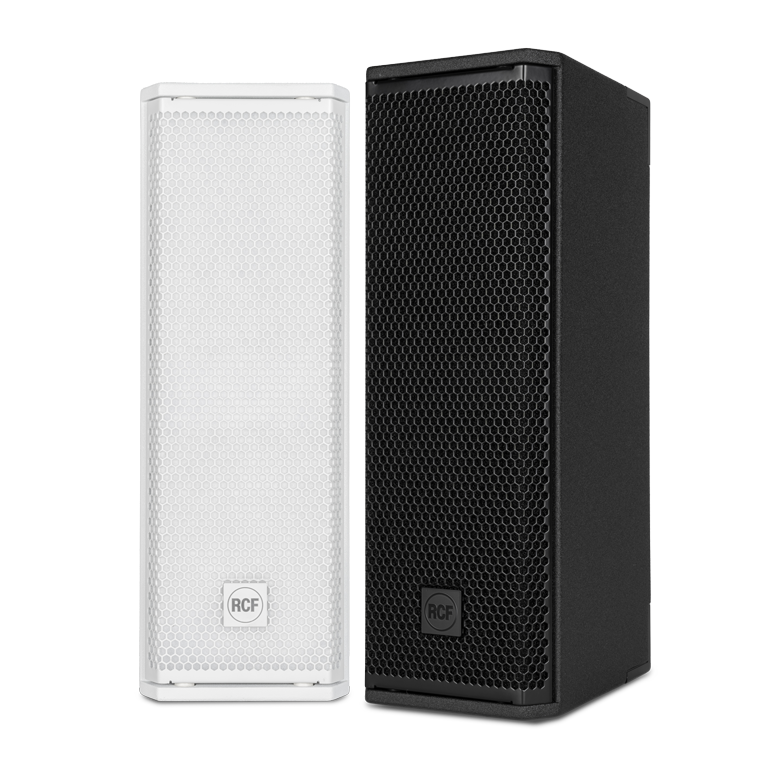

| Black - RAL 9005, White - RAL 9003 | |
| Size / Weight | |
| Height | 567 mm / 22.32 inches |
| Width | 197 mm / 7.76 inches |
| Depth | 270 mm / 10.63 inches |
| Weight | 12.8 kg / 28.22 lbs |
| Shipping information | |
| Package Height | 600 mm / 23.62 inches |
| Package Width | 232 mm / 9.13 inches |
| Package Depth | 302 mm / 11.89 inches |
| Package Weight | 14.6 kg / 32.19 lbs |
