Description

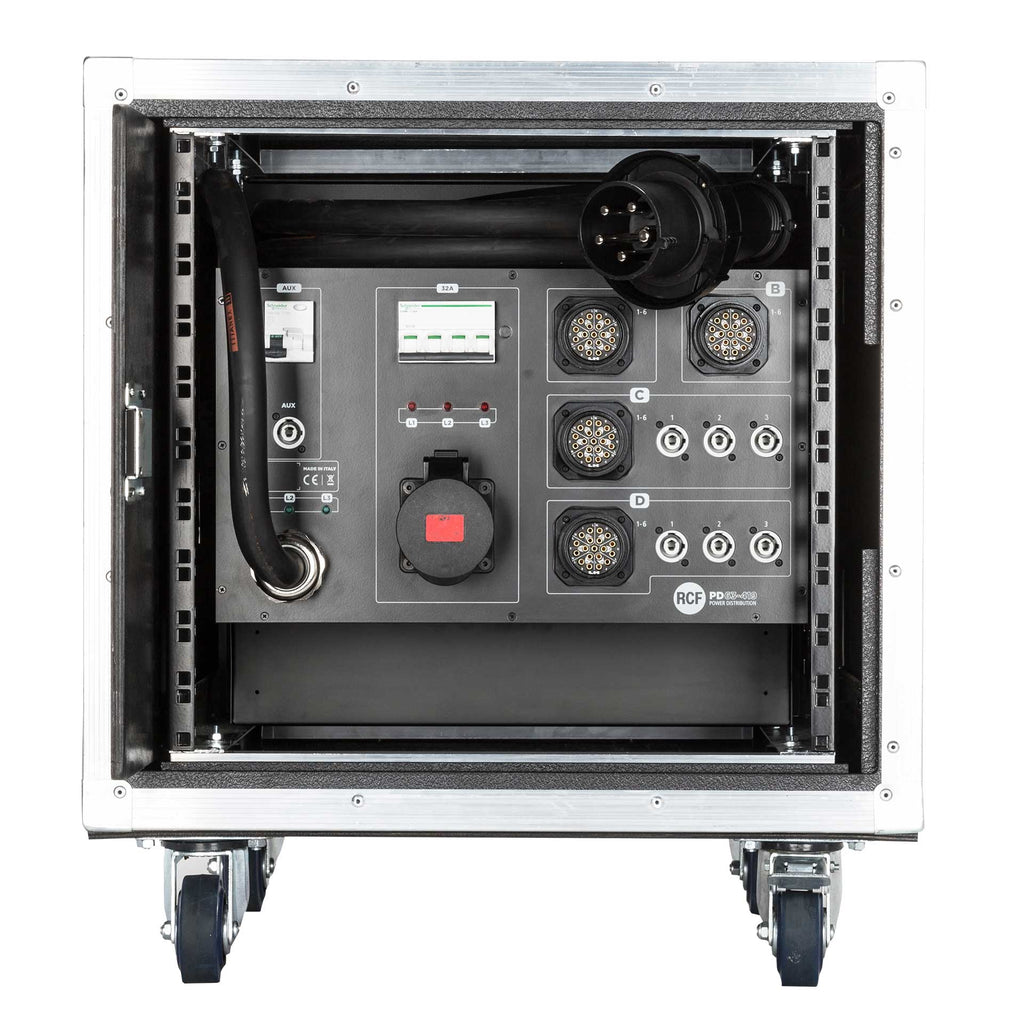

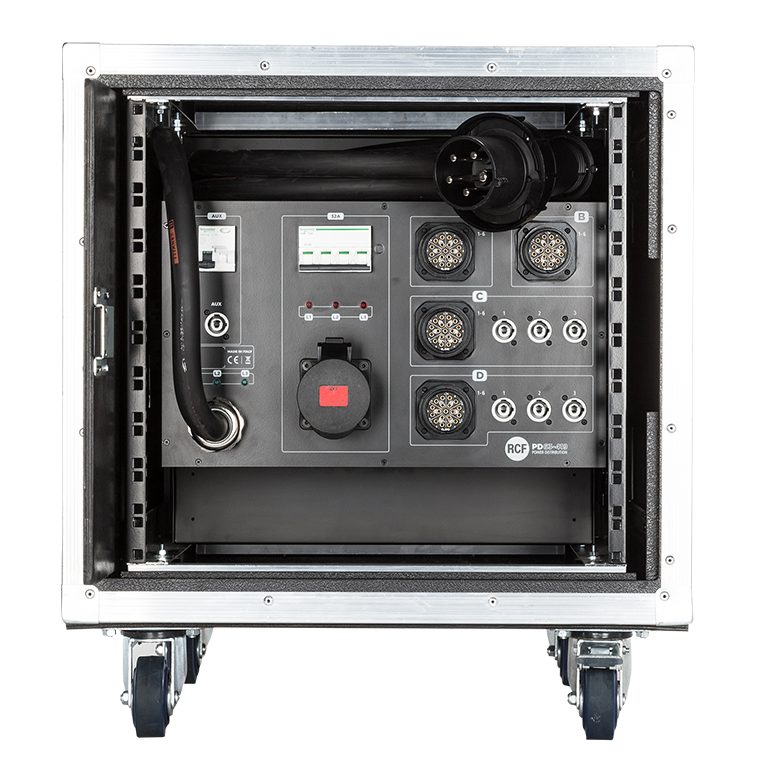

The Power Rack PR-63 features the PD 63 A-419 power distribution with a 63 A Cekon power input with 5 m fixed cable. The three-phase power is distributed in a 32 A Cekon output, 4 x LKS19 output, 6 x Powercon output, 1 Powercon auxiliary output to power the CR 16-ND Control Rack. All outputs are equipped with individual RCBOs (Residual Current-operated Circuit-Breaker with Overcurrent protection) for maximum reliability. In case of damage, only the faulty output is missed while the rest of the system continues to function.
Features
- 63 Ampere Cekon power input with 5 m cable
- 32 Cekon outputs
- 4 x LKS 19 outputs
- 6 x Powercon outputs + 1 Powercon auxiliary output
- 24 x individual power line RCBOs
- 32 Ampere and Auxiliary individual front RCBOs
- Tour Grade flight case construction
Specifications
| General specifications | |
| Power Input Connectors | 63 Ampere Cekon with 5 m Cable |
| Outuputs Connector | 32 Cekon, 4 x LKS 19 |
| Powercon Outputs | 6 + 1 Auxiliary |
| Individual Power line RCBOs | 24 |
| Standard compliance | |
| Safety agency | CE compliant |
| Size / Weight | |
| Weight | 65.8 kg / 145.06 lbs |
| Shipping information | |
| Package Height | 570 mm / 22.44 inches |
| Package Width | 610 mm / 24.02 inches |
| Package Depth | 630 mm / 24.8 inches |
| Package Weight | 68.2 kg / 150.36 lbs |
