Active 12" Powered Subwoofer

The SUB 702-AS mk3 is a portable 12" high-power active subwoofer for live sound applications. It features a state-of-the-art transducer with a high-power ceramic magnetic circuit and a powerful Class-D amplifier that delivers sound pressure levels up to 129 dB with exceptional headroom. Designed as the ideal complement for 8" or 10" loudspeakers, it provides outstanding performance in any application. Rear panel controls include volume, EQ, polarity, and crossover frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry and install securely. With its versatility, sound quality, and high power output, the SUB 702-AS MK3 is perfect for small to mid-sized venues and portable applications.

Features:

• 1400 Watt Class-D Amplifier
• 12” Woofer, bass reflex housing
• Stereo Crossover
• Switchable Crossover Frequencies
• Polarity-reverse switch
• Electronic equalization, soft limiter and protection
• Stereo XLR input, Stereo XLR signal output
• Bass Motion Control excursion management

Specifications:
ACOUSTICAL SPECIFICATIONS

• Frequency Response: 40 Hz ÷ 120 Hz
• Max SPL @ 1m: 129 dB

TRANSDUCERS

• Woofer: 12'', 2.5'' v.c

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: XLR
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

PROCESSOR SECTION

• Hi-Pass Frequencies: 110 Hz
• Low-Pass Frequencies: 80 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter

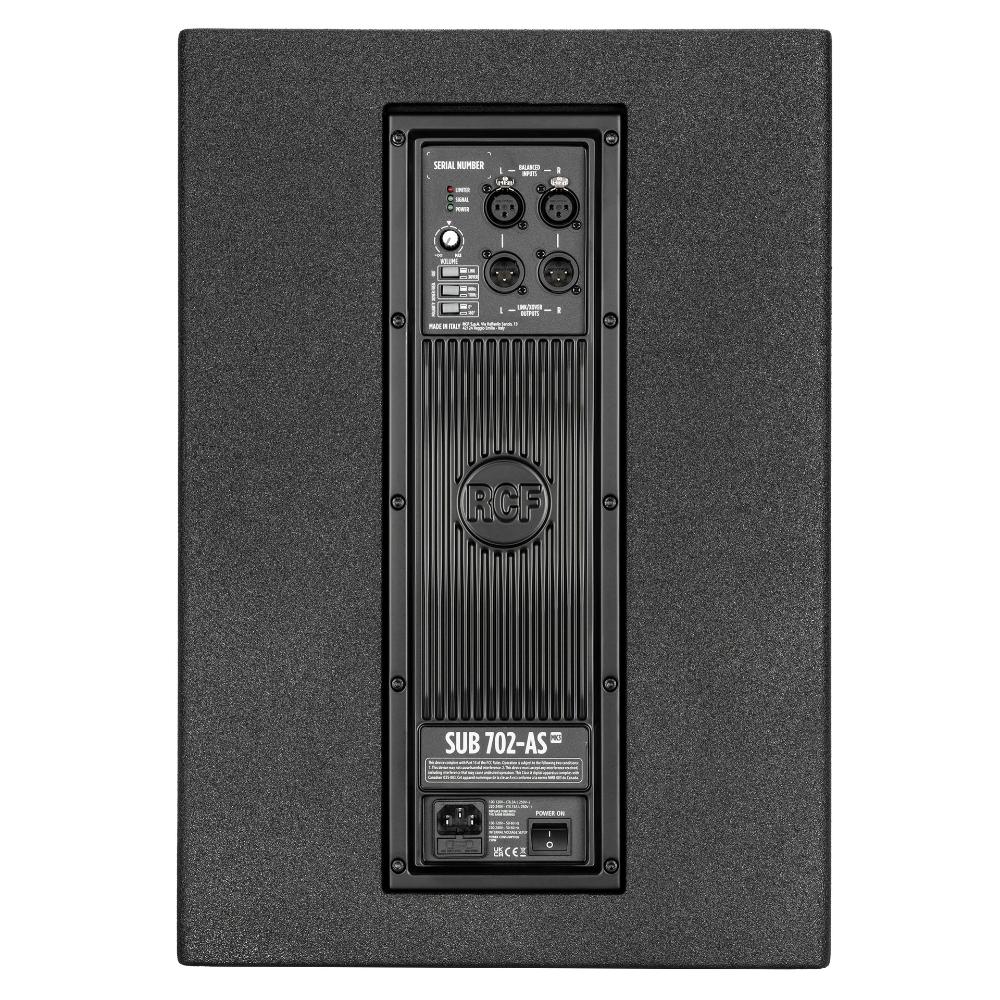

• Controls: Volume, EQ, Phase, Xover

POWER SECTION

• Total Power: 1400 W Peak, 700 W RMS
• Low frequencies: 1400 W Peak, 700 W RMS
• Cooling: Convection
• Connections: VDE

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Handles: One each side
• Pole mount/Cap: Yes
• Color: Black

SIZE

• Height: 523 mm / 20.59 inches
• Width: 360 mm / 14.17 inches
• Depth: 515 mm / 20.28 inches
• Weight: 21 kg / 46.3 lbs
