Description

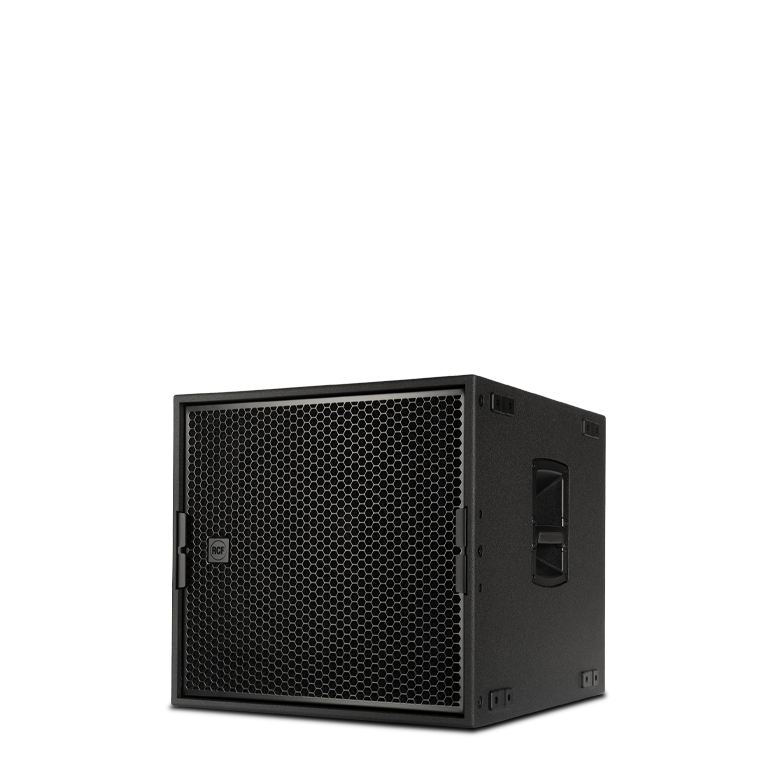

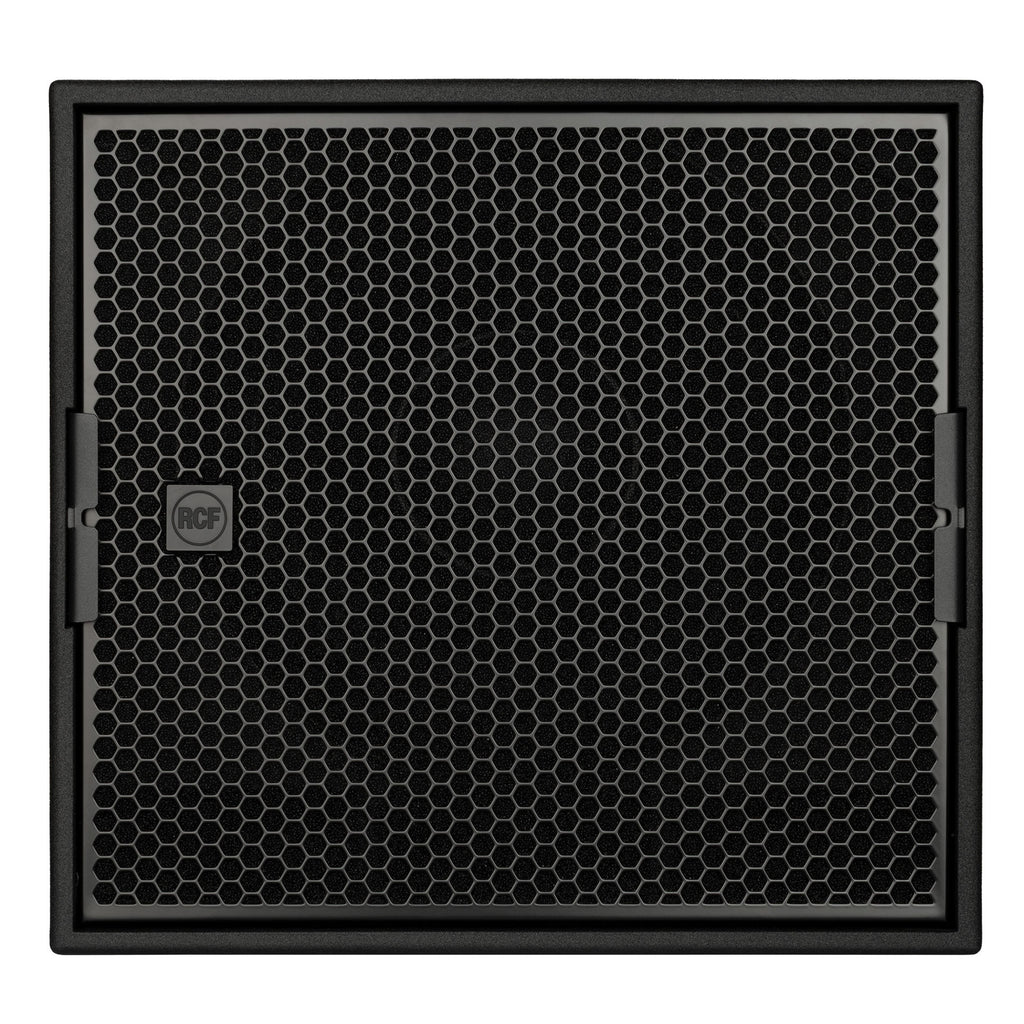

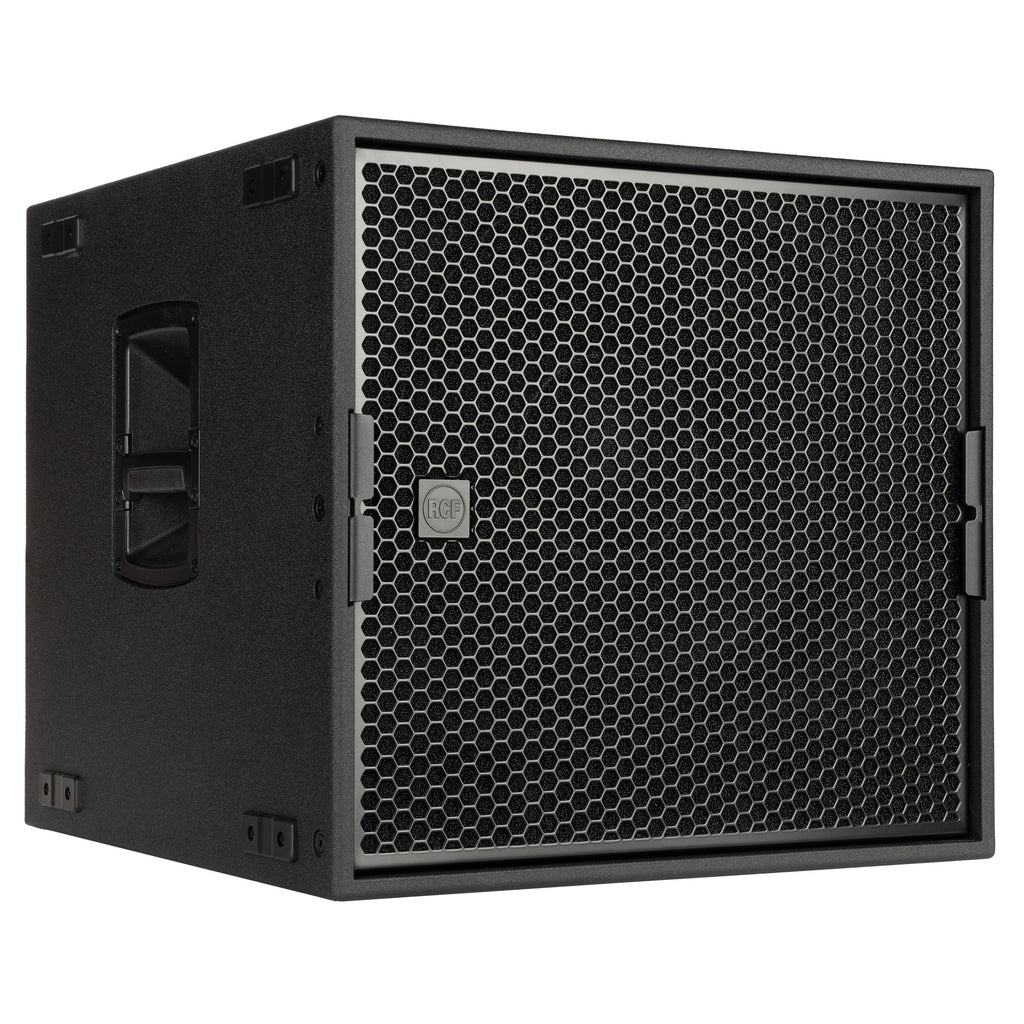

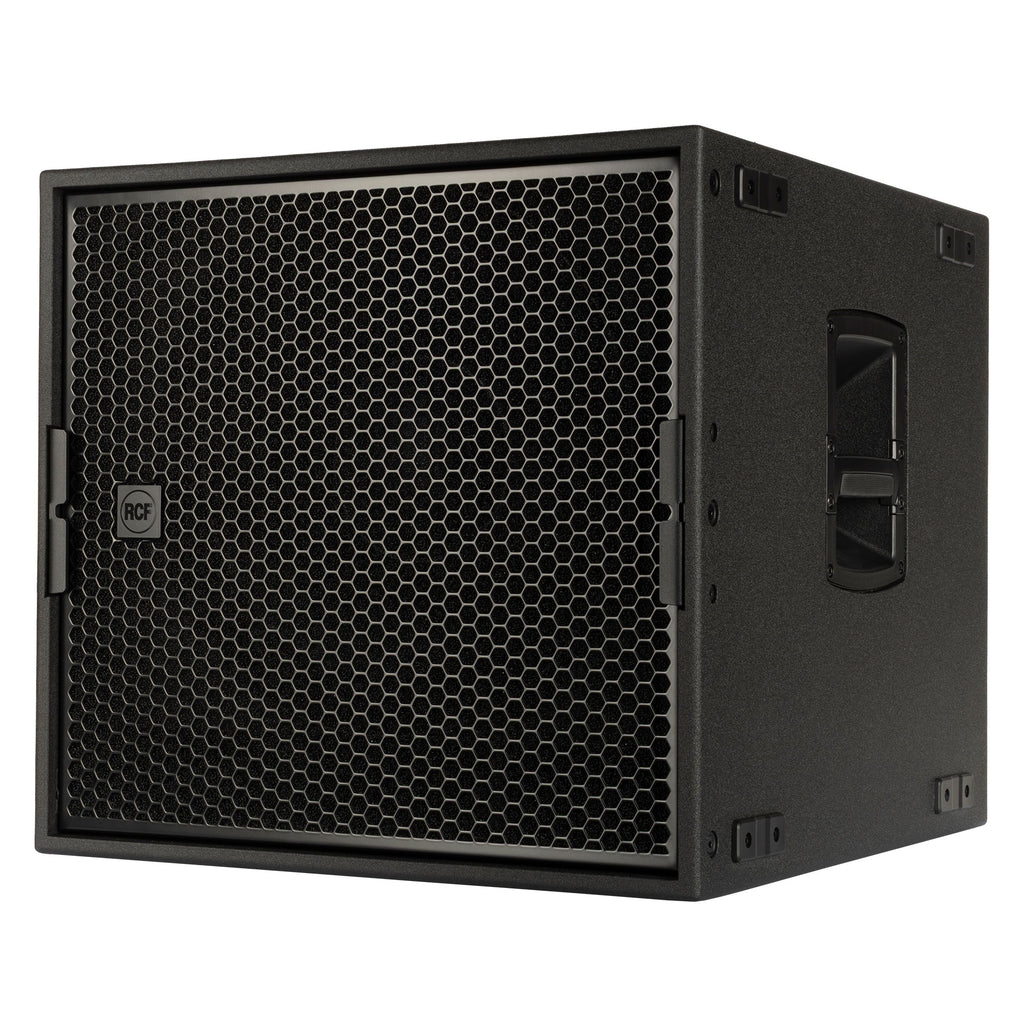

NEW | TOURING | SUB 9016-AS | HIGH POWER 16" ACTIVE SUBWOOFER | Technical Specifications | 137 dB Max SPL
Technical Specifications
| Acoustical specifications | |
| Frequency Response | 30 Hz - 200 Hz |
| Max SPL @ 1m | 137 dB |
| Transducers | |
| Woofer | 1 x 16'' neo, 4.0'' v.c |

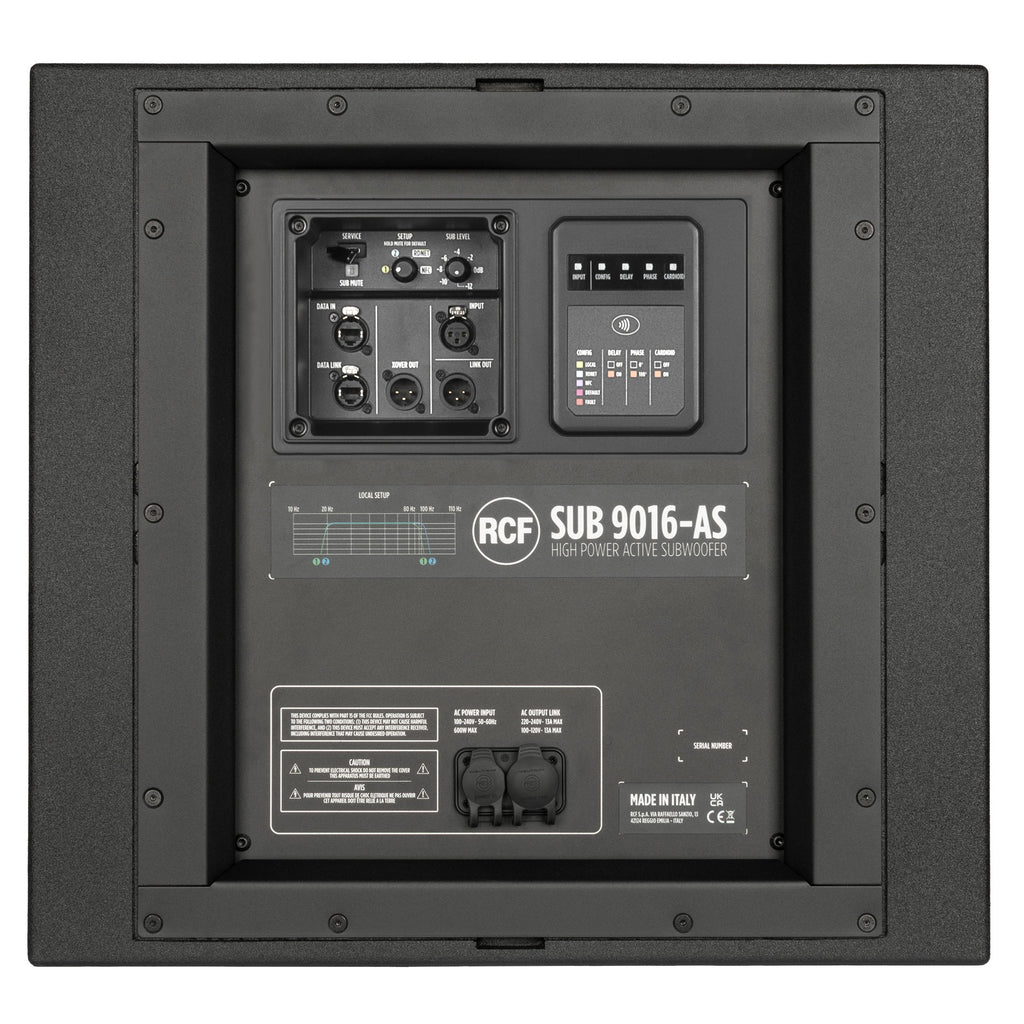

| Input/Output section | |
| Input signal | bal/unbal |
| Input connectors | XLR, RDNet Ethercon |
| Output connectors | Input sensitivity |
| -2 dBu/+4 dBu | |
| Processor section | |
| Protections | Thermal |
| Limiter | Soft Limiter |
| Controls | |
| MUTE, VOL, PRESETS, RDTAP | Onboard |
| Power section | |
| Total Power | 4000 W Peak |
| Cooling | Convection/Forced |
| Connections | |
| Powercon TRUE1 TOP IN/OUT | |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Plywood |
| Hardware | 2 x M20 pole mount accessories |

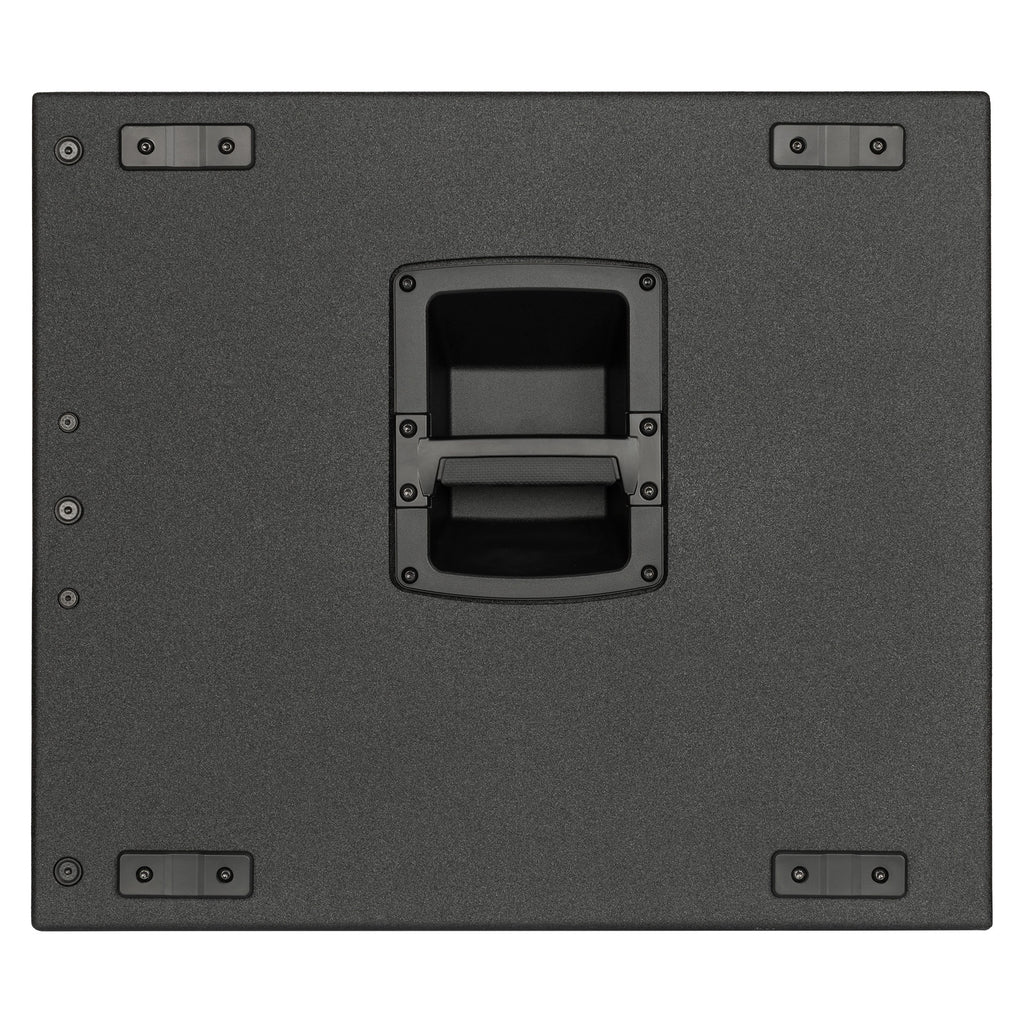

| Handles | 1 handle per side |

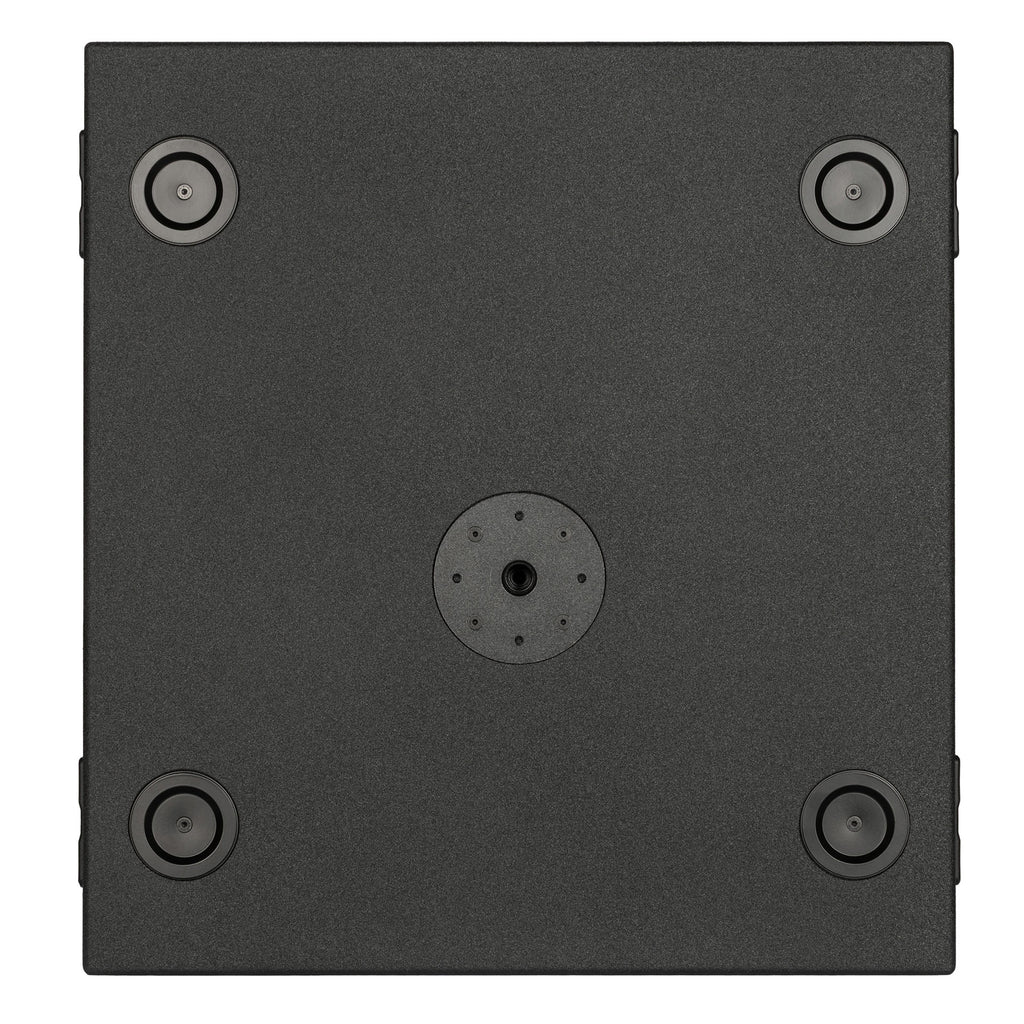

| Pole mount/Cap | M20 thread |
| Grille | Steel with clothing |
| Color | Black |
| Size / Weight | |
| Height | 533 mm / 20.98 inches |
| Width | 570 mm / 22.44 inches |
| Depth | 600 mm / 23.62 inches |
| Weight | 45 kg / 99.21 lbs |
| Shipping information | |
| Package Height | 560 mm / 22.05 inches |
| Package Width | 595 mm / 23.43 inches |
| Package Depth | 647 mm / 25.47 inches |
| Package Weight | 50 kg / 110.23 lbs |
