Active 15" Powered Subwoofer

The SUB 905-AS MK3 is a self-powered extended low-frequency subwoofer with internal DSP. Its compact cabinet houses a state-of-the-art 15" transducer featuring ceramic magnets and a 3.0” voice coil. The internal amplifier manages up to 2200W power output,, delivering sound pressure levels up to 133 dB. Proprietary Bass Motion Control processing provides extended linearity and remarkable sound integrity. Rear panel controls include presets, crossover frequency, and polarity selection, cardioid, and output delay settings. The tour-ready, rugged all-wood cabinet with scratch-resistant polyurea coating is stackable and lightweight, ensuring quick set-ups and tear-downs. Built specifically for highly demanding applications, SUB 905-AS MK3 is the perfect workhorse for music professionals.

Features:

• 2200 W
• 133 dB max SPL
• 40 Hz - 120 Hz frequency response
• 15" Woofer, 3.0" v.c.
• Multi-ply hardwood polyurea-coated
• Selectable gain, X-over, cardioid mode and time delay
• Stereo XLR input, Stereo XLR signal output

Specifications:
ACOUSTICAL SPECIFICATIONS

• Frequency Response: 40 Hz ÷ 120 Hz
• Max SPL @ 1m: 133 dB

TRANSDUCERS

• Woofer: 15'', 3.0'' v.c

INPUT/OUTPUT SECTION

• Input connectors: XRL Stereo
• Output connectors: XRL Stereo
• Input sensitivity: -2 dBu/+4 dBu

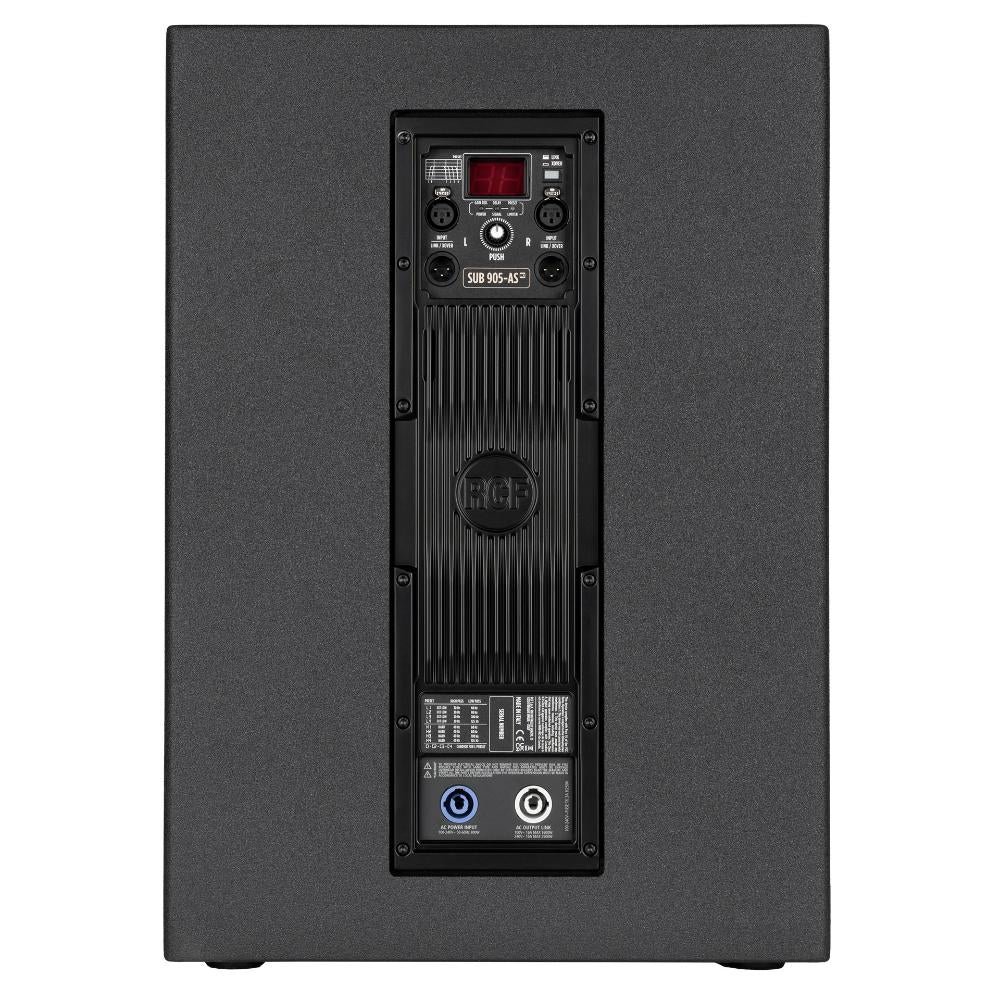

PROCESSOR SECTION

• Crossover Frequencies: Selectable
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Gain,EQ, phase, xover, delay, cardioid

POWER SECTION

• Total Power: 2200 W Peak, 1100 W RMS
• Low frequencies: 2200 W Peak, 1100 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Handles: One handle each side
• Pole mount/Cap: Yes
• Color: Black

SIZE

• Height: 590 mm / 23.23 inches
• Width: 420 mm / 16.54 inches
• Depth: 590 mm / 23.23 inches
• Weight: 26 kg / 57.32 lbs
