RCF SUB15-AX

Save $500
RCFSKU: 13000832

Price:
$2,199 $2,699

Shipping calculated at checkout

Description

Active 15" Powered Subwoofer

The SUB 8008-AS is a double 18” high power active subwoofer for live bands, DJs, Clubs, and Rental Companies. It employs a state-of-the-art transducer featuring a high-power ceramic magnetic circuit with a 4” voice coil. The power amplifier manages extreme currents up to 4400W delivering sound pressure levels up to 137 dB with exceptional headroom. The ultra-fast attack with accurate power handling is managed with high efficiency, producing a very low heat loss for silent and fan-less cooling. Built specifically for demanding live sound applications with deep, powerful bass response. Rear panel controls include 12 presets, crossover frequency, polarity switch, Deep/Punch selection, cardioid, and output delay settings. The tour-ready, rugged all-wood cabinet with scratch-resistant polyurea coating is easy to carry and secure for installation. With its rugged construction, sound quality, and high power, SUB 8008-AS is perfect in mid to big-sized venues and touring applications.

Features:

  • Up to 137 dB Sound Pressure Level
  • 4400W Class-D Bi-Amplification
  • 30-120 Hz linear frequency response
  • 2 x 18" High Power Woofers
  • IP Rated Powercon TRUE1 TOP IN/OUT
  • 8 Crossover Presets and 4 Cardioid Presets


Specifications:
ACOUSTICAL SPECIFICATIONS

  • Frequency Response: 30 Hz ÷ 120 Hz
  • Max SPL @ 1m: 137 dB

TRANSDUCERS

  • Woofer: 2 x 18'', 4.0'' v.c

INPUT/OUTPUT SECTION

  • Input signal: bal/unbal
  • Input connectors: XLR
  • Output connectors: XLR
  • Input sensitivity: -2 dBu/+4 dBu

PROCESSOR SECTION

  • Crossover Frequencies: Selectable
  • Protections: Thermal, Excurs., RMS
  • Limiter: Soft Limiter

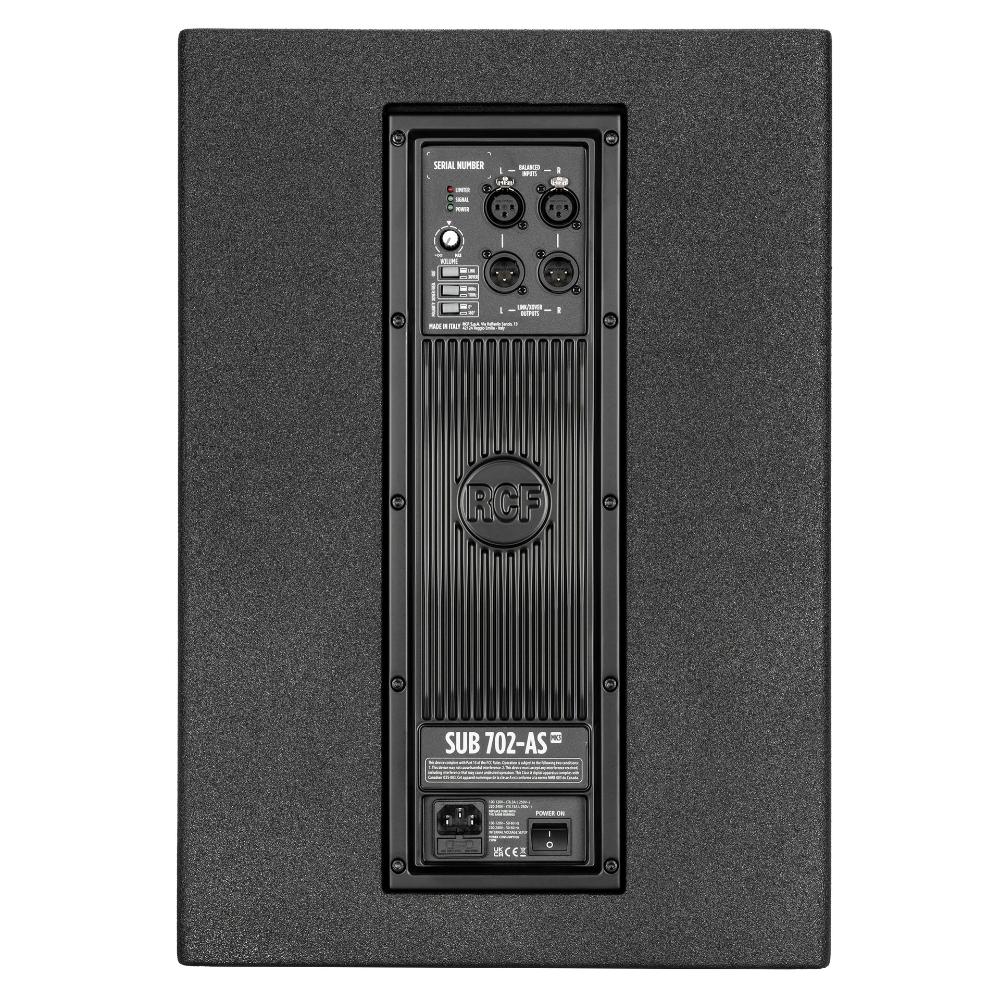

  • Controls: Xover, Phase switch, Deep/Punch, Output Delay Setting

POWER SECTION

  • Total Power: 4400 W Peak
  • Low frequencies: 4400 W Peak
  • Cooling: Convection/Forced
  • Connections: Powercon TRUE1 TOP IN/OUT

STANDARD COMPLIANCE

  • Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

  • Hardware: 2 x M20
  • Handles: 2 x side
  • Color: Black

SIZE

  • Height: 550 mm / 21.65 inches
  • Width: 1180 mm / 46.46 inches
  • Depth: 700 mm / 27.56 inches
  • Weight: 80 kg / 176.37 lbs
