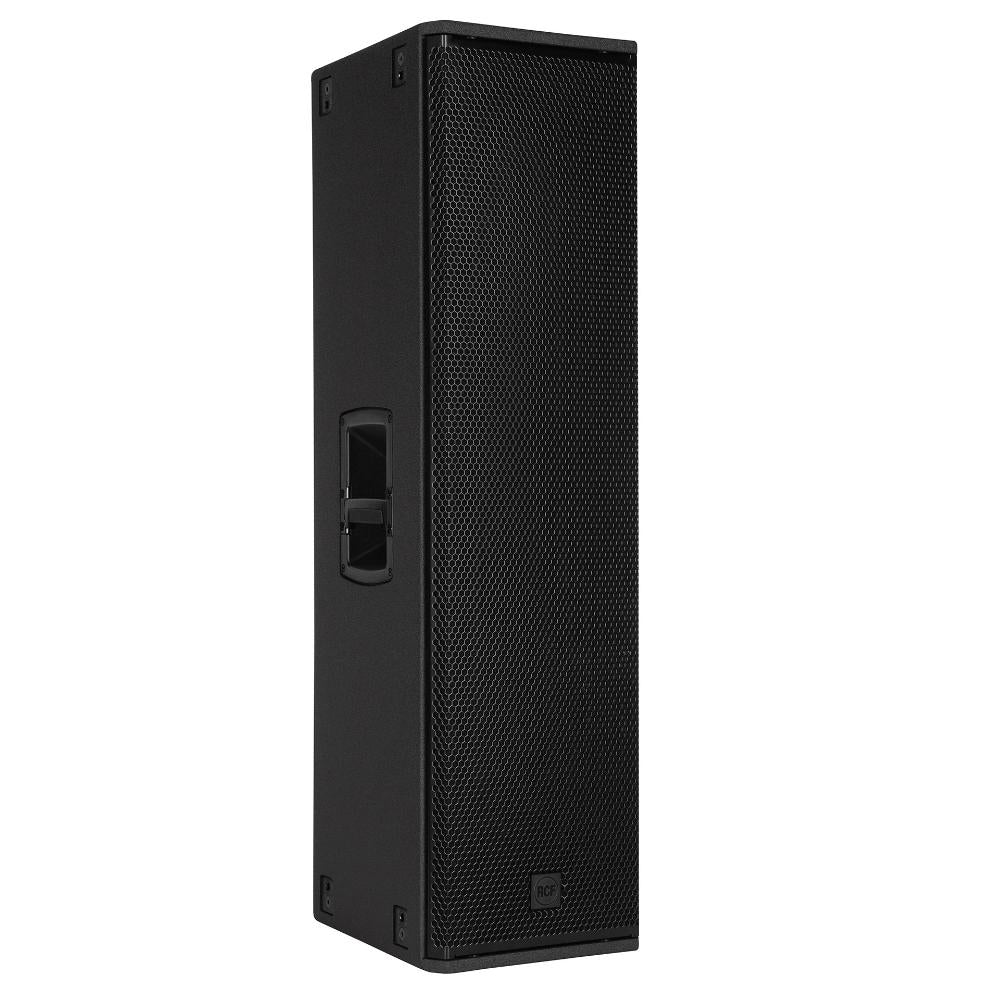

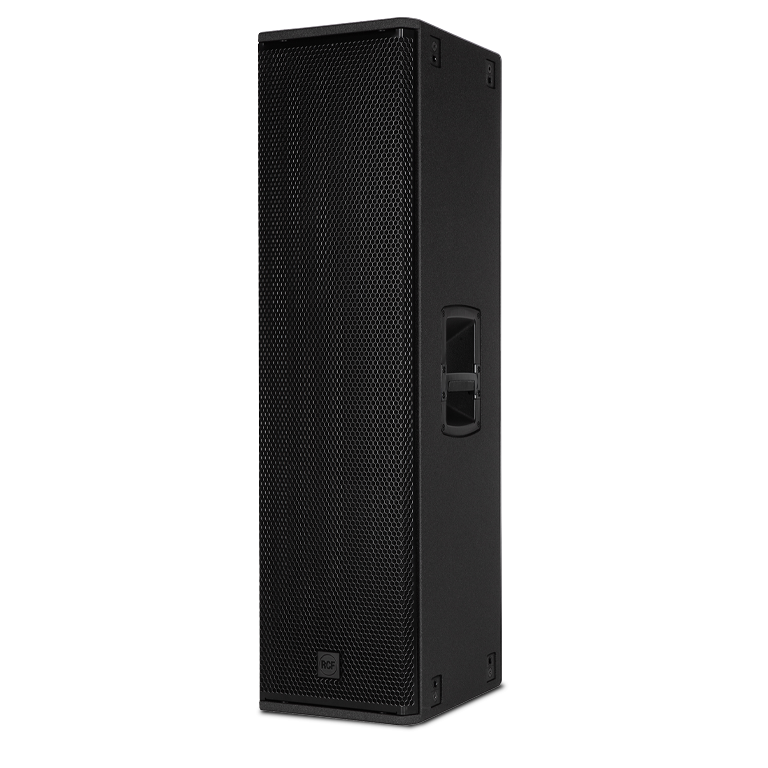

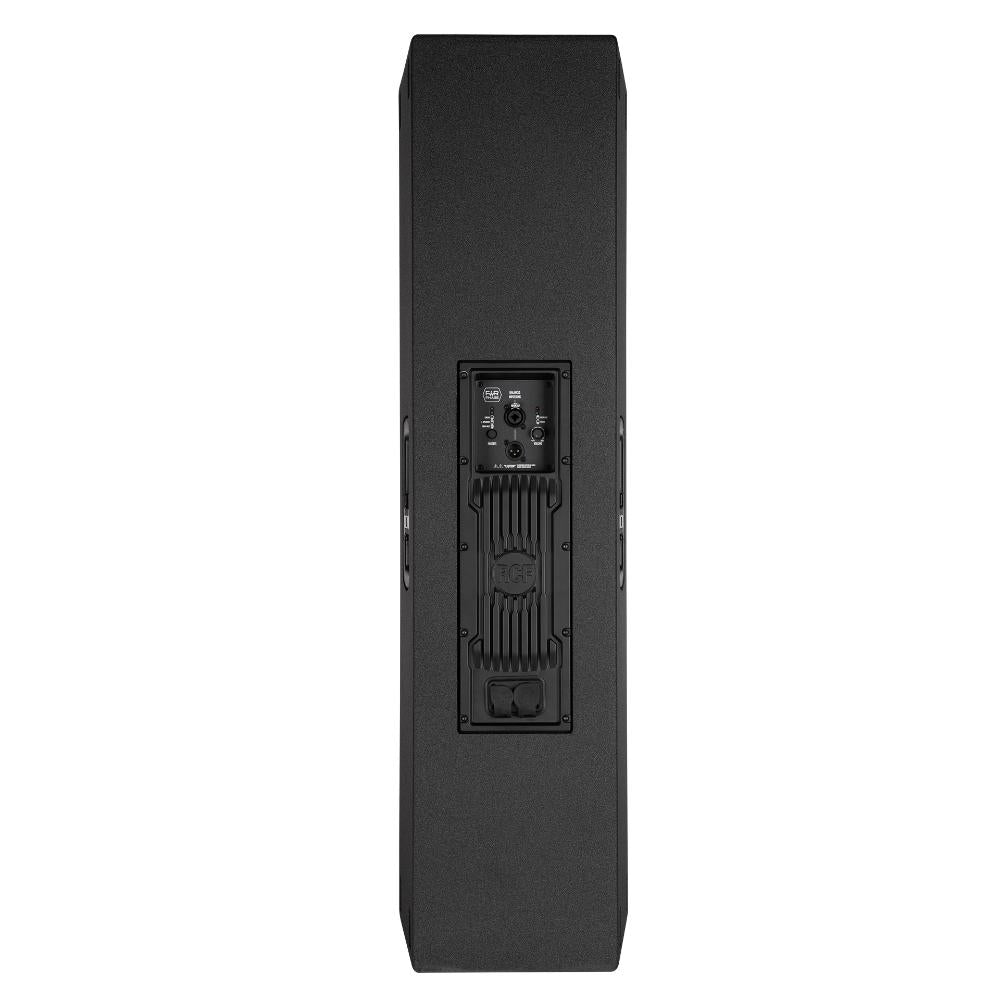

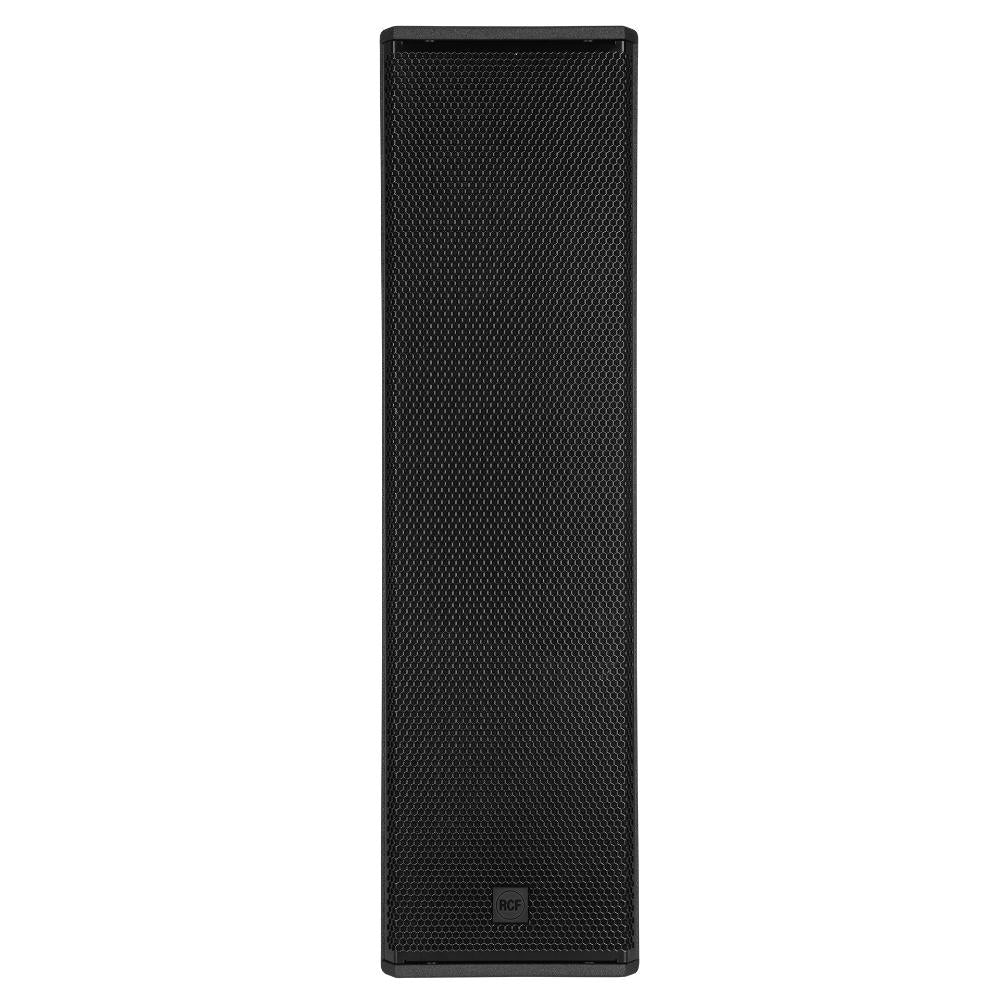

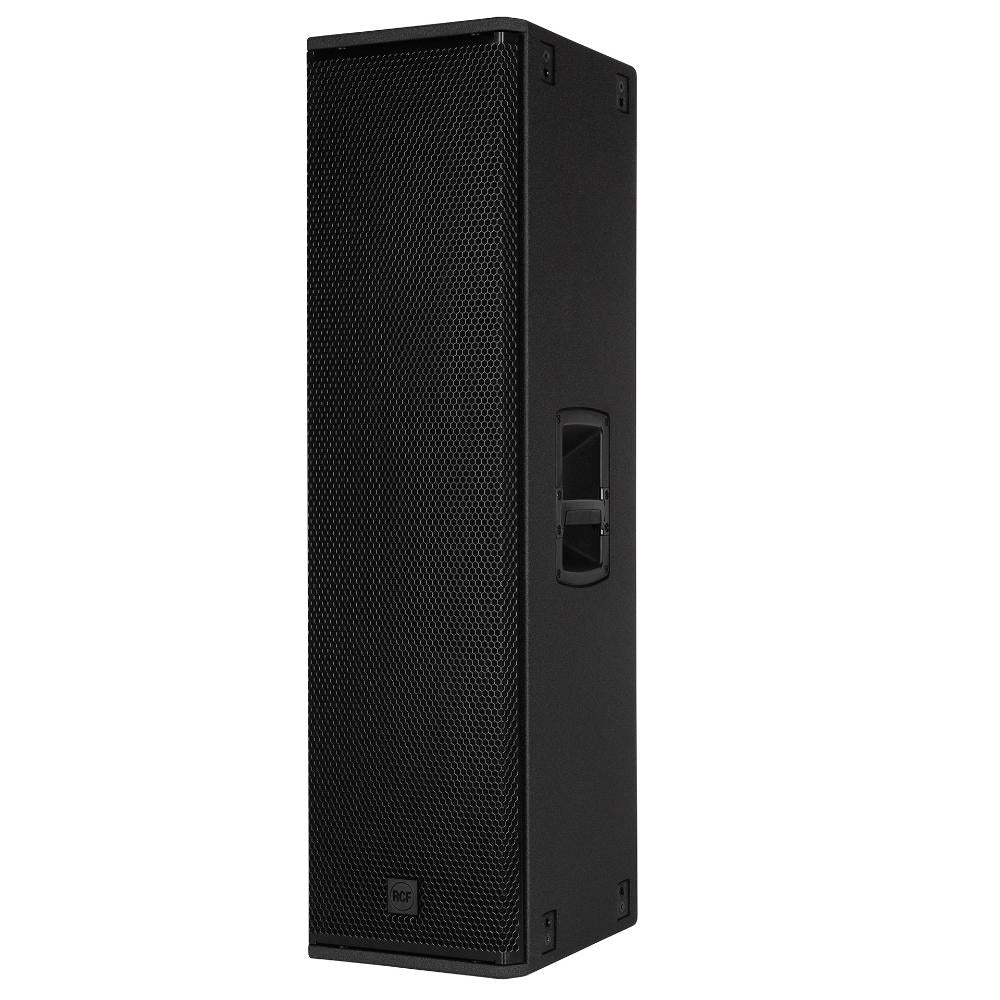

RCF TTW4-A - Active 3200W Dual 10" 2-Way Wide Directivity Speaker (RDNET Ready) (100˚ X 50˚ Coverage)

RCFSKU: TTW4-A

Price:
$7,999

Shipping calculated at checkout

Description

ARCHIVED | TT+ | TOURING | TTW 4-A | WIDE DIRECTIVITY ACTIVE TWO-WAY SPEAKER | Technical Specifications

Technical Specifications

Acoustical specifications
Frequency Response 45 Hz - 20000 Hz
Max SPL @ 1m 134 dB
Horizontal coverage angle 100°
Vertical coverage angle 50°
Transducers
Compression Driver 1 x 1.5'' neo, 4.0'' v.c
Woofer 2 x 10'' neo, 3.0'' v.c
Input/Output section
Input signal bal/unbal
Input connectors XLR, RDNet Ethercon
Output connectors Input sensitivity
+4 dBu
Processor section
Crossover Frequencies 900Hz
Protections Thermal, RMS
Limiter Fast Limiter
Controls
Selectable preset, volume, delay Onboard
Power section
Total Power 3200 W Peak, 1600 W RMS
High frequencies 1200 W Peak, 600 W RMS
Low frequencies 2000 W Peak, 1000 W RMS
Cooling Convection
Connections
Powercon IN/OUT
Standard compliance
Safety agency CE compliant
Physical specifications
Cabinet/Case Material Baltic birch plywood
Hardware Array fittings, 2xM10 on the top, 2xM8 on each side
Handles 2 Side, 2 Rear
Grille Steel
Color Black
Size / Weight
Height 825 mm / 32.48 inches
Width 316 mm / 12.44 inches
Depth 369 mm / 14.53 inches
Weight 30.4 kg / 67.02 lbs
Shipping information
Package Height 410 mm / 16.14 inches
Package Width 865 mm / 34.06 inches
Package Depth 365 mm / 14.37 inches
Package Weight 33.5 kg / 73.85 lbs
