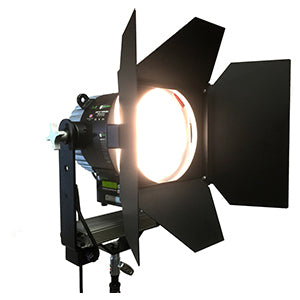

The JAB Variable Cinema has an adjustable color temperature range of 2,800°K to 6,000°K and develops an output of 1,414 fc @ 10 feet. Most remarkable is the Variable draws only 1.78 amp of power at full output, and can be operated at 48v DC battery power in situations where conventional A/C supply is problematic or non-existent. Like all AAdynTech fixtures, the Variable generates no heat or harmful UV or IR emissions, is self-contained with an auto-ranging universal power supply requiring no ballast, head cables or lamps, and instant ON ensures no warm-up wait time on set.

Optical efficiency provides a single light source eliminating multiple shadows. The Variable comes equipped with four quick change lenses to vary the beam angle for spot, medium or flood while maintaining a flat, even field of light. There are several control possibilities with the Variable; built in User Interface Module (UIM) with Kelvin temperature display, DMX with DMX loop-thru, or via the optional corded UIM Controller with Kelvin temperature display. A heavy-duty yoke is provided and a full set of accessory options are available; barn doors, ATA Mil-spec road cases, speed rings, light banks, filters and more. Several Kit versions coupled with various accessories and housed in a rugged Mil-Spec waterproof molded rolling case. When your production requires precise color temperature control and reliable even lighting; the JAB Variable Cinema by AAdynTech has no peer.

Features

• 1,414 foot candle output @ 10 feet
• Adjustable 2800°K to 6000°K color temperature
• Accurate color temperature readout on UIM
• Draws only 1.78 amp at full output
• Auto range voltage - 100/277 VAC - 50/60Hz
• Up to 90% energy savings
• Precise brightness control with no color shift
• Single light source eliminates multiple shadows
• No heat generation - operates cool to the touch
• Douse button (momentary off)
• Included 5°, 15°, 30°, 55° lenses to vary beam angle
• No head cables, ballast or spare lamps
• Optional corded digital User Interface Module (UIM) control
• Recalibration countdown hour ‘smart’ meter
• Full DMX control w/ DMX loop-thru
• 5-pin XLR DMX In/Out
• Programmable multiple lightning and strobe effects
• Multiple user memory storage with recall
• 2 year warranty on fixture
• Operating temperature at -20c to +50c
• Certified UL, ETL, CSA, CE & RoHS compliant

Specifications

Control: Local, UIM, DMX Source: LED, 2,800K to 6,000°K, 92+ CRI Cooling: Passive Mounting: Baby Pin or Junior Certifications: ETL, UL, CSA, CE and RoHS Compliant

Dimensions

Length: 339.0 mm / 13.3 in Width: 326.5 mm / 12.9 in Height: 554.9 mm / 21.8 in Weight: 8.9 kg / 19.5 lbs

Power

Input Voltage: 100-277v AC Battery (48v DC) Input Freq: 50/60 Hz Input Current: 1.78 Amp @ 120V 212 Watts @ full Connection: US NEMA 5-15

Highlights

• RoHS Compliant
• Variable Kelvin - 2800k to 6000k
• Dimmable with no color shift
• Draws 1.78 amps at max output
• No Harmful UV or IR Radiation
