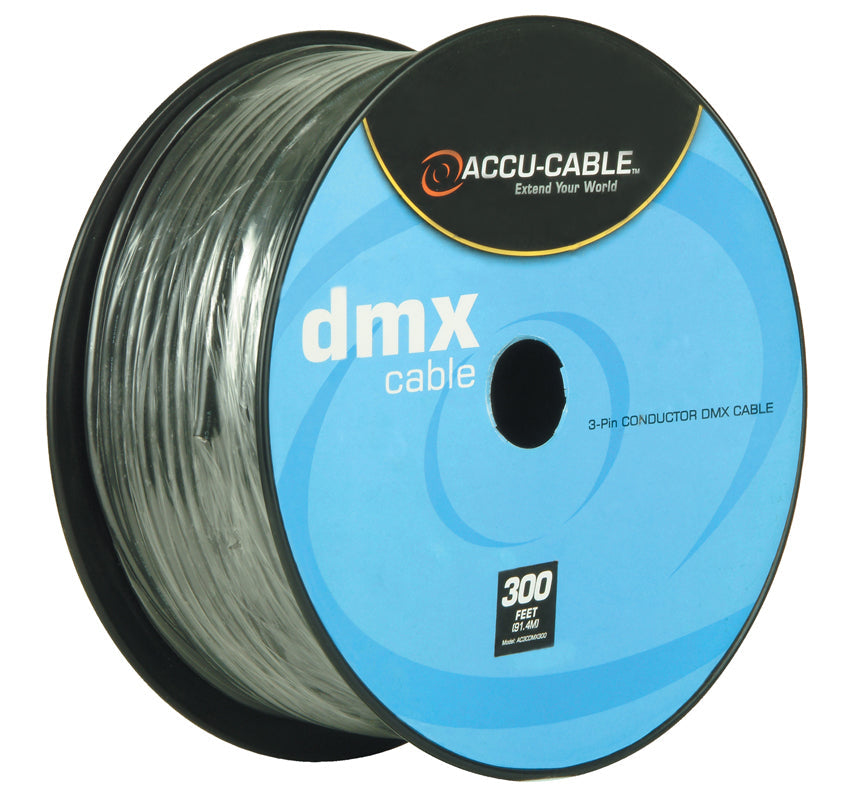

22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil® (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

Conductor: Number of Pairs: 1

Total Number of Conductors: 2

Stranding: 0.15 x 19

Conductor Diameter: .0354"

Conduct or Material: TC-Tinned Copper Insulation: Insulation Material PE Polyethylene Lay Length:

Lay Length: 2.5"

Direction: Left Hand Lay

Twists: 4.8 per foot Inner Jacket:

Inner Jacket Material: PE- Polyethylene

Inner Jacket Diameter: .055"

Pair Color Code: Black/White Outer Shield:

Outer Shield Trade Name: Duofoil®

Outer Shield Type: Tape/Braid Outer Shield Material:

Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100

Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85 Outer Jacket:

Outer Jacket Material: PVC-Polyvinyl Chloride Overall Nominal Diameter:

Overall Nominal Diameter: .229" Mechanical Characteristics:

Operating Temperature Range: (-30 degrees C To + 75 degrees C)

Bulk Cable Weight: 31 lbs/1000

Minimum Bend Radius (Install): 3.2"

Maximum Recommended Pull Tension: 72 lbs. Electrical Characteristics:

Nominal Characteristic Impedence: 110 Ohms

Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t

Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft

Nominal Velocity of Propagation: 66%

Nominal Delay: 1.6 Nanoseconds per foot

Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft

Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft

Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft

Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C

Specifications

• Weight: 8.5 lbs. / 3.85 kg.
