The VX2000 Pro is an all-in-one controller combining video processing and video control functionalities into a single device. Equipped with 20 Ethernet ports, it supports three working modes: video controller, fiber converter, and ByPass. Capable of managing up to 13 million pixels, the VX2000 Pro can output at a maximum width of 16,384 pixels and a height of 8,192 pixels, making it perfectly suited for controlling ultra-wide and ultra-high LED screens on-site.

The VX2000 Pro boasts powerful video signal reception and processing capabilities, supporting a maximum resolution of 4Kx2K@60Hz for video input. It can handle multiple video signal inputs and includes features like 12 layers, output scaling, low latency and pixel-level brightness and chroma calibration. These functions combine to deliver outstanding image display quality.

With various control options available, the VX2000 Pro can be operated via the front panel knob, NovaLCT, Unico web page and VICP app, providing you with a convenient and effortless control experience.

The VX2000 Pro is housed in an industrial-grade casing, which, combined with its powerful video processing and transmission capabilities, makes it robust and well-suited for complex operational environments. The VX2000 Pro is a perfect fit for medium and high-end rental, stage control systems and fine-pitch LED screens.

Features

Multiple connectors, free input and output

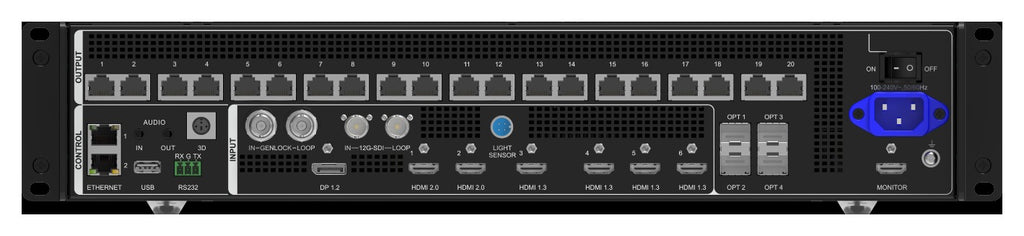

• A comprehensive range of input connectors: 1x DP 1.2; 2x HDMI 2.0; 4x HDMI 1.3; 2x 10G optical fiber port (OPT 1 & OPT 2); 1x 12G-SDI (IN & LOOP); 1x USB 3.0 (Play images or videos saved in a USB drive.)
• Output connectors: 20x Gigabit Ethernet ports A single device supports up to 13 million pixels, delivering a maximum width of 16,384 pixels and a maximum height of 8192 pixels; 4x Fiber outputs OPT 1 and OPT 2 send the output on Ethernet ports 1~10 and 11~20 respectively. OPT 3 and OPT 4 copy or back up the output on Ethernet ports 1~10 and 11~20 respectively; 1x HDMI 1.3 For monitoring display; 1x 3D connector Directly connect a third-party 3D emitter
• Self-adaptive OPT 1/2 for either video input or sending card output: Thanks to the self-adaptive design, OPT 1/2 can be used as either an input or output connector, depending on its connected device.
• HDMI mosaic: Supports mosaicing of two HDMI 2.0 inputs or four HDMI 1.3 inputs; Max. mosaicing resolution: 4Kx2K
• Fiber input mosaic: The input source connected through OPT 1/2 can be used either independently or combined to create a mosaic input source.
• Audio input and output: Audio input accompanied with HDMI and DP sources; 3.5 mm independent audio input and output; Adjustable output volume
• Free topology: The maximum resolution of the circumscribed rectangles loaded by the VX2000 Pro is up to 13 million pixels. Flexible screen configuration without worrying about unused blank areas when calculating Ethernet port load capacity, allowing for optimal use of port bandwidth. *Specific receiving cards are required.
• Low latency: By enabling the low latency feature and ByPass mode, the device delay can be reduced to 0 frame.
• Output synchronization: An internal input source or external Genlock can be used as the sync source to ensure the output images of all cascaded units in sync.
• EDID management: Import and export EDID files.

Diverse display possibilities for flexible configuration

• Easy preset saving and loading: Up to 256 user-defined presets supported; Load a preset by simply pressing one button; Save, overwrite and delete a preset; Preview the layer layout saved in the preset. (Unico web page)
• Multiple layer display: Supports 12*2Kx1K layer resources. Users can create layers in three different specifications - 4Kx2K, 4Kx1K, and 2Kx1K. These layers will use 4x, 2x, and 1x 2K layer resources respectively, depending on the capacity of the input source connector used to open the layers; Adjustable layer size and position; Adjustable layer priority; Adjustable aspect ratio
• 3D function: Traditional solution: Connect the EMT200 3D emitter to the device's Ethernet port, and use the compatible 3D glasses to enjoy a 3D visual experience; New solution: Connect the third-party 3D emitter to the device 3D connector and use the compatible 3D glasses to enjoy a 3D visual experience. Note: Enabling 3D function will halve the device output capacity
• Personalized image scaling: Supports three kinds of image scaling modes, including full screen, pixel to pixel and custom.
• Powerful video processing: Based on SuperView III image quality processing technologies to provide stepless output scaling; One-click full screen display; Free input cropping
• Color adjustment: Supports output color management, including brightness, saturation, contrast and hue.
• Pixel level brightness and chroma calibration: Work with NovaLCT and NovaStar calibration software to support brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality. The function of displaying image on screen for test is also supported.

USB playback, timesaving and effortless

• Supports USB playback for instant plug-and-play convenience

Multiple device modes and operation modes, convenient and efficient

• Three working modes: Video Controller; Fiber Converter; Bypass

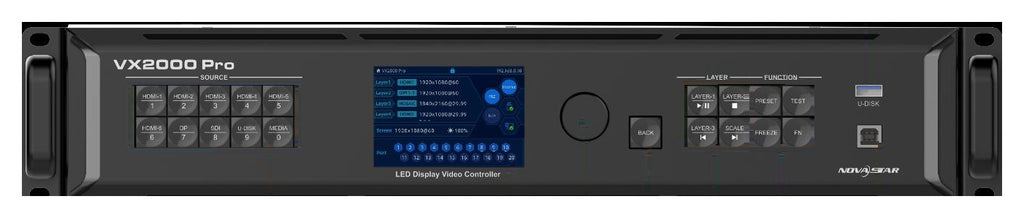

• Multiple control options: Device front panel knob; Unico Web page control; NovaLCT; VICP app

Data saving after power failure and backup design, stable and reliable

• End-to-End backup: Backup between devices; Backup between input sources; Backup between Ethernet ports; Backup between optical fiber ports
• Ethernet port backup test: Test whether the pre-stored images, backup Ethernet ports and devices take effect without plugging and unplugging the Ethernet cables.
• Data saving after power failure: After a normal shutdown or unexpected power outage, reconnecting the power will automatically restore the previously saved settings on the device.
• 24/7 rigorous stability test under extreme high and low temperatures proved robust stability: and reliability. Table 3-1 Function limitations Function Limitation Mutually Exclusive Function 3D  Work with the matched 3D glasses. Input crop
• Enabling 3D function will halve the device: output capacity. Low Latency All cabinets loaded by Ethernet ports must be Genlock: When the device aligned at the top of the circumscribed rectangle. works as a video controller, the low latency and Genlock are not exclusive. When the Function Limitation Mutually Exclusive Function device works in ByPass mode, the two functions cannot be enabled simultaneously. GENLOCK N/A Low latency: When the device works as a video controller, the low latency and Genlock are not exclusive. When the device works in ByPass mode, the two functions cannot be enabled simultaneously. ByPass Mode When the device works as an independent LED N/A display controller, the video processing function is unavailable. Table 3-2 Latency at the all-in-one controller Working Mode Low Latency Non-Low Latency Video controller 1~2 2~3 ByPass 0 1 Fiber converter 0

Specifications

Electrical:

• Power connector: 100-240V~, 50/60Hz
• Rated power consumption: 82W

Operating Environment:

• Temperature: 0°C to 50°C
• Humidity: 5% RH to 85% RH, non-condensing

Storage Environment:

• Temperature: -10°C to +60°C
• Humidity: 5% RH to 95% RH, non-condensing

Dimensions / Weight:

• Dimensions: 482.6 x 409.0 x 94.6 mm (19.0 x 16.1 x 3.72 in.)
• Net weight: 7 kg (15.4 lbs.)
• Total weight: 10 kg (22 lbs.)

Packing Information:

• Carrying case: 625 x 560 x 195 mm
• Packing box: 645 x 580 x 215 mm
• Accessories: 1x Power cord, 1x Ethernet cable, 1x HDMI cable, 4x Silicone dustproof plugs, 1x USB cable, 1x Phoenix connector, 1x Quick Start Guide, 1x Certificate of Approval

Other:

• Noise level (typical at 25°C/77°F): 45 dB (A)
• Certifications: CE, FCC, IC, RCM, EAC, UL, CB, KC, RoHS
