Description

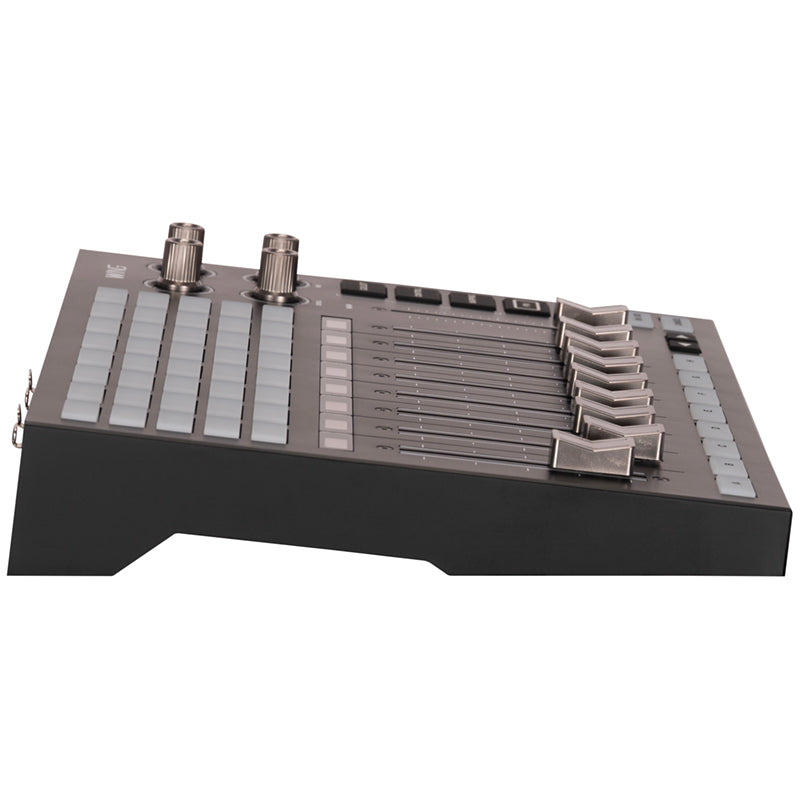

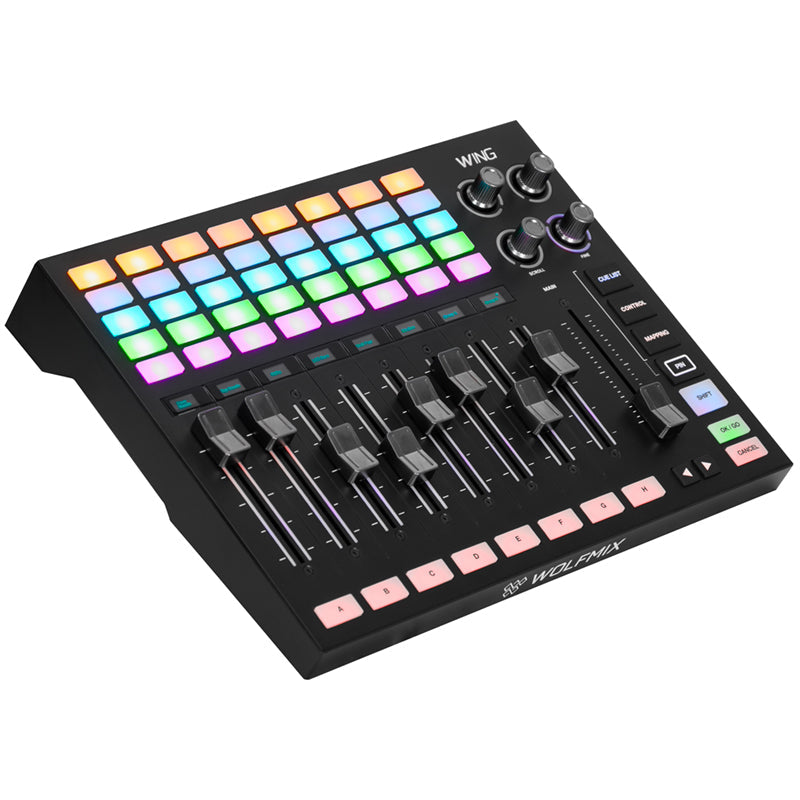

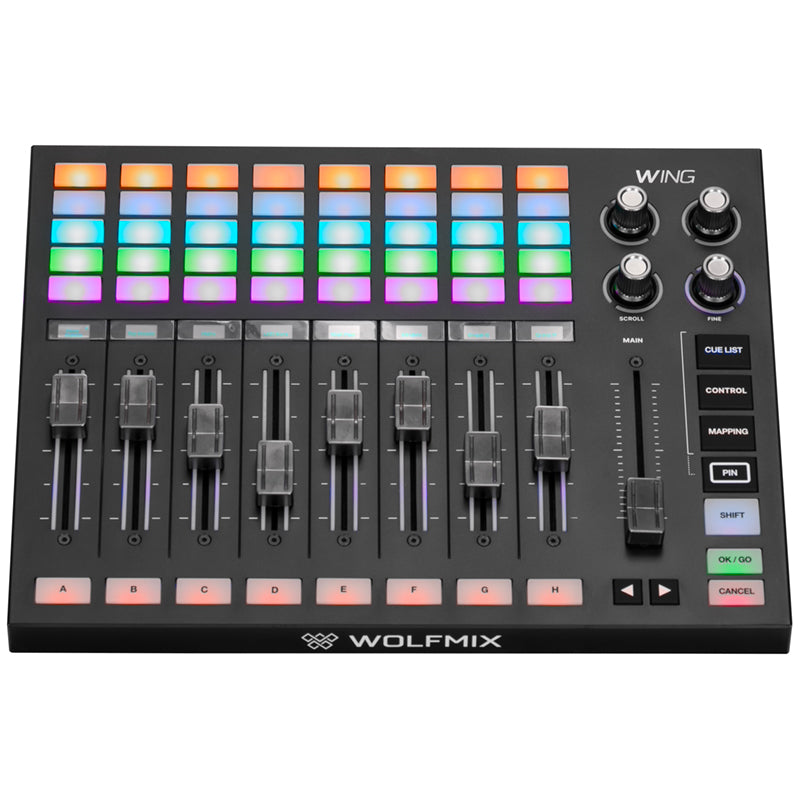

ADJ WMX Wing powered by WOLFMIX is the control expansion for the ADJ WMX1, WMX1 Mk2 and WMX1 Mk3 standalone lighting controllers. It adds motorized faders, OLED displays, a larger button matrix and dedicated controls. Connected to a WMX1, the two units work as one lighting control system with synchronized projects, while each can still run on its own. Two devices, one instrument. Available now at SixStarPSL.
Key Features
- 8 motorized, touch sensitive faders with RGB lightguides, plus main fader
- 8 OLED strip displays (64 x 32 pixels each)
- 8 x 5 RGB backlit button matrix plus 8 group select buttons
- Cue List, Control and Mapping modes
- 4 rotary encoders with dedicated SCROLL and FINE functions
- Dedicated OK/GO, CANCEL, SHIFT and PIN controls
- 2 DMX universes included, up to 4 with add on, up to 8 when fused with a WMX1
- Up to 680 fixtures, 1,500 beams and 8 fixture groups with 64 subgroups
- Up to 5,000 cues across 100 cue lists with MIDI Time Code support
- Works as a generic MIDI controller when no project is loaded
- Ideal for houses of worship, theatres, production companies, DJs, bands and mobile entertainers
Specifications
- DMX outputs: 4 (2 x 3 pin XLR, 2 x 5 pin XLR), freely assignable
- Maximum fused DMX channels: 4,096
- Fixture library: 30,000+ available, 3,000+ stored on the controller
- Power: USB C, 15V, 3A; USB A connects and powers the WMX1
- Processor: 220 MHz ARM core, 8 MB RAM, 16 MB flash
- Housing: ABS plastic with powder coated steel base plate, 100 mm VESA mount
- Dimensions: 8.7 x 11.4 x 2.25 in (220 x 290 x 57 mm)
- Weight: 3.4 lbs (1.54 kg)
- Manufacturer part number: WMX318
- UPC: 810087376109
