Main Features:

The go-to software for all your camera control needs

Automatically set up your COM ports through connection to computer via USB. Control up to 7 primary cameras utilizing advanced SONY VISCA™ protocol and up to 255 cameras utilizing PELCO™ protocol. Compatible with Windows and Mac OSX™ operating systems.

Specification

Find the CCS-USB program in our download section.

Control

Camera Interface

RS-232C

RS-485/RS-422: Terminal Block Connector

Protocol

VISCA for Camera Settng up to 7 Cameras

PELCO for Pan/Tilt/Zoom Control up to 255 Cameras

User Interface

Graphic User interface

PC Interface

Compatibility

All VISCA Protocol Camera

All PELCO Protocol Camera

Function


Contrast, Saturation, Sharpness, Gamma

Exposure

Auto, Shutter Priority, Iris Priority, Manual, Flickerless

White Balance

Auto, Manual, ATW

Backlight

WDR, BLC

Motion

Pan, Tilt, Zoom Camera Control

Physical

Camera Control

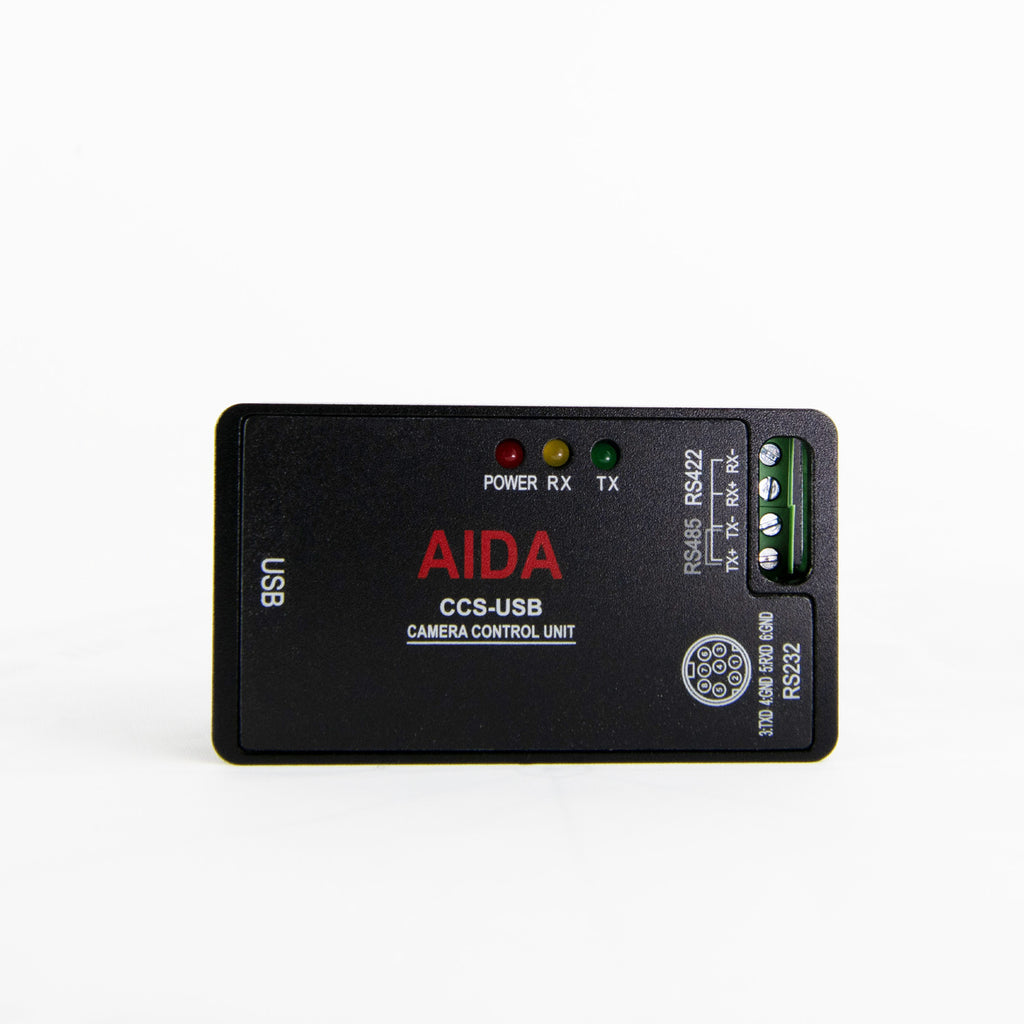

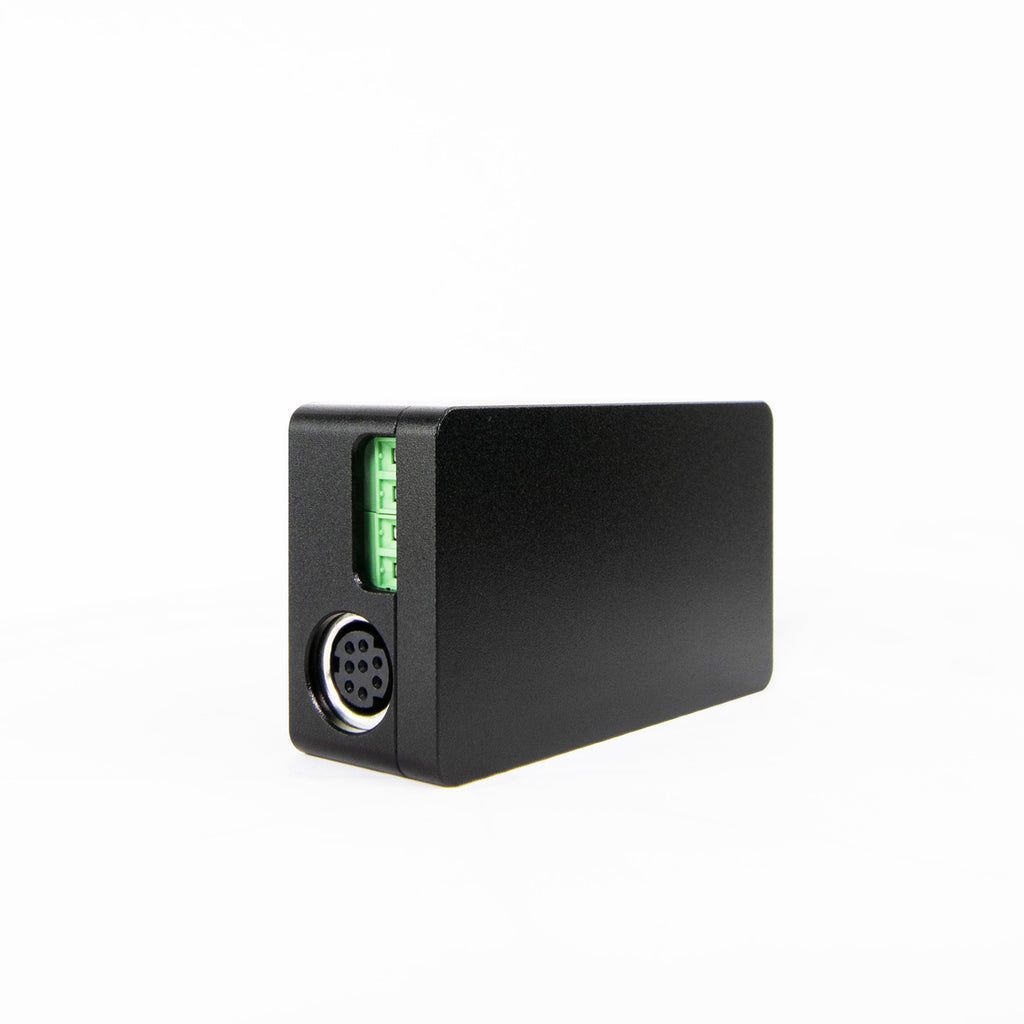

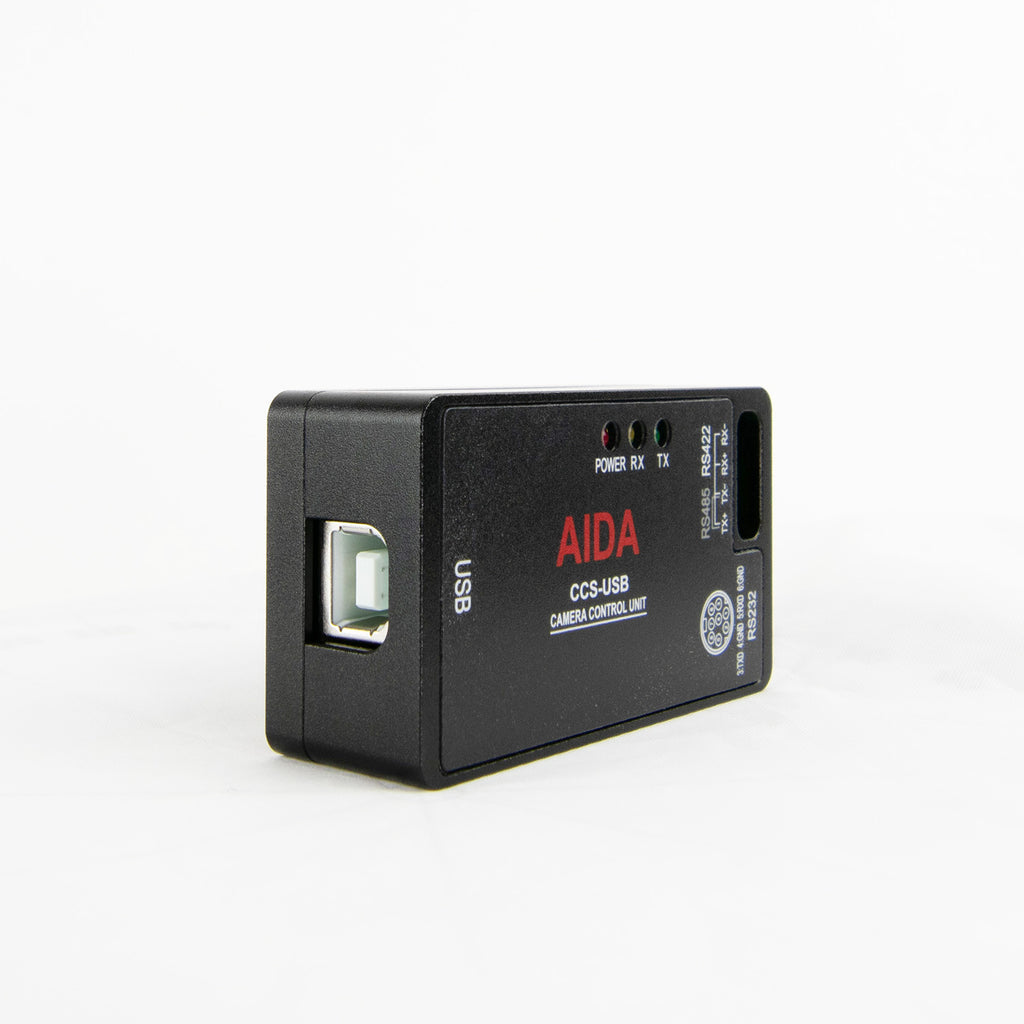

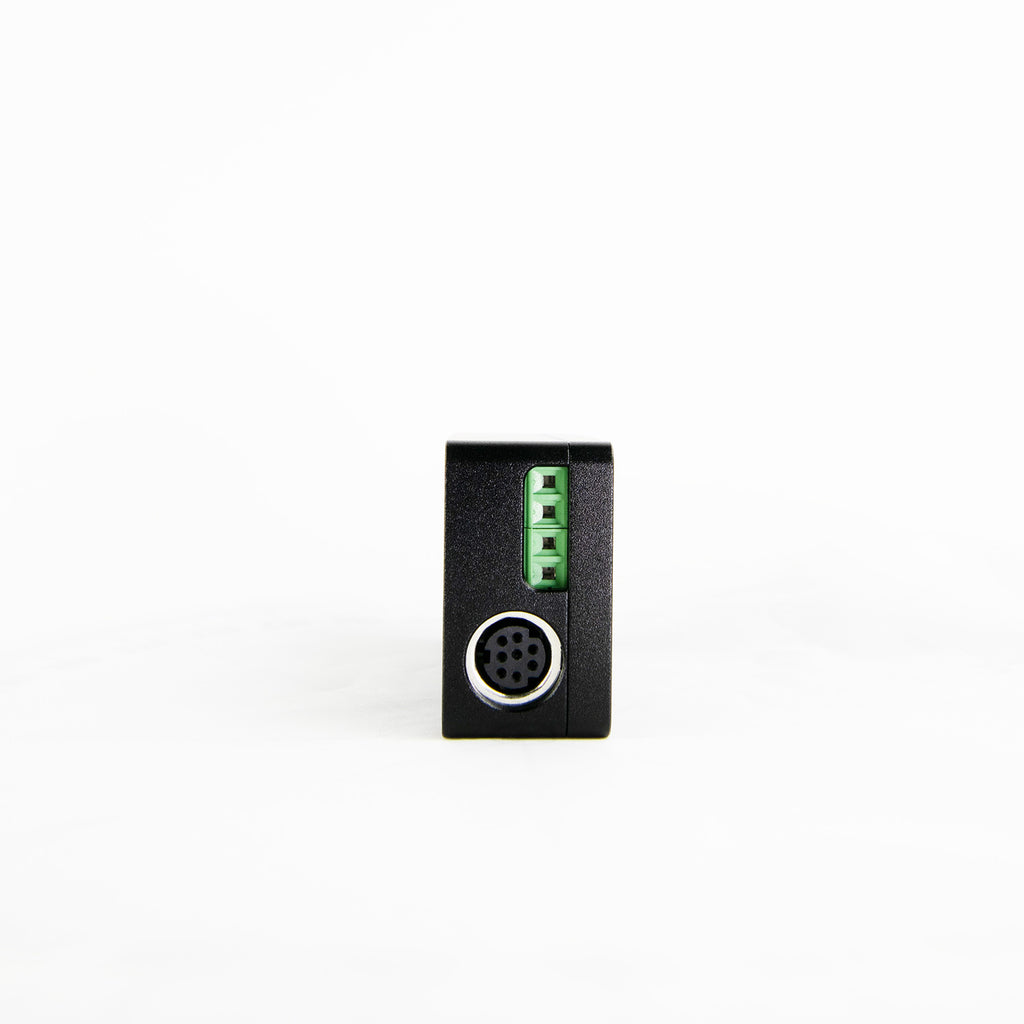

RS-232C: 8 Pin Mini Din Connector RS-485/RS-422: Terminal Block Connector

Accessory

CBL-RJ45 (RS232 to Cross-RJ45 converter cable)

Operation Temp

32°F - 104°F

Dimension

62m x 35m x 19mm / 2.44″ x 1.37″ x 0.74″

Weight

50g / 0.11lbs

Power

USB Powered

Downloads

Operation Manual

Diagram

[metaslider id=”9456″]
