Description

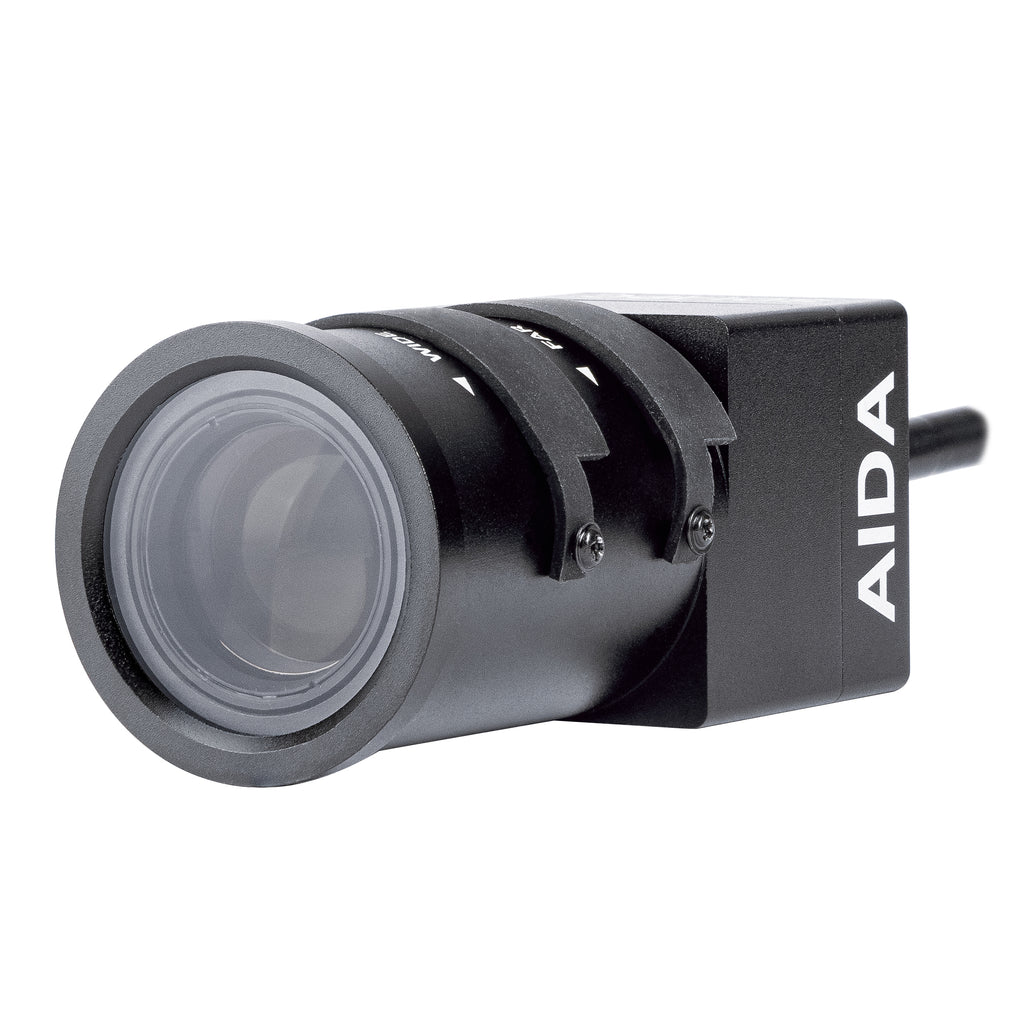

FHD 3G-SDI with IP Control, Varifocal Lens 05-50mm Weatherproof IP57 POV Camera
When Old Tech Meets New!
Against all odds, SDI infrastructure has remained prevalent in todays broadcasting industry. With the reliability of 3G-SDI wiring, uncompressed video quality, and low latency video processing, SDI has come a long way to where it is now. So why not show it some love with an update? The SDI-IPC series aims to help upgrade existing POV SDI dedicated workflows with quality Sony CMOS Imaging Sensors, versatile form factors, and ease-of-use VISCA over IP communication. With the simple addition of VISCA over IP, you can say goodbye serial wiring, meaning you can get video, control and power over just 2 cables! (but don't worry, it still has RS485 if you need it!)
Sometimes the older generations get it right, just need to add some millennial spice to it!

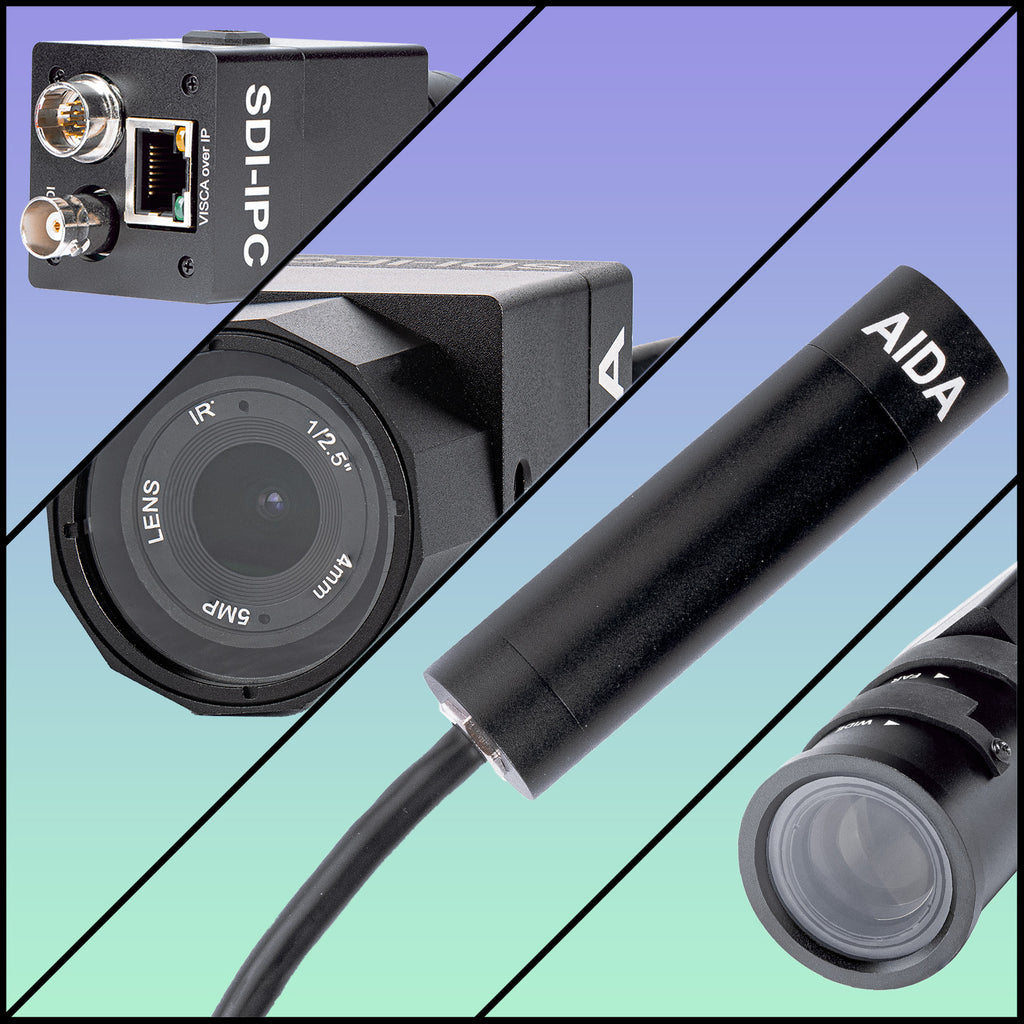

Versatile Form Factors
Each SDI-IPC series camera achieves different purposes and form factors, so choosing the right one is key to streaming excellence!
PoE+ Injectable
Each purchase of a SDI-IPC model comes with a PoE+ injector dongle, allowing you to inject power and control through a PoE+ router.
Quick Specs
- Output: 3G-SDI output only
- Streaming: 1080p, 1080i, 720p (FHD)
- Lens: model-dependent lens options
- Audio: line-in audio synced to SDI stream
SDI-IPC Comparison Table
| Camera | HD3G-IPC-100A | HD3G-IPC-IP67 | HD3G-IPC-MINI | HD3G-IPC-TF |
|---|---|---|---|---|
| Sensor Size | 1/2.8" Sony Progressive CMOS Sensor | |||
| Resolution Output | Up to 1080p 60fps via 3G-SDI | |||
| Optics | 4mm CS-Mount Lens | 4mm CS-Mount Lens | 3.6mm M12-Mount Lens | Custom 5-50mm Telephoto Lens |
| Horizontal FOV | 80° HFOV | 80° HFOV | 92° HFOV | 55~6° (W/T) HFOV |
| Interchangeable Optics | ✔ | ✔ (as long as it fits inside cap) | ✔ (as long as it fits inside cap) | ❌ |
| Audio Embedment | ✔ | |||
| Weatherproof | ❌ | ✔ (IP67 rated) | ✔ (IP67 rated) | ✔ (IP54 rated) |
Additional Details
- Weight: 3.0 lb
- Shipping Dimensions (L x W x D): 10x5x4 in
- Country of Origin: KR
- UPC: 783970765192
