Main Features:

Pan. Tilt. Zoom. Repeat.

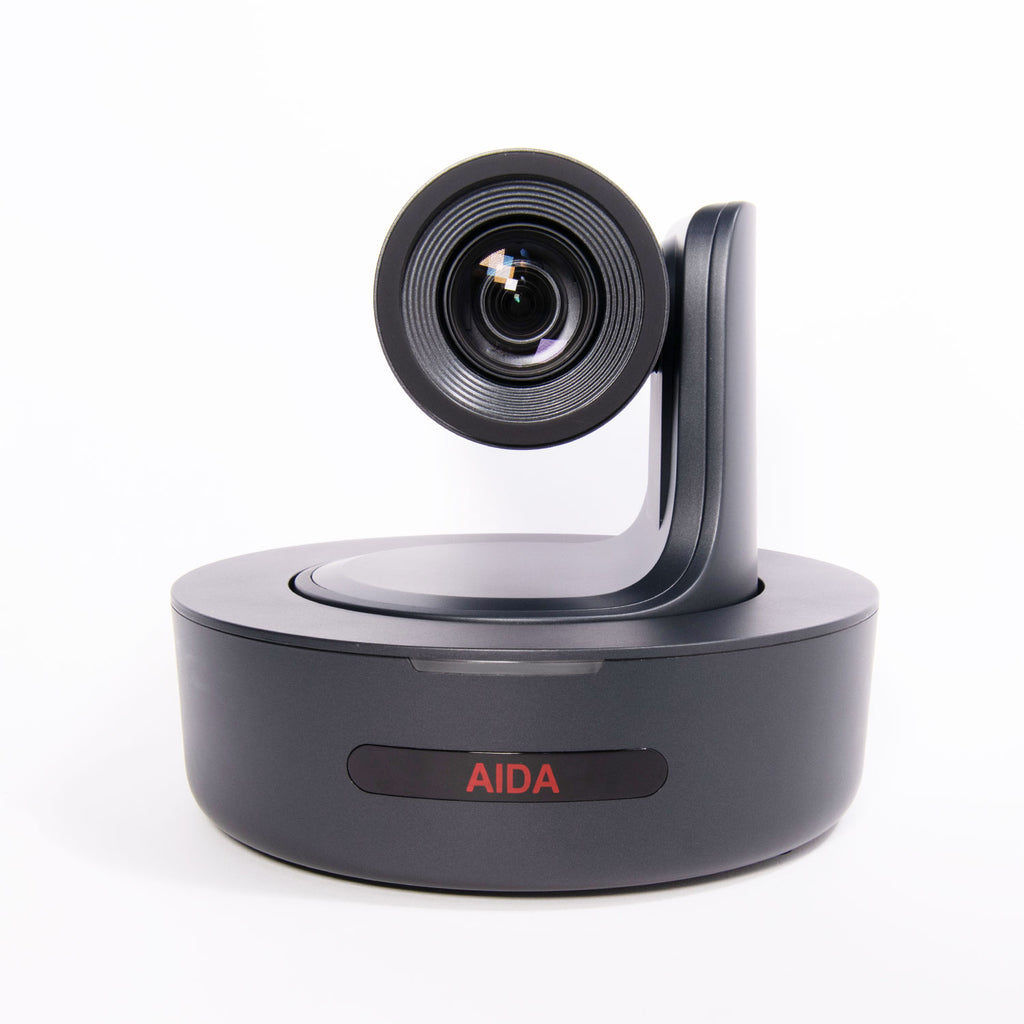

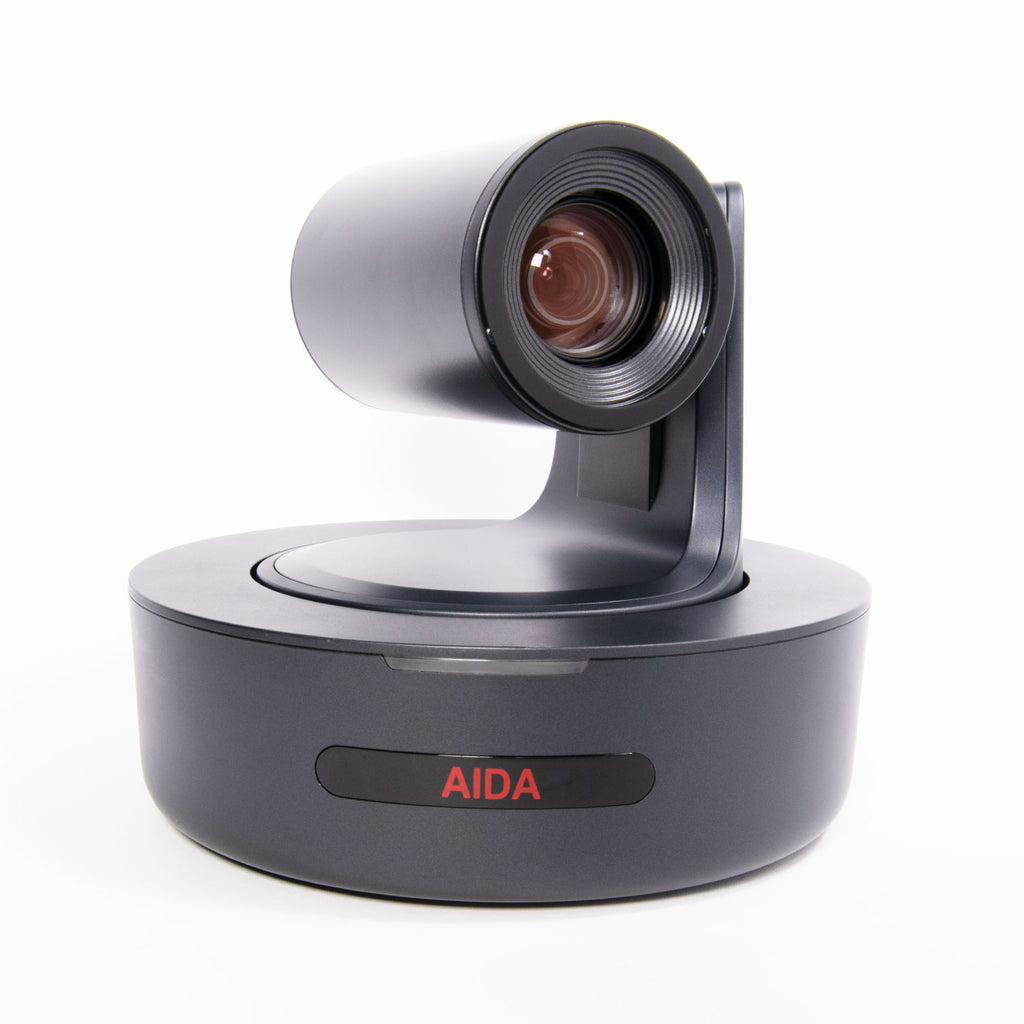

Pan-Tilt-Zoom cameras has revolutionized video productions by reducing camera operators to one, while producing the most demanding live production shoots. The PTZ-X20-IP offers a wide array of simultaneous HD video and direct stream with audio embedment to various streaming platforms while delivering superb images with a 20X optical zoom. Ideal for broadcast applications, huddle rooms, houses of worship and more.

Specification

Video

Image Sensor

1/2.5″ Progressive CMOS

Effective Pixels

Horizontal: 1920, Vertical: 1080

Pixel Size

2.13 µm x 2.13 µm

Resolution

1080p & 1080i: 1920 x 1080

Resolution | Rate

108060p/59.94p/50p/30p/29.97p/25p/24p/23.98p

1080 60i/59.94i/50i

720 60p/59.94p/50p/30p/29.97p/25p

IP Rate

1920 x 1080 @ 1~60

1280 x 720 @ 1~60

1024 x 576 @ 1~60

620 x 360 @ 1~60

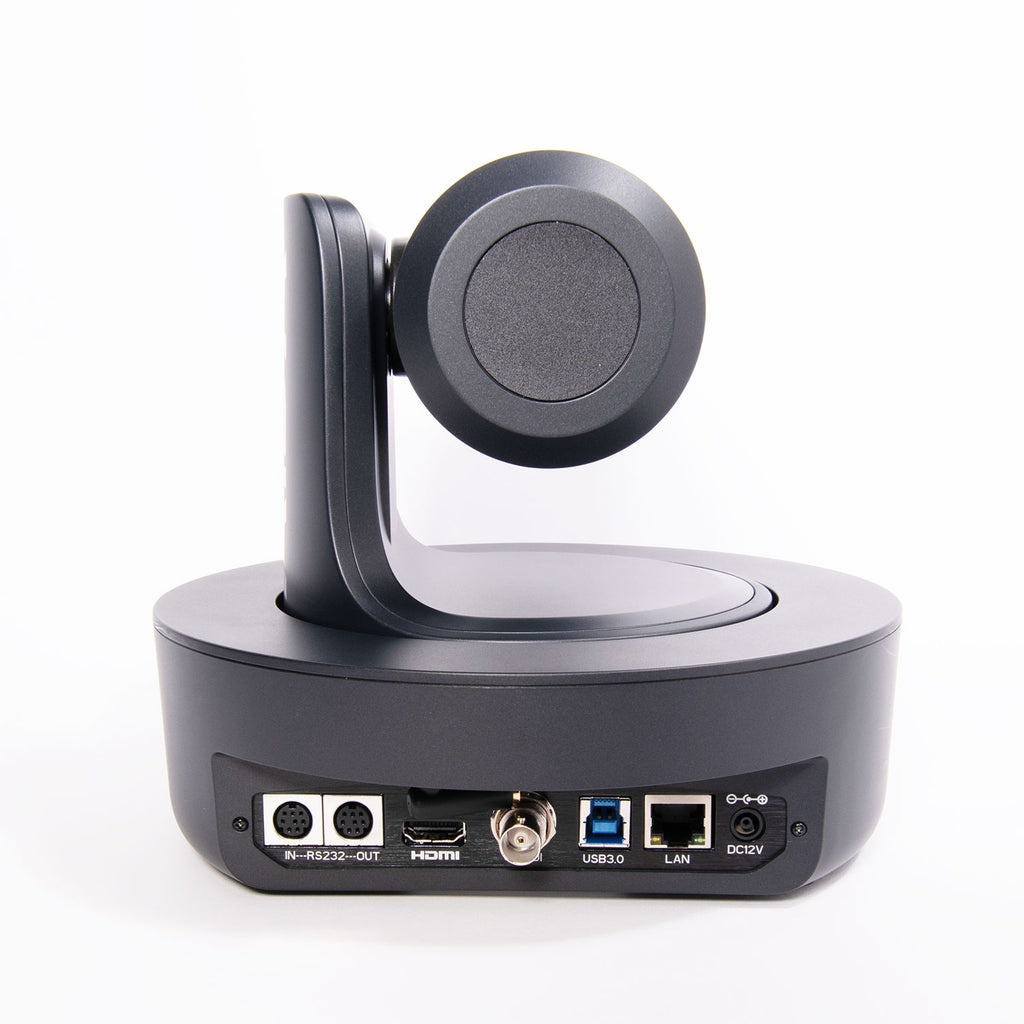

Output

HD-SDI/3G-SDI

HDMI

RJ45

USB 3.0 & 2.0

Color Space

4:2:2 (YCbCr) 10bit

Min. Illumination

0.1Lux

Function

White Balance

Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor

Focus

Auto, Manual

Shutter Speed

1 to 1/10,000 Sec.

Lens

20X HD Optical Zoom, F1.5 ~ F3.0

Pan, Tilt :Range

Pan: 340°,

Tilt: +90 to -30°

Pan, Tilt :Speed

Pan: 0° to +120°/s

Tilt: 0° to +80°/s

Presets

128 Positions

Field of View

Standard

SMPTE

SMPTE 292M, SMPTE 424M

IP Protocol

TCP|IP, RTSP|RTMP

Audio

Input

3.5mm TRS Stereo Audio Port

Sample Rate

16/24/32 Bits

Physical

Camera Control

Protocol: VISCA

Interface: RS-232C IN & OUT, RJ-45

Remote Controller

Operation Temp

32° F - 104° F

Dimension

155mm x 160m x 170mm / 6.10″ x 6.92″ x 6.69″

Weight

1.35kg / 2.97lbs

Power

12VDC (+9 - +15VDC)

PoE+ (IEEE802.3at Standard Required)

Downloads

Operation Manual

Firmware

Diagram

[metaslider id=”9309″]

You May also find these Product useful.

CCU-IP

CCS-USB

WM-PTZ

See what others are saying!

“I must say for the price point I’m blown away at the image quality. Overall I was impressed with the unit and am looking forward to implementing it on some upcoming projects”

Gain Stage Productions

“It was obvious to everyone there that the AIDA image looked better than the other cameras”

Audio Visual Specialists

“We’ve been running the AIDA demo camera through its paces and are impressed with it for the cost”

Stevens Audio Visual

Additional Details

• Weight: 9.0 lb
• Shipping Dimensions (L x W x D): 12x12x12 in
• Country of Origin: KR
• UPC: 720260897607
