Main Features:

Launch your creations in Ultra-HD

Drive your visual inspirations with clarity. The UHD-100A simplifies the creation of video content that requires Ultra-HD quality, ranging from telemedicine to machine vision in its smallest form.

Specification

Video

Image Sensor

1/2.5″ Progressive CMOS

Sensor Size

Diagonal 7.20mm

Effective Pixels

Horizontal: 3840, Vertical: 2160

Pixel Size

1.62 µm (H) x 1.62 µm (V)

Resolution

2160 30p/29.97p/25p/24p 1080 60p/59.94p/50p/30p/ 29.97p/25p/24p 1080 60i/59.94i/50i 720 60p/59.94p/50p/30p/25p

Output

HDMI 1.4

Color Space

4:2:2 (YCbCr) 10bit

Function

White Balance

AWB / AE / AF

Exposure

Full Auto, Bright, Shutter Priority, Iris Priority, Manual

Other

WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction,

Digital Slow Shutter, Black Level Compensation, Flicker Detection

Lens

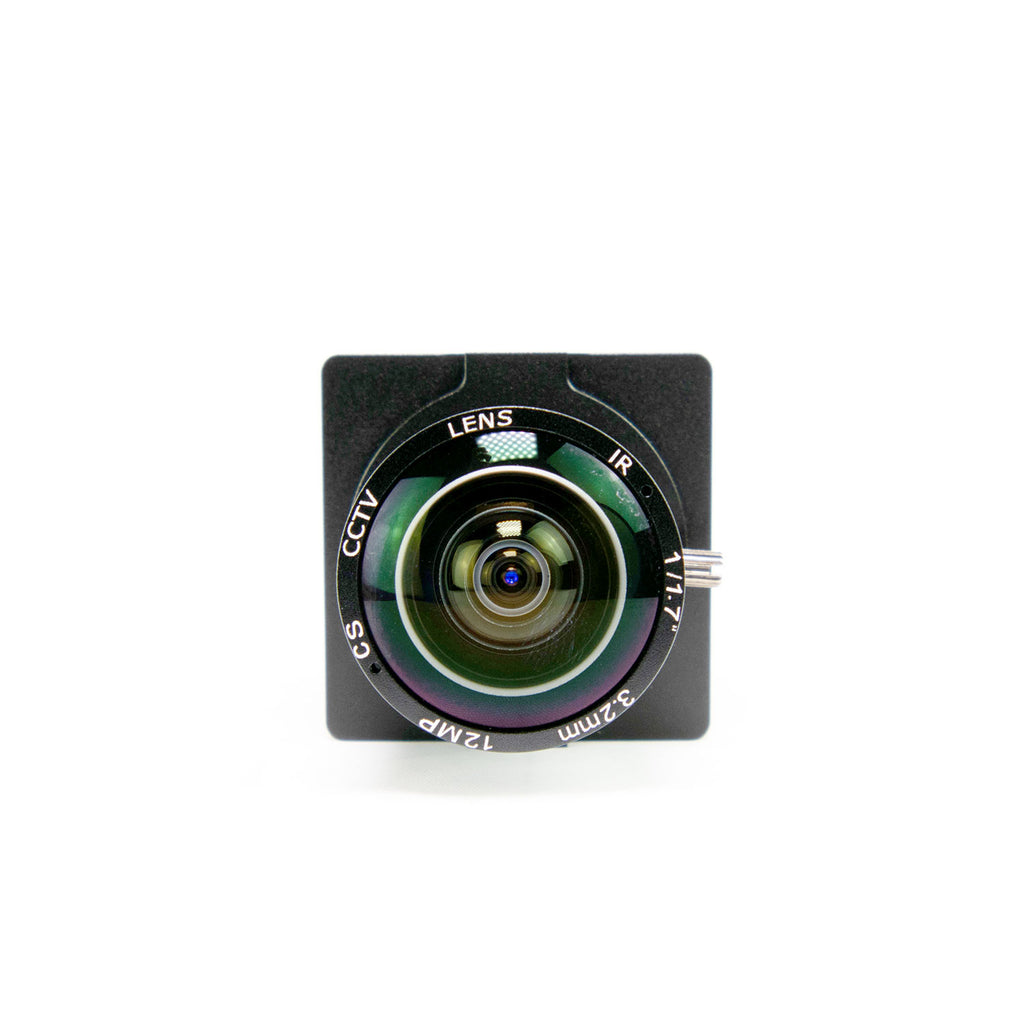

C/CS Mount (Default UHD 3.2mm Lens)

Audio

Input

3.5mm TRS Stereo Mic-in & Line in over I/O Cable

Sample Rate

16/24/32 Bits

Physical

Camera Control

RS-485 VISCA, OSD Button

Operation Temp

32° F - 104° F

Dimension

39mm x 39mm x 50.50mm / 1.53″ x 1.53″ x 1.99

Weight

140g / 0.30lbs

Power

12VDC (+9 - +15VDC)

Downloads

Operation Manual

Firmware

Diagram

[metaslider id=”9194″]

Additional Details

• Weight: 2.0 lb
• Shipping Dimensions (L x W x D): 10x5x4 in
• Country of Origin: KR
• UPC: 682863380156
