Specification

Main Features:

Launch your video creations in Ultra-HD

Drive your visual inspirations with clarity. The UHD-X3L with its built-in 4K 3X optical zoom lens simplifies the creation of video content that requires Ultra-HD quality and remote versatility. Application ranging from sports to telemedicine.

Video

Image Sensor

1/2.5″ Progressive CMOS

Sensor Size

Diagonal 7.20mm

Effective Pixels

Horizontal: 3840, Vertical: 2202

Pixel Size

1.62 μm (H) x 1.62 μm (V)

Resolution

2160p: 3840 x 2160 1080p / 1080i : 1920 x 1080 720p : 1280 x 720

Resolution | Rate

4K2160p : 30 / 29.97 / 25 / 24

1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24

1080i : 60 / 59.94 / 50 720p : 60 / 59.94 / 50

Output

HDMI 1.4

Color Space

4:2:2 (YCbCr) 10bit

Function

White Balance

AWB / AE / AF

Exposure

Full Auto, Bright, Shutter Priority, Iris Priority, Manual

Other

WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction,

Digital Slow Shutter, Black Level Compensation, Flicker Detection

Lens

3X Optical Zoom Lens, 3.85mm/78° (Wide) ~ 13.4mm/25° (Tele)

Physical

Camera Control

RS-485 VISCA, OSD Button

Operation Temp

32° F - 104° F

Dimension

48mm x 48mm x 83.09mm / 1.89″ x 1.89″ x 3.27″

Weight

140g / 0.30lbs

Power

12 VDC (+9 - +15VDC)

Downloads

Operation Manual

Firmware

Diagram

[metaslider id=”9211″]

You May also find these Product useful.

CCS-USB

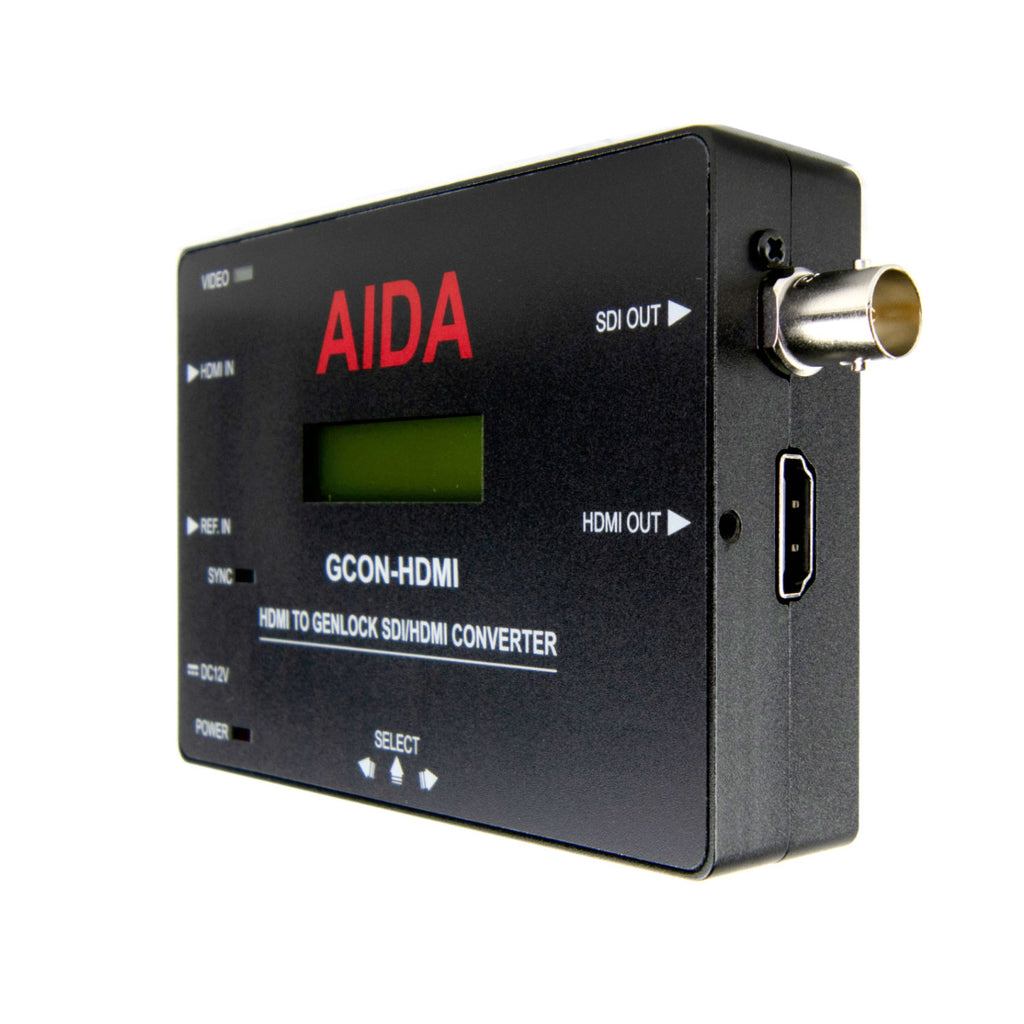

GCON-HDMI
