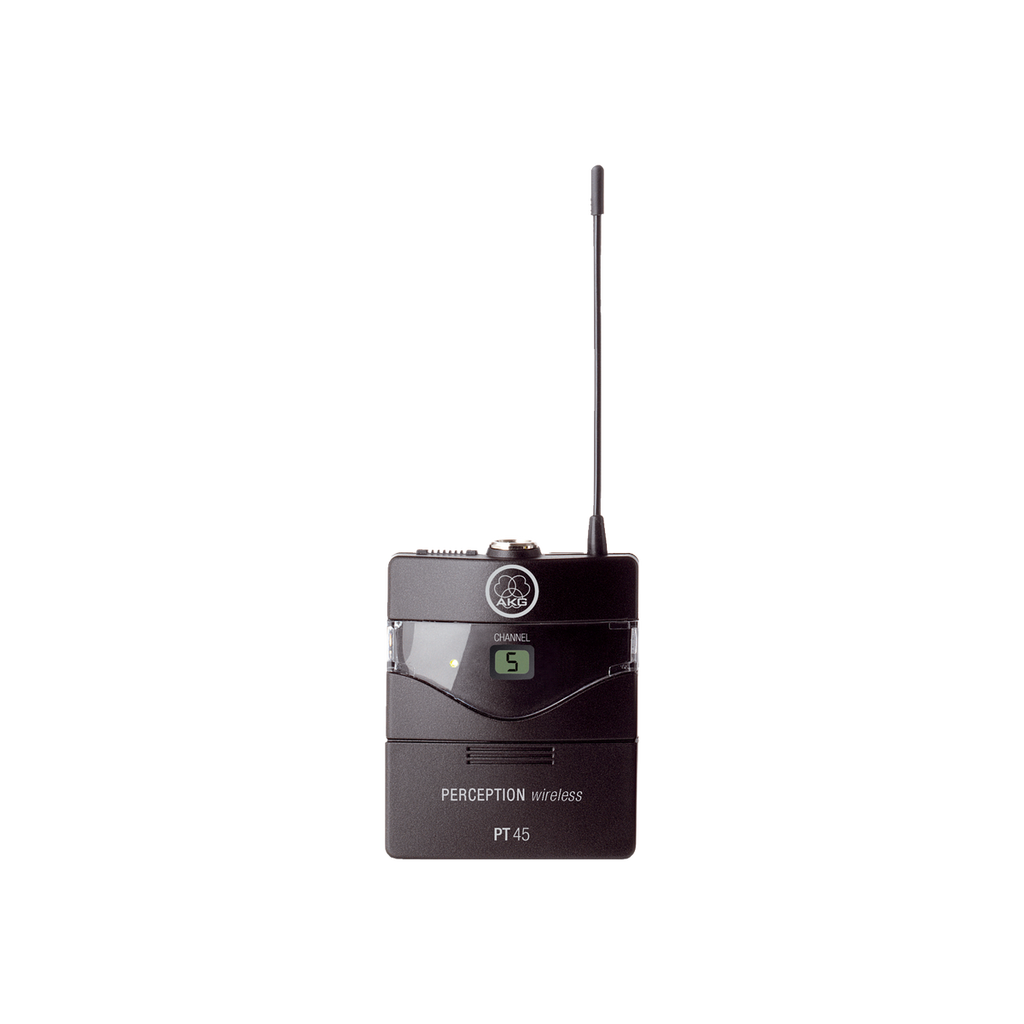

The PT45 is an analog high-performance wireless body-pack transmitter in a small, rugged housing. A professional mini XLR audio connector makes the body-pack compatible with all kinds of guitars, basses, instrumental pickups and headsets. It is designed for stress-free work on small stages, in houses of worship and in conference rooms. The PT45 provides a gain control for perfect adjustment of the input volume and a noiseless on/off/mute switch. A battery-status indicator shows red before the battery goes dead, allowing the user full control of performance time. The package includes a rugged guitar cable.

Features

• Up to eight hours of operation from a single AA-size battery
• Saves money in day-to-day use
• Professional three-pin mini XLR connector
• Compatible with guitar cables, headset and instrument mics
• Gain control on transmitter
• For immediate volume adjustment
• Noiseless on/off/mute switch
• For easy operation
• Compact and rugged body-pack design
• For maximum wearing comfort

Specifications

• Audio frequency bandwidth: 40 - 20000 Hz
• Signal to Noise: 105 dB-A
• THD at 1 kHz: 0.8 Prozent
• Operating temperature range: -10 to 55 Celsius
• Peak deviation: 45 kHz
• Nominal deviation: 15 kHz
• Transmitter Synchronization: Manual
• Switching bandwidth: 30 MHz
• Recommended simultaneous channels: 5
• Number of selectable frequencies: 8 Fixed frequencies
• Frequency Selection: Fixed frequency
• Radio range (Line of sight): 30m
• Switchable RF power: no
• Modulation: FM (Frequency Modulation)
• Encryption: No encryption
• Pilot Tone: no
• Length: 60 mm
• Height: 75.5 mm
• Width: 30 mm
• Battery 2: Number of batteries
• 1: Operating time
• 8 h: Battery 1
• Battery type: LR6 AA alkaline Battery
• Number of batteries: 1
• Operating time: 8 h
