64-96 Channel / 42-56 Bus Digital Mixers

Allen & Heath Avantis Solo 64-Channel 12-Fader Digital Mixer — A 64-channel mixer, expandable to 96 channels. Features the XCVI FPGA engine, ultra-low 0.7ms latency, and dLive-class processing.

Avantis V2.0

The biggest update to Avantis and dPack yet: more channels, more busses, a new DEEP compressor, and RackUltra FX.

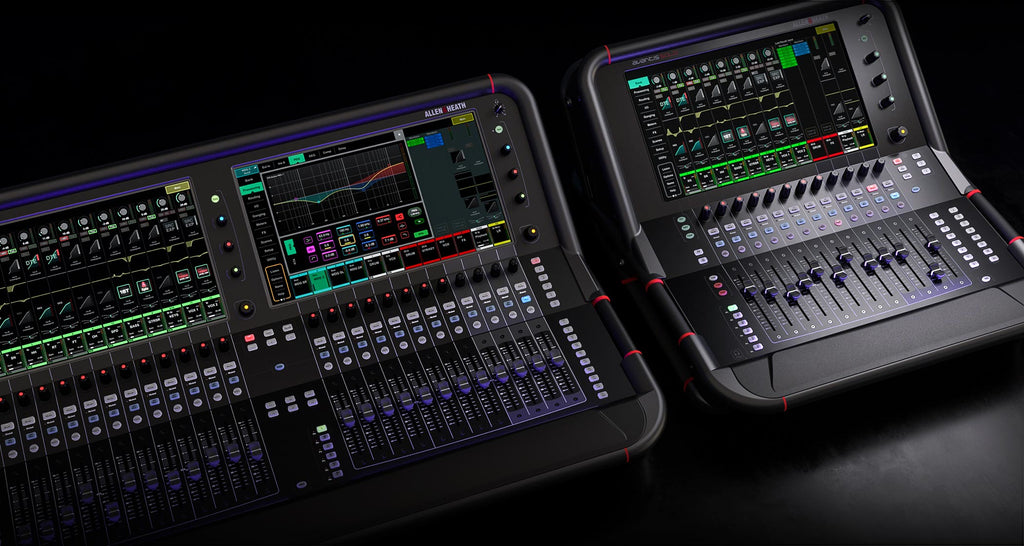

Choose your Mixer

Hardware: • 15.6” Full HD touchscreen • 18 assignable SoftKeys • 12 faders, 6 layers • 6 Analog/1 stereo AES Inputs • 6 Analog/1 stereo AES Outputs • 2 I/O Ports (128×128) Mix Engine: • 64 Input Channels • 42 Busses • 12 RackExtra FX

Hardware: • Two 15.6” Full HD touchscreens • 24 assignable SoftKeys • 24 faders, 6 layers • 12 Analog/1 stereo AES Inputs • 12 Analog/2 stereo AES Outputs • 2 I/O Ports (128×128) Mix Engine: • 64 Input Channels • 42 Busses • 12 RackExtra FX

Hardware: • 15.6” Full HD touchscreen • 18 assignable SoftKeys • 12 faders, 6 layers • 6 Analog/1 stereo AES Inputs • 6 Analog/1 stereo AES Outputs • 2 I/O Ports (128×128) Mix Engine: ↑ 96 Input Channels ↑ 56 Busses + 24 Dyn8 + DEEP Preamp, Compressor & Expander Models + NEQ12 + 8 RackUltra FX • 12 RackExtra FX

Hardware: • Two 15.6” Full HD touchscreens • 24 assignable SoftKeys • 24 faders, 6 layers • 12 Analog/1 stereo AES Inputs • 12 Analog/2 stereo AES Outputs • 2 I/O Ports (128×128) Mix Engine: ↑ 96 Input Channels ↑ 56 Busses + 24 Dyn8 + DEEP Preamp, Compressor & Expander Models + NEQ12 + 8 RackUltra FX • 12 RackExtra FX

Upgrade your Existing Mixer

A software-based expansion that scales your mixing capacity from 64 to 96 input channels and 42 to 56 busses, while unlocking the full DEEP processing suite; boutique preamp, compressor, and expander models alongside the surgical precision of Dyn8 and NEQ12. dPack Upgrade: • 96 Input Channels • 56 Busses • 24 Dyn8 • DEEP Preamp, Compressor & Expander Models • NEQ12 Ready to expand? dPack is available directly from our online store.

A physical hardware upgrade, installed via an authorised service centre, that adds 8 dedicated FX engines to your console for premium reverbs, vocal tuning, and more. The choice for engineers who need the depth and nuance of high-end outboard and plug-ins, built directly into the signal chain. Requires dPack. RackUltra FX Upgrade: • 8 RackUltra FX RackUltra FX upgrades are installed by our authorised service network.

The complete Avantis upgrade: dPack’s 96-channel capacity and full DEEP processing suite combined with the RackUltra FX module’s eight dedicated hardware engines. Everything the platform has to offer, in a single upgrade – and at a reduced price. RackUltra FX + dPack Upgrade: • 96 Input Channels • 56 Busses • 24 Dyn8 • DEEP Preamp, Compressor & Expander Models • NEQ12 • 8 RackUltra FX Buy both together and save from your local distributor.

Interested in Avantis?

Connect with our sales team to buy, request more info, or arrange a demo.

dPack

Get acclaimed dLive processing. Inside your Avantis.

Avantis delivers a powerful toolkit right out of the box, but the dPack upgrade significantly scales your capabilities. By integrating elite dLive processing, dPack provides access to DEEP compressors , 24 instances of Dyn8 , and the cutting-edge RackUltra FX Suite (requires RackUltra FX card).

This comprehensive upgrade also transforms your console’s capacity, increasing your workspace to 96 input channels and 56 configurable mix busses to meet the most demanding production requirements.

dPack Includes

dPack expands Avantis and Avantis Solo’s mixer architecture from 64 to 96 input channels and from 42 to 56 configurable mixes, providing the headroom to handle larger, more complex productions without compromise.

The same processor emulations trusted on the world’s biggest stages running natively inside your Avantis’ input and mix channels, with zero latency. No FX slots consumed. No external hardware. No phase coherency compromises. Just the processing you need, exactly where you want it.

Four bands of dynamic EQ and four bands of multiband compression in a single engine. Tame a vocal, tighten a sub-group, or add harmonic glue to a mix bus, and with 24 Dyn8 engines available across input and mix channels, you can use it everywhere it’s needed.

A collection of eleven professional-grade algorithms brought together in the RackUltra FX suite: reverb designers, harmonic saturators, vocal processors, and more. Studio-quality tools, built for the demands of live production. Requires RackUltra FX Module.

RackUltra FX

The RackUltra FX Card, available as a factory-fitted option for all new Avantis and Avantis Solo mixers, or available as an upgrade for existing units, adds 8 RackUltra FX engines to any dPack-enabled Avantis system without consuming any of the platform’s busses, channels, or RackExtra FX slots.

This cutting-edge hardware enables a suite of advanced vocal tools, including Vocal Shifter for radical alterations, Vocal Tuner for natural pitch correction, and Vocal Gridder for snappy, modern pitch effects.

Beyond vocals, the RackUltra FX card offers Spaces Reverb Designer and Plate Reverb Designer for crafting stunning reverberation, a trio of Harmonisers for rich vocal layering, the advanced Rhythm Delay, and powerful tone-shaping tools like the Saturator and Amp+Cab Distortion.

Integrated Tools

From our next-generation 61-band RTA, with 5m, 15m and 60m history views, through to Shure and Sennheiser RF integration, Avantis is designed to let engineers spend more time mixing and less time worrying about the technology.

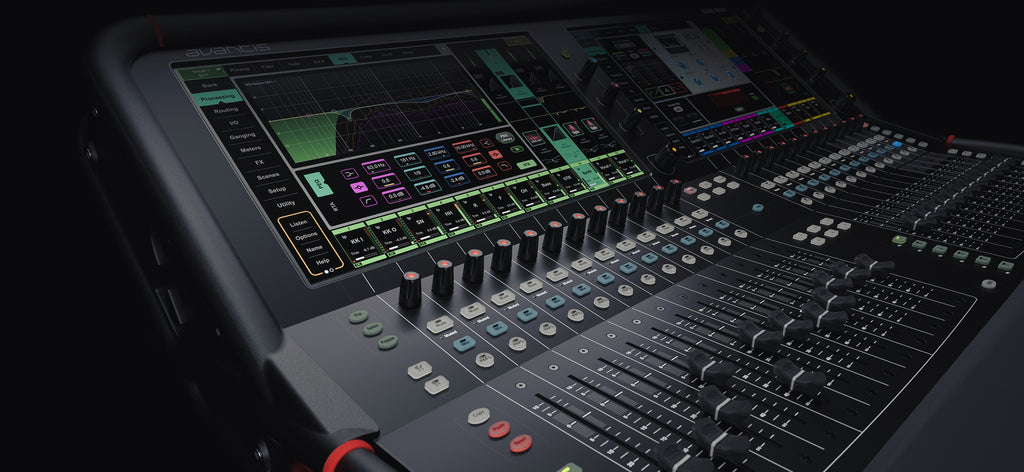

Continuity UI

With 15.6″ Full HD touchscreens at the heart of the experience, Continuity UI allows you to see and instantly interact with more of what matters, enabling a seamless connection between the physical controls and the screen.

The faders react on touch to immediately highlight the active channels for instant visual feedback.

The channel rotaries let you work gains or pans, then at the touch of a button, dynamically fold the display to show EQ or compressor parameters across the whole bank.

Each screen also features a Soft Rotary tab on the right-hand side, giving you split-second access to key freely-assignable parameters like aux sends, EQ, compressor and FX on the currently selected or specific channel.

The whole system is set up to dynamically surface the information you need at any moment and put control right at your fingertips.

Everything I/O

Whether you’re an owner/operator looking to build a compact system, or a rental company with existing Allen & Heath stock, the SLink connection on Avantis allows true flexibility by connecting to the entire range of Allen & Heath audio expander hardware.

Add a Dante card to your system and you’ve got even more options, with our dedicated Dante expanders, DT168 and DT164-W.

Well Connected

For local I/O, Avantis is well equipped with XLR analogue inputs, XLR analogue outputs, plus AES (Stereo In, Stereo Out).

Two additional I/O Ports allow Avantis to benefit from the full range of current dLive option cards, including Dante (64×64 and 128×128), Waves, gigaACE, MADI and more, expanding the scope for system integration, FoH / monitor splits and multitrack recording.

Controllers

Avantis can be controlled using the Avantis Director software, MixPad app, Custom Control app or from our range of remote controllers and GPIO interfaces, with up to 48 IP remote controllers over a standard TCP/IP network.

Applications include control of IEM mixes on stage, extra fader banks at FOH, and local control in breakout rooms.

Avantis Director

Avantis Director is a free Windows and Mac OS application enabling offline editing and online control capabilities.

Avantis 4You

4You is a free personal mixing app for dLive, Avantis, SQ, and CQ series mixers, enabling performers to control their own monitor mix from their Android or iOS devices and freeing the audio engineer to focus on the front-of-house sound.

Avantis MixPad

Avantis MixPad is an engineer’s mixing tool providing wireless mobile control for Allen & Heath Avantis digital mixers. It gives you the freedom to walk the room or stage and control the sound right where it is needed. Avantis MixPad and the Avantis mixer can work together to provide simultaneous control of independent functions, for example one engineer using the mixer to mix front-of-house sound, and another using the iPad to mix monitors on stage. Several iPads can be connected, each providing independent control.

Avantis OneMix

OneMix is a cut down version of the Avantis MixPad app that locks control to a single Aux (monitor) mix. Multiple iPads may be set up by the ‘Admin’ user to give each musician customised personal monitor control via Wi-Fi connection to Avantis without the risk of affecting the other monitors or FOH main mix. Avantis OneMix can be configured to provide as much or as little control as needed.

IP Controllers

Avantis is compatible with our range of networkable, PoE compatible remote controllers which can be programmed via the Avantis mixer or Director software, and configured to control any aspect of the system.

Custom Control

Custom Control is a customisable, cross-platform control app, providing elegant, bespoke control over Avantis, dLive and AHM audio systems.

Features

• XCVI 96kHz FPGA core with ultra-low latency (0.7ms)
• 64 Channel / 96 with dPack
• 42 Bus / 65 with dPack
• Fully configurable mix bus architecture
• 12 RackExtra FX slots with dedicated stereo returns
• AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones
• Comprehensive metering with multi-point peak detection
• 144 fader strips (24 faders, 6 layers) with optional dedicated master section
• 15.6” Full HD capacitive touchscreen(s) with gesture control
• Continuity UI seamlessly connects physical and touchscreen controls for the fastest, most intuitive workflows

Specifications
