Description
16in / 8out Dante Interface
Allen & Heath DT168 16x8 Dante Audio Expander from Allen & Heath, a world-leading manufacturer of professional audio mixing solutions trusted by tours, broadcasters, houses of worship, and installations worldwide.
DT168

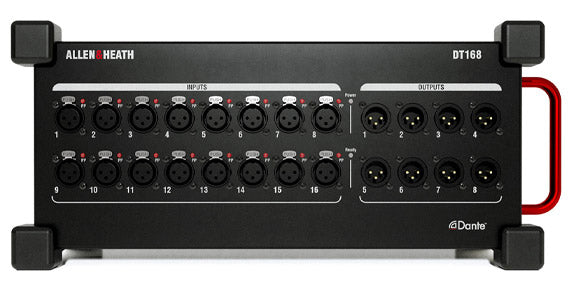

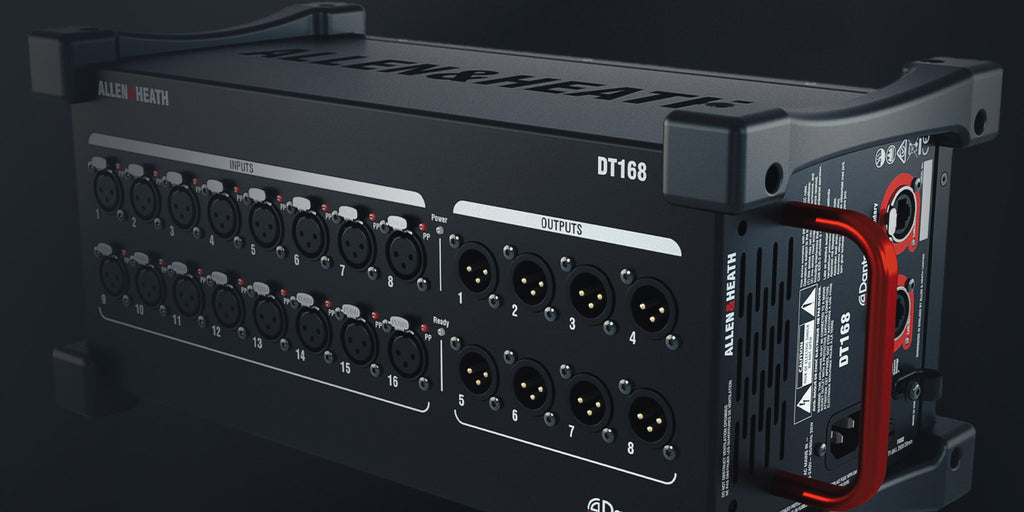

The DT168 provides 16 microphone preamps and 8 line outputs in a convenient stagebox form factor. Ideal for portable applications thanks to its rubber bumpers and handle, it can be deployed on stage or used as a drop-in expander in any Qu, SQ, Avantis, AHM, or dLive Dante network. Up to 32 units can be added to a Dante-equipped AHM, Qu, SQ, Avantis or dLive system.
Sound Design
The quality of your Dante audio is only as good as the quality of your Dante I/O. DT168 offers the acclaimed Allen & Heath preamps, partnered with 96kHz converters, for best-in-class sound quality over Dante, plus Primary and Secondary ports for daisy-chain or redundancy through secure EtherCon connectors.
Built To Last
The Expander’s rugged design, with hard-wearing rubber bumpers, allows it to be placed directly on the stage floor during performances. Weighing in at just 4.8kg and featuring a sturdy carry handle, the DT168 offers the convenience and portability needed in rental, education, houses of worship and many other environments. An optional 4U rack mounting kit is available which allows installation in 19-inch racks.
Software
DT Preamp Control is a Windows / macOS application that allows remote control of multiple DT168 or DT164-W Dante expanders. Control of analogue gain, phantom power and Pad is provided per socket. The socket names are also displayed and can be edited in Dante Controller. DT Preamp Control extends the applications of the DT168 and DT164-W expanders, not limited to Allen & Heath mixing systems or matrix processors. These include large distributed audio networks in venues, stadia and educational campuses, where high-channel count Dante I/O is required in multiple locations.
DT168 Compatibility
Up to 32 DT168 expanders can be added to an AHM, SQ, Avantis or dLive system when equipped with an SQ Dante or dLive 96kHz Dante card, or directly to a Dante-equipped Qu mixer. The DT168 can also be used on Dante-equipped 3rd-party mixers in conjunction with the DT Preamp Control software.
Specifications
| I/O Configuration | 16 In + 8 Out |
| Connection | Dante |
| Dimensions (W x D x H) | 3U Rackmount |
Genuine Allen & Heath product. Authorized dealer. Full manufacturer warranty.
