Description

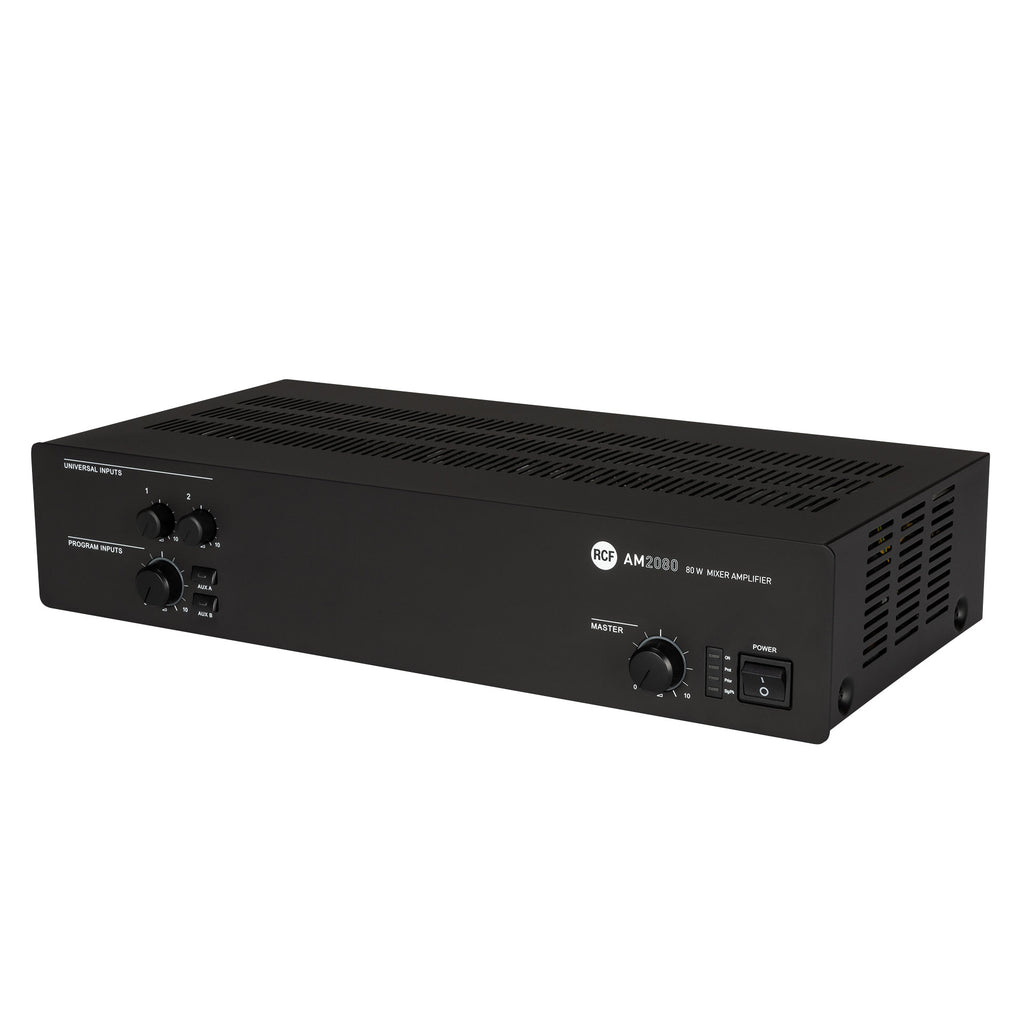

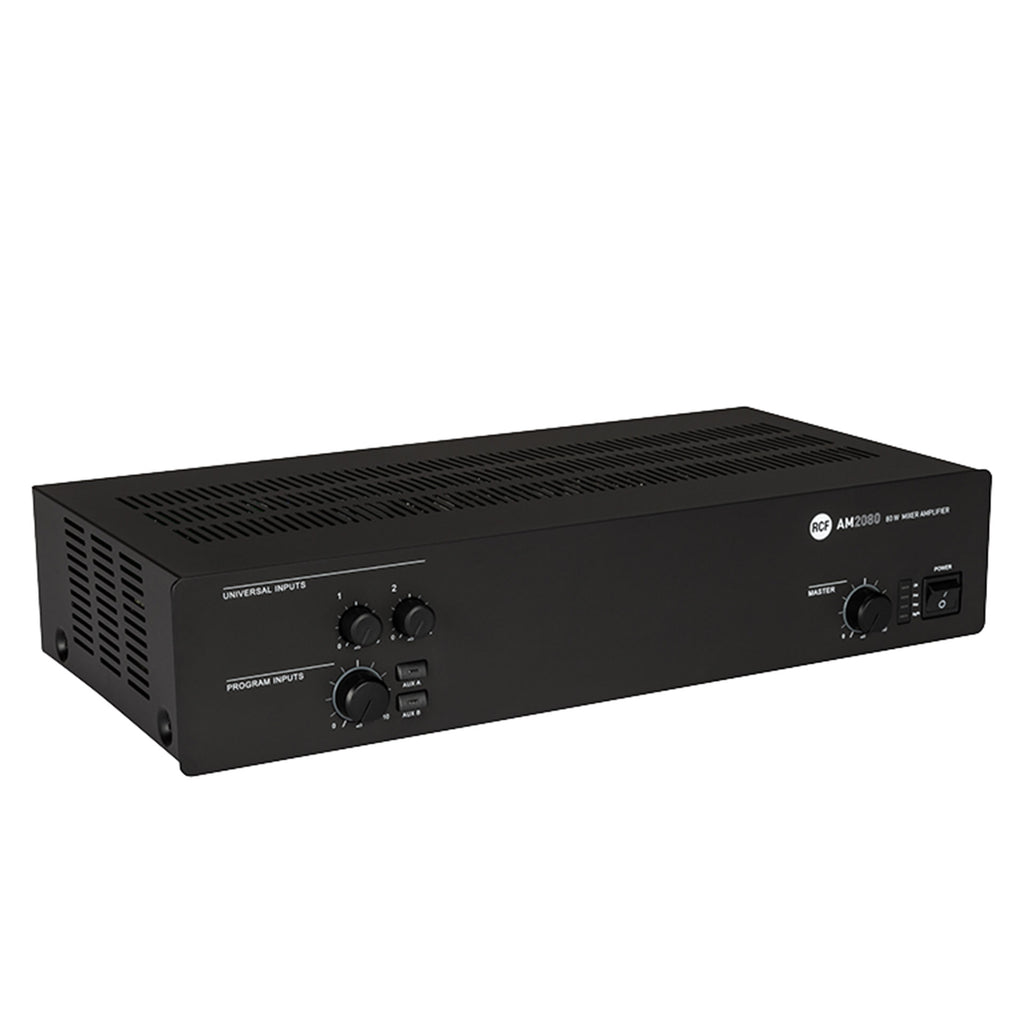

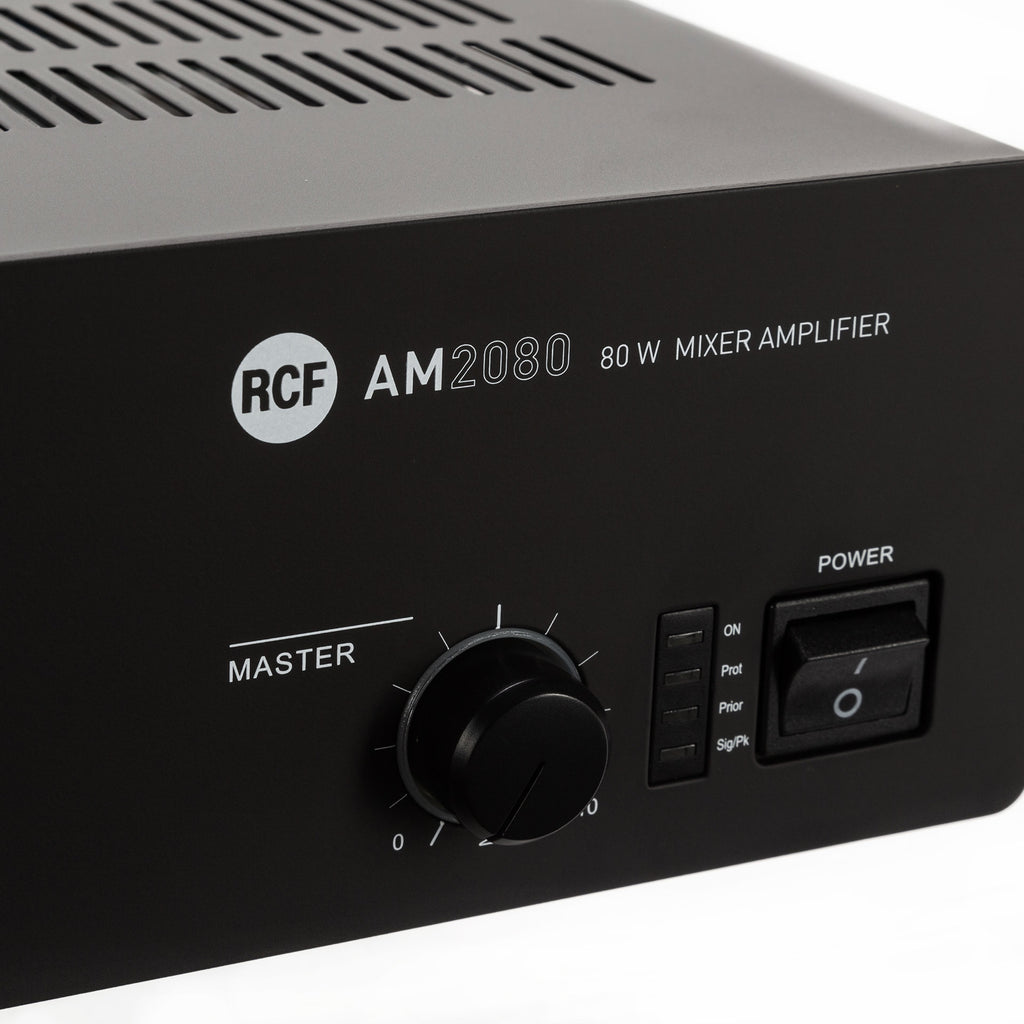

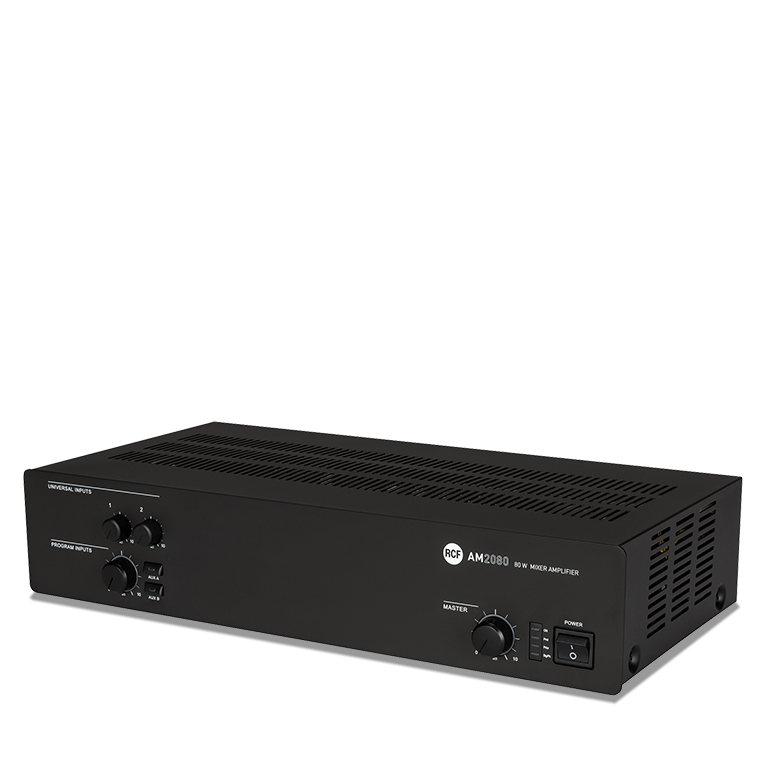

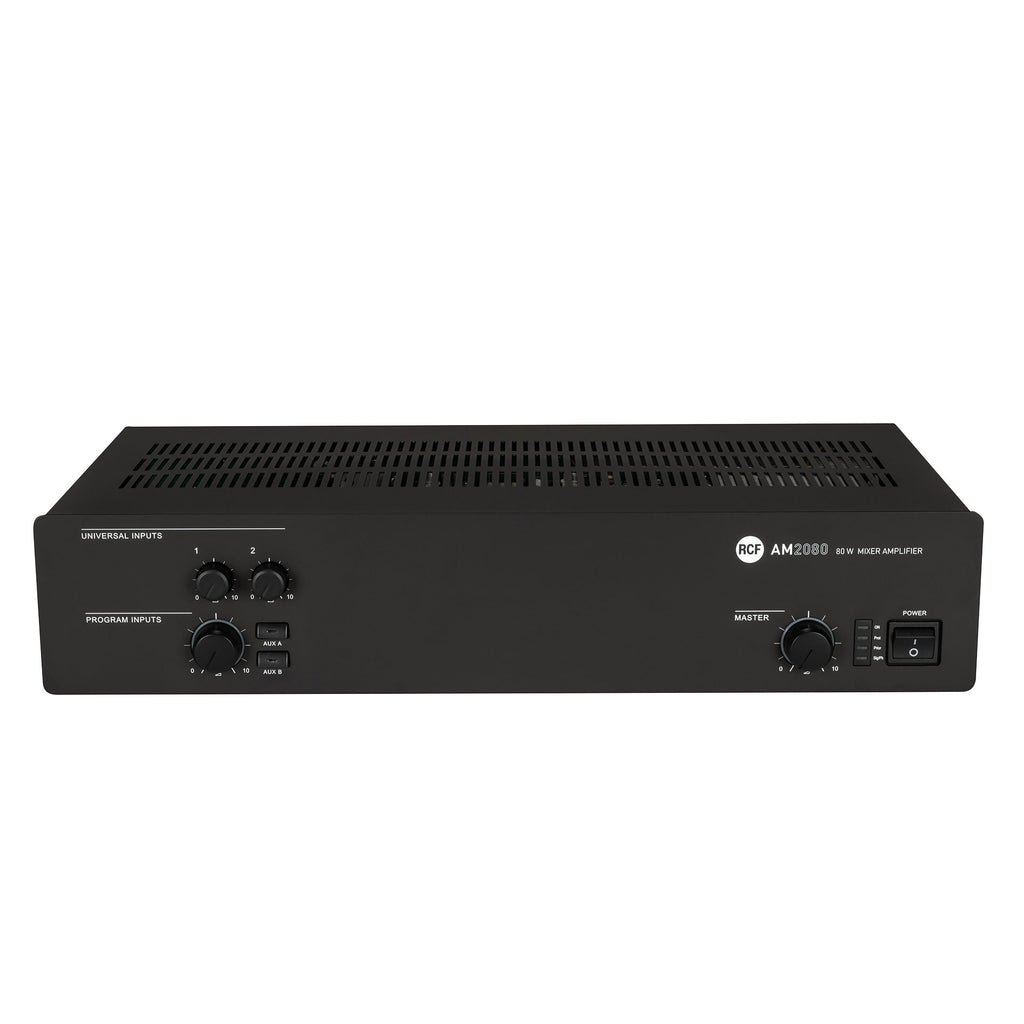

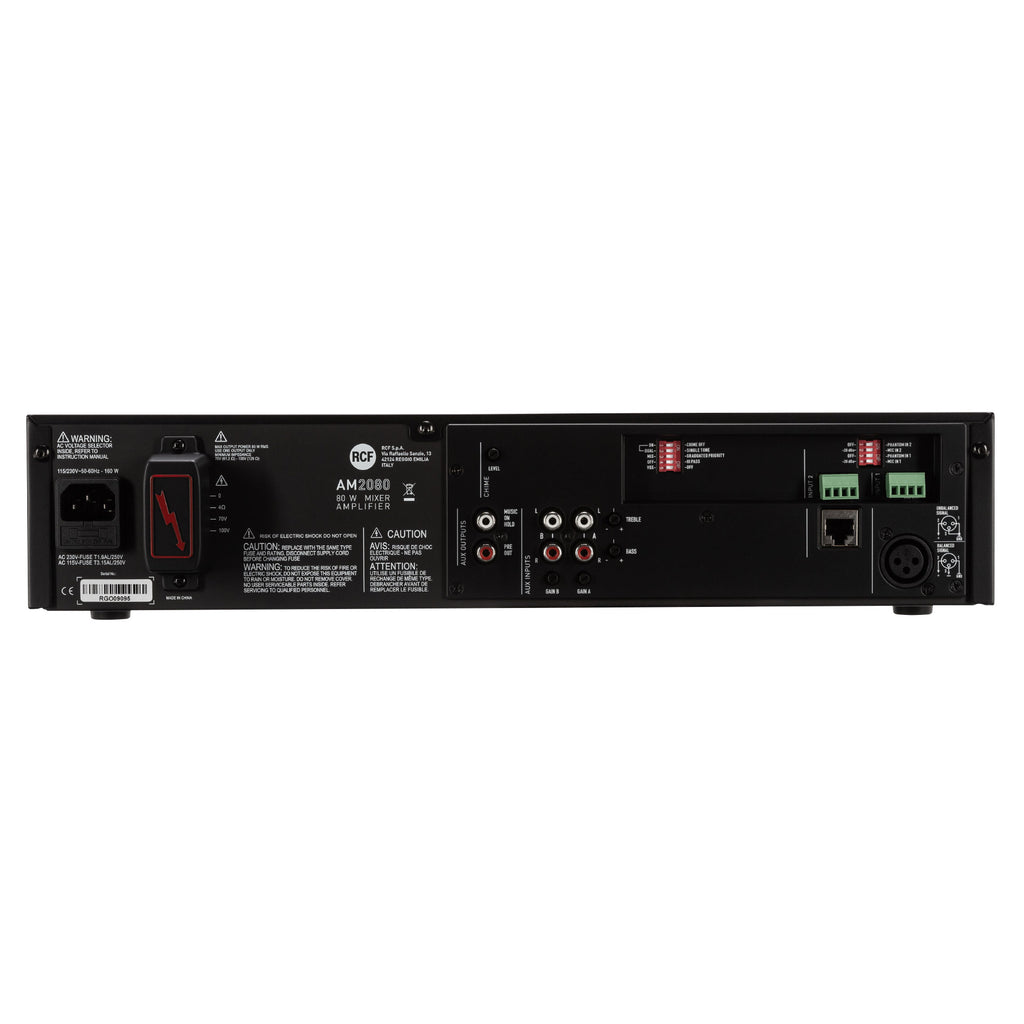

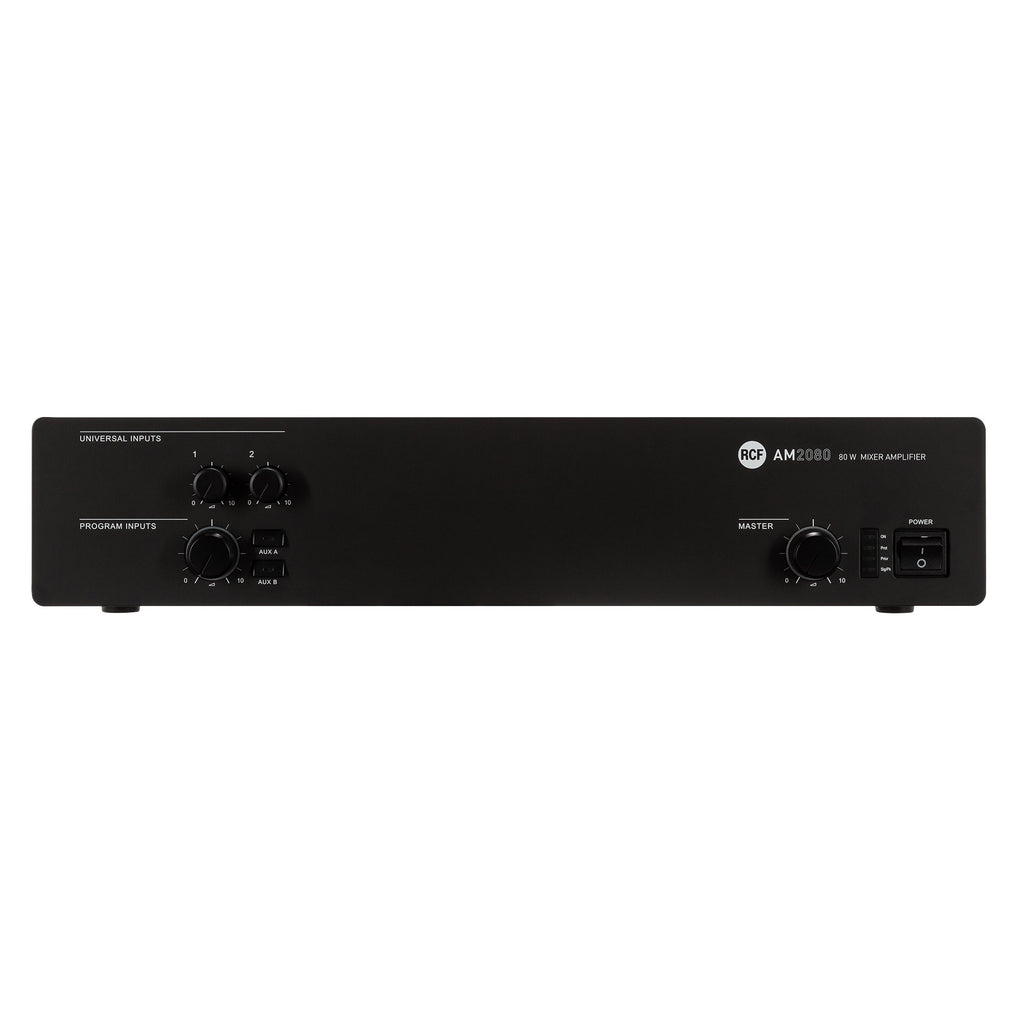

AM 2080 is a mixer-amplifiers with 2 mic-line audio inputs on removable connectors (the first input also has an XLR socket) and 2 aux inputs for music sources (e.g. CD players, tuners, etc.). The nominal power: is a 80 W amplifier. The amplifier output is available either for low impedance loudspeakers or 100 - 70 V constant voltage line.
Features
- Full digital technology Mixer Amplifier 80 W RMS
- 100 V - 70 V and 4 Ohm outputs
- 2 universal inputs with phantom facility on screw terminal connections
- XLR connector on input 1
- RJ45 connectors on input 2 for connection to BM3001 microphone
- Configurable Priority settings, VOX facility on input 1
- Selectable aux inputs with two keys on the front panel for music source
- Aux inputs with volume and tone controls
- Music On Hold and PRE outputs
- Digital Chime and Siren built-in generator
Specifications
| Amplifier specifications | |
| Output Power | 1 x 80 W @ 4 ohm |
| Frequency Response (-3dB) | 50 Hz - 16 Hz |
| Input section | |
| Total number of inputs | 5 |
| Balanced | 5 |
| Unbalanced | 1 |
| Mono | 4 |
| Stereo | 2 |
| Line inputs | 2 |
| Line connectors | RCA |
| Mic+Line inputs | 2 |
| Mic+Line connectors | Euroblock, XLR |
| Mic+Line Phantom | 30 V DC |
| VOX | Yes |
| Paging inputs | 1 |
| Paging connectors | RJ45 |
| Paging command | Contact |
| Output section | |
| Signal output number | 2 |
| Signal output connectors | RCA |
| Power output connectors | Euroblock |
| Processing | |
| Tone controls | Yes |
| High-pass filter | 150 Hz |
| Configuration and control | |
| Configuration | DIP switch, Front panel |
| Priority | Yes |
| Music on hold | Yes |
| Chime tone | Yes |
| Protections | |
| Cooling | Convection |
| Short circuit | Yes |
| Thermal | Yes |
| DC | Yes |
| Fuses | Yes |
| Power requirement | |
| Operating voltage | 220-240/115 V~ 50/60Hz |
| Voltage selection | Internal |
| Power consumption (MAX) | 160 W |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Metal |
| Color | Black |
| Rack mounting | 19", 2U |
| Size / Weight | |
| Height | 88 mm / 3.46 inches |
| Width | 442 mm / 17.4 inches |
| Depth | 230 mm / 9.06 inches |
| Weight | 3.77 kg / 8.31 lbs |
| Shipping information | |
| Package Height | 200 mm / 7.87 inches |
| Package Width | 330 mm / 12.99 inches |
| Package Depth | 500 mm / 19.69 inches |
| Package Weight | 5.38 kg / 11.86 lbs |
