Description

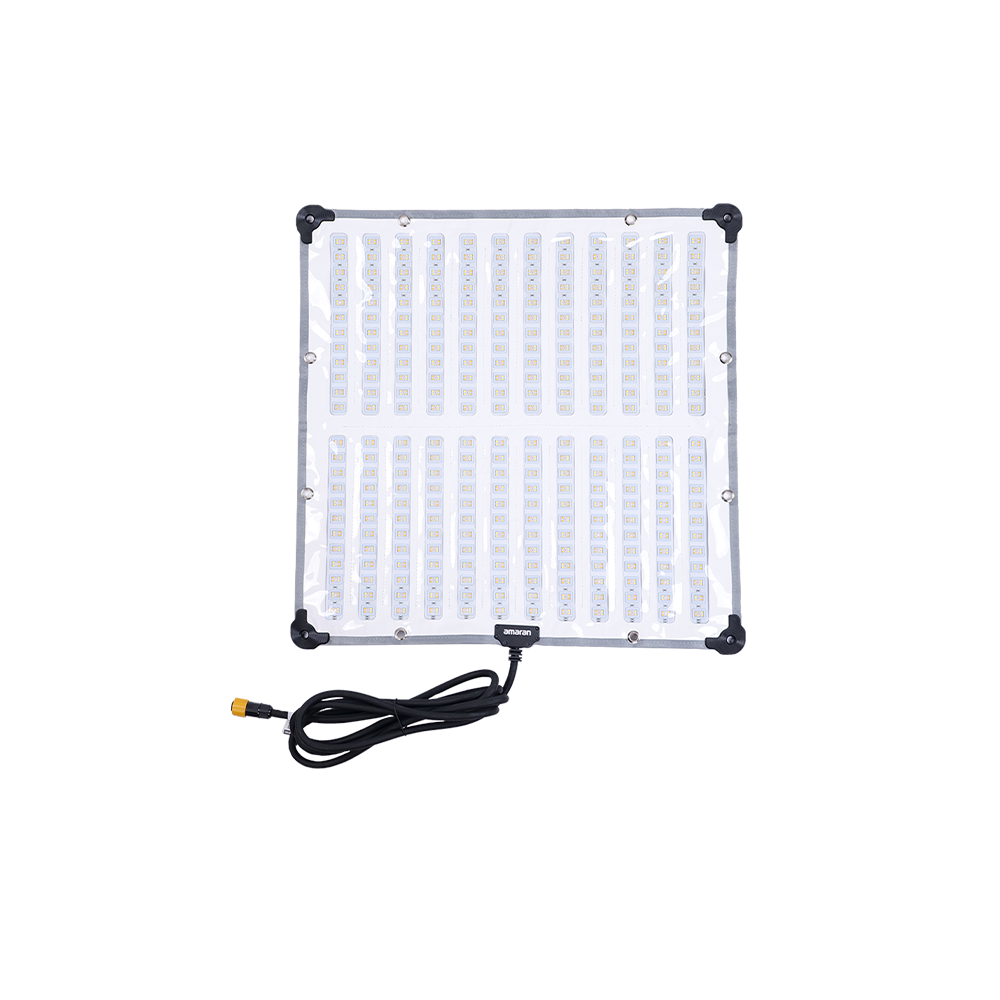

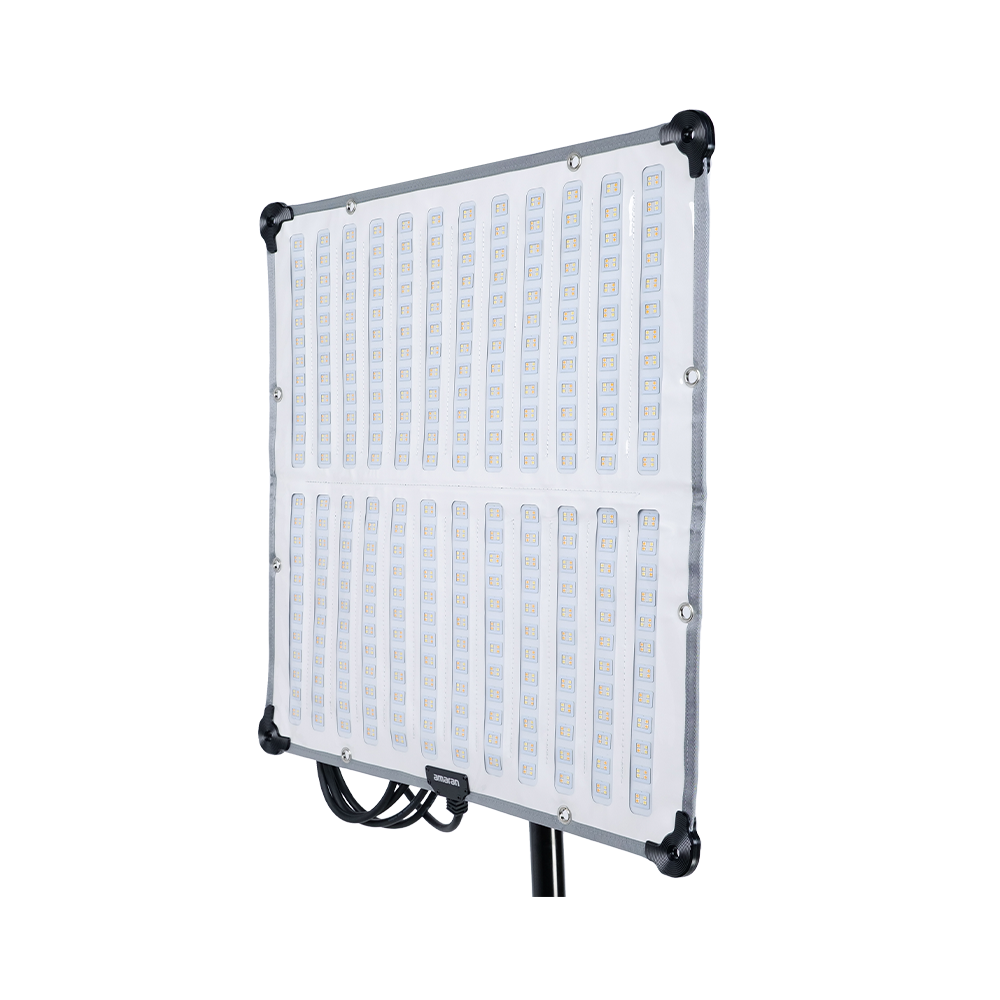

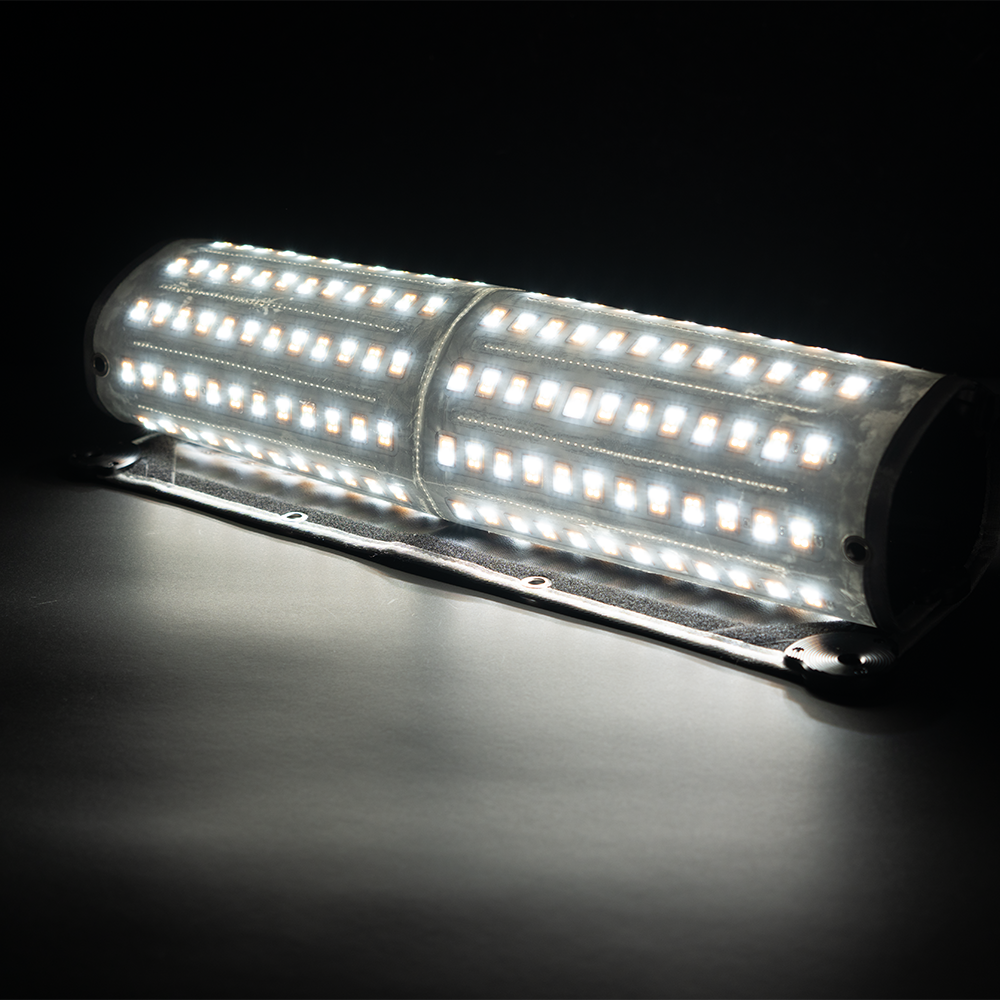

The amaran F22x is a 2’x2’ flexible LED mat designed for a variety of users - from filmmakers to videographers, content creators, and even photographers. As an ultra-light, ultra-thin fabric light, the F22x is compatible with a wide variety of use cases and excels in on-the-go travel and tight spaces. And as a large, soft light that can fold compactly, it is the perfect close-up key light.
Bi-color flexible panel. The F22x’s high-output bi-color chipset gives you unmatched strength, and can be tuned and controlled over a wide, expanded CCT range from 2,500K to 7,500K to match a variety of white light environments. The F22x also comes equipped with 9 different Lighting FX.

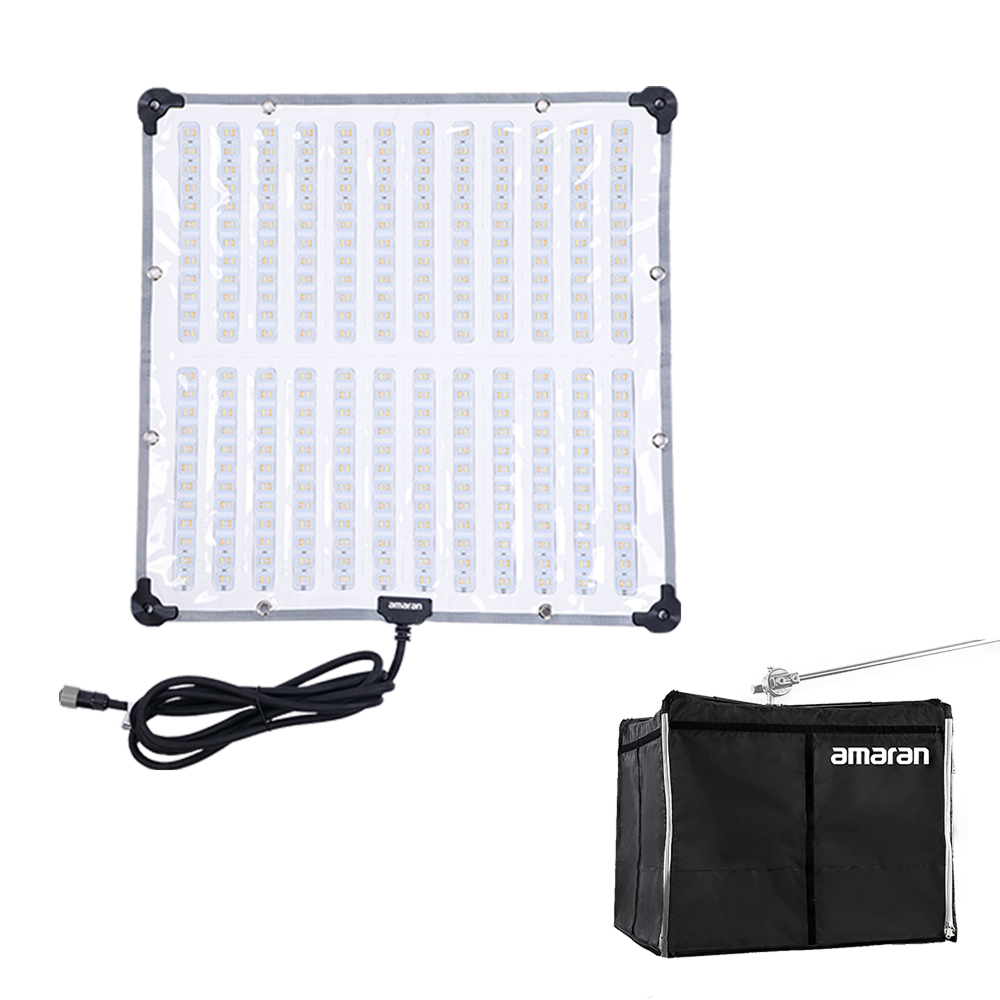

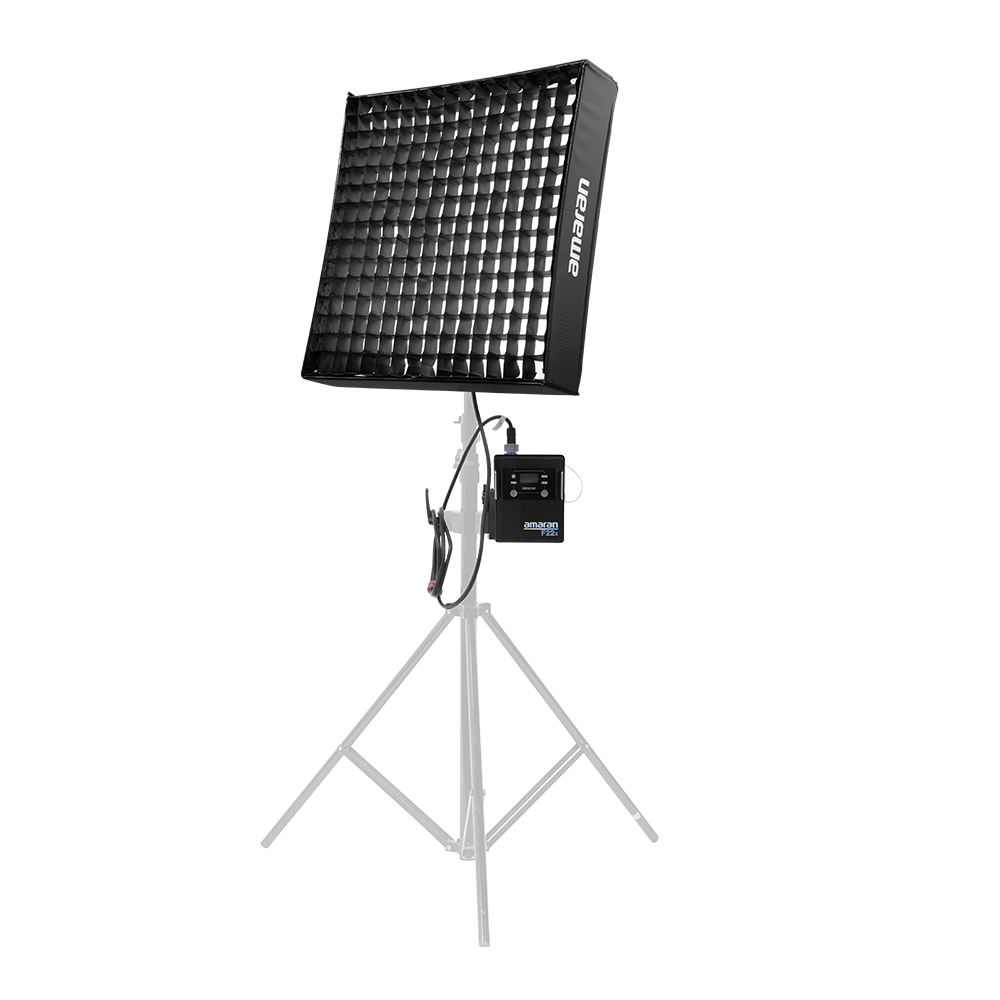

Ultimate flexibility. Install the included foldable softbox, one of two strengths of diffusion, or the fabric light control grid to instantly turn this flexible mat into an ultra-thin soft light that will make any subject shine.
Main Features
- 200W Output 2’x2’ Bi-Color Flexible LED Mat
- 240W Max Power Draw
- 6,960+ lux @ 1 meter (5600K)
- Tunable CCT from 2,500K to 7,500K
- CRI: 95+, TLCI: 98+, CQS: 96+, SSI (Tungsten): 81+, SSI (D56): 72+
- Stepless Dimming from 0 to 100%
- Ultra-Lightweight LED Mat: 0.80kg / 1.76lbs
- Sidus Link App Control
- DMX Control via USB-C to 5-Pin DMX512 In & Out Adapter (Sold Separately)
- 9 Built-in Lighting FX: Paparazzi, Lightning, TV, Candle, Fire, Strobe, Explosion, Faulty Bulb, Pulsing
- Frequency Selection: Tune Out Flicker, Up to +2000Hz Adjustment
- Multiple DC Power Solutions: 14.4V/26/28.8V/48V (3-Pin XLR)

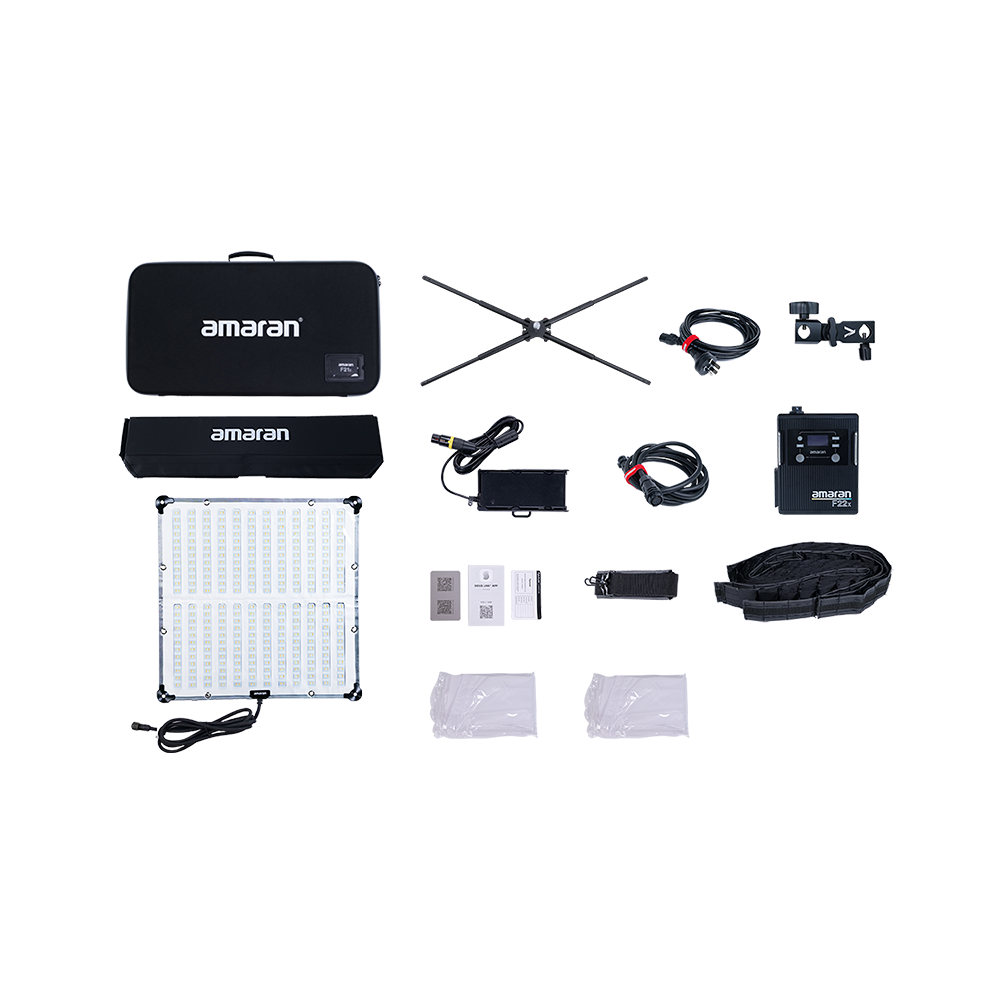

What’s in the Box
- 1x amaran F22x Bi-Color 2x2 LED Flexible Light Mat

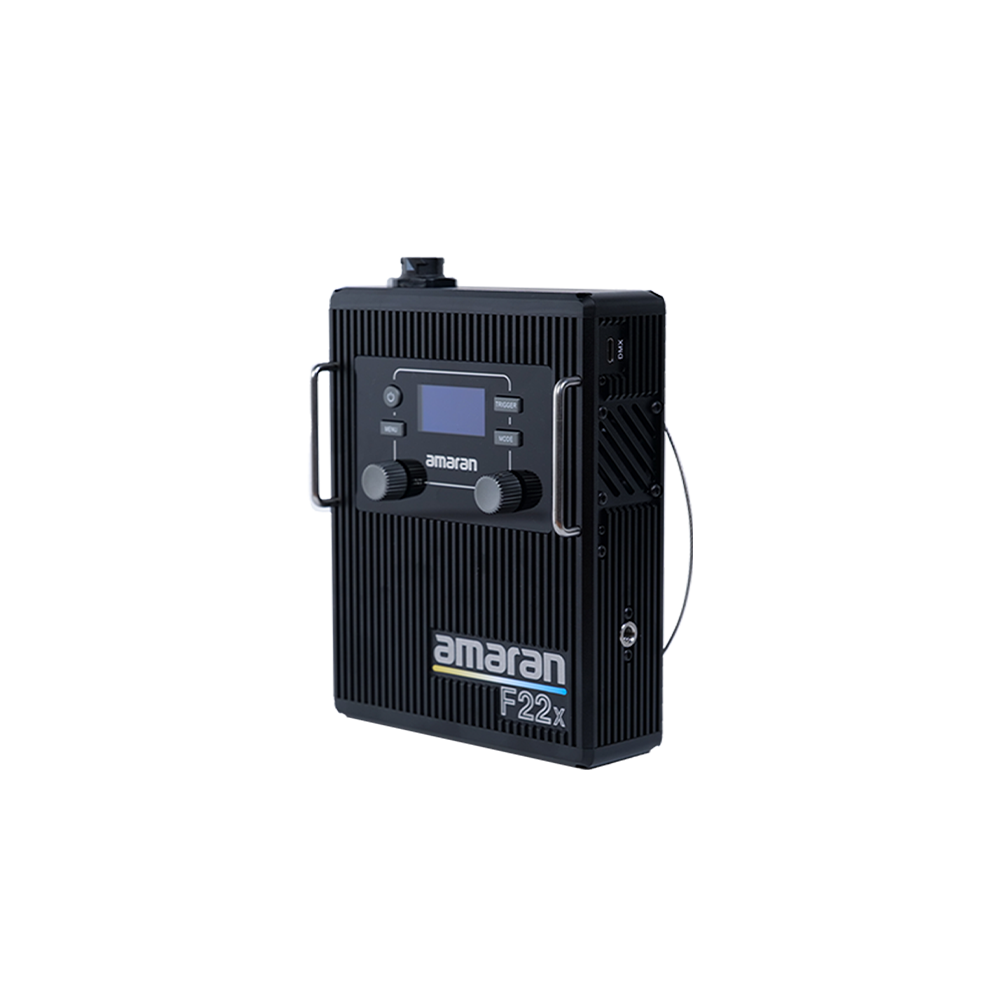

- 1x amaran F22x Control Box
- 1x amaran F22x Head Cable Extension (3m)
- 1x amaran F22 Support Bracket
- 1x amaran F-Series Light Right Angle Baby Pin Adapter
- 1x amaran F-Series Light Straight Baby Pin Adapter
- 1x Tilting Stand Mount
- 1x amaran F22 Soft Box Frame
- 1x amaran F22 Diffusion Cloth 1 (1/2 Grid Cloth)
- 1x amaran F22 Diffusion Cloth 2 (2.5 Stop)
- 1x amaran F22 Light Control Grid
- 1x AC Power Supply
- 1x AC Power Cable
- 1x amaran F-Series Light Carrying Case
Specifications
| CCT | 2500K - 7500K |
| CRI | ≥95 |
| TLCI | ≥98 |
| CQS | ≥96 |
| TM-30 RF (Average) | 94 |
| TM-30 RG (Average) | 104 |
| SSI (Tungsten) | ≥81 |
| SSI (D56) | ≥72 |
| Beam Angle | 180° |
| Max Power Output | ≤200W |
| Max Power Consumption | ≤240W |
| Operating Current | 5A |
| AC Power Supply | 48V DC |
| D-Tap Battery | 12-28.8V DC |
| Battery Compatibility | 16.8V, 26V, 28.8V full power output |
| DC Input | (3m) DC Self-locking |
| AC Power Cable | Self-locking IEC C13 AC Power Cable (4m) |
| Operating Temperature | -10°C - 40°C / -4°F - 113°F |
| Control Methods | On-board, Sidus Link App, DMX |
| Connectivity | Bluetooth 5.0 (Sidus Mesh) |
| Bluetooth Operating Range | ≥80m / 262.5ft |
| Firmware Upgradeable | Sidus Link OTA |
| Display Type | OLED |
| Fixture Cooling Method | Natural Dissipation |
| Control Box Cooling Method | Natural Dissipation |
| Umbrella Holder | Yes |
| Soft Box | Yes |
| Mounting | 1/4-20in * 3, Tilting Support Column |
| Estimated LED Lifetime (L70) | 50,000 Hours |
| Estimated Color Shift Over Lifetime (CCT) | 2% over 6,000 Hours |
| Certifications | CE, FCC, cTUVus, KC, NCC, ROHS |
