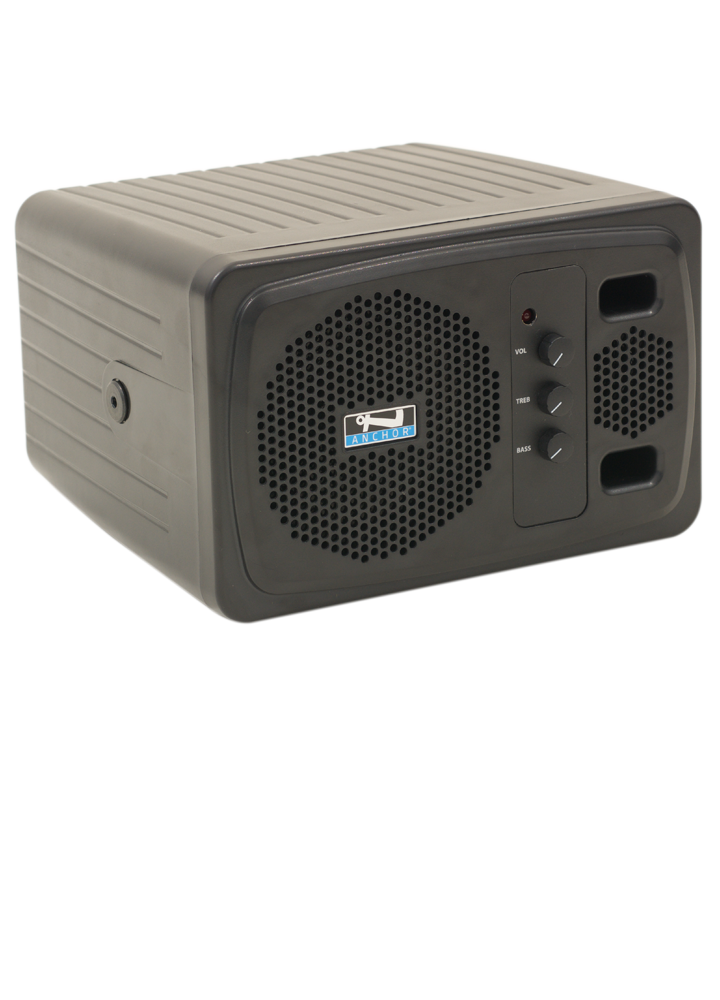

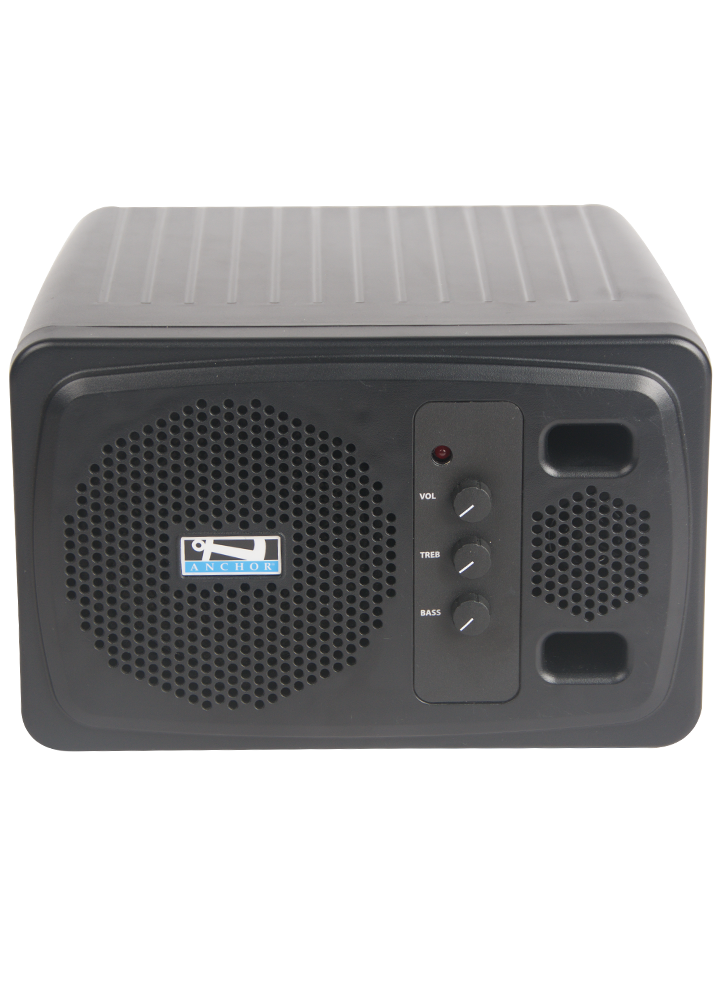

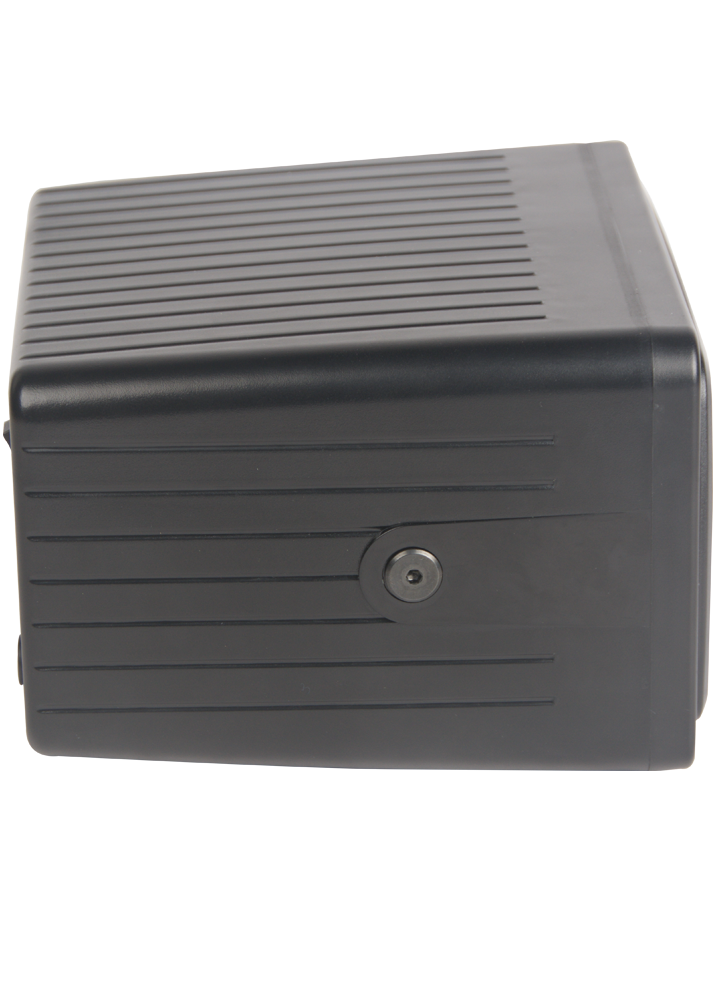

AN-1000X+ Powered Speaker Monitor

The AN-1000X+ is a compact AC powered speaker monitor designed for near-field monitoring, stage wedge use, center fill, and PA for small gatherings. Its compact size and wide frequency response make it a flexible fit for classrooms, boardrooms, and production work.

• 107 dB
• 4.5" woofer, 10 mm dome tweeter
• 250+ people
• 90' x 175' area
• Up to 2 wireless mics
• Up to 1 wired mic
• 3" tall

Included with All AN-1000X Systems

• AC power
• One universal wired mic input
• Standard Line In and Line Out ports
• Sturdy, lightweight casing can be mounted on a wall with optional bracket mount or on an optional speaker stand
• Built-in speaker stand socket
• Anchor Audio 6-4-2 Warranty

Dimensions and Weight

• Weight: 2.6 lbs
• Dimensions (Height x Width x Depth): 9" x 8" x 3"
• Coverage area: approximately 90' x 175'
• Crowd size: approximately 250

Technical Specifications

• Speaker components: one woofer, one 10 mm dome tweeter
• Rated Power Output: 50 watts
• Max SPL @ Rated Power: 107 dB @ 1 meter
• Frequency Response: 20 Hz ~ 20 kHz ± 3 dB
• AC Power Requirements: 100~240 VAC, 50/60 Hz, 2A
• Charger/Power Inlet: PC-2
• AnchorLink Wireless Frequency: 1920~1930 MHz USA/CAN, 1880~1900 MHz Europe
• AnchorLink Wireless Range: 300'+ line of sight

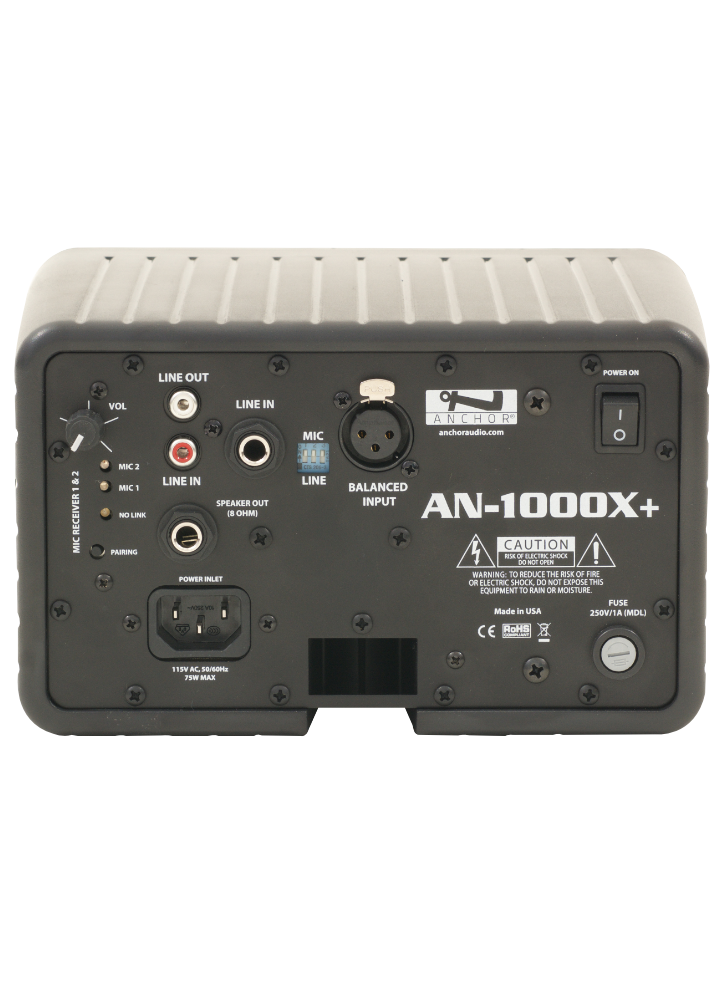

• Microphone Inputs: Lo-Z balanced XLR and 1/4"
• Line Inputs: one unbalanced 1/4", one 3.5 mm stereo
• Line Output (post fader): isolated, 600Ω, one 1/4" phone
• Speaker Out: 4-pole Neutrik Speakon jack

Anchor Audio 6-4-2 Warranty

• All speaker systems for 6 years
• Lithium-ion batteries for 4 years
• Microphones and peripheral products for 2 years

Product Details

AN-1000X Powered Speaker Monitor, and one wireless handheld microphone

Models Included: AN-1000XU2+, WH-LINK
