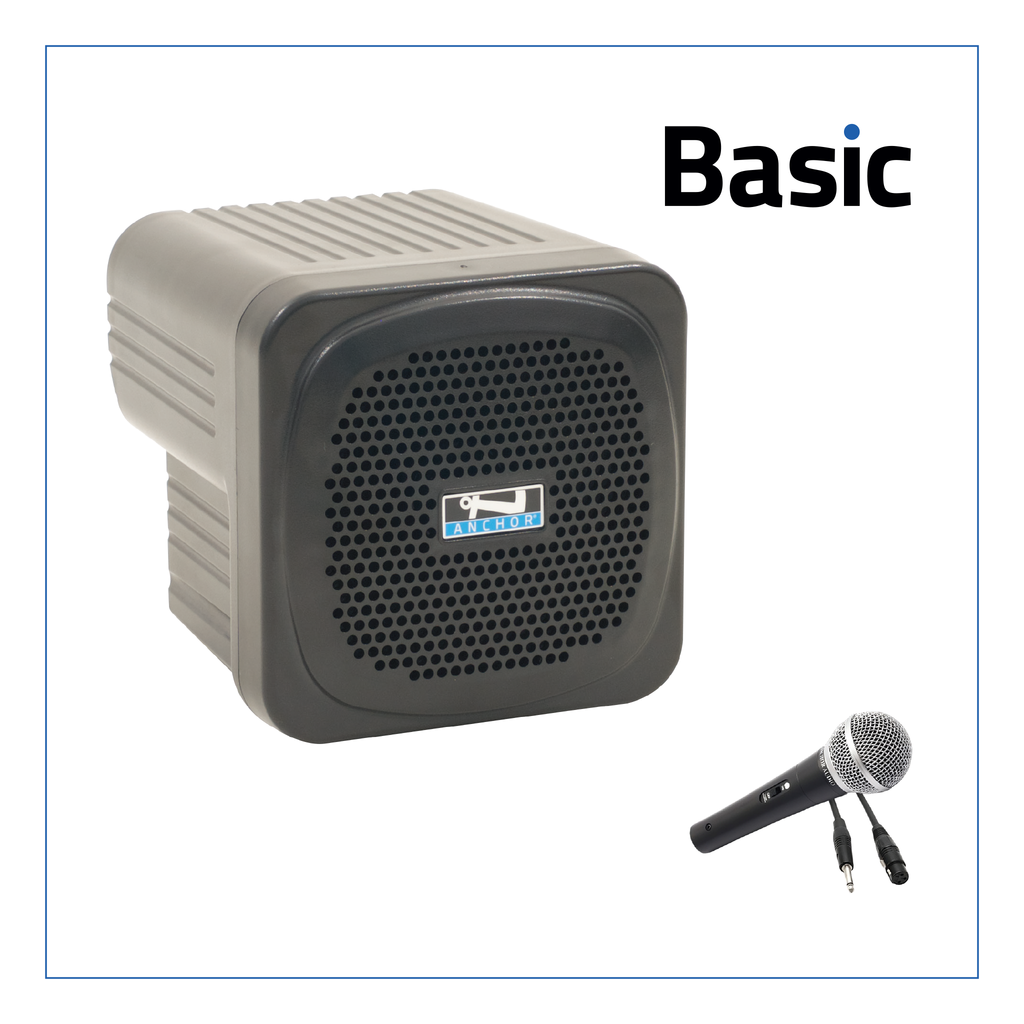

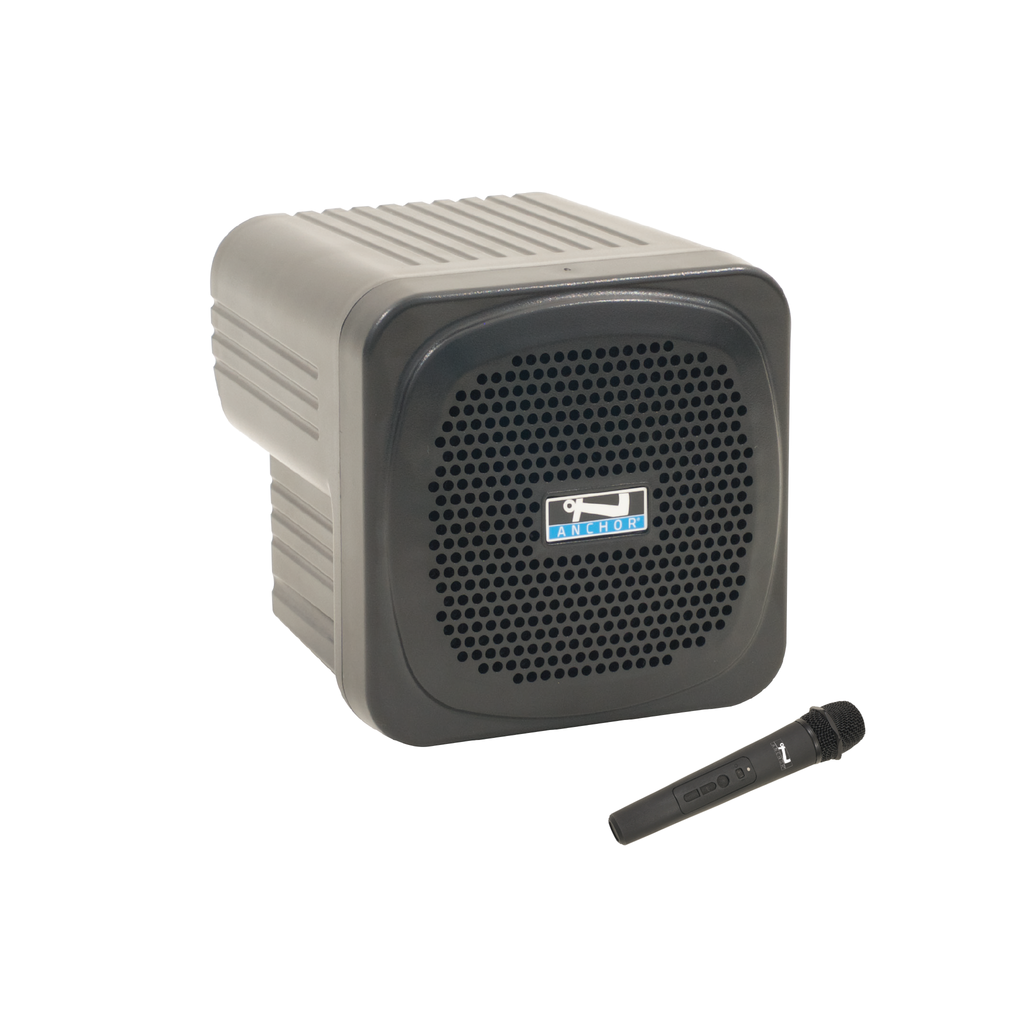

MINI Battery Powered Portable PA System

MINI is your wearable voice amplifier, lightweight, loud, and always ready.

• 100 dB
• 4.5" neodymium woofer
• 11+ hours playtime
• 100+ people
• 20' x 30' area
• Class 1 Bluetooth
• Up to 2 wireless mics
• Up to 1 wired mic
• 7" tall
• 2.6 pounds

Included with All MINI Systems

• AC power / battery power
• Optional rechargeable battery kit with 11+ hours of playtime
• Class 1 Bluetooth so you can stream directly to your speaker
• One universal wired mic input
• Standard Line In and Line Out ports
• Anchor Audio 6-4-2 Warranty

Dimensions and Weight

• Weight: 2.6 lbs
• Dimensions (Height x Width x Depth): 7" x 6" x 3.5"
• Coverage area: approximately 20' x 30'
• Crowd size: approximately 100

Technical Specifications

• Speaker components: one 4.5" neodymium woofer
• Rated Power Output: 30 watts
• Max SPL @ Rated Power: 100 dB @ 1 meter
• Frequency Response: 100 Hz ~ 15 kHz ± 3 dB
• AC Power Requirements: 100~240 VAC, 50/60 Hz, 2A
• Charger/Power Inlet: PC-2
• Battery: 10 AA alkaline, or 10 rechargeable Lithium Iron Phosphate (LiFePO4)
• AnchorLink Wireless Frequency: 1920~1930 MHz USA/CAN, 1880~1900 MHz Europe
• AnchorLink Wireless Range: 300'+ line of sight
• Microphone Inputs: Lo-Z balanced XLR and 1/4", 34 V DC condenser mic (phantom) power, Hi-Z (10 kΩ) unbalanced 1/4" phone
• Line Input: one 3.5 mm line level
• Line Output: one 3.5 mm line level

Anchor Audio 6-4-2 Warranty

• All speaker systems for 6 years
• Lithium-ion batteries for 4 years
• Microphones and peripheral products for 2 years

Product Details

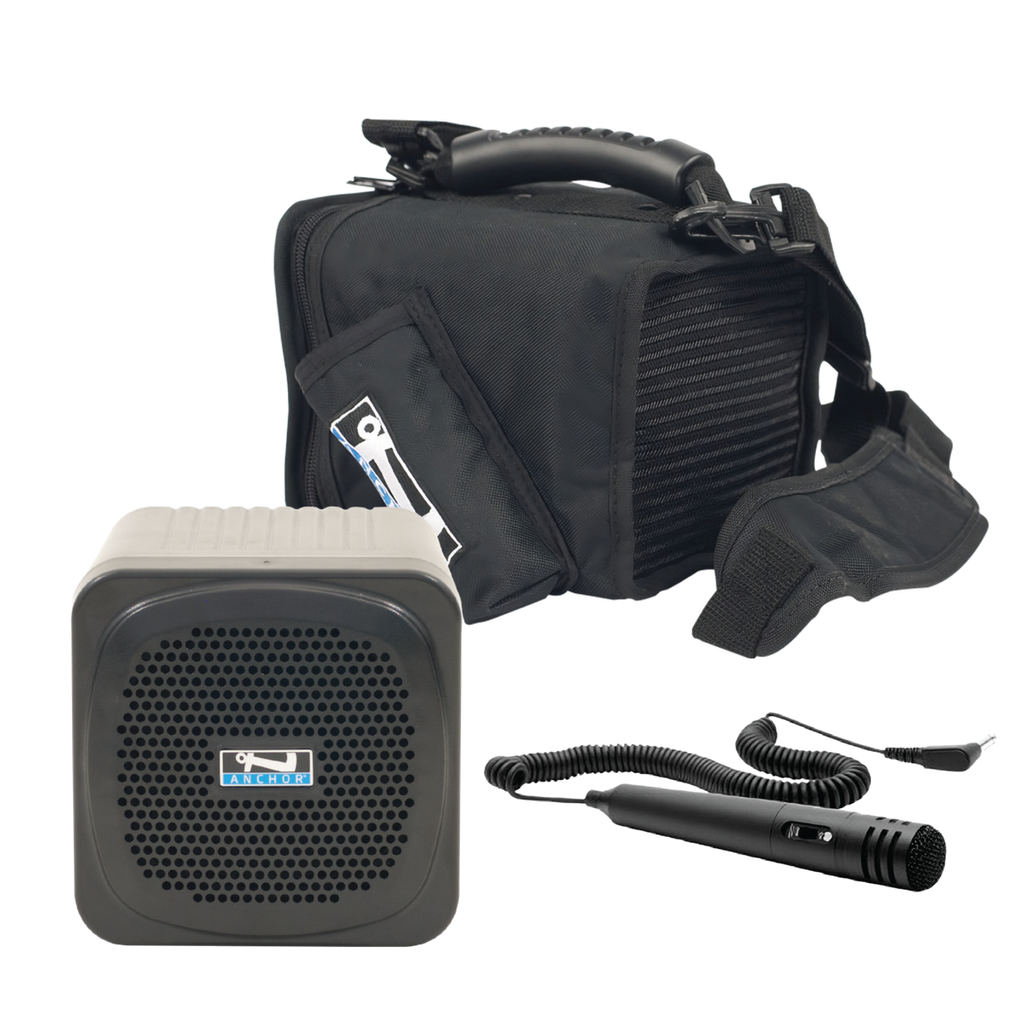

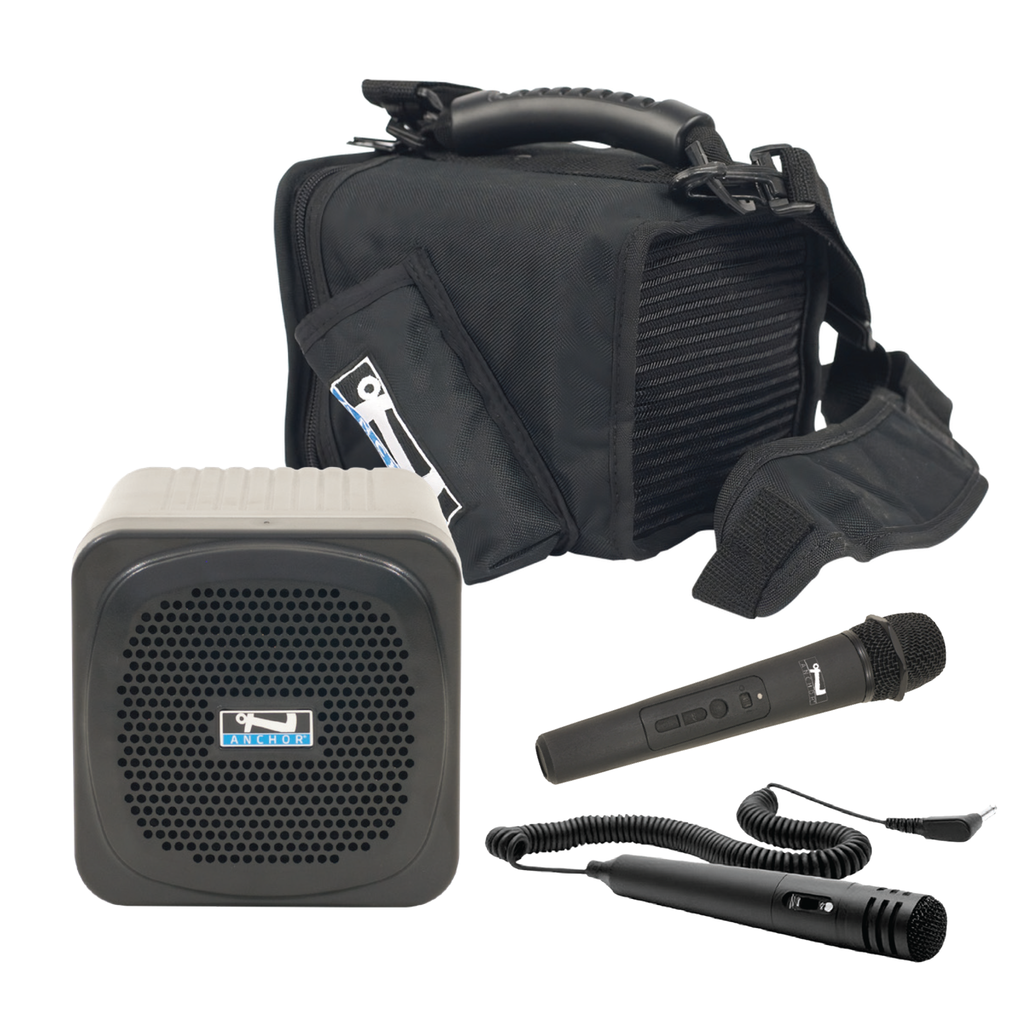

MINI Portable PA, battery recharge kit, soft carry case, wired handheld microphone

Models Included: AN-MINIBT, RC-30, SOFT-MINI, MIC-50
