Description

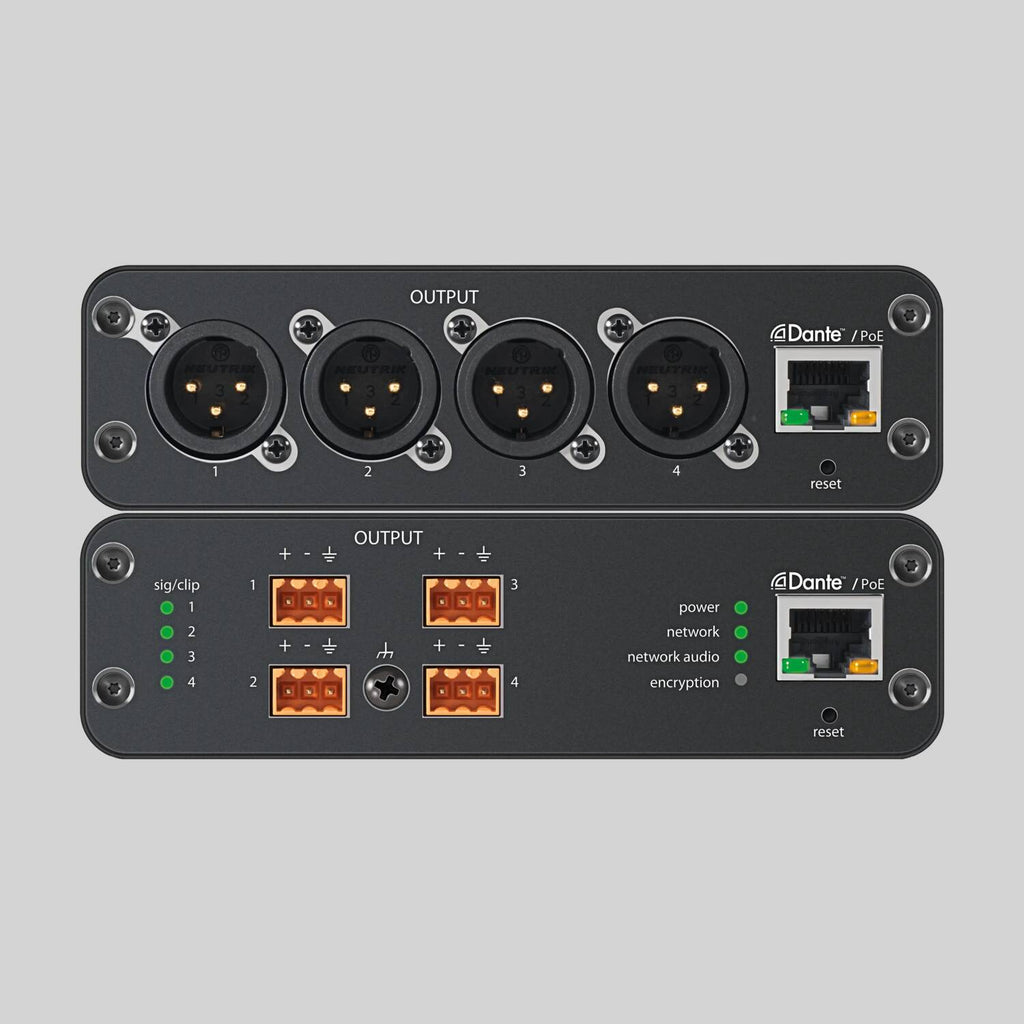

Converts Dante™ digital audio signal to four discrete line / mic analog signals.
View the ANI4OUT Software GUI Demo
- Single Ethernet port carries Dante audio, power (PoE, class 0)
- LEDs indicate device status and audio signal
- Control strings for third-party preset controllers including Crestron® and AMX®
- 4 Band C/S PEQ on every channel
- Provides channel summing to combine Dante™ signals from the network and send them over a single analog output
-
Browser-based software control for all device parameters, per output channel:
- Mute control
- Digital gain
- Polarity control
- 1/3 Rack unit wide
- Chassis ground screw (BLOCK version only) provides common chassis ground for multiple inputs
- Available in block connector and standard XLR variations
Specifications
- Analog Inputs: n/a
- Analog Outputs: 4 Mic/Line/Aux with PEQ
- Dante Inputs: 4
- Dante Outputs: n/a
- USB Audio: no
- Acoustic Echo Canellation: no
- Noise Reduction: no
- Automatic Mixing: No (Summing available)
- Matrix Mixing: no
- Stereo Mono: Mono
Dimensions and Weight
- Width: 5.512 in (140.0 mm)
- Height: 1.575 in (40.0 mm)
- Depth: 5.039 in (128.0 mm)
- Weight: 1.462 lb (663 g)
