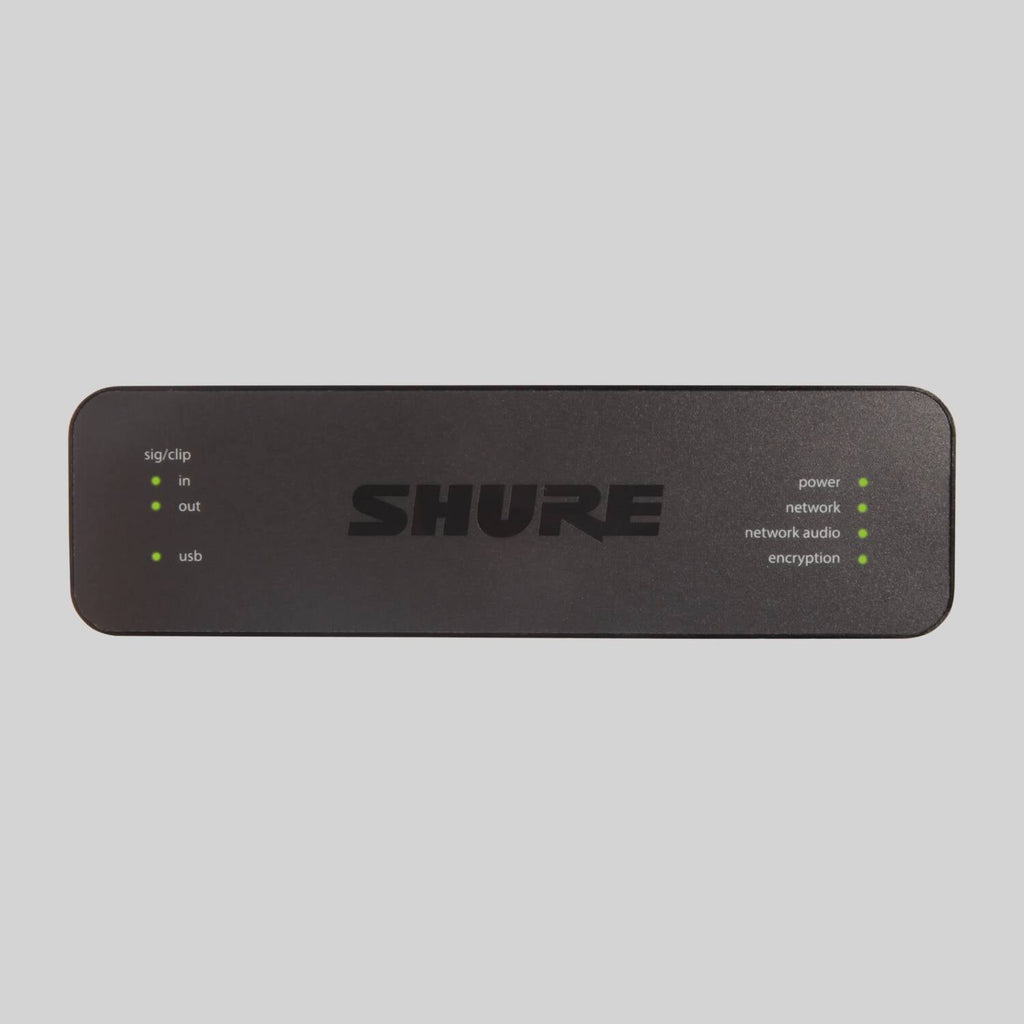

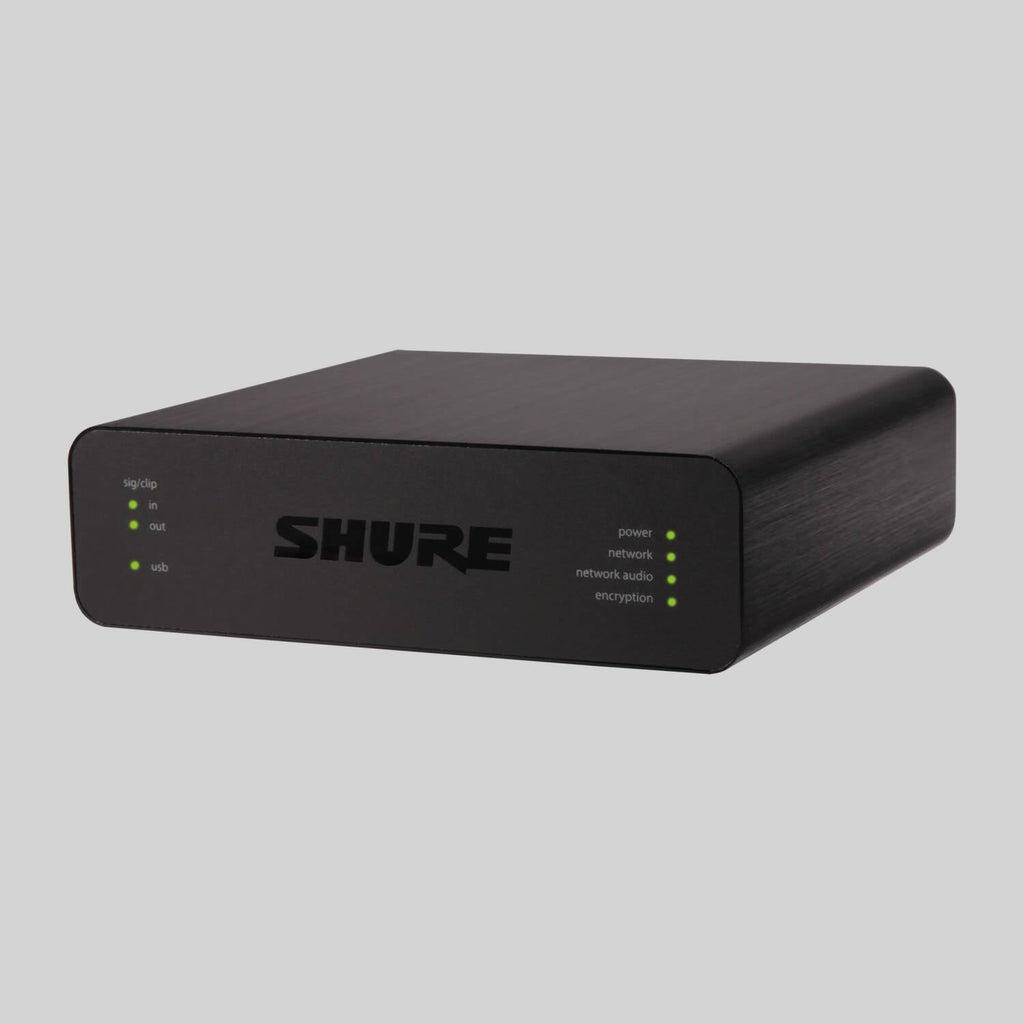

The ANIUSB-MATRIX USB Audio Network Interface complements the existing ANI4IN, ANI4OUT, and ANI22 products. It offers the ideal performance, connectivity, and affordability for audio/video conferencing installations in small and medium-size meeting rooms when a premium microphone solution is desired, and acoustic echo cancellation of an A / V conferencing codec will be used.

The ANIUSB-MATRIX connects 4 Microflex® Advance™ or Microflex® Wireless microphone channels via Dante (4 in / 2 out), and provides analog connectivity (1 block in / 1 block out) to a room audio / video conferencing system or a PC-based A / V conferencing application via USB (1 in / out).

An internal matrix mixer offers flexible routing, allowing users to route any input to any output. A 4-band parametric EQ filter is also available on the analog and USB outputs.

The ANIUSB-MATRIX supports standards-based security protocols to manage access and protect data, including 802.1x, secure boot/storage, and AES encryption for control and audio data.

View the ANIUSB-MATRIX Software GUI Demo

• Connects 4 Dante audio inputs and 1 analog input to an A / V conferencing system or a PC-based videoconferencing application
• Flexible signal routing and connectivity: analog audio (1 block in / 1 block out) to room A / V conferencing system; USB (1 in / out) to connect to laptop or room PC
• Power-over-Ethernet (PoE) eliminates the need for an outboard power supply
• Compact form factor is easy to mount without equipment rack

Specifications

• Analog Inputs: 1 Line/Aux
• Analog Outputs: 1 Mic/Line/Aux
• Dante Inputs: 4
• Dante Outputs: 2
• USB Audio: 1 In, 1 Out with PEQ
• Acoustic Echo Canellation: no
• Noise Reduction: no
• Automatic Mixing: no
• Matrix Mixing: yes
• Stereo Mono: Mono

Dimensions and Weight

• Width: 5.512 in (140.0 mm)
• Height: 1.575 in (40.0 mm)
• Depth: 5.039 in (128.0 mm)
• Weight: 1.473 lb (668 g)
