Your choice of up to 16 channels of Shure Axient Digital or 24 channels of Shure ULX-D wireless audio in a single rack space**. Sold separately, ANX4 channel licenses are purchased through the same authorized suppliers ANX4 hardware units are sold (or at Shure.com/anx4) and managed via your ShureCloud user account*. Once purchased, ANX4 channel licenses can be activated in one ANX4 and later removed and activated in a different ANX4. This is especially beneficial for users who own multiple ANX4 units serving various needs that change over time. Shure ANX4 delivers innovative, space-saving hardware, award-winning wireless audio features, and the ability to scale to the number of wireless channels your project demands.

Even without licenses assigned and activated, you can set up your ANX4 hardware by configuring the number of channels and channel names, scan and plan frequencies, check antenna conditions, and link transmitters for audio testing (via headphone output). Additionally, test audio can be sent through Dante ports to confirm a solid connection to your mixing console.

*Channel licenses are sold separately and required for activating audio outputs.
**System features are dependent upon activated transmission mode: Axient Digital or ULX-D (ANX4 does not support both systems at one time).

• Scalable Wireless Receiver for use with Axient Digital and ULX-D wireless systems
• Receives up to 16 channels of Axient Digital or 24 channels of ULX-D in a single rack space
• Channel licenses are perpetual licenses, available in single- and four-channel options (sold separately)*
• Purchased channel licenses can be activated in one ANX4 and later removed and activated in another ANX4, as needed, conveniently via ShureCloud user account
• Wide tuning range covers 174 MHz to 2 GHz, covering all Axient Digital and ULX-D options (except for the ULX-D 902 MHz band)
• All Axient Digital or ULX-D features included**

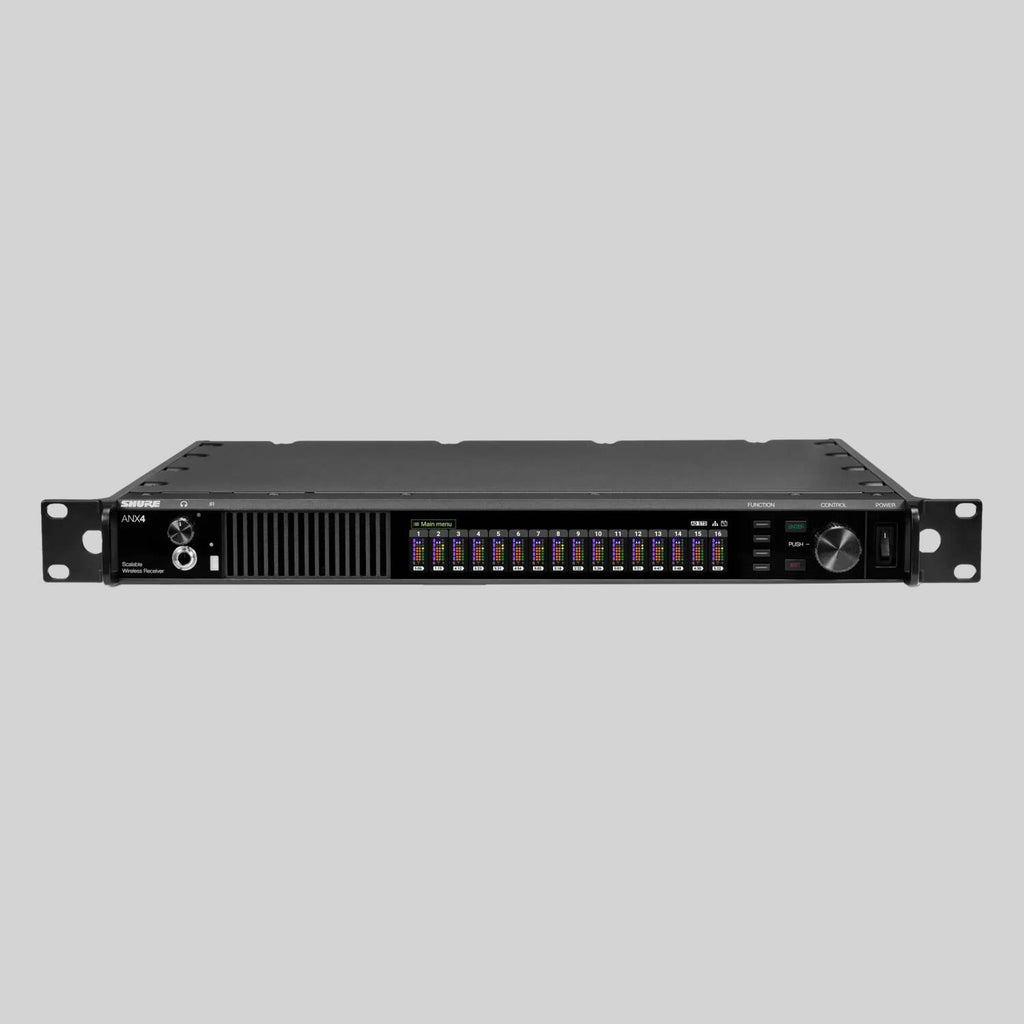

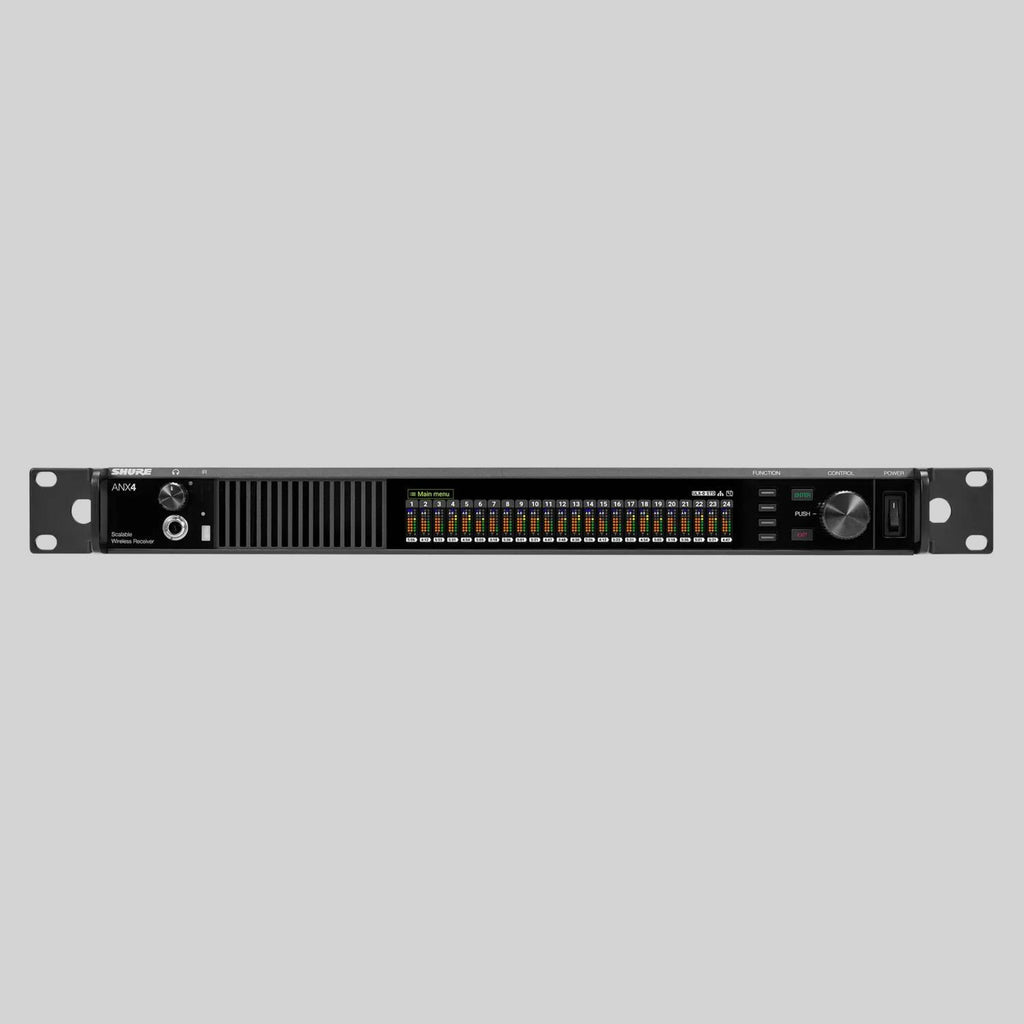

• Large, 6.6-inch front panel color display
• Five-segment Channel Quality meter displays RF signal-to-noise
• ¼-inch front-panel headphone connector for monitoring with Dante Browse (for both Axient Digital and ULX-D)
• Streamlined and cost-saving antenna setup for large-scale wireless deployment scenarios

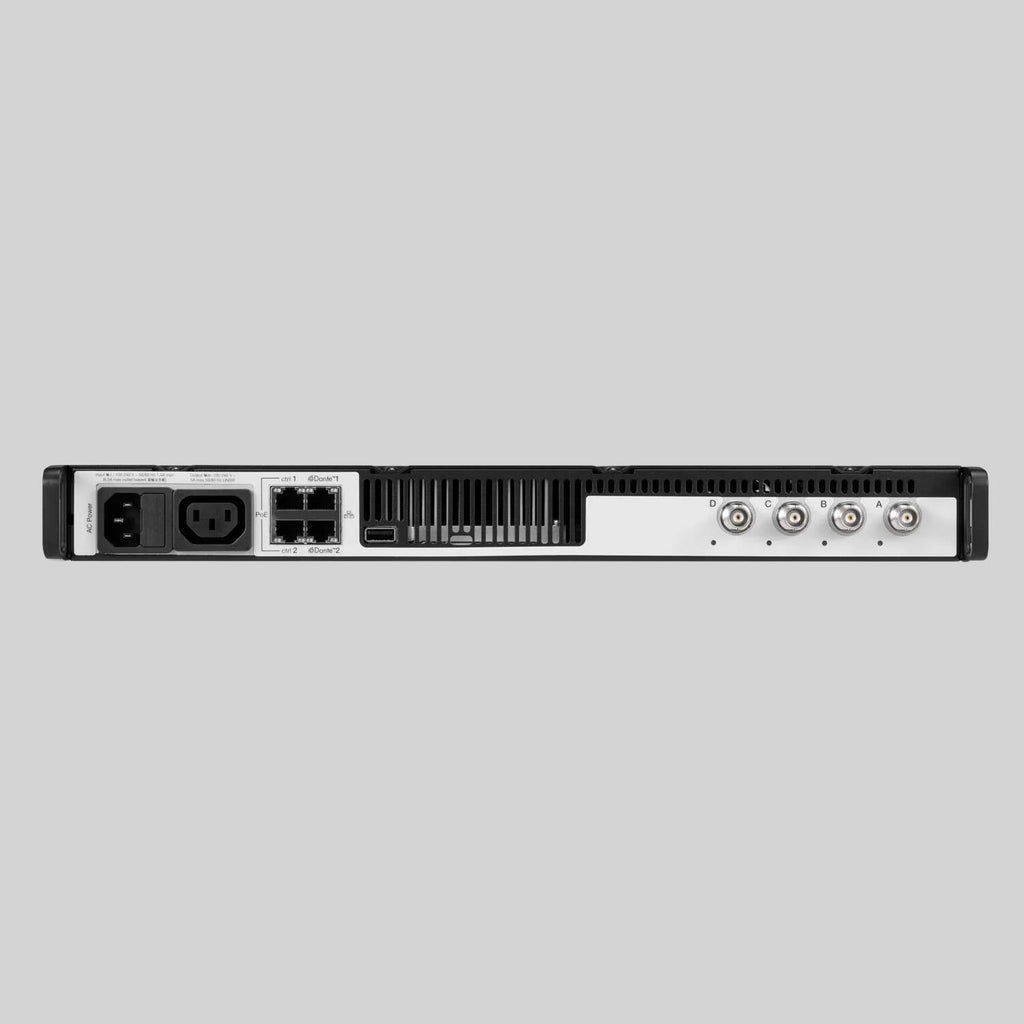

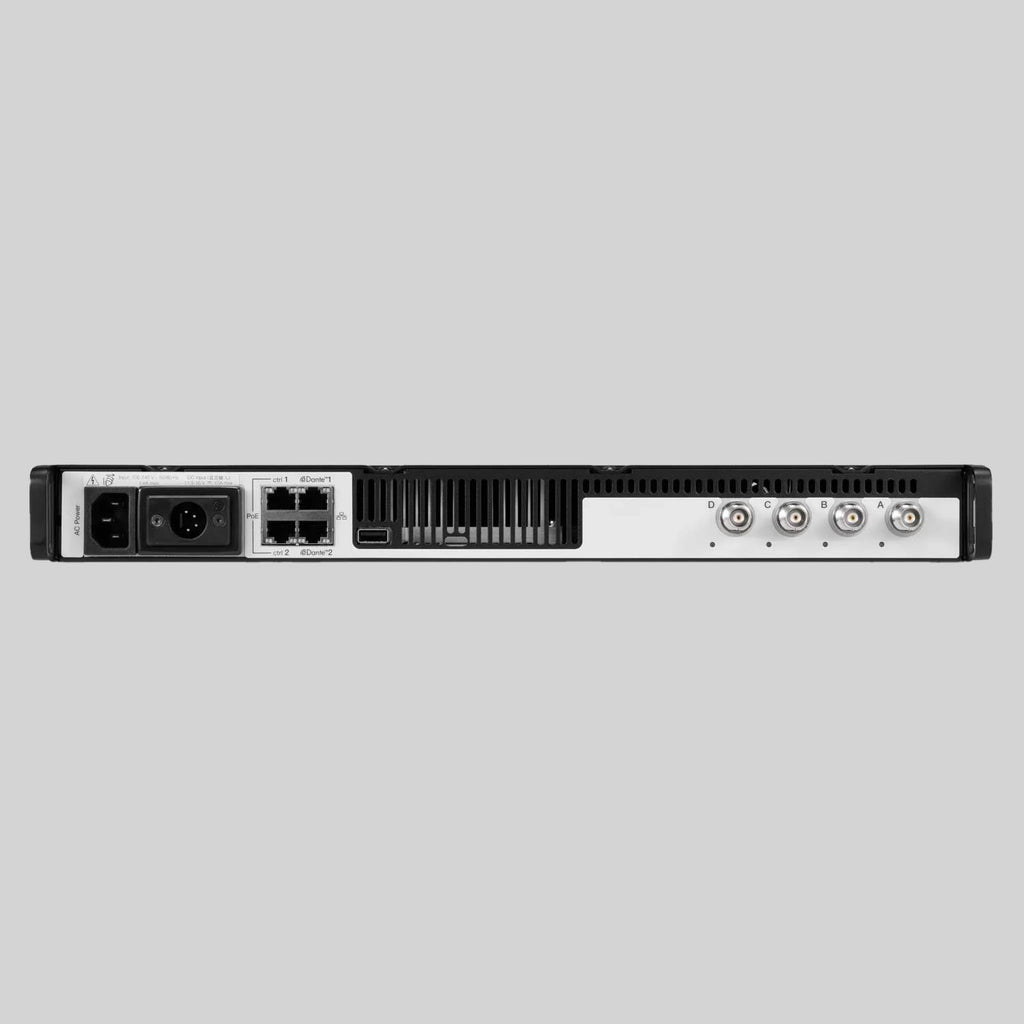

• 4 x Ethernet ports for network control and Dante/AES67 digital output options
• 4 x coaxial RF antenna input connectors support multiple frequency bands and provides greater coverage for complex setups
• Networked control with Shure Wireless Workbench® for extended and enhanced RF monitoring and management
• DC module version available to support redundant power

Dimensions and Weight

• Width: 18.976 in (482.0 mm)
• Height: 1.732 in (44.0 mm)
• Depth: 11.26 in (286.0 mm)
• Weight: 0.019 lb (9 g)
