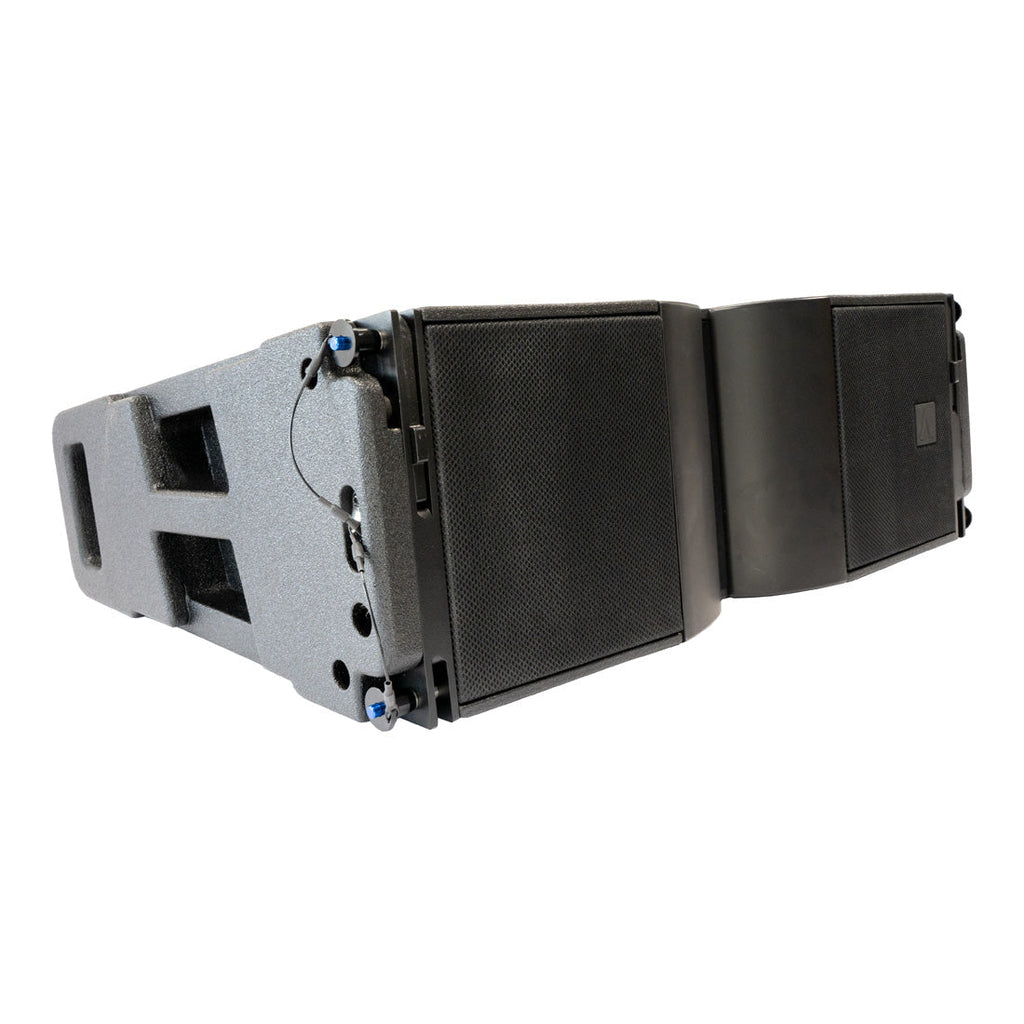

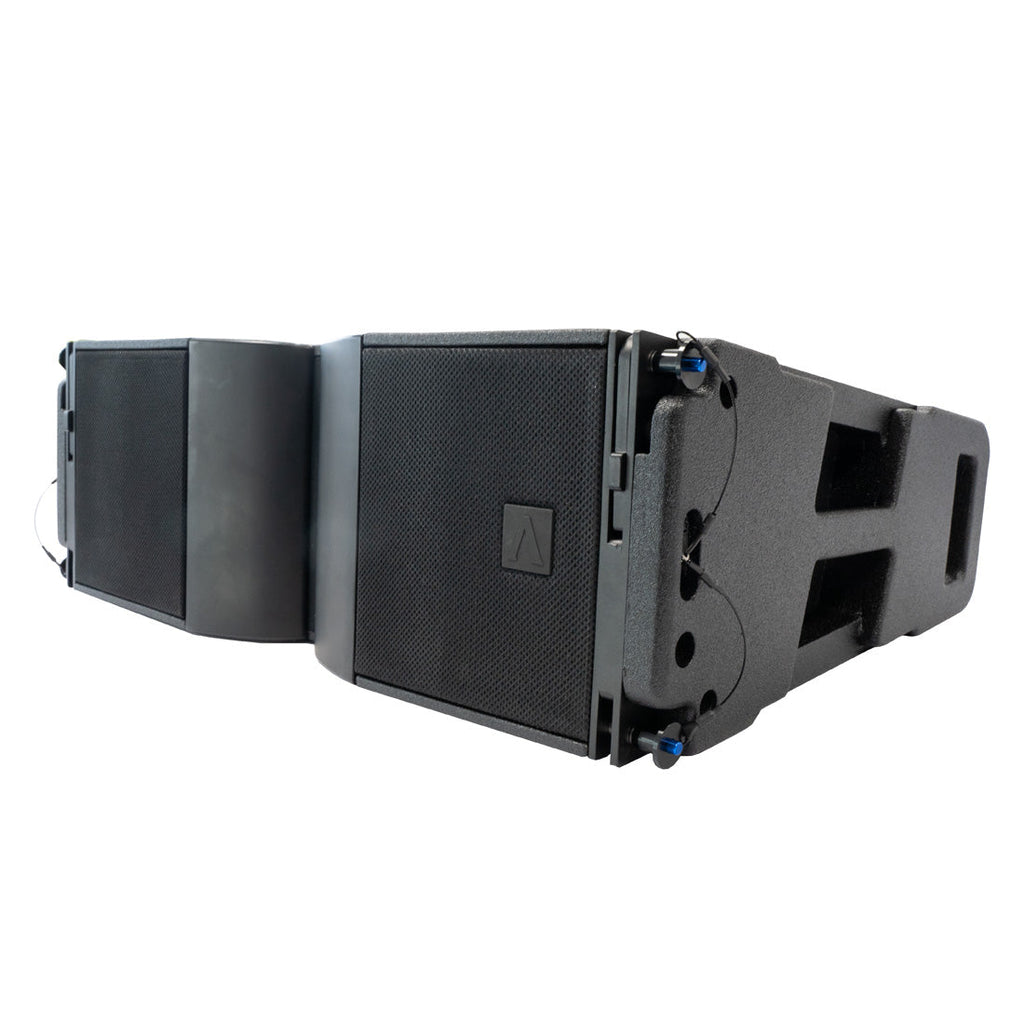

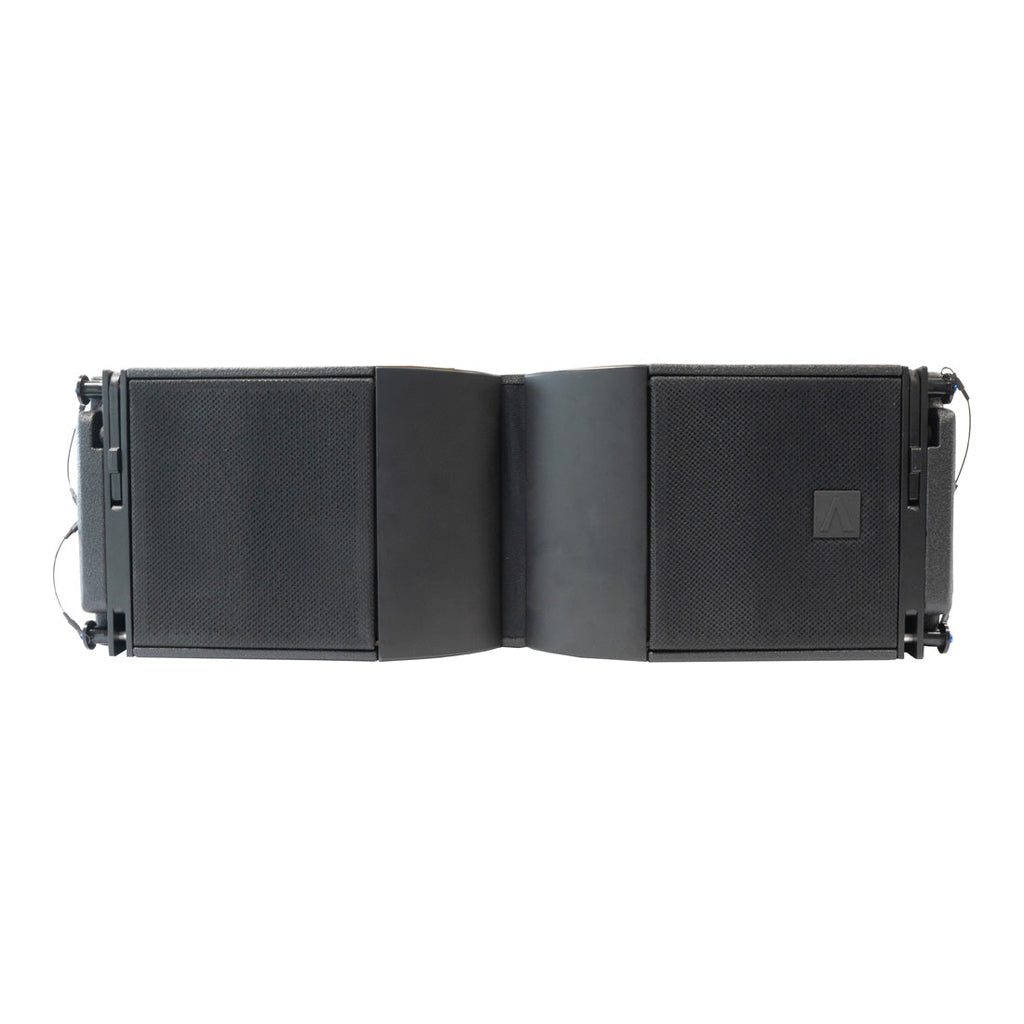

Designed in the USA, the Milan™ certified Avante Audio Akro ATL328 is a professional 2-way active small-format line array engineered for medium to large events and pairs nicely with the Avante Audio Akro ATS218 subwoofer. This is a single module to form small to large arrays depending on venue or application. This line array module is composed of twin high-output neodymium 8-inch low-mid frequency drivers and one MF/HF neodymium compression driver coupled with a precision medium-format waveguide. The 2-way discrete Class-D switching power amplifier boasts 1800 watts of total peak power and a universal PFC power supply. This ensures exceptional headroom, minimal distortion, and high reliability. As a complete system, the line array delivers an outstanding full-range frequency response of 70 Hz to 20 kHz (-6 dB) and a wide 110-degree horizontal coverage pattern.

The Akro ATL328 is equipped with a comprehensive German-made DSP featuring full system networking, remote monitoring and control, including input level, equalization, delay, and LF/HF compensation presets. It can be controlled via the new Akro-Command system control software (Windows/Mac) or locally using three rotary switches.

This DSP also enables networked audio using the Milan™ standard, allowing for simple setup via TCP/IP. Analog audio connections are also available.

The Akro ATL328 is designed to deliver unparalleled full-range sound reinforcement in a compact, lightweight package.

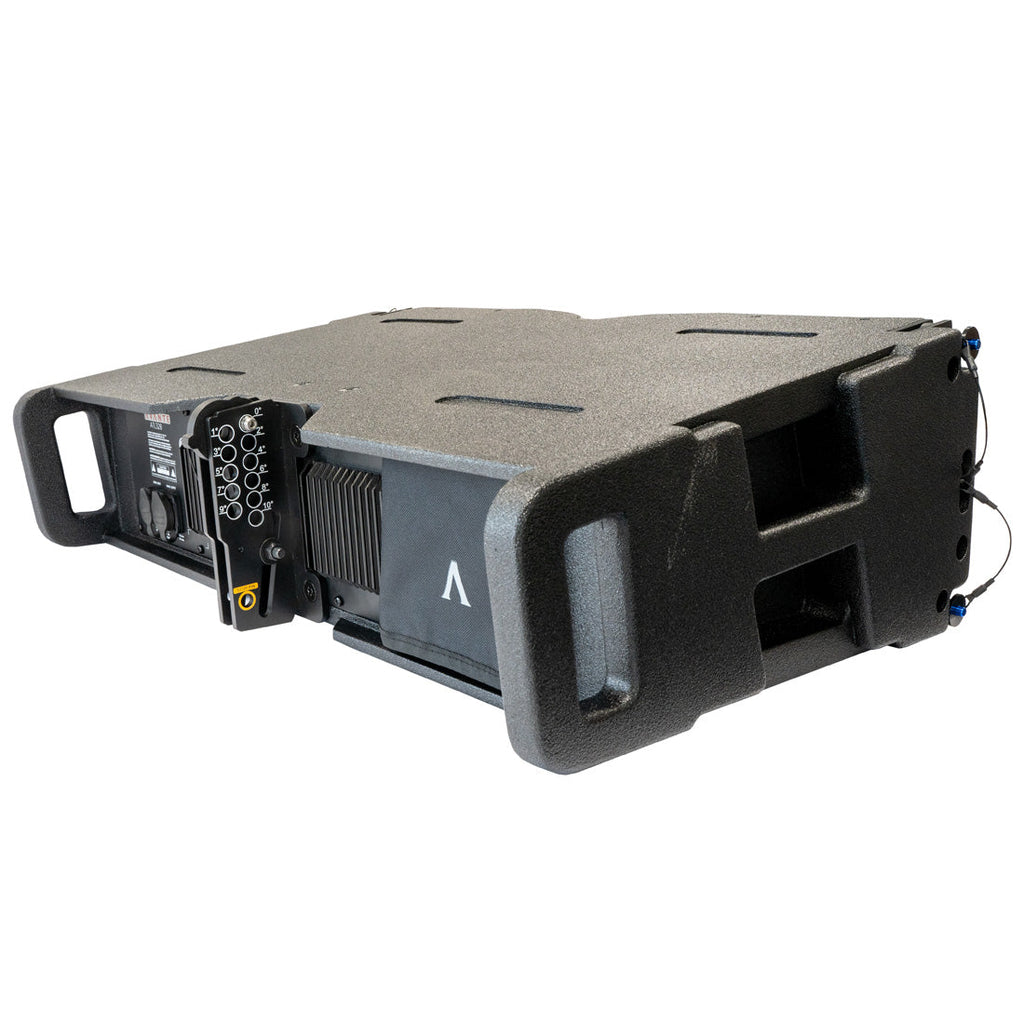

Constructed from precision CNC-machined Baltic birch plywood, the enclosure is built to withstand the rigors of touring and demanding environments, making it an ideal solution for live sound production, touring, and permanent installations. The robust EZ-Deploy multi-angle rigging system simplifies achieving proper vertical coverage angles and throw distances, while also making ground stacking and transportation easy. A protective rain cover for the amplifier connections and IP-rated locking power connectors are included as standard.

Finished in a durable black polyurea coating and featuring a black powder-coated galvanized steel grille, this line array system is designed to complement any performance environment. Each module is capable of delivering an impressive maximum SPL of 132 dB peak.

The new Akro ATL328 small-format line array is the perfect choice for audio professionals looking to make a big impact and take their events to the next level.

***Power and Speaker Cables Sold Separately***

Specifications

TECHNICAL DATA
Speaker Type: 2-Way Active, Dual 8-inch Line Array Module, Milan™ certified

ACOUSTICAL DATA
Frequency Response: 70 Hz - 20 kHz
Peak SPL One Unit: 132 dB
MF/HF: 4" (MF) + 2.55" (HF) Neodymium Compression Driver on Custom Waveguide
LF: 2 x 8" (2.5" voice coil) Neodymium
Crossover Frequency: 600 Hz
Horizontal Directivity: 110°
Vertical Directivity: Depends on system array size and configuration

AMPLIFIER
Channels: 2 channels, LF and MF/HF
Power: Class D, 2-way, 1800-Watt Peak
Cooling: Convection, Internal Fan
Power Supply: AC 220-240V, 50/60 Hz, 8A; AC 100-120V, 50/60 Hz, 16A; Auto-Range Mains Input
Protection: Thermal, DC Offset, Output Short

PROCESSOR
German-Made Proprietary DSP, Milan™ Enabled
Sample Rate: 96 kHz
Limiter: Multi-Band Compressor, Peak Limiter
Processing (Filters): Linear Minimum Phase FIR

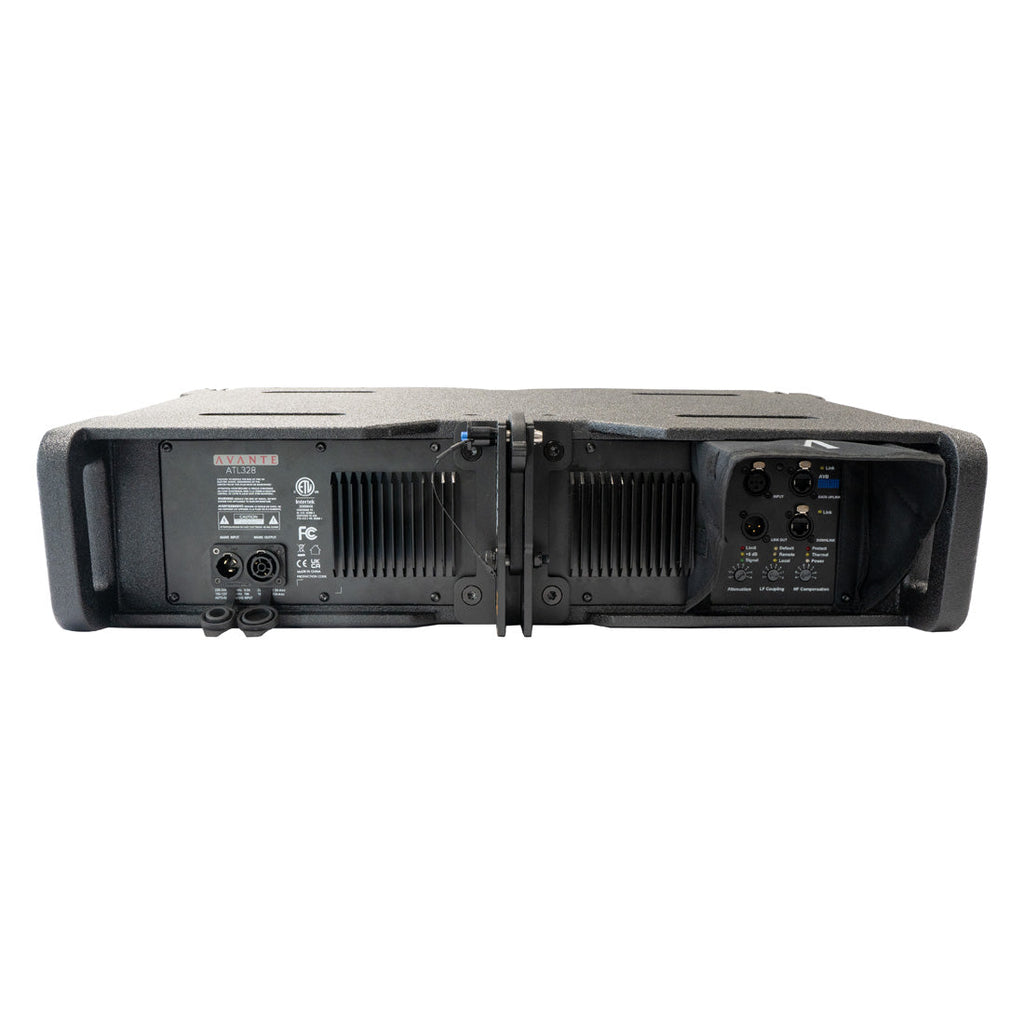

INPUT
Signal In/Out (Analog): 3-pin XLR; (Digital): AES RJ-45 Milan™
Power Socket: IP65 Locking Power In/Out
Network: Locking RJ45 In/Out for Control and Milan™ Network

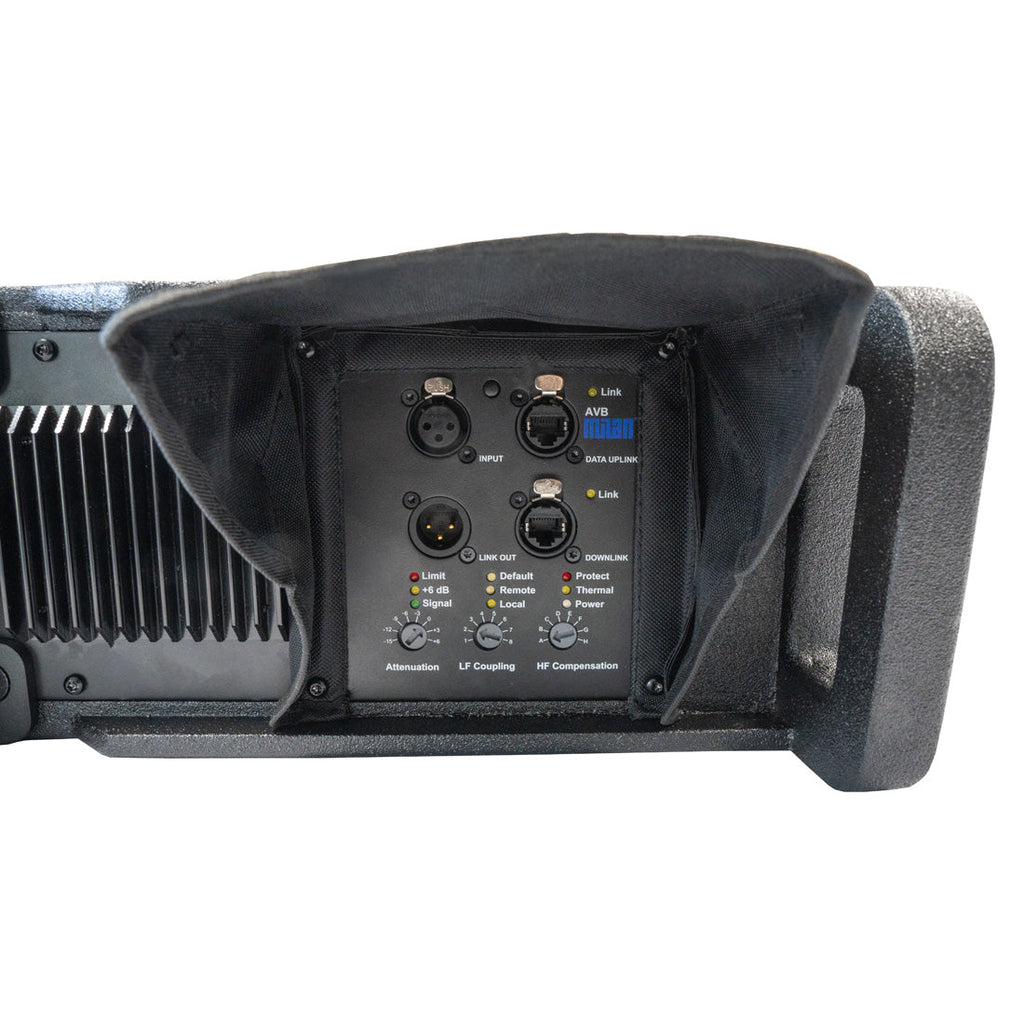

Controls: Attenuation (-15 dB to +6 dB); LF Coupling (8 Presets); HF Compensation (8 Presets); System Test/Reset Button

POWER LINKING
3 Speaker Cabinets @ 120V, 20A
6 Speaker Cabinets @ 208V, 20A

POWER DRAW (at 1/8 Power)
2.6A / 198W

REMOTE CONTROL
Full System Control and Monitoring with AKRO-Command Software
Compatible with Mac and Windows PC

CONSTRUCTION
Cabinet: Baltic Birch Premium Plywood
Finish: Durable Black Polyurea Coating
Handles: 4 Integral Handles (1 on Each Side, 2 on Back)
Amplifier Protection: Rain-Resistant Cover Included
Rigging: EZ-Deploy Full-Articulating Precision Rigging System
Dimensions (L x W x H): 27.4" x 18.3" x 9.1" / 696 x 465 x 232 mm
Weight: 61.7 lbs. / 28.0 kg

ACCESSORIES
ATC328 Transport Cart for up to 5 ATL328 Modules
CVR328 Protective Cover for up to 5 ATL328 Modules
AFB328 Array Flybar/Ground Stack Base for up to 16 ATL328 Modules
AXB328 Extender Lift Bar Attachment for AFB328
ASB328 Stabilizer Bars for ATC328 (2-Piece Set)
SIP650: Molded Locking IP65 Fixture-Side Connector to 120V IP20 Male Edison Plug
SIP064: 1.64 ft. (0.5 m) IP65-Rated Male-to-Female Power Twist-Lock Link Cable for Daisy-Chaining Power Between Fixtures
Specifications are subject to change without notice.
