Description

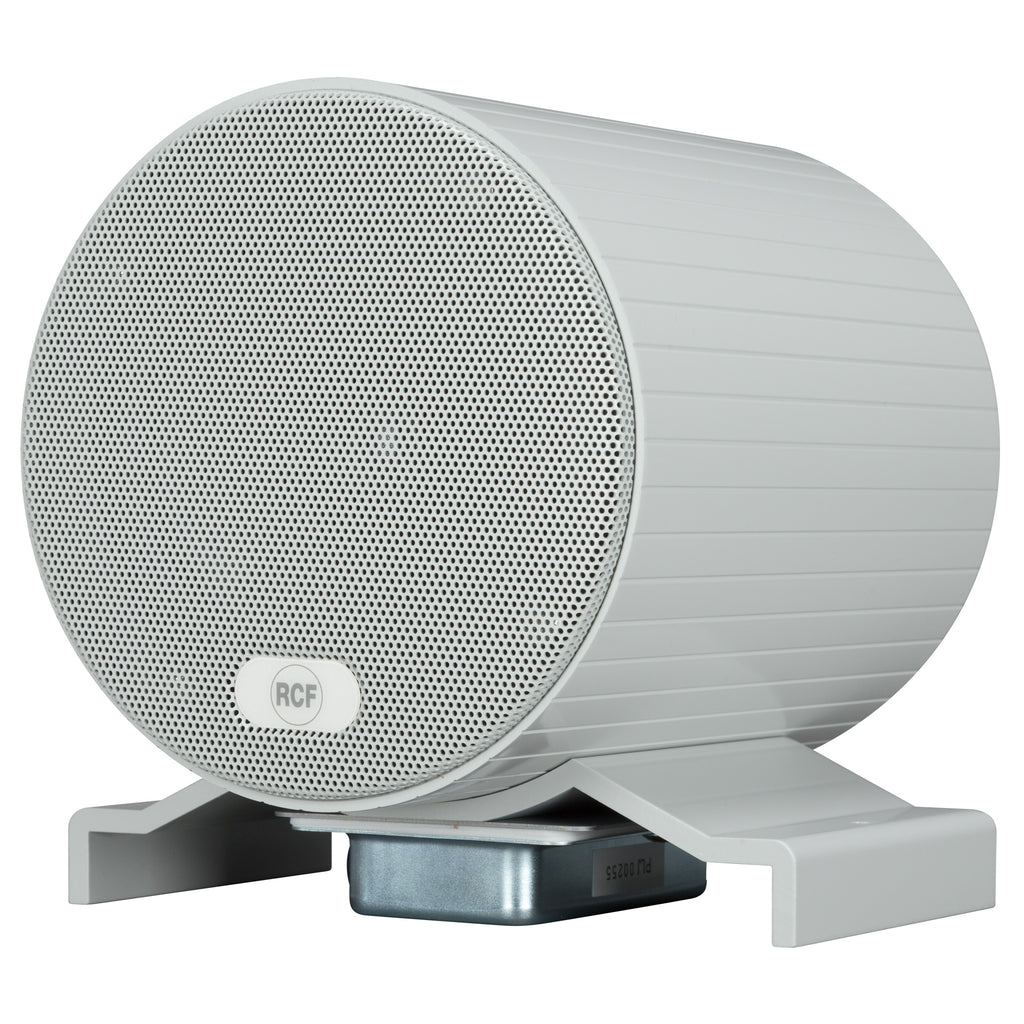

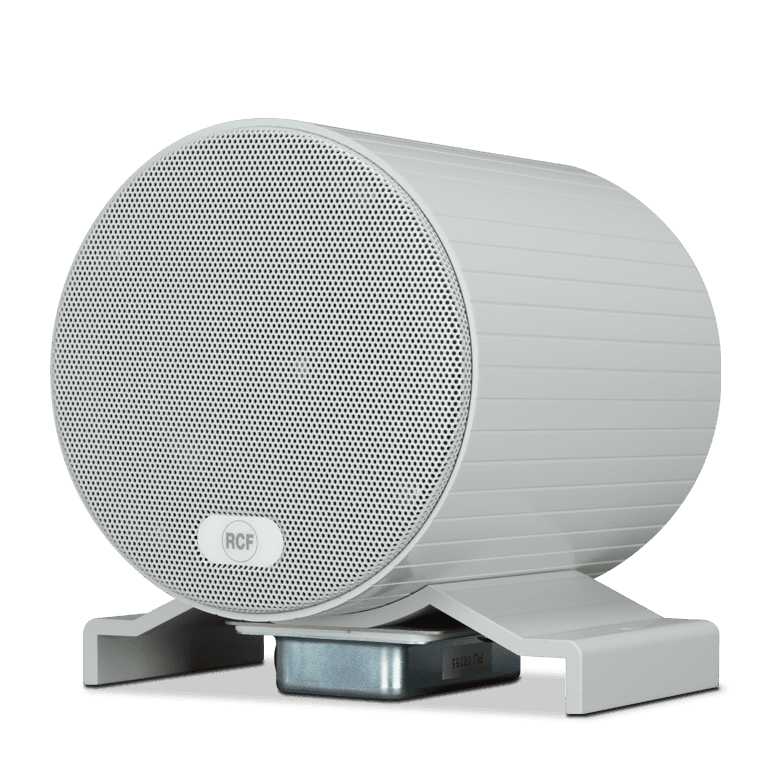

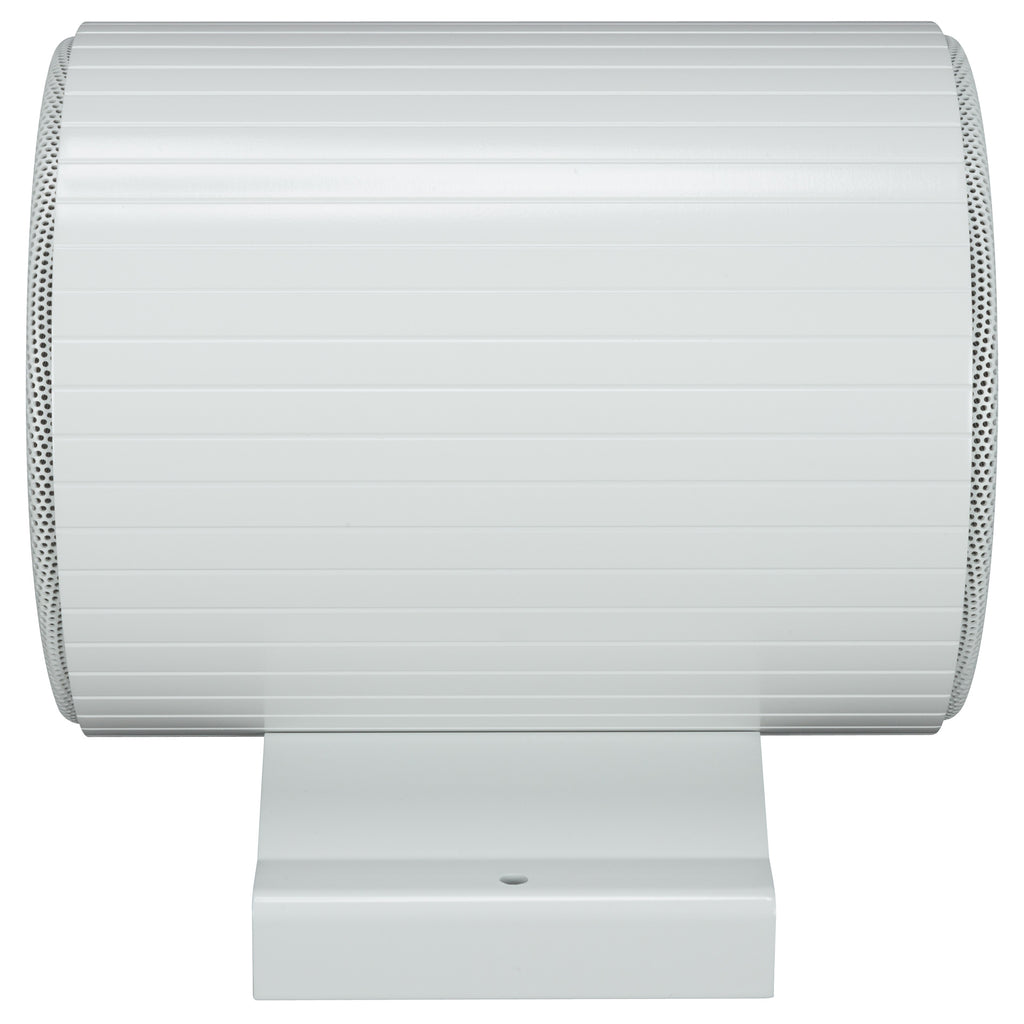

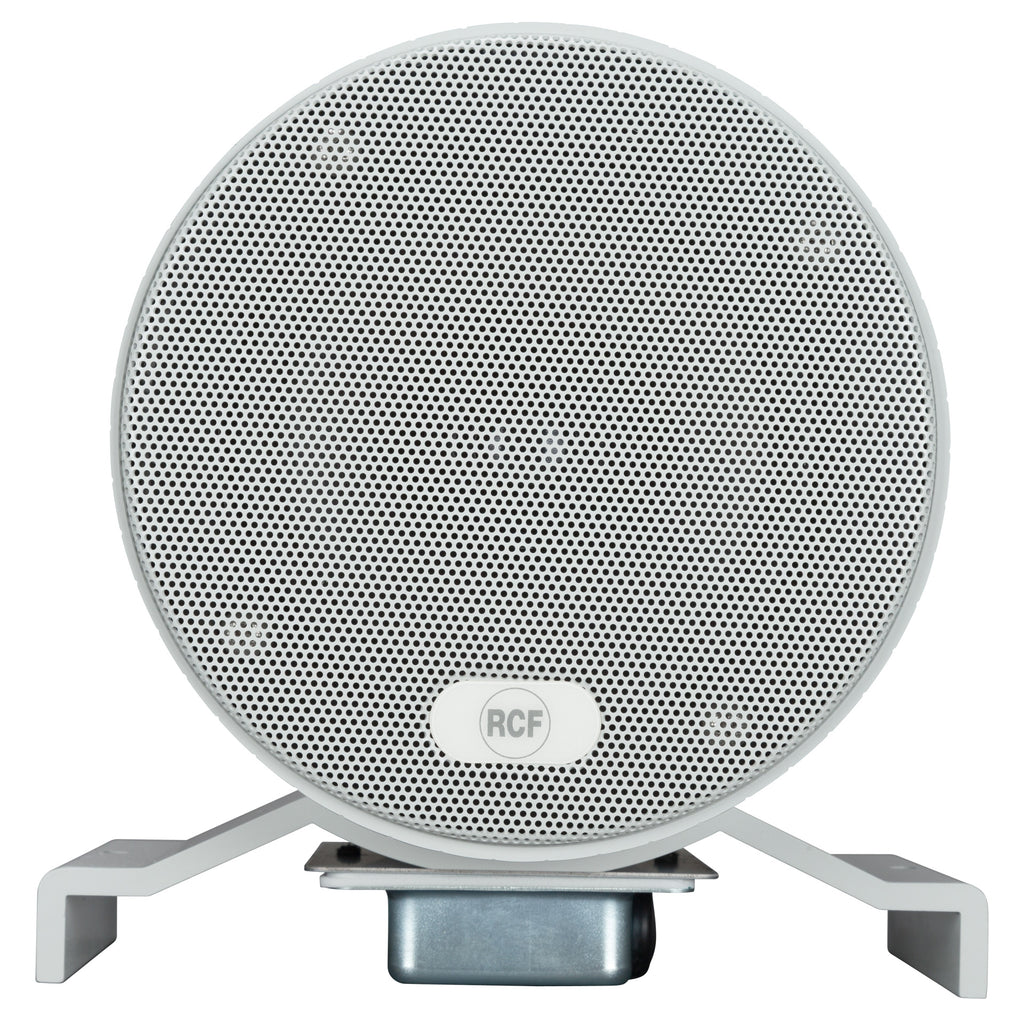

BD 2412EN is a bidirectional sound projector featuring an elegant aesthetic and easy installation, suitable for the sonorization of commercial and industrial environments where a good sound quality and high intelligibility and efficiency are required. It features a aluminium cylindrical body, grille and bracket. Ground screw available (if needed). Thanks to its IP66 protection grade, it can be installed both indoor and outdoor.
Features
- 2 x 5" fullrange transducers.
- Power selectable (100 V): 20 W - 10 W - 5 W.
- 88 dB sensitivity.
- Colour grey RAL 7035.
- Aluminium body, grille and bracket.
- In/out ceramic terminal block.
- Thermal fuse protection.
- Protection grade IP66.
Specifications
| Acoustical specifications | |
| Frequency Response (-10dB) | 130 Hz - 20000 Hz |
| Max SPL @ 1m | 101 dB |
| Max SPL @ 4m | 89 dB |
| Coverage angle | 130° |
| System Sensitivity | 88 dB |
| System Sensitivity 1W @ 4m | 76 dB |
| Power section | |
| Power Handling | 20 W |
| Peak Power Handling | 80 W PEAK |
| Protections | Thermal fuse |
| Recommended Amplifiers | DXT 3000, DXT 4000, DXT 7000 |
| Transducers | |
| Fullrange | 2 x 5.0'' |
| Input/Output section | |
| Input connectors | Ceramic screw terminals |
| Output connectors | Ceramic screw terminals |

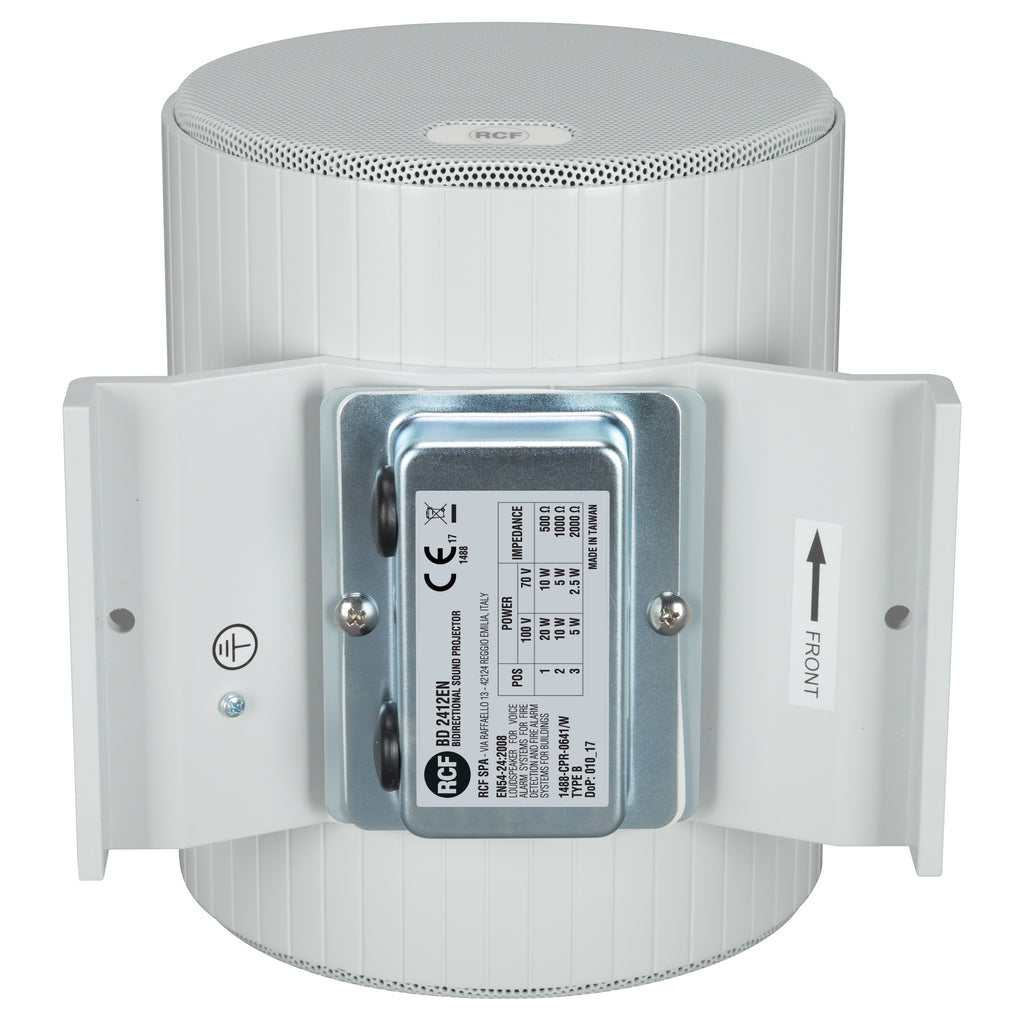

| Constant Voltage Transformer | 100 V |
| Power selection 1 | 20 W - 500 ohm |
| Power selection 2 | 10 W - 1000 ohm |
| Power selection 3 | 5 W - 2000 ohm |
| Standard compliance | |
| IP protection grade | IP 66 |
| Safety agency | CE compliant |
| EN54-24 certified | Yes |
| CPR number | 1488-CPR-0641/W |
| Physical specifications | |
| Cabinet/Case Material | Aluminum |
| Hardware | Aluminium bracket |
| Grille | Aluminium |
| Color | Grey - RAL 7035 |
| Size / Weight | |
| Depth | 184 mm / 7.24 inches |
| Diameter | 146 mm / 5.75 inches |
| Weight | 3.25 kg / 7.17 lbs |
| Shipping information | |
| Package Height | 185 mm / 7.28 inches |
| Package Width | 240 mm / 9.45 inches |
| Package Depth | 185 mm / 7.28 inches |
| Package Weight | 3.25 kg / 7.17 lbs |
