Description

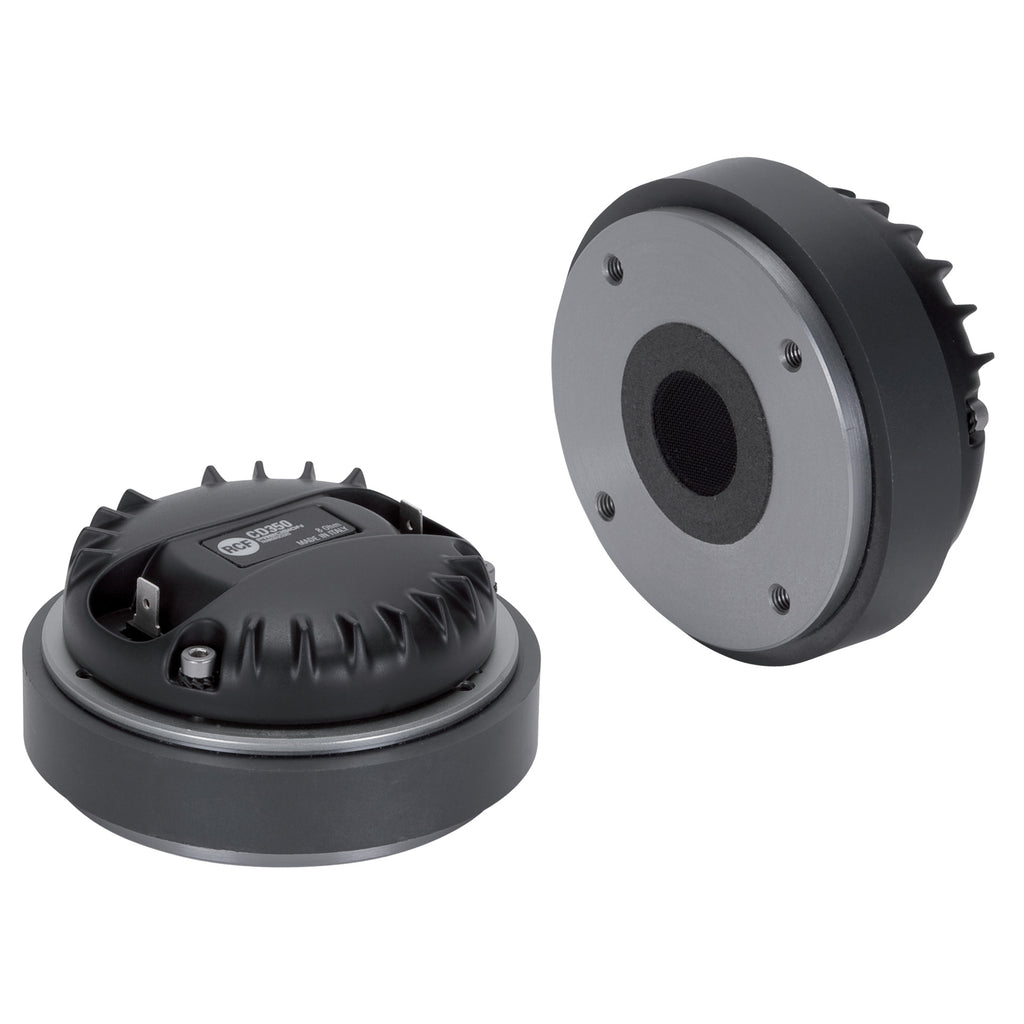

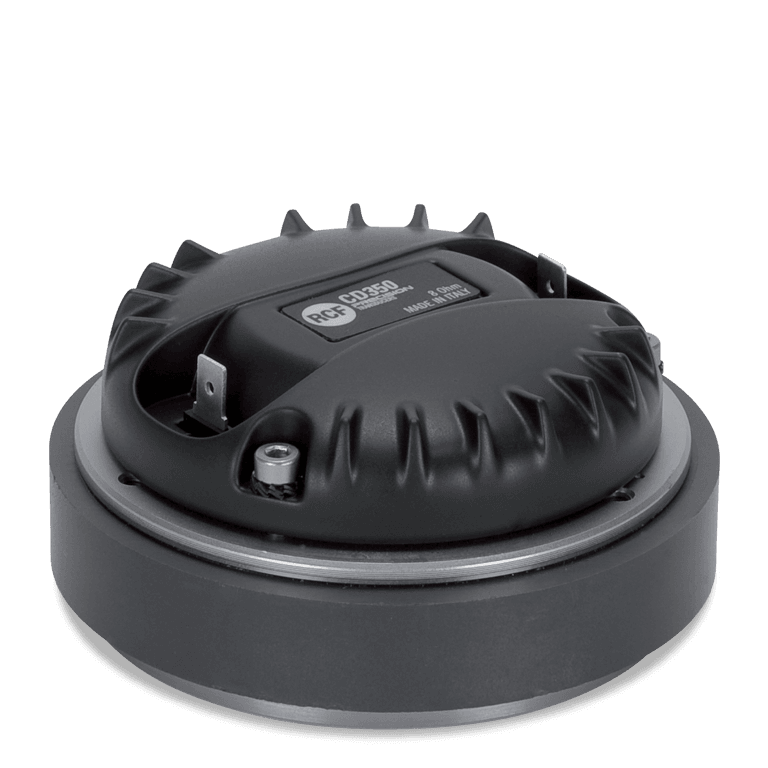

The CD350 is a high performance 1.75-inch diaphragm ceramic compression driver with a 1.0 inch exit throat. The diaphragm is precision formed from polyester. The voice coil assembly is designed using high temperature Kapton former, rectangular profile copper clad aluminum wire and assembled using advanced, specially formulated adhesives.
Features
- 1.75-inch Diaphragm, 1-inch Exit Throat / Polyester Compression Driver
- 100W continuous program power handling
- Frequency range: 1200Hz - 20kHz
- 2-slot optimized geometry phase plug
- Polyester diaphragm
- Vented suspension system
- Compact ceramic magnet assembly
Specifications
| General specifications | |
| Exit Throat Diameter | 1.0 inch / 25 mm |
| Related Impedance | 8 ohm |
| Program Power (watt) | 100 W |
| Power handling capacity | 50 W |
| Sensitivity | 108 dB |
| Frequency range | 1200 - 20000 Hz |
| Diaphragm Material | Polyester |
| Suspension Material | Polyester |
| Suspension Design | Flat |
| Minimum Impedance (ohm) | 6.50 ohm |
| Voice Coil Diameter | 1.75 inch / 44 mm |
| Voice Coil Winding Material | Edgewound Aluminum |
| Voice Coil Former Design | Straight - Kapton |
| Number of layers | 1 |
| Kind of layers | outside |
| Flux Density | 1.6 T |
| Phase Plug Design | 2 slot |
| Phase Plug Material | PP Composite |
| Magnetics | Ceramic |
| Thiele - small parameters | |
| Bl factor (Bl) (T x m) | 6.70 T x m |
| Mounting information | |
| Overall diameter | 102 mm / 4.02 inches |
| Overall height | 50 mm / 1.97 inches |
| Mounting | 4 x 6 mm threaded holes at 90° |
| Standard compliance | |
| Safety agency | CE compliant |
| Size / Weight | |
| Weight | 1.23 kg / 2.71 lbs |
| Shipping information | |
| Package Height | 74 mm / 2.91 inches |
| Package Width | 122 mm / 4.8 inches |
| Package Depth | 123 mm / 4.84 inches |
| Package Weight | 1.35 kg / 2.98 lbs |
