Description

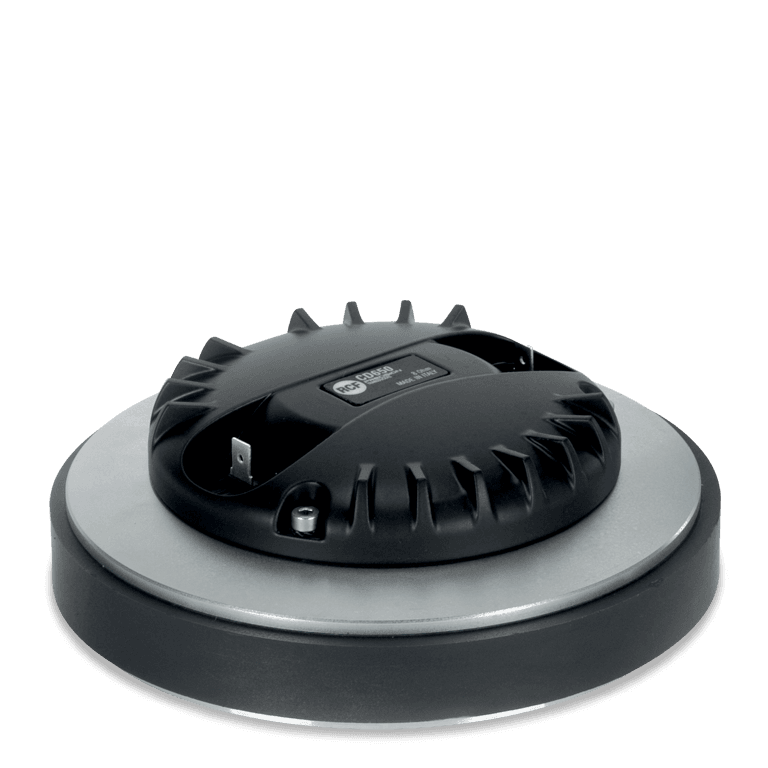

The CD650 is a high performance 2.5-inch diaphragm compression driver with a 1.4 inch exit throat featuring several state of the art technologies. The diaphragm are precision formed from pure titanium. The suspension is based on a vented Polyester design for low distorsion. Voice coil assembly is designed using high temperature kapton former.
Features
- 2.5-inch Diaphragm, 1.4-inch Exit Throat / Pure Titanium Compression Driver
- 180W continuous program power handling
- Frequency range: 700Hz - 20kHz
- 3-slot optimized geometry phase plug
- Titanium diaphragm
- Copper inductance ring for extended response
- Vented, damped, low distortion suspension system
- Ceramic magnet assembly
Specifications
| General specifications | |
| Exit Throat Diameter | 1.4 inch / 36 mm |
| Related Impedance | 8 ohm |
| Program Power (watt) | 180 W |
| Power handling capacity | 90 W |
| Sensitivity | 109 dB |
| Frequency range | 700 - 20000 Hz |
| Diaphragm Material | Pure Titanium |
| Suspension Material | Polyester |
| Suspension Design | Flat |
| Minimum Impedance (ohm) | 7.50 ohm |
| Voice Coil Diameter | 2.5 inch / 63 mm |
| Voice Coil Winding Material | Edgewound Aluminum |
| Voice Coil Former Design | Straight - Kapton |
| Number of layers | 1 |
| Kind of layers | outside |
| Flux Density | 1.9 T |
| Phase Plug Design | 3 slot |
| Phase Plug Material | Aluminum |
| Magnetics | Ceramic |
| Voice Coil Demodulation Ring | Copper |
| Thiele - small parameters | |
| Bl factor (Bl) (T x m) | 9.80 T x m |
| Mounting information | |
| Overall diameter | 165 mm / 6.5 inches |
| Overall height | 56 mm / 2.2 inches |
| Mounting | 4 x 6 mm threaded holes at 90° |
| Standard compliance | |
| Safety agency | CE compliant |
| Size / Weight | |
| Weight | 4.33 kg / 9.55 lbs |
| Shipping information | |
| Package Height | 75 mm / 2.95 inches |
| Package Width | 188 mm / 7.4 inches |
| Package Depth | 190 mm / 7.48 inches |
| Package Weight | 4.66 kg / 10.27 lbs |
