Description

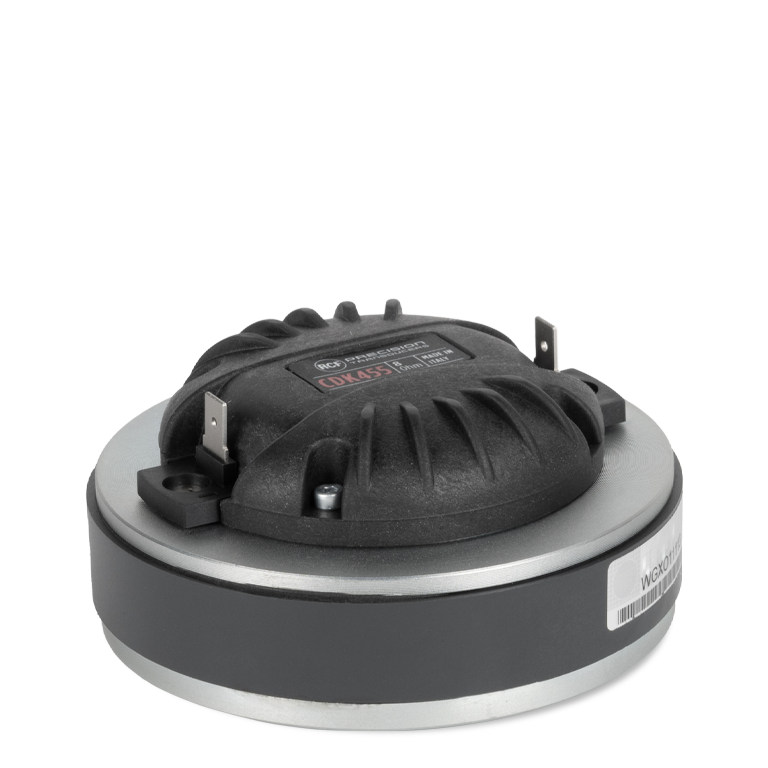

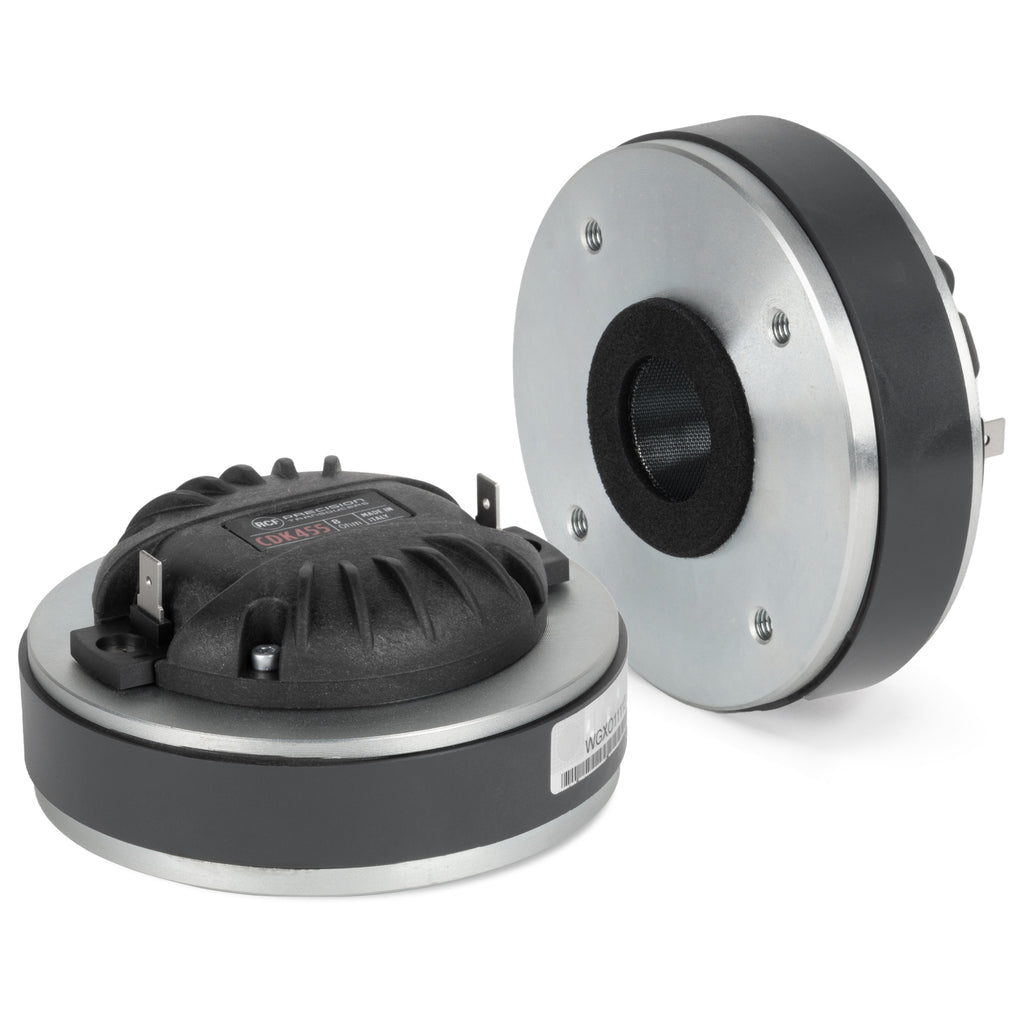

The CDK455 is a compression driver for professional applications where high-quality sound and long-term reliability are required. The ultra-compact size, 1.75" Kapton® dome, and the low recommended crossover point make this transducer ideal for point source two-way cabinet designs. The new 1.75" compression driver voice-coil design with Polyimide-Kapton dome features a new bonding technology and reinforced ribs make it robust and durable. The transducer utilizes ceramic magnets and a 2-slot phase plug to deliver exceptional power handling, sensitivity, and low distortion across its operating bandwidth. The driver specifies 140 Watts of continuous power handling, with a sensitivity of 109 dB.
Features
- 1.75-inch Kapton/polyimide dome
- Kapton former, edge wound aluminum voice coil
- 140W continuous program power handling @ 8O
- Frequency range: 1200Hz - 20kHz
- 2-slot optimized geometry phase plug
- Ceramic magnet
- Recommended for 2-way speaker design
Specifications
| General specifications | |
| Exit Throat Diameter | 1.0 inch / 25 mm |
| Related Impedance | 8 ohm |
| Program Power (watt) | 140 W |
| Power handling capacity | 70 W |
| Sensitivity | 109 dB |
| Frequency range | 1200 - 20000 Hz |
| Diaphragm Material | Polyimide |
| Suspension Material | Polyimide |
| Suspension Design | Flat |
| Minimum Impedance (ohm) | 6.50 ohm |
| Voice Coil Diameter | 1.75 inch / 44 mm |
| Voice Coil Winding Material | Edgewound Aluminum |
| Voice Coil Former Design | Straight - Kapton |
| Number of layers | 1 |
| Kind of layers | outside |
| Flux Density | 1.5 T |
| Phase Plug Design | 2 slot |
| Phase Plug Material | PP Composite |
| Magnetics | Ceramic |
| Thiele - small parameters | |
| Bl factor (Bl) (T x m) | 5.85 T x m |
| Mounting information | |
| Overall diameter | 102 mm / 4.02 inches |
| Overall height | 47 mm / 1.85 inches |
| Mounting | 4 x 6 mm threaded holes at 90° |
| Standard compliance | |
| Safety agency | CE compliant |
| Size / Weight | |
| Weight | 1.23 kg / 2.71 lbs |
| Shipping information | |
| Package Height | 74 mm / 2.91 inches |
| Package Width | 122 mm / 4.8 inches |
| Package Depth | 123 mm / 4.84 inches |
| Package Weight | 1.35 kg / 2.98 lbs |
