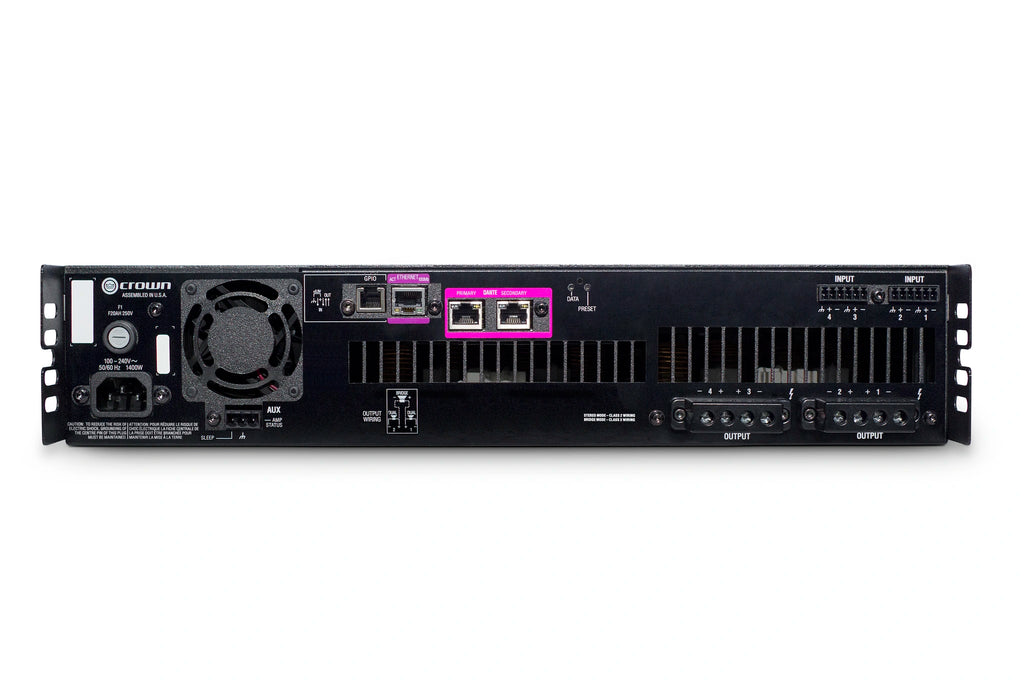

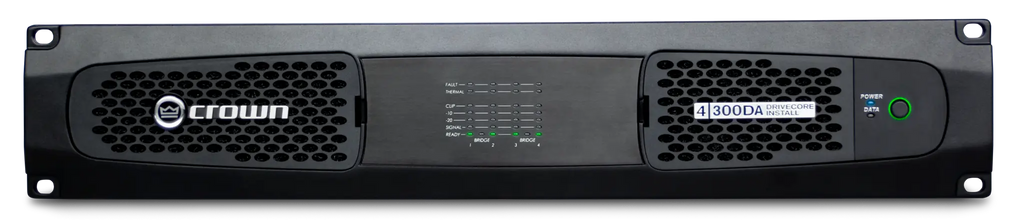

For applications that require Dante or AES67 networked audio, the Crown DriveCore Install DA Series provides a balanced combination of output power, channel count and speaker load flexibility along with proprietary DriveCore® technology for superb efficiency and exemplary audio quality. The DCi DA Series includes a high-powered DSP with JBL speaker tunings, network control/monitoring, and the ability to drive 2/4/8/16 ohm, 70V and 100V speaker loads. The amp’s advanced capabilities and support for Dante Domain Manager makes it perfect for installations that have standardized on Dante for networked audio transport. Output Power: Dual Mode - All Channels Driven DCi DA Model Channels 2Ω 4Ω 8Ω 16Ω 70Vrms 100Vrms 4|300DA 4 150W 300W 300W 150W 300W 300W 8|300DA 8 150W 300W 300W 150W 300W 300W 4|600DA 4 300W 600W 600W 300W 600W 600W 8|600DA 8 300W 600W 600W 300W 600W 600W 4|1250DA 4 1250W 1250W 1250W 625W 1250W 1250W Minimum Guaranteed Power (20Hz - 20kHz) Output Power: Bridge Mono Mode - All Channels Driven DCi DA Model 4Ω 8Ω 16Ω 140Vrms 200Vrms 4|300DA 300W 600W 600W 600W 600W 8|300DA 300W 600W 600W 600W 600W 4|600DA 600W 1200W 1200W 1200W 1200W 8|600DA 600W 1200W 1200W 1200W 1200W 4|1250DA 2500W 2500W 2500W 2500W 2500W Minimum Guaranteed Power (20Hz - 20kHz)

Features

• Integrated Dante™ / AES67 Networked Audio - Simplifies installation by enabling Dante / AES67 networked audio signals to be sent directly to the amplifier. Provides flexibility of installation options available with our expansive line-up of DriveCore Install amplifiers. Includes support for Dante 4.0 firmware for integration with Dante Domain Manager.
• Network Configuration, Monitoring & Control - Better monitoring, control and audio manipulation with the HiQnet™ protocol over standard TCP/IP network. The HiQnet Audio Architect software allows for remote configuration, monitoring, and control of all aspects of the DCi-DA Series amplifiers.
• Programmable General Purpose Input/Output Port - GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to third-party control system.
• Digital Signal Processing - DSP capabilities include the following:
• LevelMAX Limiters
• Input/Output EQ
• Crossover
• Delay
• Matrix Router

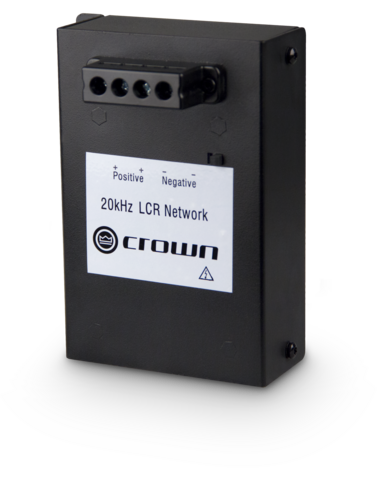

• Speaker Line Monitoring

Specifications

• Model: DCI4X300DA
• Output Channels: 4
• Frequency Response (8Ω, 20Hz - 20kHz): ±0.25dB
• Total Harmonic Distortion (at full rated power, 20Hz - 20kHz): 0.35%
• Damping Factor (20Hz to 100Hz): >1000
• Load Impedance (Stereo/Dual Mode): 2Ω - 16Ω; 70Vrms and 100Vrms
• Load Impedance Bridge Mono: 4Ω - 16Ω; 140Vrms and 200Vrms
• Cooling: Continuously variable speed forced air, front to back airflow
• Maximum Fan Noise (re dBA SPL @ 1M): 45
• Required AC Mains (±10%): 100V-240V ~ 50/60Hz
• Power Connector: 15A IEC
• Dimensions (W x H x D): 483 mm x 89 mm x 362 mm 19 in x 3.5 in x 14.25 in
• Weight: 9.12 kg (20.1 lbs)
• UPC: 691991010071
• Country of Origin: MX
